PZ-D8
Pl-D8 DSP AMPLIFIER USER’S GUIDE
• INTRODUCTION
Congratulations on your purchase of the PUZU PZ-D8 DSP amplifier. The high-speed digital signal processor amplifier was designed in the united states with sound quality that exceeds that of many conventional class D designs while offering stunning efficiency.
When installed and configured properly this PZ-D8 DSP Amplifier will bring a new level of realism and impact to your mobile entertainment system. To get the best performance from your DSP amplifier PUZU recommends that you have this amplifier installed and configured by an experienced professional.
• ABOUT THE MANUAL AND WARRANTY
This manual describes the basic requirements to install PUZU PZ-D8 DSP amplifier, the installation and configuration of this amplifier can be complex. if you do not possess the necessary knowledge, experience, and/or tools to perform this installation please contact your local authorized PUZU dealer to arrange for professional installation. Keep all instructions and your sales receipt for future reference and warranty purposes.
WARNING
PUZU products are capable of producing high sound pressure levels that can damage your hearing and make it difficult for the driver to hear other cars or emergency vehicles.PUZU wants you as a customer for life-please be responsible at all times when enjoying your audio system.PUZU takes no responsibility for any personal injury. Loss or damage associated with the use, or miss-use of this product. Please refer to the included warranty statement for details.
PZ-D8 DSP AMPLIFIER USER`S GUIDE

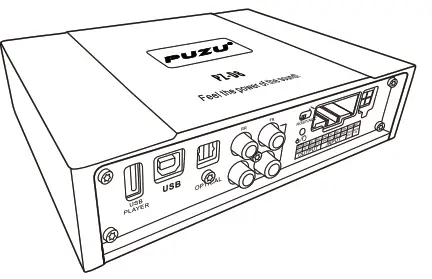

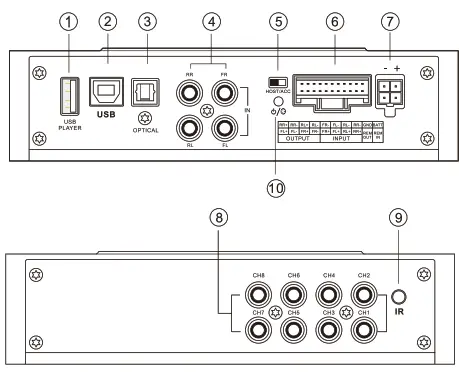

- USB PLAYER(Play USB music)
- USB for connection of PC software (data cable connection)
- OPTICAL INPUT
- RCA INPUT IFL.FRALAR)
- HOST/ACC This button is DSP star way, please put it on the HOST (high level) side as default, it means DSP starts with a DC signal, usually 6V from the car radio. if you can not operate DSP by HOST please try ACC, this means your car start by REM, some car with KEYLESS-GO use this way.
- POWER CABLE HARNESS CONNECTOR
- EXTRA STABLE POWER SUPPLY
(You can connect this cable to get a more stable power supply, especially when you use this device from RCA in and RCA out) - RCA OUTPUT CHI-CH8
- IR remote controller receiver slot (Remote controller is optional)
- STATUS LIGHT (When you right connect the unit, the red light blinks as default, when you playing Bluetooth or USB, the light turns to be blue)

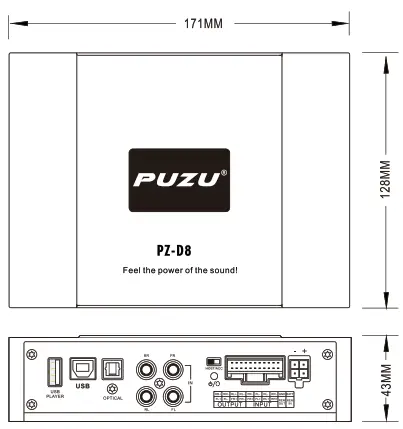

PRODUCT SIZE
PZ-D8 is D-Class Car DSP Amplifier built-in TI3116 Digital Amplifier IC, with 4X70W RMS Power output, it overcomes inherent acoustical anomalies within vehicles to develop a well-balanced response and proper sound stage even from a factory head unit, Customize your system with the 31-bands EQ and make precise adjustments to the detailed high/low crossovers and expansive time correction for each of the 8 channels Easily control PZ-D8 via an android smartphone connection or wired connection to your PC, either way, you get fast, real-time results The versatile PZ-D8 can be used with a factory system or other aftermarket head unit.

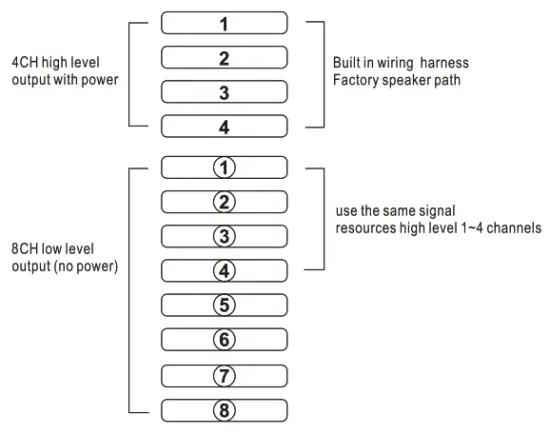

Diagram of the relationship between and output channels of the PZ-D
CHANNELS OUTPUT
Main Parameters | |
| RMS.POWER | 4X70W @4ohm / 4X150W @2ohm |
| PEAK. POWER | 4X220W @4ohm / 4X500W @2ohm |
| Frequency Respond | 20Hz-20KHz |
| T.H.D | <0.01% |
| S/N | >108dB |
| Isolation | >90dB |
| Working voltage | DC12V |
| Input | 4CH RCA low level /4CH high-level input Optical/USB/Bluetooth |
| Output | 4CH high-level output with power/8 RCA low level |
• ABOUT CONNECTION & DIAGRAM BASIC CONNECTION

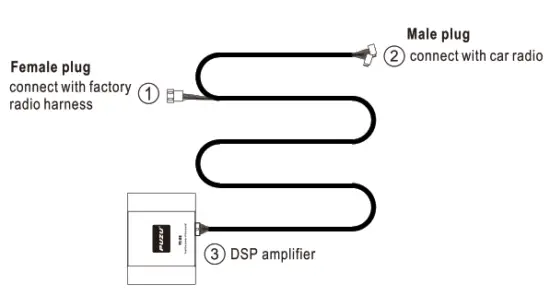

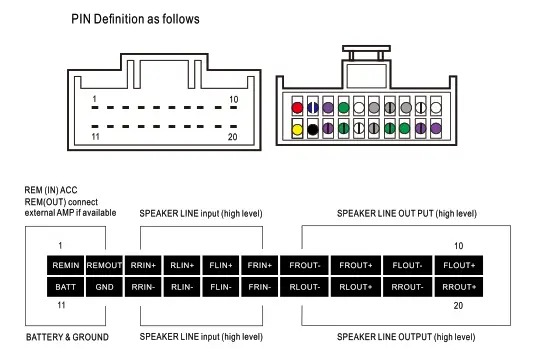

PUZU Car DSP Amplifier harness with 3 terminals, Connect0 with our factory radio harness, connect with your car rad lo. and connects the terminal to PUZU Car DSP Amplifier.
- DSP Amplifier use the same power source like your car radio.
- You can use the PUZU DSP amplifier cable directly plug into your factory radio.lf you changed your car radio to an aftermarket head unit, then you need an adaptor.
- PZ-D8 with 4 channels high level & low-level input, with 4 channels high-level output&13 channels low level (RCA) output, with complete 8X31 bands EQ separately control.

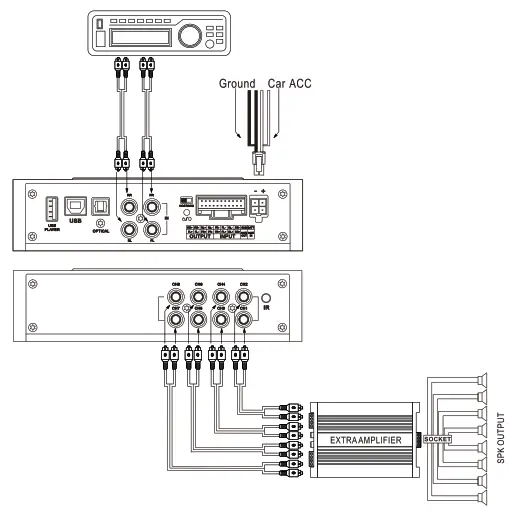

• YOU CAN USE THE SOLUTION 2AS FOLLOWS 4CH LOW-LEVEL INPUT WITH 8CH LOW-LEVEL OUTPUT (NEED EXTRA AMPLIFIER)
Make sure your car radio with low-level output and provide complete frequency for each channel, a stable power supply need to be connected.
• YOU CAN USE THE SOLUTION 3 AS FOLLOWS

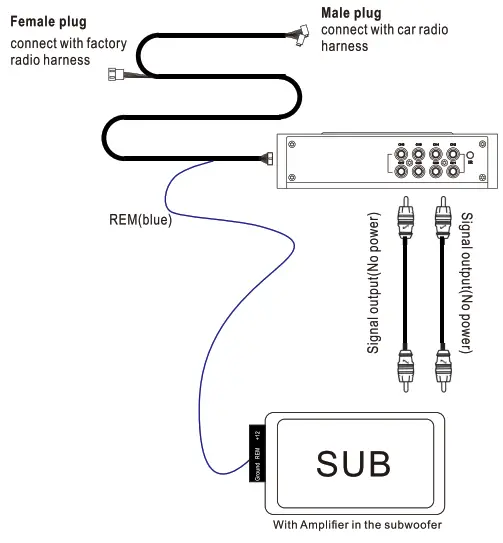

USE PZ•D8UPGRADE YOUR 4 DOOR SPEAKERS+ACTIVE SUBWOOFER
Please connect the separate blue wire(control line) to your subwoofer amplifier REM You can connect CH5—CH8 to any one of them connect with your active subwoofer.
PUZO PZ-DB SOFTWARE USERS GUIDE
Thank you for choosing PUZU for your Car Audio system and for sharing our philosophy. PUZU PZ-D8Car DSP Amplifier software with the best PUZU technology in terms of digital signal processing (DSP)+built into the amplifier.
Before reading this manual and considering using this software, first make sure the product is installed correctly. Refer to the specific user’s manual of the product if necessary. In order to obtain the best results, we recommend you have your PUZU PZ-D8 installed by Your PUZU dealer.
WARNING
SOFTWARE COMPATIBILITY
PC: Windows XPNista/Win718/10
The maximum resolution of the software is 1024X768
RECOMMENDED MINIMUM REQUIREMENTS
Operating system: Windows XP, Windows Vista, Windows 7, Windows 8, Windows10
Processor:1.67GHz, equivalent or more
RAM:1GB or more
Hard drive:512MB or more free space
Display:1024X768 or more
SOFTWARE INSTALLATION WARNING
Before connecting your PUZU PZ-D8 software, close all open programs, connect DSP with the PC by USB data cable, and allow your PC to auto-install the hardware of the USB data cable. Open the software, the installation process runs automatically. if you encounter any problems, please uninstall the software and download the newest software from www.puzuaudio.com
If you can not success install the software after trying more times, please mail to [email protected] for further help.
After you installed the software, you can see the main interface as follow picture.
Machine connections & file load
- The interface will show [connecting] before connecting to the machine and show[connected] if the software has been successfully connected.

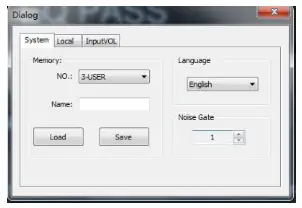

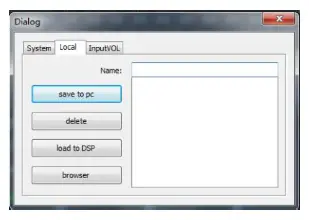

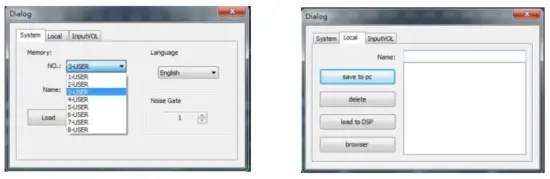

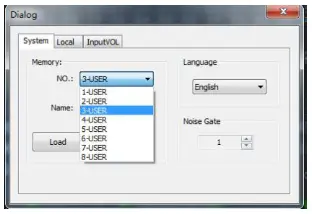

- You can save the tuning sound data to built-in modes 1-8, or you can save it to your local PC so that you can directly upload the files if you meet the same car and same audio system next time.
- You can change the system language to Chinese/English. 4. Share your tuning parameters to another audio system with the same speaker parameters and car models.
- .Types of sound sources are available for selection: Bluetooth, high level, and USB, the software set hi-level as default.
- Set a noise Gate, if the input signal is higher than the gate, it could be entered normally, otherwise, it will be blocked. lf the gate is set reasonably, the machine will be automatically muted when the system has no signal input, so as to make system output quieter, adjustment range:0-20.
- Select the type of sound source from the drop-down list.

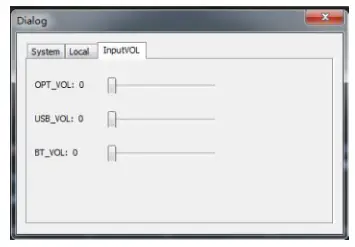

- Adjust the input volume: optical/USBIBT

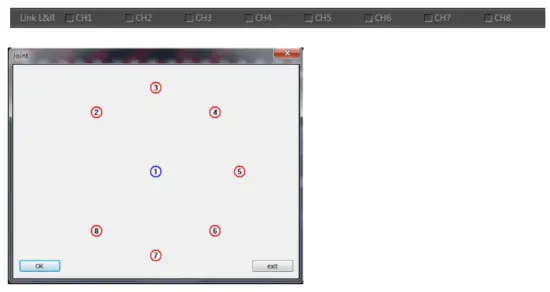

Channel Joint
You can free joint any channels from 1-8

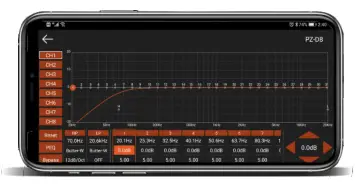

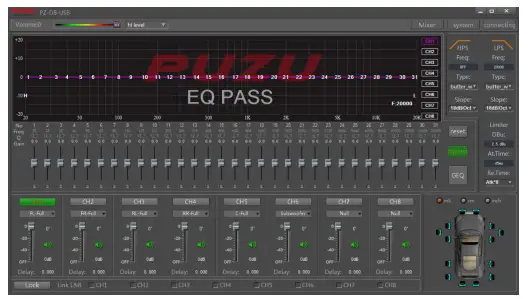

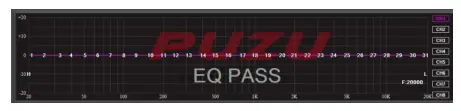

This interface shows the main GEQ & PEQ display by tuning 31 bands of EQ parameters you can reset and bypass those parameters, and there are some useful parameters like Freq, Q, and Gain, which are clearly and accurately displayed.
a.You can tune the high pass and low pass filter by dragging or pulling the points any of 1-15. pass filter and low pass filter.
b.Filter typies:butterworth,bassel and linkwitz-riley
c.The range of slope of filter (slope) is 6dB/Oct -48d B/Oct, and the resolution is 6d13/oct
d.When you press PEQ, you can tune the by HPS/LPS, each channel is equipped with high EQ
e.When you press GEQ, you can tune the EQ by detail parameters you manually set it
f. limiter is a circuit that allows signals below a specified input power or level to pass unaffected while attenuating (lowering) the peaks of stronger signals that exceed this threshold. Limiting is a type of dynamic range compression. Clipping is an extreme version of limiting. if you are not familiar with this function and do not know much about it just let it default.
In this interface you can control the main volume for each channel, phase front left/front right/Rear left/Rear right/Center/Sub.
g. you can set all 8 channels’ time delay parameters separately. you can set the time delay unit CMIMS/inch, usually, we recommend you use CM
Choose delay unit:
ms/cm/inch ms:0-20ms
cm:0-692cm
inch:0-272.44inch

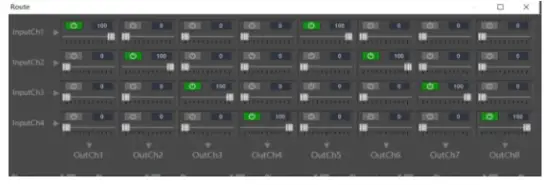

h.Mixer interface shows as above free choose the source, mix from input 1-inpu4 to out1-out8.
Most importantly, please save tuning parameters to 1-USER -8-USER when you finish sound tuning every time. if you have a local pc file saved before just press the load button to upload the file.
PZ-D8 ANDROID APP USER,S GUIDE.
Download the Android apk file from www.puzuaudil.com for free PZ-D8 built-in double module Bluetooth.

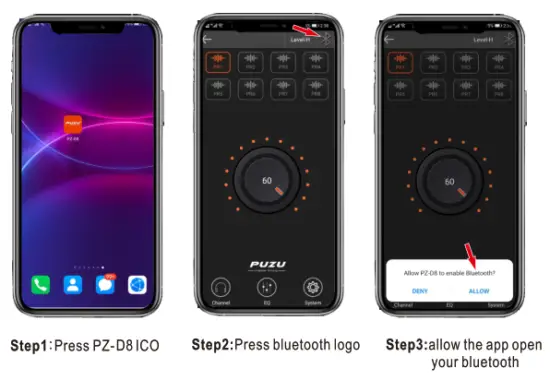

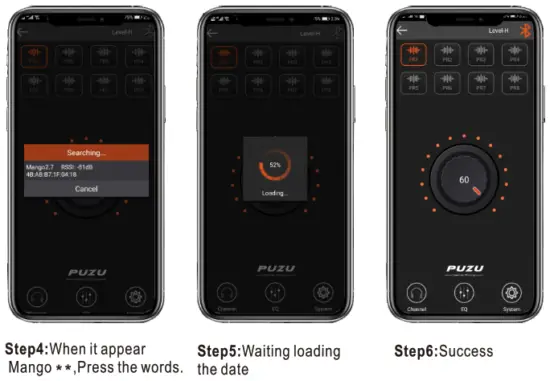

INSTALLATION STEPS OF THE ANDROID APP

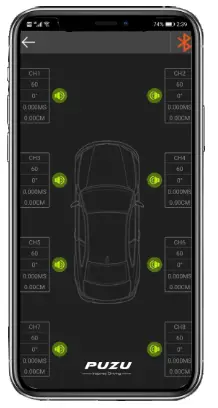

Chanel: Press Channels ico You will see the interface, you can set each channel’s Gain/ Phase/Time delay/Open/close volume.

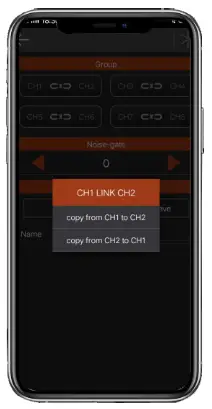

Link: Press the *system” button you can set the link channel function CH1&CH2 CH3&CH4, CH5&CH6, CH7&CH8

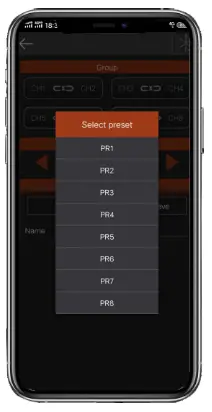

Presets Mode: You can select PR1 — PR8, save and select, for example, if you finished sound tuning you can save to any one of them.

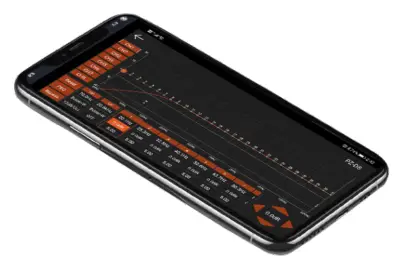

EQ SETTING: You can separate or group setting CH1-C118 reset1PEQ, GEQ/ Bypass, etc functions.
TIPS
you can use this sound tuning app only on android system phones not supported by ios, but you can listen to Bluetooth music by both ios and android system smartphones.
- 0pen your phone setting (ios and android )
- Search OSP-audio*and connect it.
* Means the version number, it will be upgraded every month.
BEFORE USING PUZU PZ-D8SOFTWARE YOU NEED TO KNOW THE BASIC SOUND PARAMETERS OF DIFFERENT MUSIC INSTRUMENTS PERFORMANCE, S0 YOU CAN BETTER UNDERSTAND HOW TO TUNE THE SOUND!
| piano | The range 27.5-48.5Hz affects the frequency, the tone becomes thinner as the frequency increases; 20-50Hz provides the peak frequency |
| Saxophone | 600-2Khz affects the brightness, enhances the frequency can make the sound color clear |
| guitar | improve 100-300Hz can make the sound much more full; enhancing 2k-5KHz can increase the tone performance |
| Bass guitar | 60-100Hz bass fullness; 60-1 kHz impact intensity, 2.5Khz is plectrum audio |
| electric guitar | 240H is the fullness frequency, 2.5KHz is the brightness frequency; plectrum is 3K-4KHz |
| Electric bass | 80-240Hz is fullness frequency; 600-1 Khz impact intensity; 2.5KHz is plectrum audio |
| tambourine | 200-240Hz is the resonance frequency; 5KHz affects the presence |
| Snare drum | 240Hz affects fullness; 2KHz impacts loudness; 5KHz affects plucked audio |
| Bass drum | 60-100Hz is the bass force-frequency; 2.5KHz is the percussion sound frequency |
| big drum | 60-150Hz is the intensity of frequency; affects fullness |
TIPS
- Super bass:20Hz-40Hz,
- Bass:40Hz-150Hz,
- Midrange to Bass:150Hz-500Hz,
- Midrange:500Hz-2KHz,
- Midrange toTreble:2KHz-5KHz,
- Treble:7KHz-8KHz,
- Super Treble:8KHz-10KHz,
Frequency | Lower | Proper | higher |
| 16K-20KHz | The tone lacks expressiveness | Tone expressive and charm | Strong sensed instability |
| 12K-16KHz | Lost luster | Golden splashes | Hairy, harsh |
| 10K-12KHz | Boring, tarnished | Strong sense of metal | Light noise |
| 8K-10KHz | dull | sound is smooth | sharp |
| 6K-8KHZ | dim | Transparent | Tooth sound heavy |
| 5K-6KHz | vague | High definition | sharp |
| 4K-5KHz | the sound Is getting far | good sense of loudness | the sound! tattling close |
| 4KHz | blurry | Good Penetration | The coughing sound is heavy |
| 2K-3KHz | hazy | Brightness is better | rigid |
| 1K-2KHZ | Loose, tone off | good sense of transparency | Jump sense |
| 800Hz | Loose | Strong sense | guttural is heavy |
| 500.800Hz | Shrinkage | The outline of the sound is 000d | The sound protrudes forward |
| 300.500Hz | Empty sense | Voice power good | Phone sound color |
| 150Hz-300Hz | Soft feeling | Sound intensity feeling good | stiff |
| 100-150Hz | thin | Fullness increased | Turbid “hum” |
| 60-100Hz | Weakness | Strong sense of depth | Low-frequency resonance sound appears “boo’ |
| 20-60Hz | emptiness | Good sense of space | Low-frequency resonance sound appears as “hoo’ |
PLANNING YOUR INSTALLATION
It’s important that you take the time to read this manual and that you plan your installation carefully, it’s very easy to damage expensive vehicle systems in modern automobiles, Never assume that you have found appropriate wires without consulting a reliable wiring diagram or without performing signal testing with proper test equipment if you are uncomfortable or unfamiliar with reading diagrams or testing signals, please enlist the services of your authorized PUZU Audio dealer to perform the installation, PZ-D8 support universal DSP cable and No-destructive wiring harness, Plug & Play, easy install it to your car audio system
SIMPLE FAULT ANALYSIS AND TROUBLESHOOTING
| The harness connector does not match the original car | Harness for the car dedicated, please determine your model and the height of the model,and inform the local dealer or agent |
| Products in the use of the process of noise | Make sure the host cable is properly connected to check for loosening, After the exclusion is still noise, please check the ground with the original car CD machine shell connection. Still can not be resolved please return to the local dealer or agent. |
| The work indicator light does not shine, no sound | Please check if the tail has been properly connected, check the original car with or without an amplifier or modified amplifier |
| The original car host and the machine can’t get power on | Check whether the original power cord is connected, the original car with the original car host shell, and restore the original car position |
| there is a “pump” sound when connected the DSP with the subwoofer | Please connect the blue wire of the harness cable to your car subwoofer’s REM plug |
| All connection are well and there is no sound coming from the speaker after a few seconds sound come again from the speaker. or there is a “Zizzi” or “divide” sound coming from the speaker. | Your car with a speaker detection function. Solution: Between the 4 high-level input ports of the DSP power amplifier and the 4 high-level output ports of the host, each interface is connected in parallel with a 33 ohm, 10W cement resistor. |
| DSP can not get power on when choosing “Host” start-up | switch to “ACC” start-up and then connect the red line of the harness cable to your car ACC line |
| Exist button noise comes from the speaker when playing DSP | Usually, it comes from your factory radio. the noise sound source comes from it, after it gets through DSP, noise is amplified, you can try adjusting the button”Noise get threshold” from the software on a PC computer. |
