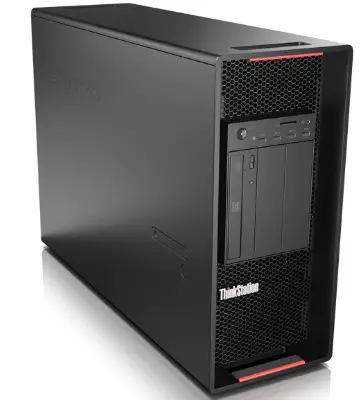

Lenovo ThinkStation P920 Advanced Dual Processor Workstation
DOWNLOAD
| Hardware Maintenance Manual | P920 HMM |
| Drivers & Software | P920 Drivers & Software |
| Available Whitepapers | RTX GPU Support Matrix P920/P720 Power Configurator P920/P720 Memory Configurations Intel VROC Support To access additional whitepapers visit https://support.lenovo.com and select ‘PC’ then ‘Workstations’ |
SECTION I: Platform Overview
| Description | The Lenovo ThinkStation P920 is an Intel based high performance dual socket workstation, providing excellent performance and quality for applications where processor, memory, graphics, and storage requirements are critical. The P920 is positioned above the single socket P520 and dual socket P720 workstations. |
CPU
| Processor Support | Xeon Scalable Processors (Platinum, Gold, Silver, Bronze) |
| Socket Type | Socket-P0 (LGA 3647) |
| Preloaded | Windows 10 Pro 64-bit for Workstations Ubuntu 16.04 LTS (configuration specific) Ubuntu 18.04 LTS (configuration specific) |
| Supported | Windows 7 Pro 64 (via Windows 10 Pro Downgrade Rights) Red Hat Enterprise Linux 7.3 Ubuntu 16.04 LTS Ubuntu 18.04 LTS |
MEMORY
| Slots | Up to 16 DIMMs |
| Channels | Each Processor Supports up to 8 DIMM Sockets, 6 Channels per CPU |
| Type | 288-Pin, 1866/2133/2400/2666/2933MHz ECC RDIMM and LRDIMMS |
| ECC Support | Yes |
| Speed | Up to 2933MHz |
| Max DIMM Size | 256GB DDR4 ECC 3DS-RDIMM |
| Max System Memory | 2TB |
VEDIO
| SATA | 10 x SATA Connectors, Gen 3 |
| PCIe | 2 x M.2 PCIe Connectors Onboard |
| SAS | Supported via Optional Broadcom Adapter |
| eSATA | 1 x eSATA Connector, Gen 3 |
SLOT
| Integrated Graphics | Not Available |
| Discrete Graphics | PCIe Add-In-Card, Details in Section Below |
| Multi-GPU Support | Yes |
| Type | PCIe Add-In-Card |
| Bus Interface | PCIe x16 |
FRONT I/O
| USB | 4 x USB 3.1 Gen 1 Type-A 5Gb/s (includes one 15W charging port) |
| Audio | 1 x Combo Audio/Microphone Jack (3.5mm) |
| Media Card Reader | Front 9-in-1 Media Card Reader Standard (USB 2.0) Optional: Front 15-in-1 Media Card Reader (requires Flex module) |
| Flex Module | Flex Module: Supports Two 5.25″ Flex Bays With Several Options Integrated • Up to Two Half Height Optical Drives • Up to Two 5.25” Slim Optical Drive Cages • Up to One Front Access Storage Enclosure • Up to One Flex Module for One or More of the Following Options: 9.0mm Optical/15-in-1 USB 3.1 Gen 1 Reader/Front eSATA/Dual Port Front Thunderbolt/front USB 3.1 Gen 1 Type-C/ 4-Digit Diagnostic Display Note: 1. Only one can be supported from 15-in-1 reader, Thunderbolt, and 4-digit display 2. Up to two ports are suppported from 1394, eSATA, and USB Type-C |
| Disclaimers | Note: Actual USB throughout will vary depending on the type and quantity of USB devices used. |
REAR I/O
| USB | 2 x USB 2.0 Type-A 480Mb/s 4 x USB 3.1 Gen 1 Type-A 5Gb/s |
| Audio | 3 x Rear (Line Out, Line In, MIC); Retaskable to 5.1 1 x Front Stereo+MIC Headset |
| DisplayPort | As Supported by GPU |
| HDMI | As Supported by GPU |
| DVI | As Supported by GPU |
| VirtualLink | As Supported by GPU |
| VGA Port | As Supported by GPU |
| Serial Port | Optional 1x Rear Port |
| Ethernet | 2 x 1GbE – RJ45 |
| PS/2 | 2 x PS/2 |
| IEEE 1394 | Not Available |
| eSATA | Optional PCIe Bracket |
| Parallel Port | Not Available |
| Optional USB Adapter | Dual Type-C Ports USB 3.1 Gen 1 Dual Type-A Ports USB 2.0 |
| Optional Network Adapter | Intel I210-T1 Single Port Gigabit Ethernet Adapter Intel I350-T2 Dual Port Gigabit Ethernet Adapter Intel I350-T4 Quad Port Gigabit Ethernet Adapter PCI-E 1 x WiFi Card With BT HP External Antenna Kit (8265 AC) |
| Disclaimers | Note: Actual USB throughout will vary depending on the type and quantity of USB devices used. |
ETHERNET
| Vendor | Intel Jacksonville I219LM, Intel Springville I210AT |
| Speeds | 10/100/1000Mbps |
| Functions | PXE, ASF, WOL, Jumbo Frames, Teaming |
| Connectors | 2 x RJ45 |
AUDIO
| Vendor | Realtek |
| Type | HD (5.1) |
| Internal Speaker | Yes |
| Connectors | 3 x Rear 3.5mm Jacks (Line In, Line Out, Microphone In) |
| Chipset | ALC662 |
| Number of Channels | 6 Channels |
| Number of Bits/Audio Resolution | 6 Channel DAC Supports 16/20/24 bit PCM Stereo ADC Supports 16/20 bit PCM |
THERMAL
| Temp Sensors | Ambient Thermal Sensor – Thermal Diode Connected to Super I/O CPU VR Sensor – Thermal Diode Connected to Super I/O DIMM VR Sensor- Thermal Diode Connected to Super I/O PSU Thermal Sensor- Thermistor PCI Zone 1 Sensor- Thermistor PCI Zone 1 Sensor- Thermistor PCI Zone 1 Sensor- Thermistor M.2 Sensor- Thermistor |
| Fans | 2 x CPU Fan 4-pin Header With 3-pin Key Rear System Fan 4-pin Header 2 x Front Fan 4-pin Header 2 x ODD Bay Fan 4-pin Header With 3-pin Key PSU Fan Main PSU Power Connector |
POWER SPECIFICATION
| Power Supply | 1400W |
| Power Efficiency | 92% Efficient @ 50% Load |
| Main | C14 |
| Operating Voltage Range | 100 – 240V |
| Rated Voltage Range | 90-264VAC |
| Rated Line Frequency | 47Hz / 63Hz |
| Operating Line Frequency Range | 50Hz / 60Hz |
| Rated Input Current | 9A-15A |
| Graphics | 3 x 8 pin (6+2) 1 x 6 pin |
| Power Supply Fan | Yes |
| ENERGY STAR® Qualified (config dependent) | Yes |
| 80 PLUS Compliant | Yes |
| Built-in Self Test (BIST) LED | Yes |
| Aux Power Drop | Yes 3 x 8-pin (6+2) 1 x 6-pin |
| Disclaimers | Power Output Limited to 1125W for 100-110V Input Voltage |
BIOS
| Vendor | AMI |
CHASIS INFORMATION
| Color | Graphite Black |
| PSU | One Fixed 1400W, Autosensing, 92% PSU, 80 PLUS Platinum Qualified |
| Thermal Solutions | Three System Fans Standard (2 front, 1 rear), One Fan per CPU, Two PSU Fans |
| Dimensions | 200mm/7.87″ W x 620mm/24.4″ D x 446mm/17.56″ H (with feet) |
| Weight | 32.3kg / 71.3lbs |
PAKAGING DIMENSIONS
| Height (mm/in) | 626mm / 24.65″ |
| Width (mm/in) | 337mm / 13.27″ |
| Depth (mm) | 798mm / 31.42″ |
| Weight (kgs/lbs) | 37kg / 81.6lbs |
SECURITY AND SERVICEABILITY
| TPM | Infineon SLB9665TT TPM 2.0 |
| Asset ID | Yes, 1024 x 8bit |
| vPro | Intel vPro for WS (AMT 9.x) |
| Cable Lock Support | Yes, Optional Kensington Cable Lock |
| Serial, Parallel, USB, Audio, Network, Enable/Disable Port Control | Yes |
| Power-On Password | Yes |
| Setup Password | Yes |
| NIC LEDs (integrated) | Yes |
| Access Panel Key Lock | Unique Key Lock Kit – Optional Common Key Lock Kit – Optional |
| Boot Sequence Control | Yes |
| Padlock Support | Not Supported |
| Boot Without Keyboard and/or Mouse | Yes |
| Access Panel | Tool-less Side Cover Removal |
| Optical Drive | Tool-less |
| Hard Drives | Tool-less |
| Expansion Cards | Tool-less |
| Processor Socket | Tool-less |
| Color Coded User Touch Points | Yes |
| Color-coordinated Cables and Connectors | Yes |
| Memory | Tool-less |
| System Board | Tool-less |
| Restore CD/DVD/USB Set | Not Included, Restore Media Available via Lenovo Customer Support Center |
OPERATING INVIRONMENT
| Air Temperature | Operating: 10⁰C to 35⁰C (50⁰F to 95⁰F) |
| Storage | Storage: -40⁰C to 60⁰C (-40⁰F to 140⁰F) in Original Shipping Carton Storage: -10⁰C to 60⁰C (14⁰F to 140⁰F) Without Carton |
| Humidity | Relative Humidity Operating: 10% to 80% (non-condensing) Relative Humidity Storage/Transit: 10% to 90% (non-condensing) Wet Bulb Temperature Operating: 25⁰C (77⁰F) max Wet Bulb Temperature Non-operating: 40⁰C (104⁰F) max |
| Altitude | Operating: -15.2m to 3048m (-50ft to 10000ft) Storage: -15.2m to 10668m (-50ft to 35000ft) |
| Vibration | Package Vibration: Random,1.04G at 2-200 Hz, 15 Minutes XYZ 6 faces Operating Vibration: Random,0.27G at 5-500 Hz, 30 Minutes Per Surface (X,Y,Z) Non-Operating Vibration: Random,1.04G at 2-200 Hz, 15 Minutes Per Surface (±X,±Y,±Z) |
| Shock | Operation Shock: 3ms (15G) for 4 Axis (+X, -X, +Y,-Y) 3ms (30G) for 2 Axis (+Z, -Z), Half-sine Wave, Each Side Will do One Time |
| Rack Operation Shock: 5ms (15G) for 6 Axis (+X, -X, +Y,-Y,+Z, -Z), Half- sine Wave, Each Side Will do One Time Non-operating Shock: Trapezoidal Wave, 50G, 9ms, 6 Sides (+X, -X, +Y,- Y, +Z ,-Z), Filter 300Hz, Each Side Shock One Time |
SECTION II: Platform Detail
| Board Size | 14.06″ x 14.76″ (357mm x 375mm) |
| Layout | Custom ATX |
MOTHERBOARD CORE
| Processor Support | Xeon Scalable Processors (Platinum, Gold, Silver, Bronze) |
| Socket Type | Socket-P0 (LGA 3647) |
| Memory Support | DDR4 up to 2933MHz RDIMM / LRDIMM Memory |
| CPU-CPU Interconnect | UPI up to 10.4GT/s |
| Voltage Regulator | Intel VR13.0 – 240W TDP Capable |
| Chipset (PCH) | Intel C621 |
| Flash | 32MB |
| Super I/O | Nuvoton NCT6685 |
| Clock | Intel Native isCLK |
| Audio | Realtek ALC662 Codec |
| Ethernet | Intel Jacksonville I219LM, Intel Springville I210AT |
| SAS | Optional via Broadcom Adapter |
| Disclaimers | Optional via Broadcom Adapter |
SUPPORTED COMPONENTS
| Processor Level | Platinum | Gold | Silver | Bronze |
| Processor | Intel Xeon PLATINUM 8280 Intel Xeon PLATINUM 8160T | Intel Xeon GOLD 6254 Intel Xeon GOLD 6246 Intel Xeon GOLD 6244 Intel Xeon GOLD 6242 Intel Xeon GOLD 6238T Intel Xeon GOLD 6234 Intel Xeon | Intel Xeon SILVER 4216 Intel Xeon SILVER 4215 Intel Xeon SILVER 4214 Intel Xeon SILVER 4210 Intel Xeon SILVER 4209T Intel Xeon SILVER 4208 Intel Xeon | Intel Xeon BRONZE 3204 |
| GOLD 6230 Intel Xeon GOLD 6226 Intel Xeon GOLD 5222 Intel Xeon GOLD 5218 Intel Xeon GOLD 6154 Intel Xeon GOLD 6142 Intel Xeon GOLD 6136 Intel Xeon GOLD 6134 Intel Xeon GOLD 6128 Intel Xeon GOLD 5122 Intel Xeon GOLD 5120T Intel Xeon GOLD 5118 | SILVER 4116 Intel Xeon SILVER 4114 Intel Xeon SILVER 4114T Intel Xeon SILVER 4112 Intel Xeon SILVER 4110 Intel Xeon SILVER 4109T Intel Xeon SILVER 4108 | |||
| Memory Type | RDIMMs – 2666MHz or 2933MHz, CPU Dependent | LRDIMMs – 2666MHz | – | – |
| Memory | 8GB DDR4 ECC RDIMM PC4- 2933 16GB DDR4 ECC RDIMM PC4- 2933 32GB DDR4 ECC RDIMM PC4-2933 64GB DDR4 ECC RDIMM PC4-2933 8GB DDR4 ECC RDIMM PC4- 2666 16GB DDR4 ECC RDIMM PC4- 2666 32GB DDR4 ECC RDIMM PC4-2666 | 64GB DDR4 ECC LRDIMM PC4-2666 | – | – |
STORAGE
| 3.5″ SATA Hard Disk Drive (HDD) | 1TB SATA – 7200rpm, 6Gb/s, 3.5″ 2TB SATA – 7200rpm, 6Gb/s, 3.5″ 4TB SATA – 7200rpm, 6Gb/s, 3.5″ (enterprise class) 6TB SATA – 7200rpm, 6Gb/s, 3.5″ (enterprise class) |
| 2.5″ SATA Hard Disk Drive (HDD) | 500GB 2.5″ SATA HDD 7200rpm (FIPS certified) |
| 2.5″ SATA Solid State Drive (SSD) | 256GB SATA – SSD, 6Gb/s, TLC, 2.5″, OPAL 512GB SATA – SSD, 6Gb/s, TLC, 2.5″ OPAL 512GB SATA – SSD, 6Gb/s, TLC, 2.5″, Non-OPAL 1024GB SATA – SSD, 6Gb/s, TLC, 2.5″ OPAL 2048GB SATA – SSD, 6Gb/s, TLC, 2.5″ OPAL |
| M.2 PCIe Solid State Drive (SSD) | 256GB M.2 PCIe – SSD, Gen 3 x4, NVMe, OPAL 256GB M.2 PCIe – SSD, Gen 3 x4, NVMe, OPAL – Intel 512GB M.2 PCIe – SSD, Gen 3 x4, NVMe, OPAL |
| 512GB M.2 PCIe – SSD, Gen 3 x4, NVMe, OPAL – Intel 512GB M.2 PCIe – SSD, Gen 3 x4, NVMe, Non-OPAL 1024GB M.2 PCIe – SSD, Gen 3 x4, NVMe, OPAL 2048GB M.2 PCIe – SSD, Gen 3 x4, NVMe, OPAL | |
| PCIe Add-in-Card Solid State Drive (SSD) | 480GB Half Height, Half Length, PCIe NVMe SSD, Gen 3 x4 – Intel 905p |
RAID
| RAID Requirements | M.2 RAID via Intel VROC SATA RAID via Onboard Intel Controller or Broadcom Adapter SAS RAID via Broadcom Adapter |
| Notes | Supported RAID levels for a system will vary from the stated capabilities of the RAID controller due to dependencies on the number and capacity of physical disks in the system and on customer requirements for performance, fault tolerance, or data redundancy. Max supported RAID 0/1/5/10. |
| Optional Hard Disk Drive Controllers | Broadcom 9460-16i ROC PCIe Adapter, Supports 0/1/5/10 Broadcom 9440-8i IOC PCIe Adapter, Supports 0/1/5/10 |
| Intel VROC | Intel Virtual RAID On CPU (VROC) – Basic, Supports 0/1/10 Intel Virtual RAID On CPU (VROC) – Premium, Supports 0/1/5/10 |
OPTICAL DRIVER
| DVD-ROM Drive | DVD-ROM Drive – 16x/48x Slim SATA DVD-ROM |
| DVD Burner/CD-RW Drive | DVD Burner/CD-RW Rambo Drive Slim ODD DVD Burner/CD-RW |
| Blu-Ray Burner Drive | Blu-Ray Burner Drive w/AACS encryption Slim Blu-Ray ODD DVD Burner |
| Media Card Reader Specifications | Front 9-in-1 USB 2.0 Media Card Reader Standard Optional Front 15-in-1 Media Card Reader (requires Flex module) |
KEYBOARD AND POINTING DEVICES
| Keyboard | Traditional USB Keyboard Traditional PS/2 Keyboard Smart Card USB Keyboard Calliope USB Keyboard |
| Pointing Devices | Calliope USB Mouse Lenovo USB Laser Mouse Fingerprint USB Mouse PS/2 Optical Mouse |
EXPANSIONS BAYS
| • Up to Three Half Height Optical Drives • Up to Two 5.25” Slim ODD Cages, Each Supports One 9.0mm Optical Drive • Up to One 5.25″ Slim ODD and HDD Cage for One 9.0mm Optical Drive Plus One 3.5″ or 2.5″ SATA Disk • Up to One Front Access Storage Enclosure for One 3.5″ or 2.5″ SATA Disk • Up to One Flex Module for One or More of the Following Options: 9.0mm Optical/15-in-1 USB 3.1 Gen 1 Reader/Front eSATA/Front Thunderbolt/Front USB 3.1 Gen 1 Type-C • Up to Three Front Removable Drive Enclosure, Supports One M.2 SSD Each, Each Front Removable Drive Enclosure Comes with a PCIe x4 Adapter Note: 1. Only one can be supported from the following: 15-in-1 memory card reader, dual Thunderbolt ports Note: 2. Up to two ports are suppported from 1394, eSATA, and USB Type-C |
PCIE ADAPTER
| Network | Intel I210-T1 Single Port Gigabit Ethernet Adapter Intel I350-T2 Dual Port Gigabit Ethernet Adapter Intel I350-T4 Quad Port Gigabit Ethernet Adapter Bitland BN8E88 1000M PCIE ASF FH Aquantia 5G Ethernet adapter (single port) Aquantia 10G Ethernet adapter (single port) |
| Thunderbolt | Front Thunderbolt Card Kit Supports Two Optional Thunderbolt 3 Ports (USB Type-C) on Flex module, One of Two Ports Supports Video Out Rear Thunderbolt PCIe Adapter |
| USB | Rear USB 3.1 Type-C Gen 1 PCIe Adapter V1.0 FH Bracket |
| WiFi Cards | Intel PCIe WiFi Card With BT External Antenna Kit (8265 AC) |
| PCIe to M.2 Adapter Card | PCIe x4 to M.2 Adapter (for NVMe SSD) Quad M.2 PCIe Adapter |
SECTION III: Supported Component Detail
CPU SPECIFICATION
| CPU | Intel Xeon PLATINUM 8280 | Intel Xeon PLATINUM 8160T | Intel Xeon GOLD 6254 | Intel Xeon GOLD 6154 | Intel Xeon GOLD 6242 |
| # of Cores | 28 | 24 | 18 | 18 | 16 |
| # of Threads | 56 | 48 | 36 | 36 | 32 |
| Processor Base Frequency | 2.7GHz | 2.1GHz | 3.1GHz | 3GHz | 2.8GHz |
| Max Turbo Frequency | 4GHz | 3.7GHz | 4GHz | 3.7GHz | 3.9GHz |
| Cache | 38.5MB | 33MB L3 | 24.75MB | 24.75MB L3 | 22MB |
| TDP | 205W | 150W | 200W | 200W | 150W |
| Intel ARK Spec Link | Intel Xeon PLATINUM 8280 | Intel Xeon PLATINUM 8160T | Intel Xeon GOLD 6254 | Intel Xeon GOLD 6154 | Intel Xeon GOLD 6242 |
| CPU | Intel Xeon GOLD 6142 | Intel Xeon GOLD 6136 | Intel Xeon GOLD 6238T | Intel Xeon GOLD 6234 | Intel Xeon GOLD 6134 |
| # of Cores | 16 | 12 | 22 | 8 | 8 |
| # of Threads | 32 | 24 | 44 | 16 | 16 |
| Processor Base Frequency | 2.6GHz | 3GHz | 1.9GHz | 3.3GHz | 3.2GHz |
| Max Turbo Frequency | 3.7GHz | 3.7GHz | 3.7GHz | 4GHz | 3.7GHz |
| Cache | 22MB L3 | 24.75MB L3 | 30.25MB | 24.75MB | 24.75MB L3 |
| TDP | 150W | 150W | 125W | 130W | 130W |
| Intel ARK Spec Link | Intel Xeon GOLD 6142 | Intel Xeon GOLD 6136 | Intel Xeon GOLD 6238T | Intel Xeon GOLD 6234 | Intel Xeon GOLD 6134 |
| CPU | Intel Xeon GOLD 6230 | Intel Xeon GOLD 6128 | Intel Xeon GOLD 5222 | Intel Xeon GOLD 5122 | Intel Xeon GOLD 5120T |
| # of Cores | 20 | 6 | 4 | 4 | 14 |
| # of Threads | 40 | 12 | 8 | 8 | 28 |
| Processor Base Frequency | 2.1GHz | 3.4GHz | 3.8GHz | 3.6GHz | 2.2GHz |
| Max Turbo Frequency | 3.9GHz | 3.7GHz | 3.9GHz | 3.7GHz | 3.2GHz |
| Cache | 27.5MB | 19.25MB L3 | 16.5MB | 16.5MB L3 | 19.25MB L3 |
| TDP | 125W | 115W | 105W | 105W | 105W |
| Intel ARK Spec Link | Intel Xeon GOLD 6230 | Intel Xeon GOLD 6128 | Intel Xeon GOLD 5222 | Intel Xeon GOLD 5122 | Intel Xeon GOLD 5120T |
| CPU | Intel Xeon GOLD 5218 | Intel Xeon GOLD 5118 | Intel Xeon GOLD 5115 | Intel Xeon SILVER 4216 | Intel Xeon SILVER 4116 |
| # of Cores | 16 | 12 | 10 | 16 | 12 |
| # of Threads | 32 | 24 | 20 | 32 | 24 |
| Processor Base Frequency | 2.3GHz | 2.3GHz | 2.4GHz | 2.1GHz | 2.1GHz |
| Max Turbo Frequency | 3.9GHz | 3.2GHz | 3.2GHz | 3.2GHz | 3GHz |
| Cache | 22MB | 16.5MB L3 | 13.75MB L3 | 22MB | 16.5MB L3 |
| TDP | 125W | 105W | 85W | 100W | 85W |
| Intel ARK Spec Link | Intel Xeon GOLD 5218 | Intel Xeon GOLD 5118 | Intel Xeon GOLD 5115 | Intel Xeon SILVER 4216 | Intel Xeon SILVER 4116 |
| CPU | Intel Xeon SILVER 4215 | Intel SILVER 4214 | Intel Xeon SILVER 4114 | Intel Xeon SILVER 4114T | Intel Xeon SILVER 4112 |
| # of Cores | 8 | 12 | 10 | 10 | 4 |
| # of Threads | 16 | 24 | 20 | 20 | 8 |
| Processor Base Frequency | 2.5GHz | 2.2GHz | 2.2GHz | 2.2GHz | 2.6GHz |
| Max Turbo Frequency | 3.5GHz | 3.2GHz | 3GHz | 3GHz | 3GHz |
| Cache | 11MB | 16.5MB | 13.75MB L3 | 13.75MB L3 | 8.25MB L3 |
| TDP | 85W | 85W | 85W | 85W | 85W |
| Intel ARK Spec Link | Intel Xeon SILVER 4215 | Intel SILVER 4214 | Intel Xeon SILVER 4114 | Intel Xeon SILVER 4114T | Intel Xeon SILVER 4112 |
| CPU | Intel Xeon SILVER 4210 | Intel Xeon SILVER 4110 | Intel Xeon SILVER 4209T | Intel Xeon SILVER 4109T | Intel Xeon SILVER 4208 |
| # of Cores | 10 | 8 | 8 | 8 | 8 |
| # of Threads | 20 | 16 | 16 | 16 | 16 |
| Processor Base Frequency | 2.2GHz | 2.1GHz | 2.2GHz | 2GHz | 2.1GHz |
| Max Turbo Frequency | 3.2GHz | 3GHz | 3.2GHz | 3GHz | 3.2GHz |
| Cache | 13.75MB | 11MB L3 | 11MB | 11MB L3 | 11MB |
| TDP | 85W | 85W | 70W | 70W | 85W |
| Intel ARK Spec Link | Intel Xeon SILVER 4210 | Intel Xeon SILVER 4110 | Intel Xeon SILVER 4209T | Intel Xeon SILVER 4109T | Intel Xeon SILVER 4208 |
| CPU | Intel Xeon SILVER 4108 | Intel Xeon BRONZE 3204 | Intel Xeon BRONZE 3104 |
| # of Cores | 8 | 6 | 6 |
| # of Threads | 16 | 6 | 6 |
| Processor Base Frequency | 1.8GHz | 1.9GHz | 1.7GHz |
| Max Turbo Frequency | 3GHz | Not Available | Not Available |
| Cache | 11MB L3 | 8.25MB | 8.25MB L3 |
| TDP | 85W | 85W | 85W |
| Intel ARK Spec Link | Intel Xeon SILVER 4108 | Intel Xeon BRONZE 3204 | Intel Xeon BRONZE 3104 |
HDD SPECIFICATION
| Drive | 500GB SATA – 7200rpm, 6Gb/s, 2.5″ | 1TB SATA – 7200rpm, 6Gb/s, 3.5″ | 2TB SATA – 7200rpm, 6Gb/s, 3.5″ | 4TB SATA – 7200rpm, 6Gb/s, 3.5″ | 6TB SATA – 7200rpm, 6Gb/s, 3.5″ |
| 3.5″ SATA Hard Disk Drive (HDD) | Not Available | Yes | Yes | Yes | Yes |
| 2.5″ SATA Hard Disk Drive (HDD) | Yes | Not Available | Not Available | Not Available | Not Available |
| Connector | SATA | SATA | SATA | SATA | SATA |
| Transfer Rate (Gb/sec) | 160MB/s OD read | Average data rate, read/write 156MB/s | Average data rate, read/write 156MB/s | Sustained data transfer rate 216 – 226MB/s | Sustained data transfer rate 216 – 226MB/s |
| Spindle Speed (RPM) | 7,200 | 7,200 | 7,200 | 7,200 | 7,200 |
| DC Power to Drive Ready (sec) | 3.5 | <10.0 | <17.0 | <17.0 | <17.0 |
| Average Latency (msec) | 4.2 | 4.16 | 4.16 | 4.16 | 4.16 |
| Input (VDC) | 5 | 5 | 5 | 5 | 5 |
| Typical (Watts) | 1.9 | 6.19 | 6.7 | 7.35 | 8.13 |
| Idle (Watts) | 0.7 | 4.6 | 4.5 | 5.45 | 6.21 |
| Physical Dimensions | 69.85mm x 100.34mm x 7mm | 101.6mm x 146.99mm x 19.88mm | 101.6mm x 146.99mm x 26.1mm | 101.85mm x 147mm x 26.1mm | 101.85mm x 147mm x 26.1mm |
| Weight (grams) | 90 | 420 | 535 | 680 | 705 |
| Operating (C) Ambient | 0 to 60 | 0 to 60 | 0 to 60 | 5 to 60 | 5 to 60 |
| Operating (C) Base Casting | 60 | 60 | 60 | 60 | 60 |
| Non-Operating (C) Ambient | (-40 to 70) | (-40 to 70) | (-40 to 70) | (-40 to 70) | (-40 to 70) |
| Gradient (C per Hour) | 20 | 20 | 20 | 20 | 20 |
| Operating (Gs @ 2ms) | 400 | 70 | 80 | Read 70 Gs / Write 40 Gs | Read 70 Gs / Write 40 Gs |
| Non-Operating (Gs @ 2ms) | 1000 | 350 | 300 | 300 | 250 |
SOLID STATE STORAGE SPECIFICATION
| Drive | 256GB 2.5″ SATA SSD | 512GB 2.5″ SATA SSD | 1TB 2.5″ SATA SSD | 2TB 2.5″ SATA SSD | 256GB NVMe M.2 SSD TLC |
| Dimensions Millimeters (W x D x H) | 70 x 100 x 7.0 | 70 x 100 x 7.0 | 70 x 100 x 7.0 | 70 x 100 x 7.0 | 22 x 80 x 2.3 |
| Interface Type | SATA-III | SATA-III | SATA-III | SATA-III | PCIe Gen 3.0 x4 NVMe |
| Power Active (AVG) | 1.8W | 1.9W | 2.2W | 6W | 5W |
| Power Idle | 50mW | 50mW | 50mW | 50mW | 50mW |
| Typical Sequential Read | 540MB/s | 540MB/s | 540MB/s | 530MB/s | 3000MB/s |
| Typical Sequential Write | 500MB/s | 500MB/s | 500MB/s | 500MB/s | 1300MB/s |
| Typical Random Read (4GB Span) | 74K IOPS | 75K IOPS | 75K IOPS | 75K IOPS | 205K IOPS |
| Typical Random Write (4GB Span) | 81K IOPS. | 84K IOPS. | 84K IOPS. | 84K IOPS. | 260K IOPS. |
| Operating Temperature Range | 0 to 55°C | 0 to 55°C | 0 to 55°C | 0 to 55°C | 0 to 55°C |
| Endurance Rating (Lifetime Writes) | 85TB | 150TB | 300TB | 600TB | 85TB |
| Mean Time Between Failures (MTBF) | 2.0M POH | 2.0M POH | 2.0M POH | 2.0M POH | 2.0M POH |
| Hardware Encryption | AES 256 bit | AES 256 bit | AES 256 bit | AES 256 bit | AES 256 bit |
| Drive | 512GB NVMe M.2 SSD TLC | 1024GB NVMe M.2 SSD TLC | 2048GB NVMe M.2 SSD TLC | 480GB AIC Optane™ SSD | 1.5TB U.2 Optane ™ SSD |
| Dimensions Millimeters (W x D x H) | 22 x 80 x 2.3 | 22 x 80 x 2.3 | 22 x 80 x 2.3 | 20 x 168 x 104 | 70 x 100 x 15 |
| Interface Type | PCIe Gen 3.0 x4 NVMe | PCIe Gen 3.0 x4 NVMe | PCIe Gen 3.0 x4 NVMe | PCIe Gen 3.0 x4 NVMe | PCIe Gen 3.0 x4 NVMe |
| Power Active (AVG) | 5W | 5W | 5W | 18W | 18W |
| Power Idle | 50mW | 50mW | 50mW | 7W | 7W |
| Typical Sequential Read | 3200MB/s | 3200MB/s | 3500MB/s | 2700MB/s | 2700MB/s |
| Typical Sequential Write | 1600MB/s | 1600MB/s | 3000MB/s | 2200MB/s | 2200MB/s |
| Typical Random Read (4GB Span) | 340K IOPS | 340K IOPS | 600K IOPS | 575K IOPS | 575K IOPS |
| Typical Random Write (4GB Span) | 275K IOPS. | 275K IOPS. | 500K IOPS. | 550K IOPS | 550K IOPS |
| Operating Temperature Range | 0 to 55°C | 0 to 55°C | 0 to 55°C | 0 to 85°C | 0 to 85°C |
| Endurance Rating (Lifetime Writes) | 150TB | 300TB | 600TB | 8.76PB | 27.3PB |
| Mean Time Between Failures (MTBF) | 2.0M POH | 2.0M POH | 2.0M POH | 2.0M POH | 2.0M POH |
| Hardware Encryption | AES 256 bit | AES 256 bit | AES 256 bit | No | No |
HDD CONTROLLER
| PCI Bus | PCH Integrated |
| PCI Modes | SATA 3.0 |
| RAID Levels | 0/1/5/10 |
| Data Transfer Rates | 6Gb/s |
| Internal Connectors | 2 x MiniSAS HD (2 ports each) + 3 x SATA |
DISCRETE GRAPHICS ADAPTER
| Adapter | Quadro P400 | Quadro P620 | Quadro P1000 | Quadro P2200 | T400 |
| Bus Interface | PCIe 3.0 x16 | PCIe 3.0 x16 | PCIe 3.0 x16 | PCIe 3.0 x16 | PCIe 3.0 x16 |
| Display Interface | 3 x mDP 1.4 | 4 x mDP 1.4 | 4 x mDP 1.4 | 4 x DP 1.4 | 3 x mDP 1.4 |
| Graphics Chipset | Pascal | Pascal | Pascal | Pascal | Turing |
| Memory Clock Frequency (MHz) | 1003MHz | 1252MHz | 1253MHz | 1251MHz | x |
| Memory Size | 2GB GDDR5 | 2GB GDDR5 | 4GB GDDR5 | 5GB GDDR5X | 2GB GDDR6 |
| Memory Interface | 64-bit | 128-bit | 128-bit | 160-bit | 64-bit |
| Memory Bandwidth | Up to 32GB/s | Up to 80GB/s | Up to 82GB/s | Up to 200GB/s | 80GB/s |
| GPU Cores | CUDA Cores: 256 | CUDA Cores: 512 | CUDA Cores: 640 | CUDA Cores: 1280 | CUDA Cores: 384 |
| GPU Core Frequency (MHz) | 1228MHz | 1266MHz | 1266MHz | 1000MHz | x |
| Maximum Power Consumption | 30W | 40W | 47W | 75W | 30W |
| Supported Resolutions and Max Refresh Rates (Hz) (Note: Analog and/or Digital) | 3 x 4096×2160 @ 60Hz 1 x 5120×2880 @ 60Hz | 4 x 4096×2160 @ 60Hz 4 x 5120×2880 @ 60Hz | 4 x 4096×2160 @ 60Hz 4 x 5120×2880 @ 60Hz | 4 x 4096×2160 @ 120Hz 4 x 5120×2880 @ 60Hz | x |
| Thermal Solution | Ultra-quiet Active Fansink | Ultra-quiet Active Fansink | Ultra-quiet Active Fansink | Ultra-quiet Active Fansink | Active |
| Dimension | 2.713” H x 5.7” L Single Slot, Low Profile | 2.713” H x 5.7” L Single Slot, Low Profile | 2.713” H x 5.7” L Single Slot, Low Profile | 4.4″ H x 7.9″ L Single Slot | 2.7″ H x 6.1″ L Single Slot |
| Advanced Display | Not Available | Not Available | Not Available | Not Available | x |
| SLI/NVLink Support | Not Available | Not Available | Not Available | Not Available | x |
INTEL ETHERNET SPECIFICATION
| Adapter | T600 | T1000 | Quadro RTX 4000 | Quadro RTX 5000 | Quadro RTX 6000 | ||
| Bus Interface | PCIe 3.0 x16 | PCIe 3.0 x16 | PCIe 3.0 x16 | PCIe 3.0 x16 | PCIe 3.0 x16 | ||
| Display Interface | 4 x mDP 1.4 | 4 x mDP 1.4 | 3 x DP 1.4 1 x VirtualLink | 4 x DP 1.4 1 x VirtualLink | 4 x DP 1.4 1 x VirtualLink | ||
| Graphics Chipset | Turing | Turing | Turing | Turing | Turing | ||
| Memory Clock Frequency (MHz) | 1625MHz | 1750MHz | 1750MHz | ||||
| Memory Size | 4GB GDDR6 | 4GB GDDR6 | 8GB GDDR6 | 16GB GDDR6 | 24GB GDDR6 | ||
| Memory Interface | 128-bit | 128-bit | 256-bit | 256-bit | 384-bit | ||
| Memory Bandwidth | 160GB/s | 160GB/s | Up to 416GB/s | Up to 448GB/s | Up to 672GB/s | ||
| GPU Cores | CUDA Cores: 640 | CUDA Cores: 896 | CUDA Cores: 2304 Tensor Cores: 288 RT Cores: 36 | CUDA Cores: 3072 Tensor Cores: 384 RT Cores: 48 | CUDA Cores: 4608 Tensor Cores: 576 RT Cores: 72 | ||
| GPU Core Frequency (MHz) | 1005MHz | 1620MHz | 1440MHz | ||||
| Maximum Power Consumption | 40W | 50W | Total board power: 160W Total graphics power: 125W | Total board power: 265W Total graphics power: 230W | Total board power: 295W Total graphics power: 260W | ||
| Supported Resolutions and Max Refresh Rates (Hz) (Note: Analog and/or Digital) | 4 x 3840×2160 @ 120Hz 4 x 5120×2880 @ 60Hz 4 x 7680×4320 @ 60Hz | 4 x 4096×2160 @ 120Hz 4 x 5120×2880 @ 60Hz 2 x 7680×4320 @ 60Hz | 4 x 4096×2160 @ 120Hz 4 x 5120×2880 @ 60Hz 2 x 7680×4320 @ 60Hz | ||||
| Thermal Solution | Active | Active | Ultra-quiet Active Fansink | Ultra-quiet Active Fansink | Ultra-quiet Active Fansink | ||
| Dimension | 2.7″ H x 6.1″ L Single Slot | 2.7″ H x 6.1″ L Single Slot | 4.4″ H x 9.5″ L Single Slot | 4.4″ H x 10.5″ L Dual Slot, Full Height | 4.4″ H x 10.5″ L Dual Slot, Full Height | ||
| Advanced Display | x | x | SYNC 2 | SYNC 2 | SYNC 2 | ||
| SLI/NVLink Support | x | x | Not Available | NVLink | NVLink | ||
| Memory Clock Frequency (MHz) | 1750MHz | x | x | 2000MHz | 858MHz |
| Memory Size | 48GB GDDR6 | 16GB GDDR6 | 24GB GDDR6 | 48GB GDDR6 | 32GB HBM2 |
| Memory Interface | 384-bit | 256-bit | 384-bit | 384-bit | 4096-bit |
| Memory Bandwidth | Up to 672GB/s | 448 GB/s | Up to 768GB/s | Up to 768GB/s | Up to 870GB/s |
| GPU Cores | CUDA Cores: 4608 Tensor Cores: 576 RT Cores: 72 | CUDA Cores: 6411 Tensor Cores: 192 RT Cores: 48 | CUDA Cores: 8,192 Tensor Cores: 256 RT Cores: 64 | CUDA Cores: 10,752 Tensor Cores: 336 RT Cores: 84 | CUDA Cores: 5120 Tensor Cores: 640 |
| GPU Core Frequency (MHz) | 1395MHz | x | x | x | 1132MHz |
| Maximum Power Consumption | Total board power: 295W Total graphics power: 260W | 140W | 230W | 300W | 250W |
| Supported Resolutions and Max Refresh Rates (Hz) (Note: Analog and/or Digital) | 4 x 3840 x 2160 @ 120Hz 4 x 5120×2880 @ 60Hz 2 x 7680×4320 @ 60Hz | 4 x 4096×2160 @ 120Hz 4 x 5120×2880 @ 60Hz 2 x 7680×4320 @ 60Hz | 4 x 4096×2160 @ 120Hz 4 x 5120×2880 @ 60Hz 2 x 7680×4320 @ 60Hz | 4 x 4096×2160 @ 120Hz 4 x 5120×2880 @ 60Hz 2 x 7680×4320 @ 60Hz | 4 x 4096×2160 @ 120Hz 4 x 5120×2880 @ 60Hz 2 x 7680×4320 @ 60Hz |
| Thermal Solution | Ultra-quiet Active Fansink | Active | Active | Active | Ultra-quiet Active Fansink |
| Dimension | 4.4″ H x 10.5″ L Dual Slot, Full Height | 4.4″ H x 9.5″ L Single Slot | 4.4″ H x 10.5″ L Dual Slot, Full Height | 4.4″ H x 10.5″ L Dual Slot, Full Height | 4.4″ H x 10.5″ L Dual Slot, Full Height |
| Advanced Display | SYNC 2 | SYNC 2 | SYNC 2 | SYNC 2 | Not Available |
| SLI/NVLink Support | NVLink | x | NVLink | NVLink | NVLink |
Intel® Ethernet Specifications
| Card | Intel I210-T1 Single Port Gigabit Ethernet Adapter (Springville) | Intel I350-T2 Dual Port Gigabit Ethernet Adapter (Stony Lake T2) | Intel I350-T4 Quad Port Gigabit Ethernet Adapter (Stony Lake T4) | Intel X540- T2 Dual Port Copper 10Gb Ethernet Adapter | Intel X710- DA2 Dual Port Fiber 10Gb Ethernet Adapter |
| Supplier PN | I210T1, MM# 941033 | I350T2G1P2 0, MM# 928941 | I350T4G1P2 0, MM# 928942 | MM#928955 | MM# 952103 |
| Data Rates Supported | 10/100/1000 Mbps copper | 10/100/1000 Mbps (Copper), 1000Mbps (Fiber) | 10/100/1000 Mbps (Copper), 1000Mbps (Fiber) | 100/1000Mb ps and 10Gbps Copper | 1GbE/10GbE Optical fiber 10GbE Direct Attach (DAC) |
| Controller Details | Intel® Ethernet Controller I210 | Intel Ethernet Controller I350 | Intel Ethernet Controller I351 | Intel Ethernet Controller X540 | Intel Ethernet Controller X710-AM2 |
| Controller Bus Architecture | PCIe 2.1 (5GT/s) | PCIe 2.1 (5GT/s) | PCIe 2.1 (5GT/s) | PCIe 2.1 (5GT/s) | PCIe 3.0 (8GT/s) |
| Data Transfer Mode | Ethernet | Ethernet | Ethernet | Ethernet | Ethernet |
| Power Consumption | 0.81W | Copper: I350-T2 V2= 4.4W Fiber: I350-F2= 5.5W | Copper: I350T4V2= 5W LC-Fiber: I350F4= 6W | X540-T2: 10Gps= 17.4W 1Gbps= 9.5W 100Mbps=6. 6W X540-T1: 10Gbps=10.8 W 1Gbps= 7.7W 100Mbps= 6.4W | Dual-port 10GBASE- SR= 4.3W typ/4.8W max Dual-port 1000BASE- SX= 4W typ/4.3W max Dual-port 10GBASE- LR= 4.5W typ/ 5.1W max Dual-port Direct Attach (Twinax)= |
| 3.3W typ/3.7W max | |||||
| IEEE Standards Compliance | IEEE 802.3/10BA SE-T, 100BASE- TX, 1000BASE-T | IEEE 802.3/10BA SE-T, 100BASE- TX, 1000BASE-T | IEEE 802.3/10BA SE-T, 100BASE- TX, 1000BASE-T | IEEE 802.3 100/1000/10 GBASE-T | IEEE 802.3 1/1010GBAS E-SR/LR, SFF-8431 10GSFP+DA C |
| Boot ROM Support | PXE boot, Intel iSCSI Remote Boot for Windows, Linux and Vmware, Intel BootAgent Software via PXE or BootP, WDMS or UEFI | PXE boot, Intel iSCSI Remote Boot for Windows, Linux and Vmware, Intel BootAgent Software via PXE or BootP, WDMS or UEFI | PXE boot, Intel iSCSI Remote Boot for Windows, Linux and Vmware, Intel BootAgent Software via PXE or BootP, WDMS or UEFI | PXE boot, Intel iSCSI Remote Boot for Windows, Linux and Vmware, Intel BootAgent Software via PXE or BootP, WDMS or UEFI | PXE boot, Intel iSCSI Remote Boot for Windows, Linux and Vmware, Intel BootAgent Software via PXE or BootP, WDMS or UEFI |
| Network Transfer Mode (Full/Half Duplex) | Supported | Supported | Supported | Supported | Supported |
| Network Transfer Rate | 1,000Mbps Full Duplex | 1,000Mbps Full Duplex | 1,000Mbps Full Duplex | 1,000Mbps Full Duplex | 1,000Mbps Full Duplex |
| Operating System Driver Support | Windows 7/8/10, Linux, Free BSD, XEN,Vmware | Windows 7/8/10, Linux, Free BSD, XEN,Vmware | Windows 7/8/10, Linux, Free BSD, XEN,Vmware | Windows 7/8/10, Windows ServerLinux, FreeBSD | Windows 2008, 2012; RHEL 6.5/7.0, FreeBSD 9/10, Vmware ESXi 5.x |
| Manageability | Supported | Supported | Supported | Supported | Supported |
| Manageability Capabilities Alerting | Supported | Supported | Supported | Supported | Supported |
| TDP | Firmware Based Thermal Managemen t | Firmware Based Thermal Managemen t | Firmware Based Thermal Managemen t | Firmware Based Thermal Managemen t | Not Available |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) | 0°C to 55°C (32°F to 131°F) | 0°C to 55°C (32°F to 131°F) | 0°C to 55°C (32°F to 131°F) | 0°C to 55°C (32°F to 131°F) |
| # of Ports | 1 | 2 | 4 | 2 | 2 |
| Data Rate Per Port | 10/100/1000 Mbps (copper) | 10/100/1000 Mbps (copper), 1000Mbps (fiber) | 10/100/1000 Mbps (copper), 1000Mbps (fiber) | 100/1,000M bps, 10Gbps | 1Gbps, 10Gbps |
| System Interface Type | PCIe Gen 2.1 | PCIe Gen 2.1 | PCIe Gen 2.1 | PCIe Gen 2.1 | PCIe 3.0 |
| NC Sideband Interface | Not Available | Not Available | Not Available | Not Available | Yes |
| Jumbo Frames Supported | Yes | Yes | Yes | Yes | Yes |
| 1000Base-T | Yes | Yes | Yes | Yes | Not Available |
| IEEE 1588 | Supported | Supported | Supported | Not Available | Supported |
| Card | Intel Ethernet SFP+ SR Optics Module | Intel Dual Band Wireless-AC 7260 ASM | Intel Winstorm Peak 8265 2×2 AC+BT 4.2 Vpro M.2 Combo |
| Supplier PN | MM#: 941243 | 7260HMWDTX.R, MM# 936170 | MM#: 946658 |
| Data Rates Supported | Not Available | Intel Dual Band Wireless-AC 7260 | Intel Dual Band Wireless-AC 8265 |
| Controller Details | Not Available | Intel Dual Band Wireless-AC 7260, Dual Band, 2×2, WiFi+BT | Intel Dual Band Wireless-AC 8265, 2×2, WiFi+BT, MU- MIMO |
| Controller Bus Architecture | Not Available | PCIe M.2 | PCIe M.2 |
| Data Transfer Mode | Not Available | WiFi (802.11ac), 2.4GHz, 5GHz | WiFi (802.11ac), 2.4GHz, 5GHz |
| Power Consumption | Not Available | Not Available | Not Available |
| IEEE Standards Compliance | Not Available | IEEE 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w | IEEE 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w, 802.11r, 802.11k, 802.11v (pending) |
| Boot ROM Support | Not Available | Not Available | Not Available |
| Network Transfer Mode (Full/Half Duplex) | Not Available | Not Available | Not Available |
| Network Transfer Rate | Not Available | 300/867Mbps | 867Mbps |
| Operating System Driver Support | Not Available | Windows 10, 32-bit*, Windows 10, 64-bit*, Windows 8.1, 32-bit*, Windows 8.1, 64-bit*, Windows 8, 32-bit*, Windows 8, 64-bit*, Windows 7, 32-bit*, Windows 7, 64-bit*, Linux* | Windows 10, 64-bit*, Windows 8.1, 64-bit*, Windows 7, 32-bit*, Windows 7, 64-bit*, Linux* |
| Manageability | Not Available | Not Available | Not Available |
| Manageability Capabilities Alerting | Not Available | Not Available | Not Available |
| TDP | Not Available | Not Available | Not Available |
| Operating Temperature Range | Not Available | 0°C to 80°C (32°F to 176°F) | 0°C to 80°C (32°F to 176°F) |
| # of Ports | Not Available | Not Available | Not Available |
| Data Rate Per Port | Not Available | Not Available | Not Available |
| System Interface Type | Not Available | PCIe M.2 | PCIe M.2 |
| NC Sideband Interface | Not Available | Not Available | Not Available |
| Jumbo Frames Supported | Not Available | Not Available | Not Available |
ETHERNET
| Model | i210-T1 | Dual Port Copper= I350-T2V2 Dual Port LC-Fiber= I350-F2 | Dual Port Copper= I350-T4 V2 Dual Port LC-Fiber= I350-F4 | Dual Port Copper= X540-T2 | X710-DA2 |
| Connector | RJ-45 Copper | 2 x Ports RJ- 45 Copper or 2 x Ports LC-Fiber | 4 x Ports RJ-45 Copper or 4 x Ports LC- Fiber | 2 x Ports RJ- 45 Copper | 2 x SFPs Receptable |
| Website | i210 T1 | i350 T2/F2 | i350 T4/F4 | x540 T2 | x710 DA2 |
| Auto-Negotiation | IEEE* 802.3* Auto- negotiaton | IEEE* 802.3* Auto- negotiaton | IEEE* 802.3* Auto- negotiaton | IEEE* 802.3* Auto- negotiaton | IEEE* 802.3* Auto- negotiaton |
| Intel® vPro™ | Not Available | Not Available | Not Available | Not Available | Not Available |
| Intel® Standard Manageablity | Supported | Supported | Supported | Supported | Supported |
| Power Optimizer Platform Low-power Management Systems | Supported | Supported | Supported | Supported | Supported |
| Energy Efficient Ethernet | Supported | Supported | Supported | Not Available | Supported |
| TCP/UDP Checksum and Segmentation Offload (IPv4 and IPv6) | Supported | Supported | Supported | Supported | Supported |
| Receive Side Scaling | Supported | Supported | Supported | Supported | Supported |
| Dual Tx and Rx Queues | Yes | Yes | Yes | Yes | Yes |
| Jumbo Frames (up to 9KB) | Supported | Supported | Supported | Not Available | Supported |
| Teaming | Not Available | Supported | Supported | Supported | Supported |
| Wake from Deep Sx | Supported | Supported | Supported | Not Available | Not Available |
| Server Operating System Support | Windows Server 2008, 2012, 2016. 2019 Linux (RHEL/SLES ), Free BSD, Xen, Vmware | Windows Server 2008, 2012, 2016. 2019 Linux (RHEL/SLES ), Free BSD, Xen, Vmware | Windows Server 2008, 2012, 2016. 2019 Linux (RHEL/SLES ), Free BSD, Xen, Vmware | Windows Server 2003, 2008; RHEL 4, Linux/SLES 11, Vmware | Windows 2008, 2012; RHEL 6.5/7.0, FreeBSD 9/10, Vmware ESXi 5.x |
| Network Proxy/ARP Support | Supported | Supported | Supported | Supported | Supported |
| Model | AC 7260 NGW | AC 8265 NGW |
| Connector | 2 x Antennas | 2 x Antennas |
| Website | 7260 NGW | 8265 NGW |
| Auto-Negotiation | Not Available | Not Available |
| Intel® vPro™ | Supported | Supported |
| Intel® Standard Manageablity | Not Available | Not Available |
| Power Optimizer Platform Low-power Management Systems | Supported | Supported |
| Energy Efficient Ethernet | Not Available | Not Available |
| TCP/UDP Checksum and Segmentation Offload (IPv4 and IPv6) | Not Available | Not Available |
| Receive Side Scaling | Not Available | Not Available |
| Dual Tx and Rx Queues | Not Available | Not Available |
| Jumbo Frames (up to 9KB) | Not Available | Not Available |
| Teaming | Not Available | Not Available |
| Wake from Deep Sx | Not Available | Not Available |
| Server Operating System Support | Not Available | Not Available |
| Network Proxy/ARP Support | Not Available | Not Available |
MEDIA CARD READER
| Description | 9-in-1 (USB 2.0) |
BIOS/Certifications/Standards/Environmental
BIOS SPECIFICATION
| WMI Support | Compliant With Microsoft WBEM and the DMTF Common Information Model |
| ROM-Based Setup Utility (F1) | System Configuration Setup Program (text only interface) Available at Power-on With F1 Key |
| Bootblock Recovery | Recovers System BIOS if the Flash ROM Becomes Corrupted |
| Replicated Setup | Saves System Configuration Settings to a File That Can Then be Used to Replicate the Settings to Other Systems |
| Boot Control | Boot Control Available Through ROM-based Setup Utility or With F12 Key at Power-on |
| Memory Change Alert | Power-on Error Message in the Event of a Decrease in System Memory |
| Thermal Alert | Power-on Error message in the Event of a Fan Failure |
| Asset Tag | Supports Ability to Set SMBIOS Type 2 Baseboard Asset Tag Field |
| System/Emergency ROM Flash Recovery With Video | Supports Process to Recover the System BIOS if the Flash ROM Becomes Corrupted |
| Remote Wakeup/Remote Shutdown | System Admin Can Power On/Off a Client Computer from a Remote Location to Provide Maintenance |
| Quick Resume Time | Supports Low Power S3 (suspend to RAM) and Prompt Resume Times |
| ROM Revision Level | System UEFI (BIOS) Version Reported in SMBIOS Type 0 Structure and in BIOS Setup |
| Keyboard-less Operation | System Can be Booted Without a Keyboard |
| Per-port Control | Allows I/O Ports to be Individually Enabled/Disabled Through ROM- based Setup or WMI Interface |
| Adaptive Cooling | Offers Multiple Settings for Fan Control Ranging Between Better Performance and Better Acoustics |
| Security | User and Administrator Passwords Can Protect Boot and ROM-based Setup – Support Electronic Lock – Chassis Intrusion Detection – UEFI Secure Boot Support – HDD Password Can Protect HDD Data – Windows UEFI Firmware Update Support – Device Guard Support – Optional Access Panel Lock, Kensington Lock, and Pad Lock |
| Intel(R) AMT (includes ASF 2.0) | Allows System to be Supported from a Remote Location |
| Intel(R) TXT | Intel(R) Trusted Execution Technology Provides a Security Foundation to Build Protections Against Software Based Attacks |
| Memory Modes | Supports Mirroring, Lock Step, and Sparing Memory Modes |
| Windows 10 Ready | Supports Windows 10 Requirements for Secure Flash, UEFI v 2.6 Device Guard Support Spec |
INDUSTRY SATANDARD SPEC
| UEFI | Unified Extensible Firmware Interface v2.7 |
| ACPI (Advanced Configuration and Power management Interface) | Advanced Configuration and Power Interface v6.1 |
| ASF 2.0 | DMTF Alert Standard Format Specification v2.0 |
| ATA (IDE) | AT Attachment 6 with Packet Interface (ATA/ATAPI-6) |
| CD Boot | El Torito Bootable CD-Rom Format Specification, v1.0 |
| EHCI | Enhanced Host Controller Interface for Universal Serial Bus, Revision v1.0 |
| PCI | NA (No PCI slot) |
| PCI Express | PCI Express Base Specification v3.0 |
| SATA | Serial ATA Revision 3.0 Specification |
| TPM | Trusted Computing Group TPM Specification v2.0 |
| UHCI | Universal Host Controller Interface Design Guide, Revision v1.1 |
| USB | Universal Serial Bus Revision v1.1 Universal Serial Bus v2.0 Universal Serial Bus v3.0 |
| SMBIOS | DMTF System Management Spec v3.2.1 |
| XHCI | XHCI SPEC Revision v1.2 |
SOCIAL AND ENVIRONMENT RESPONSIBILITY
| Quality Control | Lenovo is a member of an eco declaration system that enforces regular independent quality control |
| Hazardous Substances and Preparation | • Products do not contain more than; 0.1% lead, 0.01% cadmium, 0.1% mercury, 0.1% hexavalent chromium, 0.1% polybrominated biphenyls (PBB) or 0.1% polybrominated diphenyl ethers (PBDE). (See legal reference and Note B1) • Products do not contain Asbestos • Products do not contain Ozone Depleting Substances: Chlorofluorocarbons (CFC), hydrobromofluorocarbons (HBFC), hydrochlorofluorcarbons (HCFC), Halons, carbontetrachloride, 1,1,1- trichloroethane, methyl bromide • Products do not contain more than; 0.005% polychlorinated biphenyl (PCB), 0.005% polychlorinated terphenyl (PCT) in preparation • Products do not contain more than 0.1% short chain chloroparaffins (SCCP) with 10-13 carbon atoms in the chain containing at least 48% per mass of chlorine in the SCCP • Parts with direct and prolonged skin contact do not release nickel in concentrations above 0.5 microgram/cm²/week REACH Article 33 information about substances in articles is available at: http: /www.lenovo.com/social_responsibility/us/en/ThinkGreen_produc ts.html#environment |
| Batteries | Not Available |
| Safety, EMC Connection to the Telephone Network and Labeling | Not Applicable, no Connection to a Telephone Network |
SAFETY EMC CONNECTION
| System Software Manager | Lenovo ThinkStation Supports Software Management Tools by Lenovo Vantage |
| VCCI Certification for Japan BSMI Certification for Taiwan EU/EFTA CE Mark & DoC UL/CUL(P920,P720,P520,P520c), cTUVus(P330) UL-GS(P920,P720,P520,P520c), TUV-GS(P330) IEC60950-1 CB Report/Certificate Saudi Arabia SASO Kuwait KUCAS China CCC Mark Hong Kong SAR (CB report) Singapore PSB South Africa SABS Russia-EAC Morocco-CM Mexico-NOM Kazakhstan-EAC Belarus-EAC Serbia KVALITET Ukraine UKrCEPRO India-BIS USA Chemical Emission Test |
REGULATION AND STANDARD
| EMC & Safety | FCC DoC for North America |
| VCCI Certification for Japan BSMI Certification for Taiwan EU/EFTA CE Mark & DoC UL/CUL(P920,P720,P520,P520c), cTUVus(P330) UL-GS(P920,P720,P520,P520c), TUV-GS(P330) IEC60950-1 CB Report/Certificate Saudi Arabia SASO Kuwait KUCAS China CCC Mark Hong Kong SAR (CB report) Singapore PSB South Africa SABS Russia-EAC Morocco-CM Mexico-NOM Kazakhstan-EAC Belarus-EAC Serbia KVALITET Ukraine UKrCEPRO India-BIS USA Chemical Emission Test |
ENVIRONMENT
| Energy Star | ENERGY STAR® v7.0 |
| EPEAT | EPEAT Certification Available on Select Models |
| ErP Lot-3 2013 | Yes |
| Hazardous Substances | • Products do not contain more than; 0.1% lead, 0.01% cadmium, 0.1% mercury, 0.1% hexavalent chromium, 0.1% polybrominated biphenyls (PBB) or 0.1% polybrominated diphenol ethers (PBDE) • Products do not contain Asbestos • Products do not contain Ozone Depleting Substances: Chlorofluorocarbons (CFC), hydro Bromo fluorocarbons (HBFC), hydrochlorofluorocarbons (HCFC), Halons, carbon tetrachloride, 1,1,1- trichloroethane, methyl bromide • Products do not contain more than; 0.005% polychlorinated biphenyl (PCB), 0.005% polychlorinated terphenyl (PCT) in preparation • Products do not contain more than 0.1% short chain chloroparaffins (SCCP) with 10-13 carbon atoms in the chain containing at least 48% per mass of chlorine in the SCCP • Parts with direct and prolonged skin contact do not release nickel in concentrations above 0.5 microgram/cm_/week |
References
lenovo.com/social_responsibility/us/en/ThinkGreen_produc
workstations :: thinkstation p series workstations :: thinkstation p920 Lenovo PC Support - Lenovo Support US-
Lenovo Support | Drivers, Troubleshooting, Warranty, Repair | Lenovo Support US
-
Lenovo Support | Drivers, Troubleshooting, Warranty, Repair | Lenovo Support US
lenovo.com/social_responsibility/us/en/ThinkGreen_produc
workstations :: thinkstation p series workstations :: thinkstation p920 Lenovo PC Support - Lenovo Support US
Lenovo Support | Drivers, Troubleshooting, Warranty, Repair | Lenovo Support US
