McLED ML-952.002.22.0 RGBW Power Reapeater
Important: Read All Instructions Prior to Installation.
Installation may only be performed by qualified persons.
Safety & Warnings:
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.

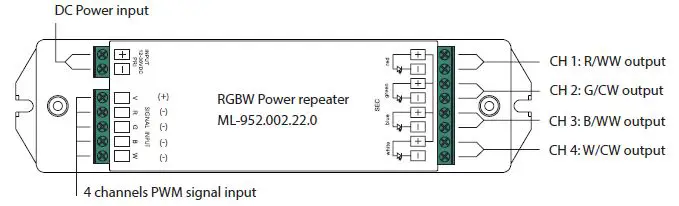

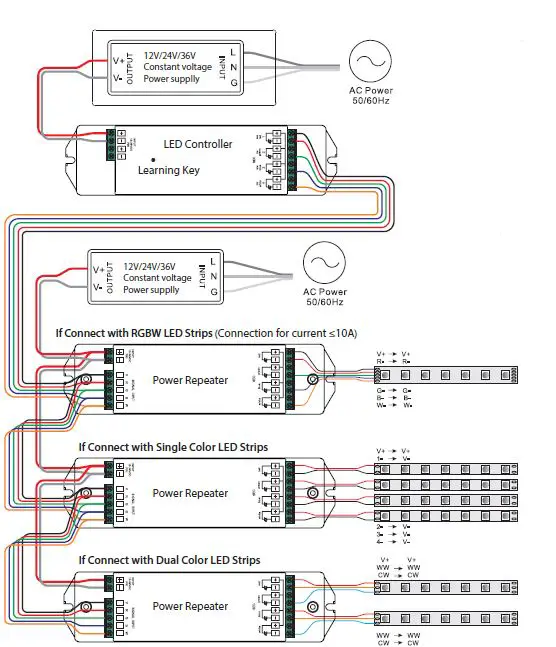

Wiring diagram:
Product data:
| Input/output voltage | 12-36VDC |
| Output Current 1 channel | max. 5A |
| Output Power total 4 channels | max. 10A |
| Output Power 1 channel | 12V/60W 24V/120W 36V/180W |
| Output Power 4 channels | 12V/120W 24V/240W 36V/360W |
| Remarks | Constant voltage |
| RGBW Input Power | 1,2 W |
| Waterproof grade | IP20 |
| Size (L x W x H) | 178 x 46 x 22 mm |
- Repeater dimming signal.
- One channel/three channel/four-channel optional.
- Constant voltage/constant current.
- Power repeater in series to expand output unlimitedly.
Operation:
LED power repeater is suitable for all of our single color & RGB controllers to expand power output, it supports PWN control and can connect one to three times more LEDs by adding one more power repeater, and unlimited power repeaters can be connected together theoretically. The constant voltage power repeater and contstant current power repeaters can be connected together, which is convenient for controlling LEDs with different voltage and power.
*When the lifetime of this product will run out, please hand it in to the places for electro-waste. www.mcled.eu
