Videx Vle-bh12 Led Blukhead Light Instruction Manual

VLE-BH12 LED Bulkhead Light
Instruction Manual

LED BULK’ EAD LIGHT

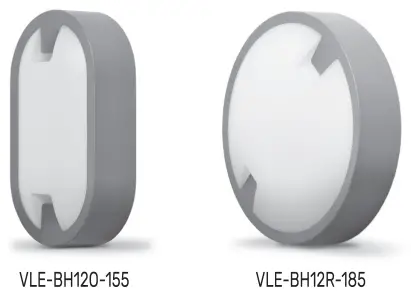

VLE-BH12 LED Bulkhead Light

LED BULKHEAD LIGHT

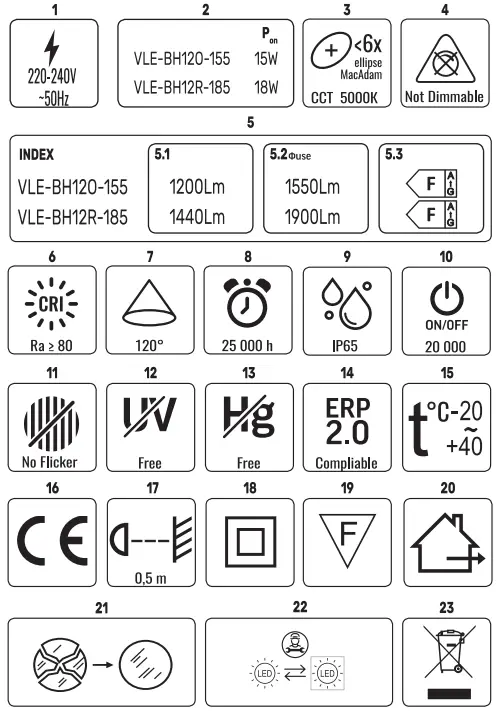

1. Rated voltage, frequency.
2. Rated power.
3. Color temperature.
4.  Not compatible with lighting dimmer.
5. Rated luminous flux.
   5.1. Luminous flux of luminaries
   5.2. Luminous flux of light source (360°).
   5.3. This product contains a light source of energy efficiency class.
6. Color Rendering Index.
7. Beam angle of luminaries.
8. Nominal lifetime.
9. Protection against dust and water jets provided.
10. ON/OFF cycles.
11. No perceptible flicker to the human eye.
12. Ultraviolet-free.
13. Mercury-free.
14. Compliance with standards of eco-design and energy labeling in force from Sep 01, 2021.
15. Working temperature.
16. Product meets requirements of EU directives.
17. The minimum distance from the illuminated object.
18. Class Il. Protection against electric shock is provided not only through basic insulation, but also double or reinforced insulation.
19. Product can be installed and operated in/on a surface made of materials which are normally flammable.
20. For outdoor use only.
21.  Replace the defective lamp cover immediately. Don’t use the product if the outer bulb is cracked or broken.
22. LED light source can be replaceable by the manufacturer’s authorized person.
    ENVIRONMENTAL PROTECTION
23. Pursuant to the provisions of the WEEE Act, it is forbidden to put waste equipment marked with the symbol of a crossed bin together with other waste. The user,  wishing to get rid of electronic and electrical equipment, is obliged to return it to a waste equipment collection point. There are no hazardous components in the  equipment that have a particularly negative impact on the environment and human health.

PRODUCT’S PURPOSE AND APPLICATION
This product is intended for illumination of the public or industrial space, also of the warehouses and building structures.

INSTALLATION INSTRUCTIONS

Installation must be performed by an electrician or authorized person.
Read the user’s manual prior installation. The light source and control gear are an integral unit. Any assembly or maintenance activities to be done with power supply OFF. To  install the LED fixture:

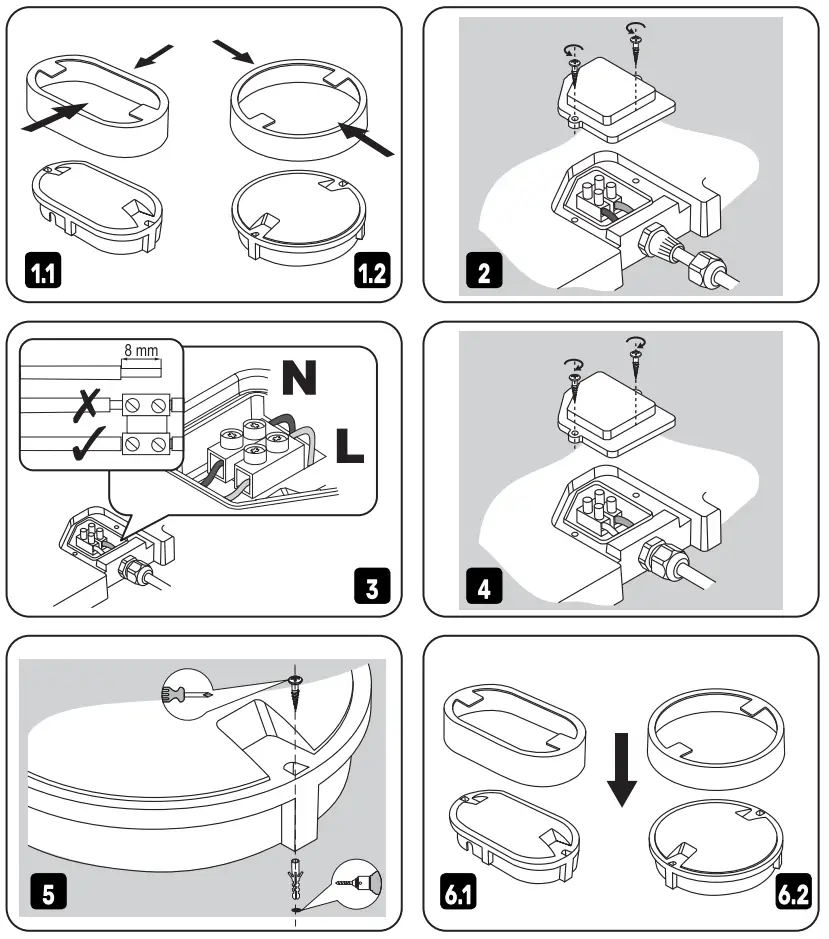

1. Press down on the decorative cover from both sides and remove it (Fig.11), (Fig.1.2);
2. Remove the protective cover from the terminal box (Fig.2);
3. Connect the L, N wires to the ~ 230V, 50 / 60Hz mains using a screw terminal (Fig.3) and fasten the protective cover of the terminal box back (Fig.4). The ends of the  wires must be insulated to the appropriate length:
4. Fix the luminaire using the mounting hardware (Fig.5);
5. Install the decorative cover until it clicks into place (Fig.6.1), (Fig.6.2). Before the first use it is necessary to verify that mechanical installation and electric connection are  carried out correctly. The manufacturer reserves the right to provide technical changes and improvements without notifying the user.

FUNCTIONAL CHARACTERISTICS
This product should be used outdoor only.

MAINTENANCE & SAFETY INSTRUCTIONS

Any maintenance work must be performed when the power supply is cut OFF and the product has cooled down. Clean only with soft and dry cloths. Do not use chemical  detergents. Do not cover the product. Ensure free air access. LED fixture may heat up to a higher temperature. Product can only be supplied by rated voltage or voltage  within the range provided. It’s forbidden to use the product with the damaged electric wiring or places of connections.
ATTENTION! Do not look directly at LED light  beam. It’s forbidden to use the product with damaged cover. Product must not be used in unfavorable conditions, e.g. explosive air atmosphere, fumes, or chemical fumes, etc.  The light source in the luminaire can be replaced by a person authorized by the manufacturer as part of service work. If the light source is damaged, contact the  manufacturer for service. Used or damaged product should be disposed of in accordance with applicable regulations.
Failure to follow these instructions may result in e.g. fire, burns, electrical shock, physical injury and other material and non-material damage. Allegro Opt Sp. z 0.0. shall not  be responsible for any damage resulting from the failure to follow these instructions. The manufacturer reserves the right to make changes in the manual.

Allegro Opt Sp. z 0.0., Handload
23, 05-120 Legion, Poland.
