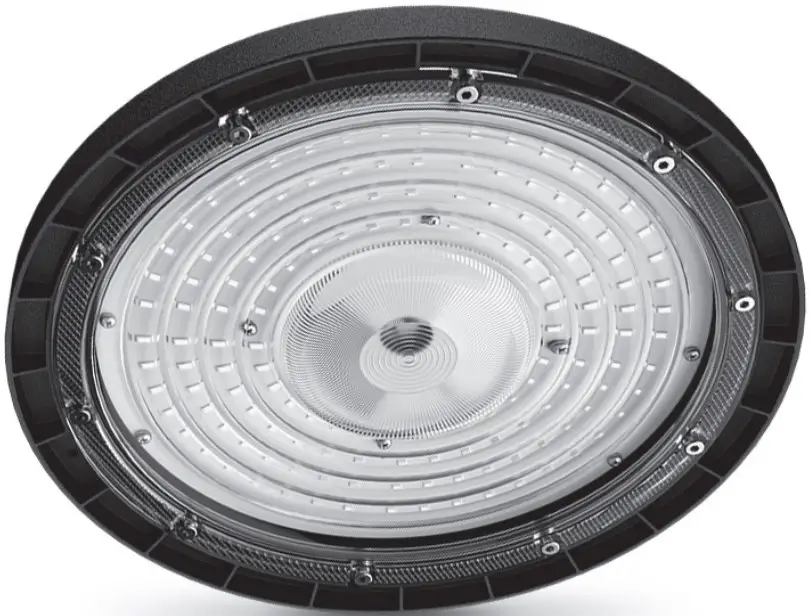

VIDEX VL-HBe03-1005B LED High Bay Light User Manual

TECHNICAL PARAMETER

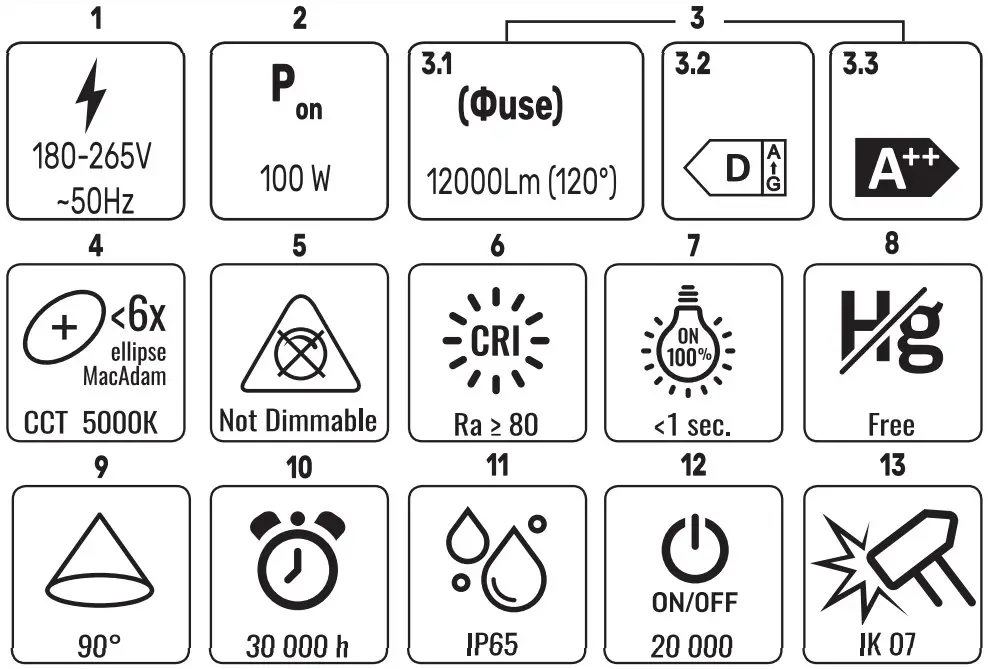

INTERPRETATION OF ICONS

1. Rated voltage, frequency
2. On-mode power (Pon)
3. Rated luminous flux
   1. Useful luminous flux (Ouse)
   2. Energy efficiency class according to Commission Regulation (EL]) 2019/2020
   3. Energy efficiency class according to the technical regulations of Ukraine.
4. Correlated color temperature
5. Not compatible with lighting dimmers
6. Color rendering index
7. Warm-up time to 100% of luminous flux
8. Mercury-free
9. Beam angle
10. Lifetime (L701350)
11. Ingress protection. The product protected against dust and water jets.
12. ON/OFF cycles
13. Mechanical impacts protection

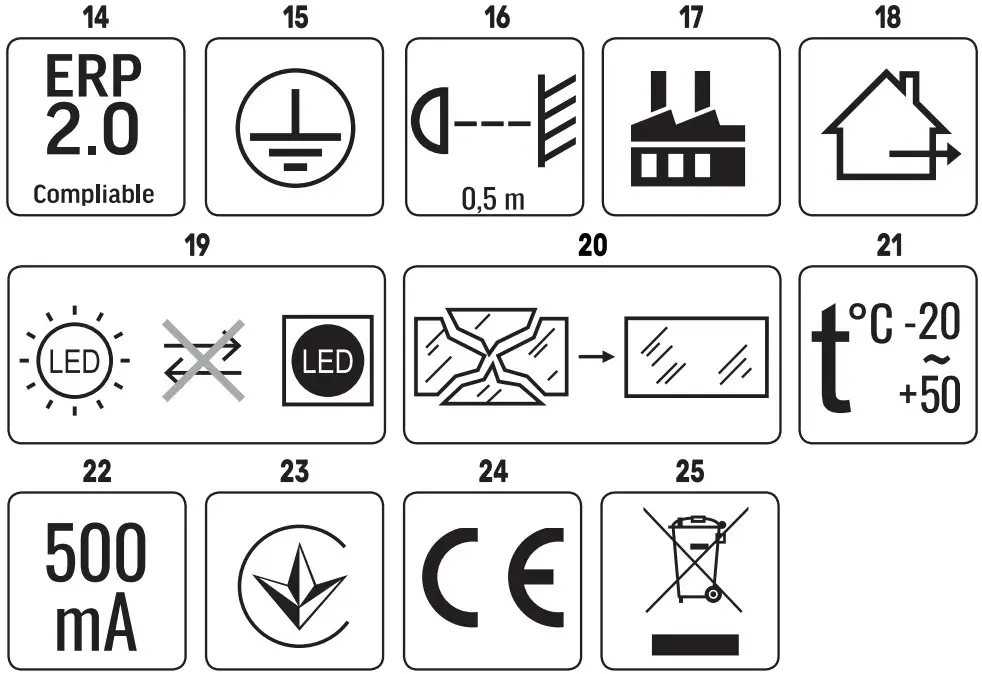

14. Product compliable with standards of ecodesign and energy labeling according to Commission Regulation (ELI) 2019/2020
15. Electric shock protection class 1: A product, in which protection against electric shock is provided not only by means of basic insulation, but also through additional safety measures, i.e. extra protective circuit to which protective conductor of the fixed feeding installation needs to be connected.
16. Minimum distance from the illuminated object
17. For industrial indoor use
18. For outdoor use
19. The containing LED light source cannot be replaced
20. Do not use the product with damaged cover. Replace damaged cover immediately
21. Operating temperatures range
22. Rated current
23. The product complies with the technical regulations of Ukraine
24. The product meets requirements of EU directives
    ENVIRONMENTAL PROTECTION
25. Pursuant to the provisions of the WEEE Act, it is forbidden to put waste equipment marked with the symbol of a crossed bin together with other waste. The user, wishing to get rid of electronic and electrical equipment, is obliged to return it to a waste equipment collection point. There are no hazardous components in the equipment that have a particularly negative impact on the environment and human health.
26. Overall dimensions, warranty period, production and batch number are indicated on individual packaging
27. Product weight: 1.2 Kg
28. Maximum installation height: 10 m
29. Maximum projection area:
30. Light power curve type: D (cosine)

PRODUCT’S PURPOSE AND APPLICATION

This product is intended for the lighting of production and warehouse premises, as well as external objects. It is not suitable for use in domestic premises.

INCLUDED

Read user’s manual before mounting. Mounting must be performed by appropriate qualified specialist. Mounting should be performed with disconnected power supply Please perform mounting according to diagram below. For installation and further use, only the suspended method of fastening is provided, which is carried out using a suspended mounting hook (not included). It is forbidden to hang the lamp by the electric cable. Product has grounding wire. Failure to connect the grounding wire may lead to electric shock. Connection must be made with a distribution box (not included) of the same rate of protection against dust and moisture as the rate of the light. Before the first use it is necessary to verify correct mechanical fastening and connection. The product can only be used at the mains, which meets energy requirements and quality standards provided by law.

FUNCTIONAL CHARACTERISTICS

This product can be used indoor and outdoor.

MAINTENANCE AND SAFETY INSTRUCTIONS

Any maintenance activities should be carried out with electricity switched off, the product has cooled down and dry. Product can heat up to a high temperature. Do not cover the products, ensure free air access. Clean only with soft and dry cloths. Do not use chemical detergents. Product can only be supplied by rated voltage or the voltage within the range provided. It is forbidden to use the product with damaged cover, electric wiring or places of connections. ATTENTION! Do not look directly at LED light beam. Do not try to repair or disassemble the sealed body of the light as this may compromise performance and void the warranty Product must not be used in unfavorable conditions, e.g. vibrations, explosive air atmosphere, fumes, or chemical fumes, etc. The LED light source inside the product is not replaceable. If the LED light source is damaged, the product cannot be repaired. Used or damaged product should be disposed of in accordance with applicable regulations.
Failure to follow these instructions may result into e.g. fire, burns, electrical shock, physical injury and other material and non-material damage. The producer shall not be responsible for any damage resulting from the failure to follow above instructions. The manufacturer reserves the right to make amendments of this user’s manual. The manufacturer reserves the right to provide technical changes.

Support

Producer/Producent: Allegro Opt Sp. z o.o., Handlowa 23, 05-120 Legionowo, Poland. Made in P.R.C. Store unused for no more than 2 years.
