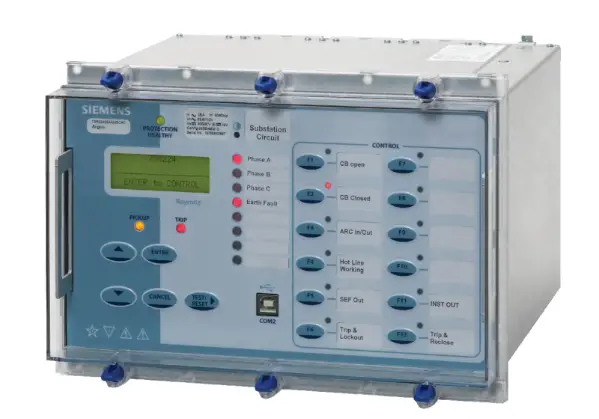

SIEMENS 7SR224 Three Phase SDR Recloser
Overview

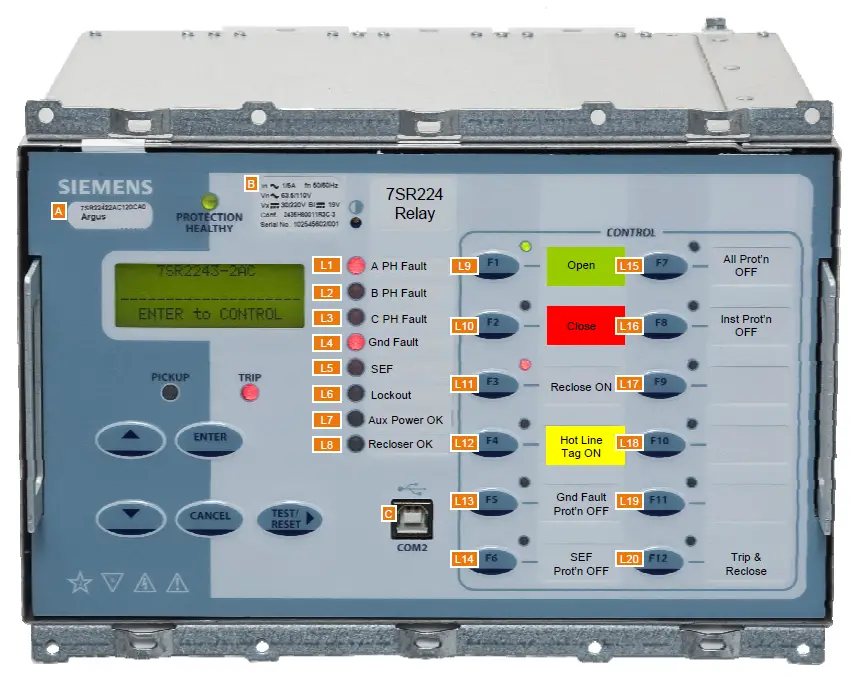

| Item | Description |
| A | MLFB model number |

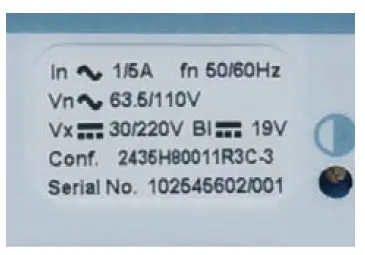

| B | Ratings label |
| C | Programming port |
| LED | Description |
| L1 | Phase A target |
| L2 | Phase B target |
| L3 | Phase C target |
| L4 | Ground fault target |
| L5 | Sensitive earth fault (SEF) target |
| L6 | Recloser is locked out |
| L7 | AC input power to control cubicle ok |
| L8 | Capacitors charged and system ready to reclose |
| LED | Button | Description | If the associated LED is lit, the status: |
| L9 | F1 | Push-to-open recloser | Recloser is OPEN |
| L10 | F2 | Push-to-close recloser | Recloser is CLOSED |
| L11 | F3 | Push-to-toggle reclose functionality ON/OFF | Reclose functionality is ON |
| L12 | F4 | Push-to-toggle hot line tag ON/OFF | Hotline tag is ON |
| L13 | F5 | Push-to-toggle ground fault protection ON/OFF | Ground fault protection is OFF |
| L14 | F6 | Push-to-toggle SEF protection ON/OFF | SEF protection is OFF |
| L15 | F7 | Push-to-toggle all protection ON/OFF | All protection is OFF |
| L16 | F8 | Push-to-toggle instantaneous protection ON/OFF | Instantaneous protection is OFF |
| L17 | F9 | User-defined | User-defined |
| L18 | F10 | User-defined | User-defined |
| L19 | F11 | User-defined | User-defined |
| L20 | F12 | Push-to-trip and reclose recloser | —- |
| LED | Button | Description | If the associated LED is lit, the status: |
| L9 | F1 | Push-to-open recloser | Recloser is OPEN |
| L10 | F2 | Push-to-close recloser | Recloser is CLOSED |
| L11 | F3 | Push-to-toggle reclose functionality ON/OFF | Reclose functionality is ON |
| L12 | F4 | Push-to-toggle hot line tag ON/OFF | Hot line tag is ON |
| L13 | F5 | Push-to-toggle ground fault protection ON/OFF | Ground fault protection is OFF |
| L14 | F6 | Push-to-toggle SEF protection ON/OFF | SEF protection is OFF |
| L15 | F7 | Push-to-toggle all protection ON/OFF | All protection is OFF |
| L16 | F8 | Push-to-toggle instantaneous protection ON/OFF | Instantaneous protection is OFF |
| L17 | F9 | User-defined | User-defined |
| L18 | F10 | User-defined | User-defined |
| L19 | F11 | User-defined | User-defined |
| L20 | F12 | Push-to-trip and reclose recloser | —- |
If LCD screen does not say “ENTER to CONTROL”, press the Cancel button until it does. This will not cause the recloser to operate.
Press enter.

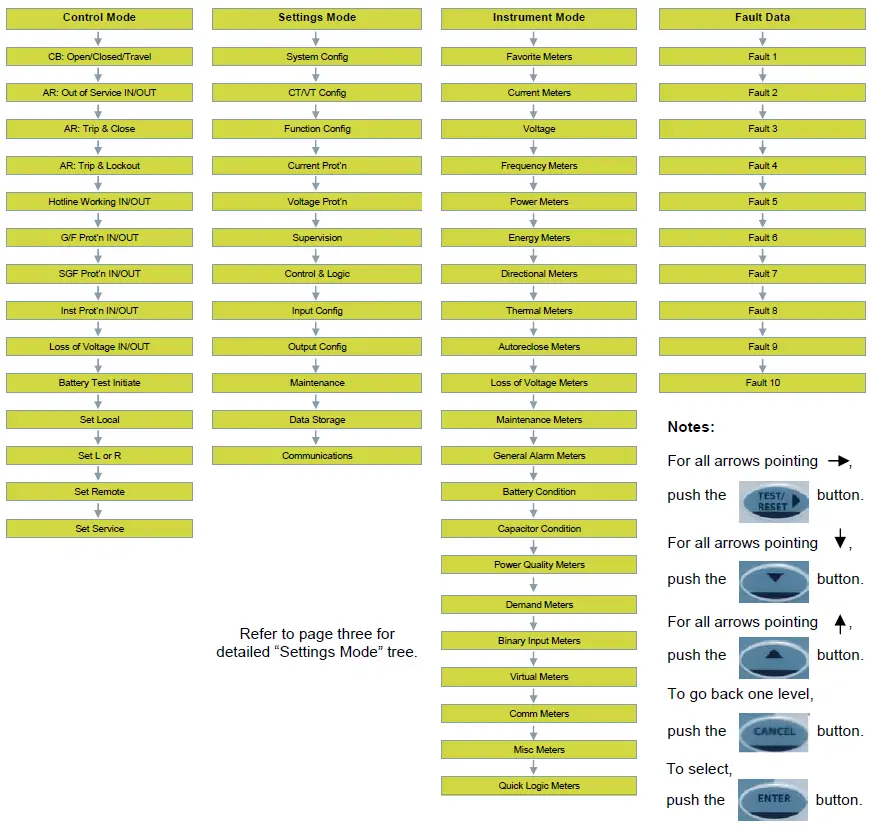

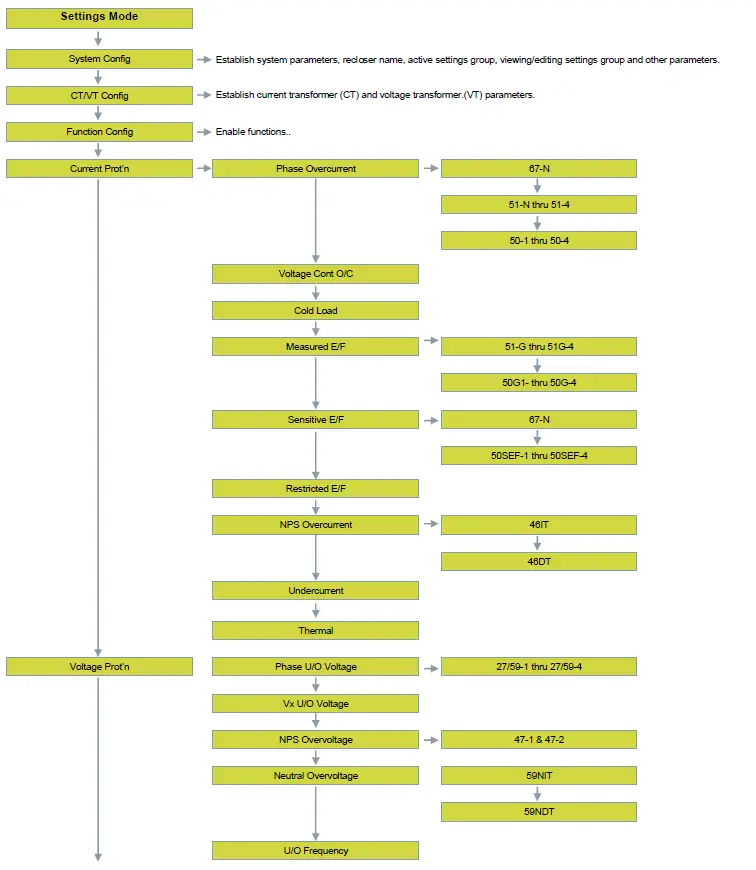

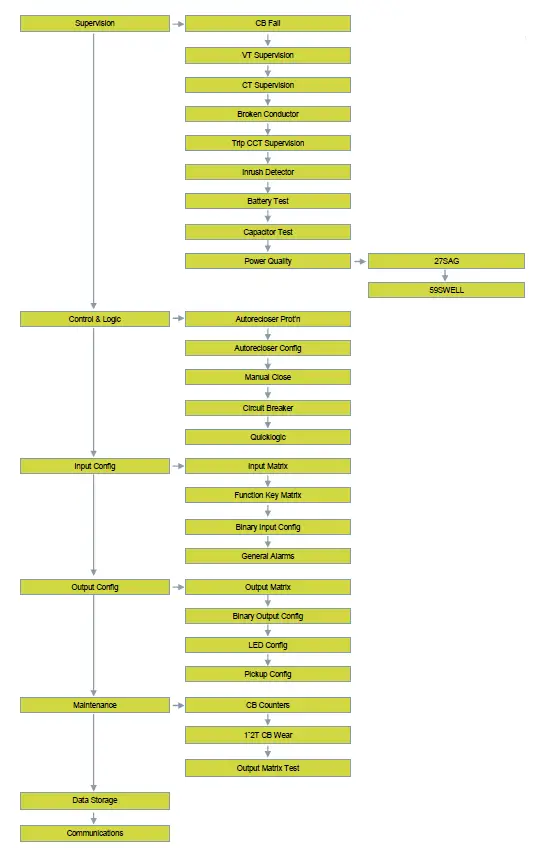

Settings mode detailed tree
