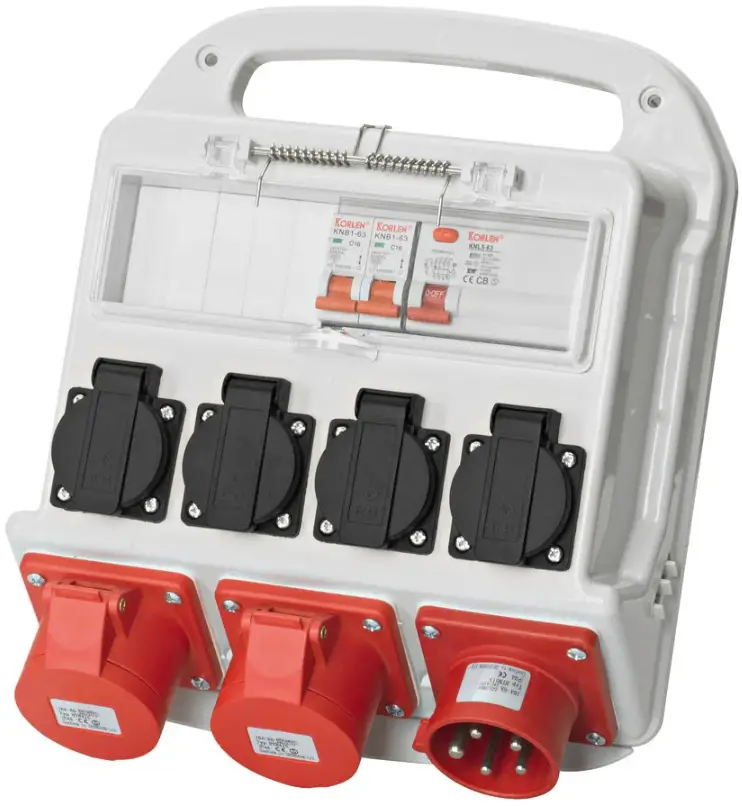

anslut 402389 Distribution Box Instruction Manual
Read the Operating Instructions carefully before use!
TECHNICAL DATA
- Voltage 400 V
- Current 16 A
- Safety class IP44
- Filament test 850 °C
- Rated insulation voltage (Ui) 415 V
- Short-circuit withstand strength (Icc) 6 kA
- Service condition: Out door/ Pollution degree 3
- Form of internal Separation form 1
- Type at electrical connections of functional units type F
- EMC environment B
- Dimensions (height*width*depth) 340 x 280 x 110 mm
- Type of system earthing TN-S
DESCRIPTION
Insult’s portable distribution boxes incorporate a practical and flexible electric distribution of both 1-phase and 3-phase groups.
- Compact design with easy-grip handle.
- Shock-proof casing with durable surface and round shape .
- Mounting holes in handle and bottom part – fits easily on a wall.
- RCD type A with “Snowflake” label -25°C.
- Overcurrent protection, in the form of a miniature circuit-breaker, with tripping function type C.
- Complies with international standard IEC61439.
OPERATION
Applications
When connecting a Portable Distribution Box with the intended extension cable to a CEE socket for this purpose, always make sure that the CEE socket is correctly fused.
Suitable for use on building sites, in public environments, at events and other places where a temporary power supply is required.
