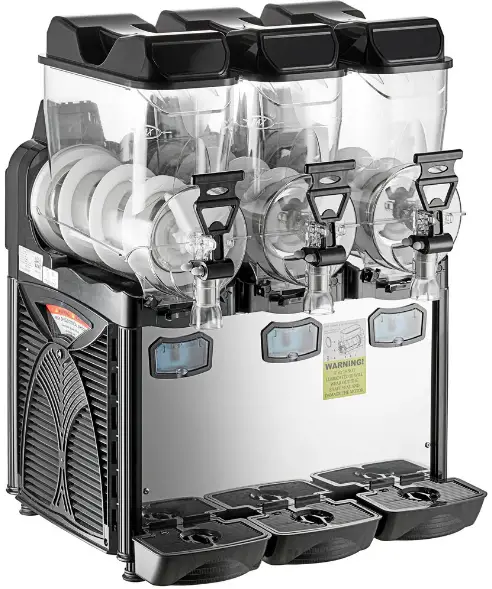

CARNIVAL KING 382SMM1, 382SMM2, 382SMM3 Frozen Beverage Dispenser User Manual

Safety

This instruction manual is an integral part of the machine and must be kept for any further consultation.

• This machine is a cold drink dispenser.
• This machine should be used only for the purpose for which it was designed. Any other use is inappropriate and therefore dangerous.
• The manufacturer will not be held responsible for any damage caused by improper use.
• Before installing and operating the machine, read this instruction manual carefully.
• Basic safety rules:
  • DO NOT touch the machine when hands or feet are wet.
  • DO NOT use the machine when barefoot.
  • This appliance should only be used by persons who have the knowledge, experience, and capability to operate it in a safe way.
  • DO NOT allow children to play with or use the appliance, or allow untrained persons to use the appliance.
  • DO NOT leave the machine outdoors.
  • DO NOT pull on the electrical cord to unplug the machine.

Components, Features & Controls

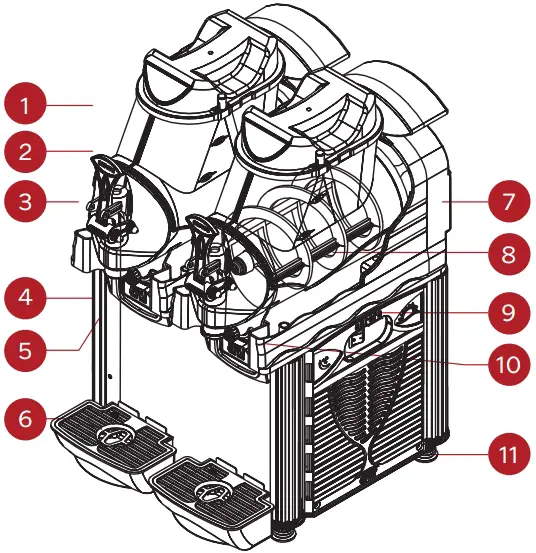

Main Components

1. Lid
2. Bowl
3. Tap Lever
4. Product Supply
5. Bowl Switch Box
6. Drip Tray
7. Thickness Control
8. Spiral Blade
9. Main Switches
10. Bowl Fixing Knob
11. Rubber Leg

Technical Features

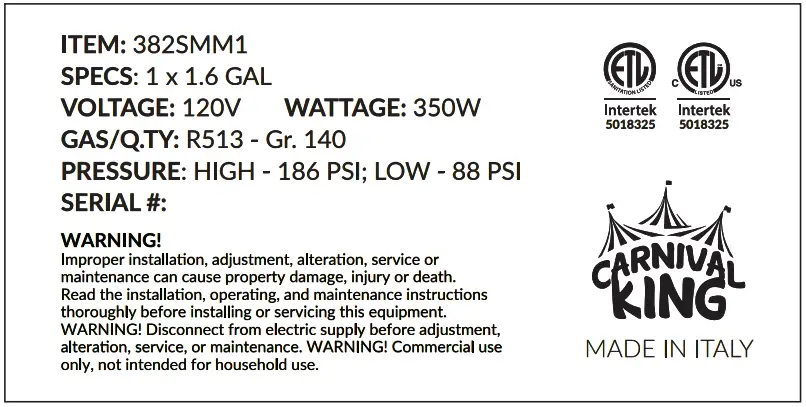

Serial Plate

The technical features of the machine are reported on the serial plate attached on the frame.

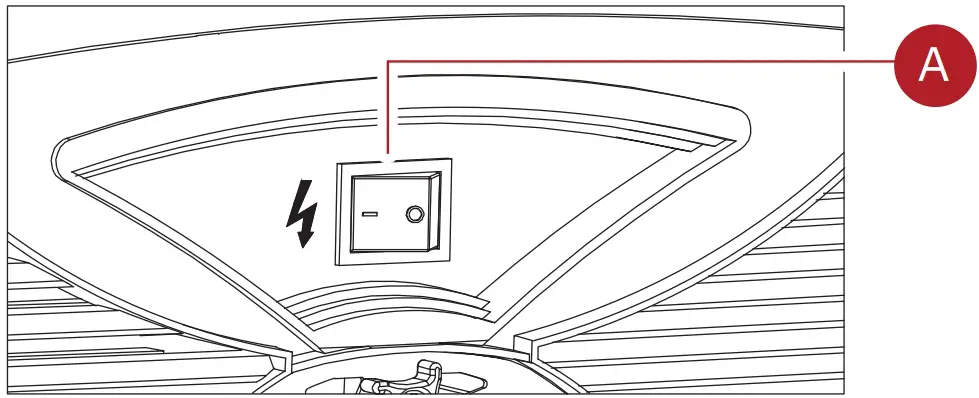

Main Controls

• Positioned on the right side of the machine

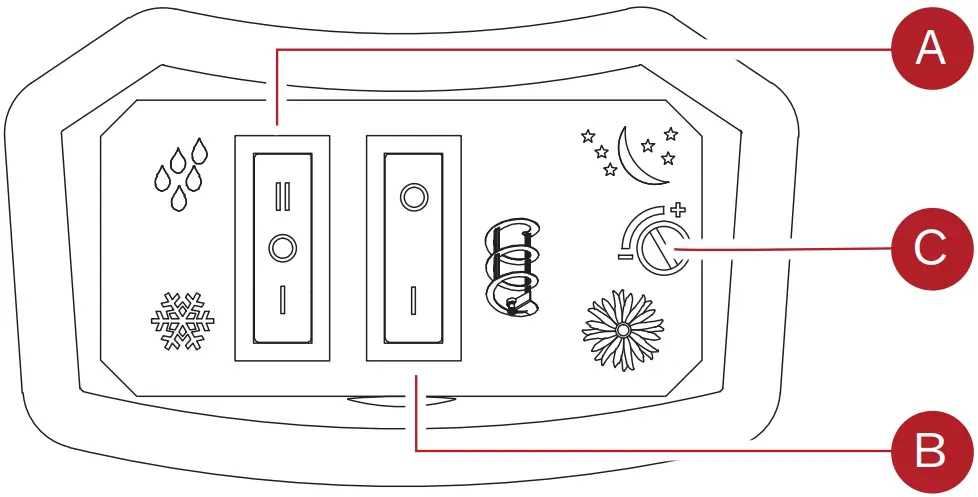

Bowl Controls

Positioned underneath each bowl.

• A – Beverage Type Control Switch
  • 0: Cooling OFF
  • I: Slush/Frozen Cream Mode
  • II: Cold Drink Mode
• B – Spiral Blade Switch
  • 0: Spiral Blade OFF
  • I: Spiral Blade ON
• C – Thermostat Control
  Controls the temperature of the product when the Beverage Type Control Switch is set to II.

Installation

Unpacking

1. Remove the carton box and the plastic bag.
2. Make sure that the machine is intact and has not been damaged during transport.
3. Dispose of any packaging materials properly, keeping any that you may need for future moves.

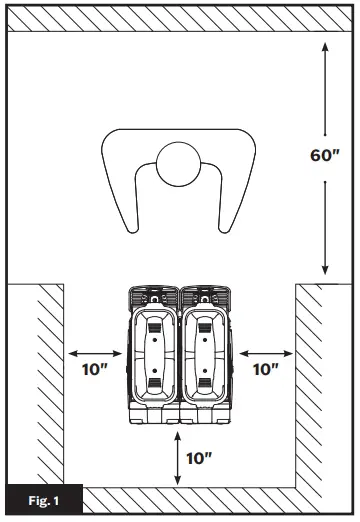

Positioning

1. Place the machine on a sturdy horizontal surface.
2. For improved ventilation, maintain a distance of 10 in. between the unit and walls or other obstacles. Increase the distance if the obstacles are a heating source. (Fig. 1)
3. Leave 60 in. of free space in front of the machine to allow for easy use and maintenance. (Fig. 1)
4. Leave 10 in. of free space above the machine to allow for removal of lids. (Fig. 1)
5. When the machine is in place, adjust the rubber legs to level.


CAUTION

When lifting or transporting, DO NOT GRAB THE MACHINE BY THE CYLINDRICAL EVAPORATORS.
The manufacturer is not responsible for any damage caused by improper handling.

Electric Connection

If in doubt, consult a specialized electrical technician. Before inserting the plug into the electric outlet, carefully verify the following:

1. Set the Main Power Switch to OFF (0).
2. Verify that the machine is properly grounded.
3. Verify the voltage of the outlet matches what is indicated on the serial plate.
4. Verify the current available is sufficient for the maximum required by the machine.
5. Inspect the cord for damage. If any is present DO NOT plug into the outlet.
6. DO NOT use an extension cord or adapter to connect the machine to the electric supply.

Main Safety Information

• DO NOT touch the machine with wet hands or feet.
• DO NOT operate when barefoot.
• DO NOT allow the machine to be operated by children or untrained persons.
• DO NOT leave the machine outside.
• DO NOT pull the cable to disconnect the machine from the electric supply.
• DO NOT place the machine near flammable or explosive materials.
• DO NOT place the machine nearby any heat source or heating element.

Operation

CAUTION

Before using the machine, all food contact surfaces and components must be cleaned CAUTION and sanitized in accordance to the Washing & Sanitizing section of this manual.

Preparing The Product

Concentrate
In order to obtain a homogeneous mix, the product will need to be premixed before being added to the machine. Follow the manufacturer’s recommendations for mixing.

Ready-to-Use & Premixed Concentrates

1. Turn the machine OFF and unplug from power supply.

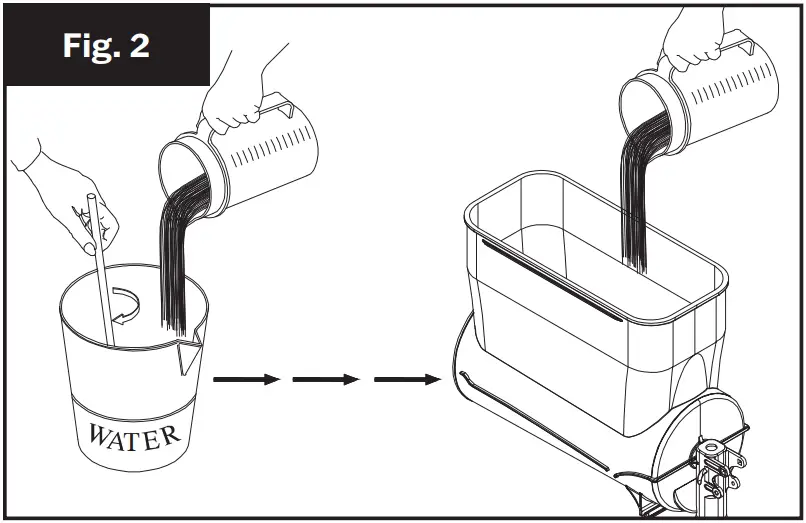

2. Pour liquid into the bowl. (Fig. 2)
3. DO NOT pour below the MIN Level.
4. DO NOT pour above the MAX Level.


Frozen Beverages

In order to obtain a slush consistency, the mixture must have a minimum sugar content of 13° BRIX (13g sugar to 100g solution). A lower concentration may damage the spiral blades and gear motors.

1. Position the Beverage Type Control Switch to I (Slush/Frozen Cream Mode).
2. Position the Spiral Blade Switch to I (ON).
3. Wait for the mixture to freeze and test consistency. If consistency is good, continue to step 5. If not, continue to step 4.

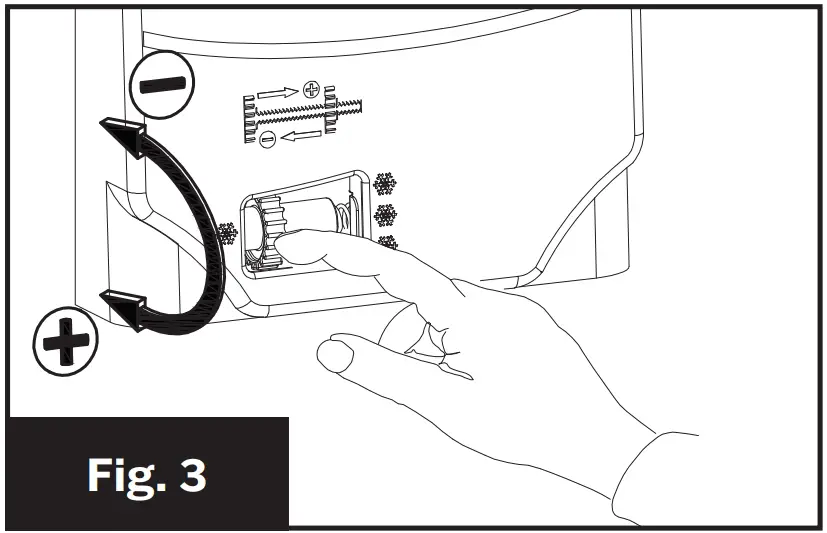

4. Thickness Control Knob is found behind the back panel of the machine. The machine is set for optimal slush thickness by the factory. Turn the screw L to R to increase thickness, R to L to decrease thickness. (Fig. 3)

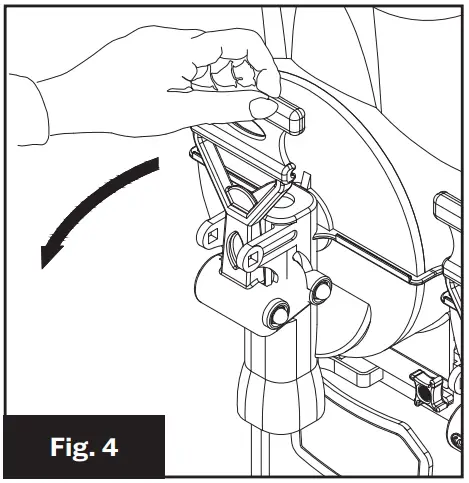

5. Dispense the beverage by pulling the tap lever. (Fig. 4)


CAUTION

Over-icing and spiral blade jamming can be caused by the wrong thickness setting.

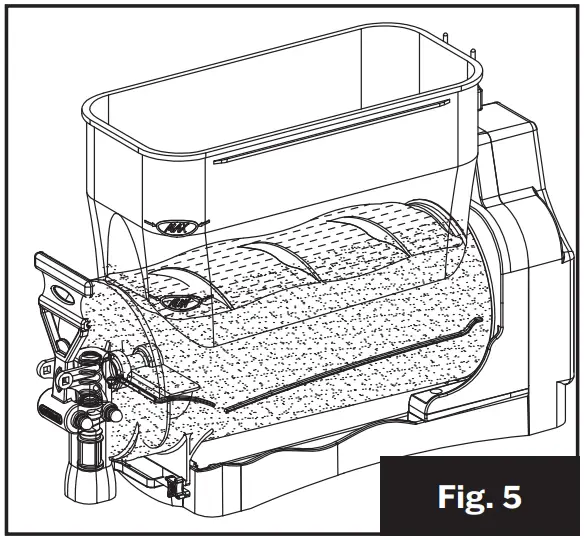

Cold Drinks

Prepare the product separately before proceeding. It is recommended to maintain a product level above the cylinder evaporators for consistent cooling. (Fig. 5)

1. Position the Beverage Type Control Switch to II (Cold Drink Mode).
2. Position the Spiral Blade Switch to 0 (OFF).
3. The optimal drink temperature has been set by the factory.
   Use the Thermostat Control to adjust the temperature of the drink.
4. To set temperature, open the transparent screen on the front panel below the bowl and turn the Thermostat Screw.
5. Dispense the beverage by pulling the tap lever. (Fig. 4)

Cleaning

CAUTION

The machine must be turned OFF and unplugged from the power source before cleaning.

Empty the Bowl

(Skip this step if this is the initial cleaning)

1. Use the tap lever to empty any remaining liquid into a container.
2. DO NOT proceed without emptying the bowl.

Disassembly

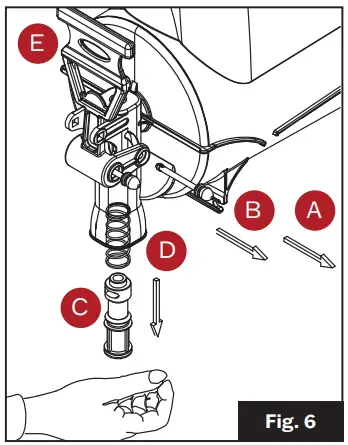

Dispensing Tap (Fig. 6)

1. Place hand beneath the dispensing outlet to catch pieces as they are released.
2. Pull the Lever Pin (A) to disconnect the Tap Valve (C) and Spring (D).
3. If the Tap Lever (E) is to be washed, remove Lever Pin (B).


CAUTION

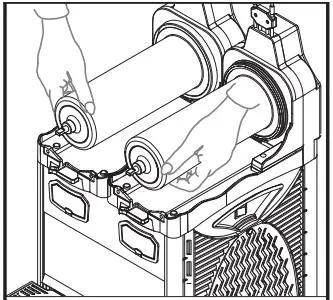

• When cleaning or lifting,
• DO NOT GRAB THE MACHINE BY THE CYLINDRICAL EVAPORATORS.

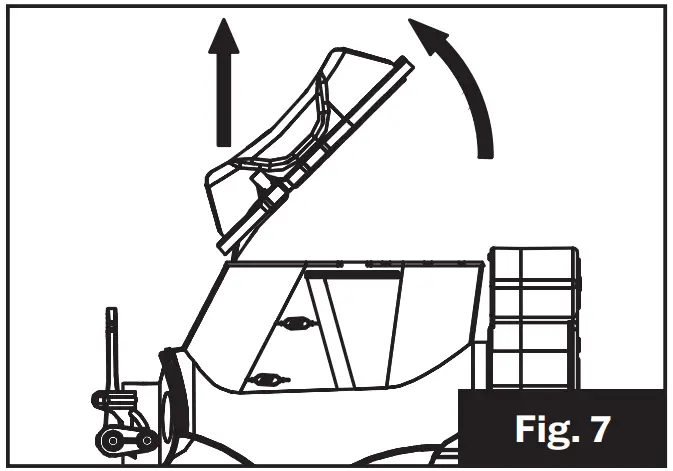

Lid (Fig. 7)

1. Rotate the lids towards the front.
2. Lift the lid upwards.


Bowl (Fig. 8-12)

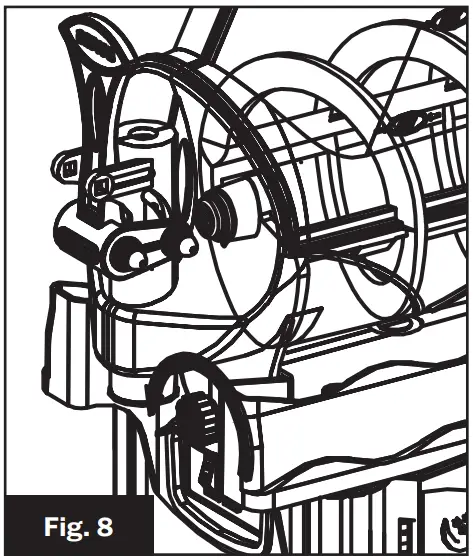

1. Remove the (2) Front Fixing Knobs by unscrewing them counter-clockwise. (Fig. )

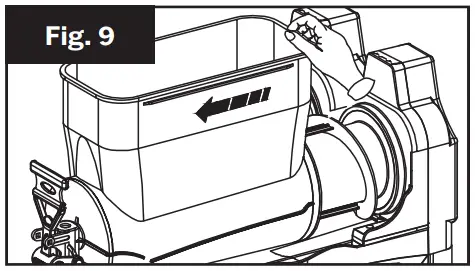

2. Remove the bowl from its seat. (Fig. 9)

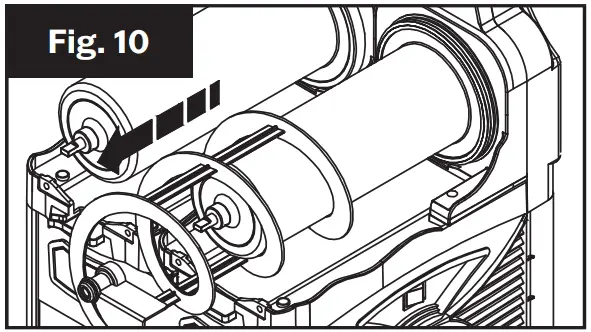

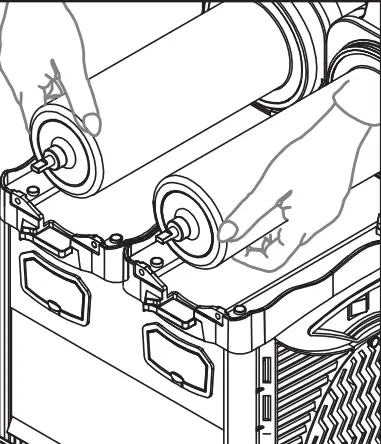

3. Gently pull on the spiral blades to remove from the cylindrical evaporators. (Fig. 10)

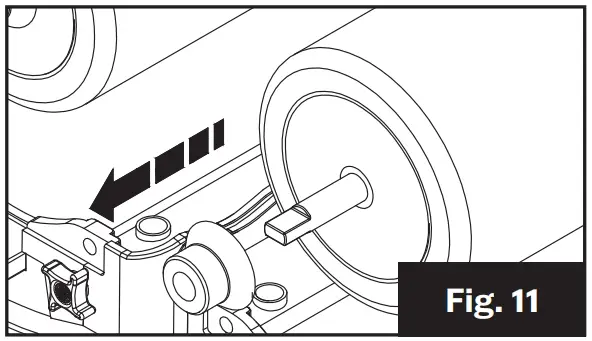

4. Gently pull on the Spiral Blade Gasket to remove. (Fig. 11)

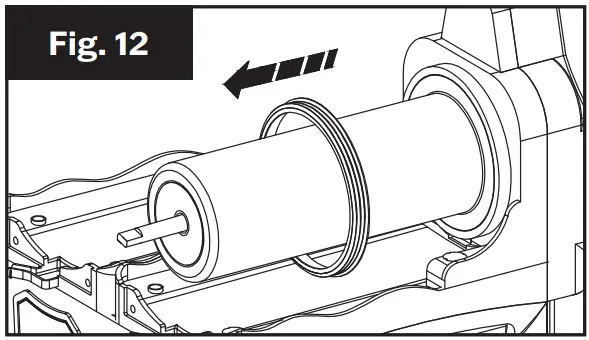

5. Gently pull on the Bowl Gasket to remove. (Fig. 12)

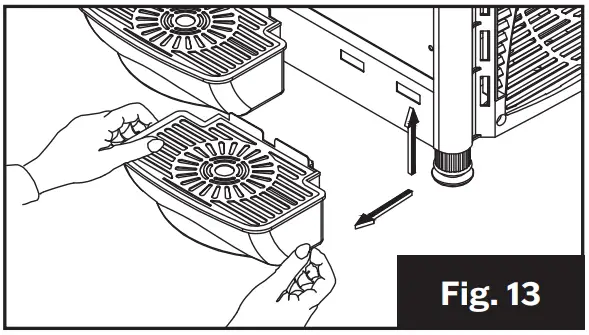

Drip Tray (Fig. 13)

1. Lift upward and then away from the machine to unseat the hooks.
2. Wash with warm water and dry.
3. Reinsert the hooks into their holes and push down.


Washing & Sanitizing

To maintain health standards and product quality, the machine must be cleaned daily.
Failing to clean daily will void this warranty.

CAUTION :DO NOT wash any components of the machine in the dishwasher

Washing

• Fill a basin with lukewarm water (Approx. 104°F) and a neutral detergent suitable for plastic items.
• DO NOT use abrasive powders which might affect the bowl’s transparancy.
• Wash all components (except the lid) in the basin.
• DO NOT wash the lid by dipping in water. Doing so may damage electric components.
• Use a wet, soft cloth.
• Rinse all parts carefully with clean lukewarm water to remove any residual soap.
• Dry all parts with a soft cloth.
• If the machine will not be in use for an extended period, cover and keep it away from dust

Sanitizing

Sanitizing must be done before the initial use of the machine or if it is not used for an extended period of time.

• Follow washing instructions.
• Make a solution of lukewarm water (Approx. 104°F) and hypochlorite (bleach) with a 10g to 1L ratio.
• Use a soft cloth or brush to apply the solution to all components.
• Rinse all parts carefully with clean lukewarm water to remove any residual solution.
• Dry all parts with a soft cloth.

Condenser Cleaning

Regular maintenance of the condenser ensures the quality of the product and efficiency of the machine.
This cleaning should be performed at least once a month.

CAUTION: The machine must be turned OFF and unplugged from the power source before cleaning.

382SMM1, 382SMM2, 382SMM3 (Fig. 14)

• Remove the left side stainless steel panel by unscrewing the Fixing Knob.
• Use a soft and dry brush to remove the dust from the condenser fins.
• When cleaning is complete, replace the side panel and secure with Fixing Knob.


Reassembly

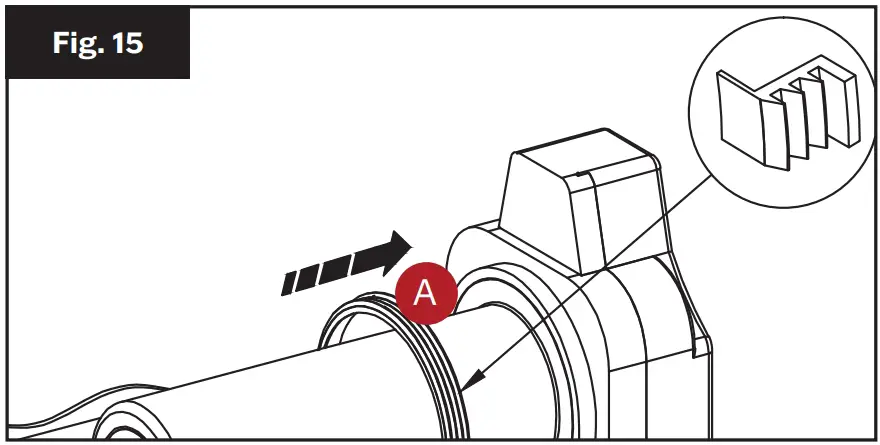

All washed and/or sanitized parts must be completely dry before being carefully reassembled. Some components must be lubricated in order to work efficiently. A tube of lube is included with each machine.

Bowl (Fig. 16-20)

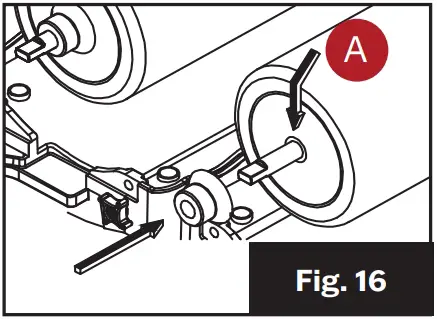

1. Place the Bowl Gasket at the bottom of the Cylinder Evaporator, lubricating the upper part (A). (Fig. 16)

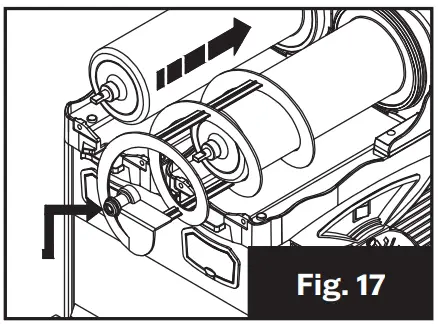

2. Lubricate the surface of the cylinder in the zone of the transmission shaft outlet (A). (Fig. 17)
3. Place the Spiral Blade Gasket (B), lubricating both the internal and external surfaces. (Fig. 17)

4. Insert the Spiral Blade so that the head joins the transmission shaft. (Fig. 18)
5. Lubricate the external part of the head of the Spiral Blade (A). (Fig. 18)

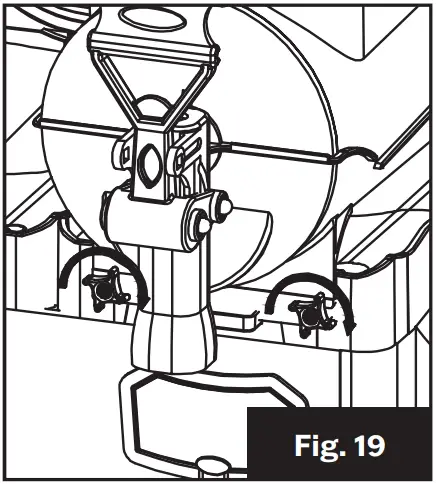

6. After all bowl components are properly positioned and lubricated, slide the Bowl into position. (Fig. 19)

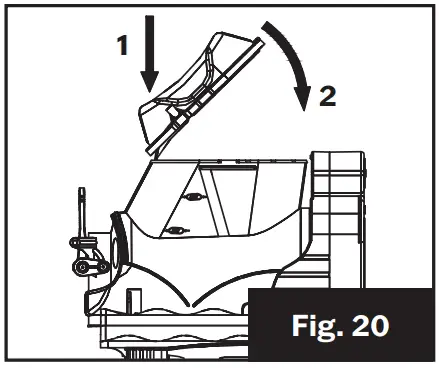

7. Secure the bowl by screwing the Bowl Fixing Knobs clockwise. (Fig. 20)

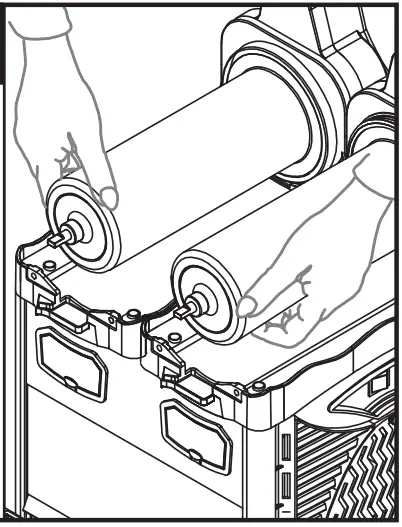

CAUTION

When cleaning or lifting,
DO NOT GRAB THE MACHINE BY THE CYLINDRICAL EVAPORATORS.

Dispensing Tap (Fig. 21)

1. Place the Lever (E) in place so Pin (B) lines up correctly. Insert Pin (B) and secure.
2. Lubricate the Tap Valve (C).
3. Insert the Spring (D) into the product supply hole, followed by the lubricated Tap Valve (C) and secure with Pin (A).


Rinse Cycle

After cleaning, it is necessary to run a rinse cycle before loading product.

1. Fill the bowl with clean water to the MAX Fill Line.
2. Turn the Main Power Switch ON (I).
3. Turn the Spiral Blade ON (I).
4. Let the machine run for 5 minutes.
5. Empty the bowl through the Dispensing Tap.
6. Turn the Main Power Switch OFF (0).
7. Use a soft towel to dry the inside of the bowl.

Replacement Schedule

• Failing to perform required maintenance will void the warranty.
• Cleaning must be performed daily for optimal performance.

Disposal

When the machine is no longer of use, dispose of it properly. Or if still operational, sell off through an authorized organization or company.

Useful Information

1. The cooling performance of the machine is influenced by:
   • External temperature
   • Initial product temperature
   • Sugar percentage in the product
   • Thickness/Temperature settings
2. In order to reduce startup time, it is strongly recommended that you not fill the bowl with warm or room temperature products. It is recommended to chill the product beforehand.
3. When refilling or topping off a product, it is highly recommended that you chill the added product beforehand.
4. If the product is a mixture of water and concentrate, it needs to be mixed before adding to the bowl.

Troubleshooting

CAUTION: Problems marked with this symbol must be handled by a specialized technician

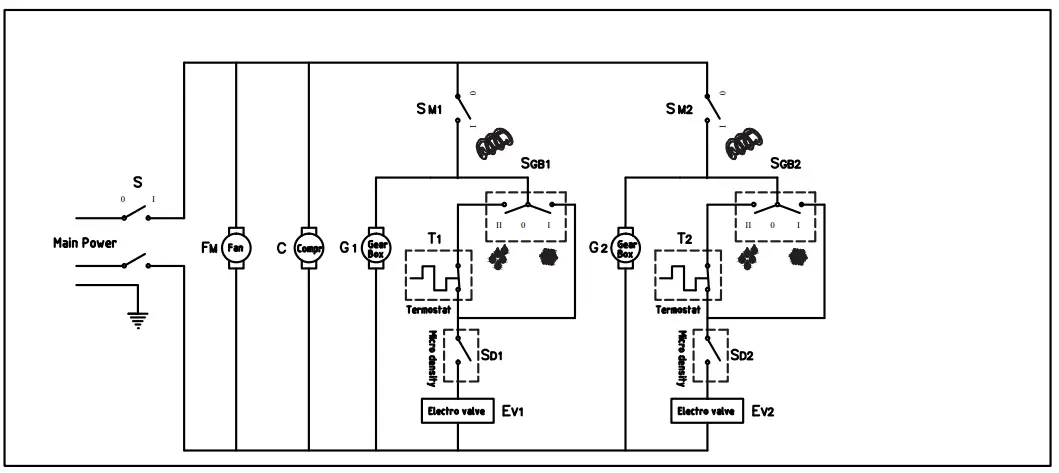

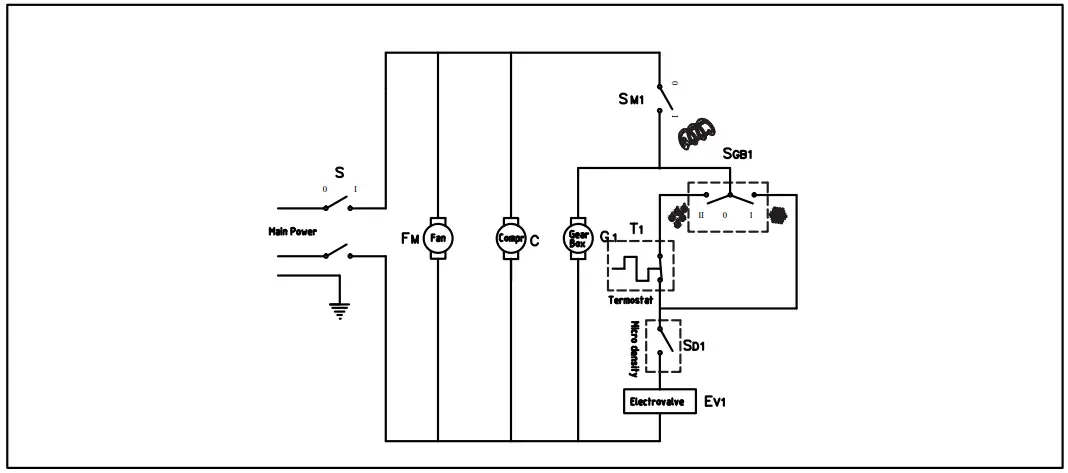

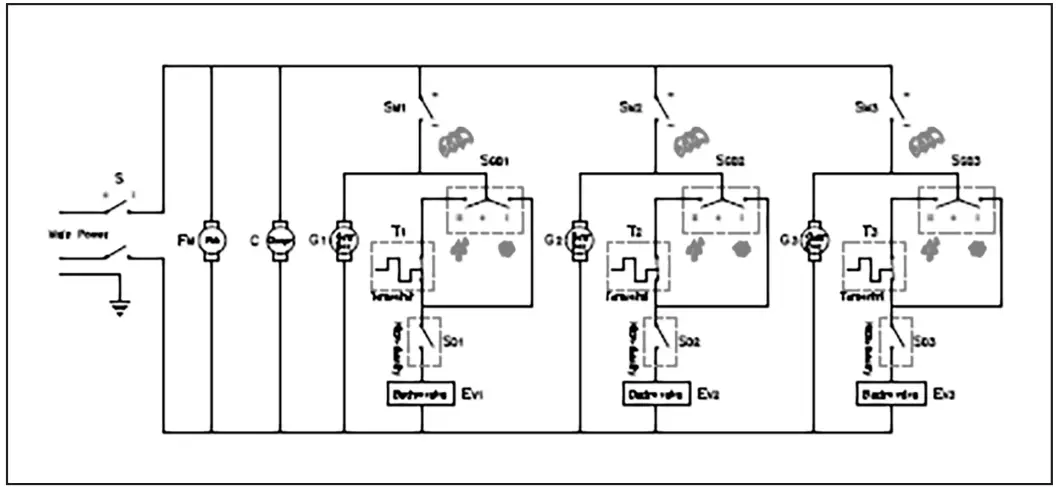

Electrical Diagrams

• 382SMM1

• 382SMM2

• 382SMM3

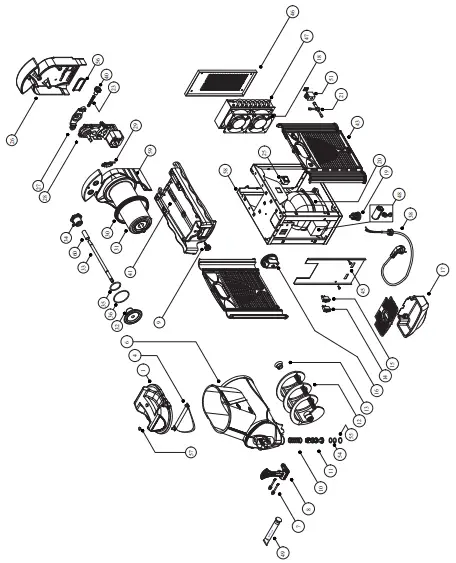

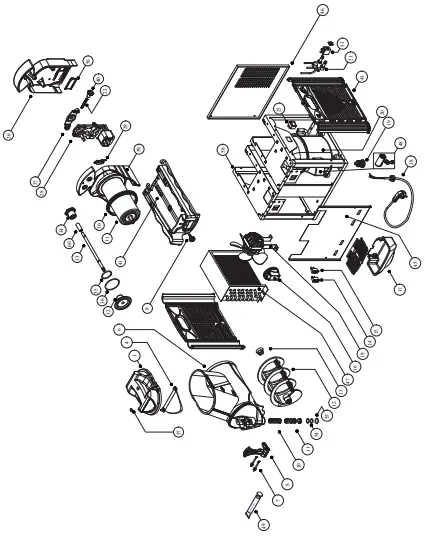

Parts Diagram

SMM1

SMM2
