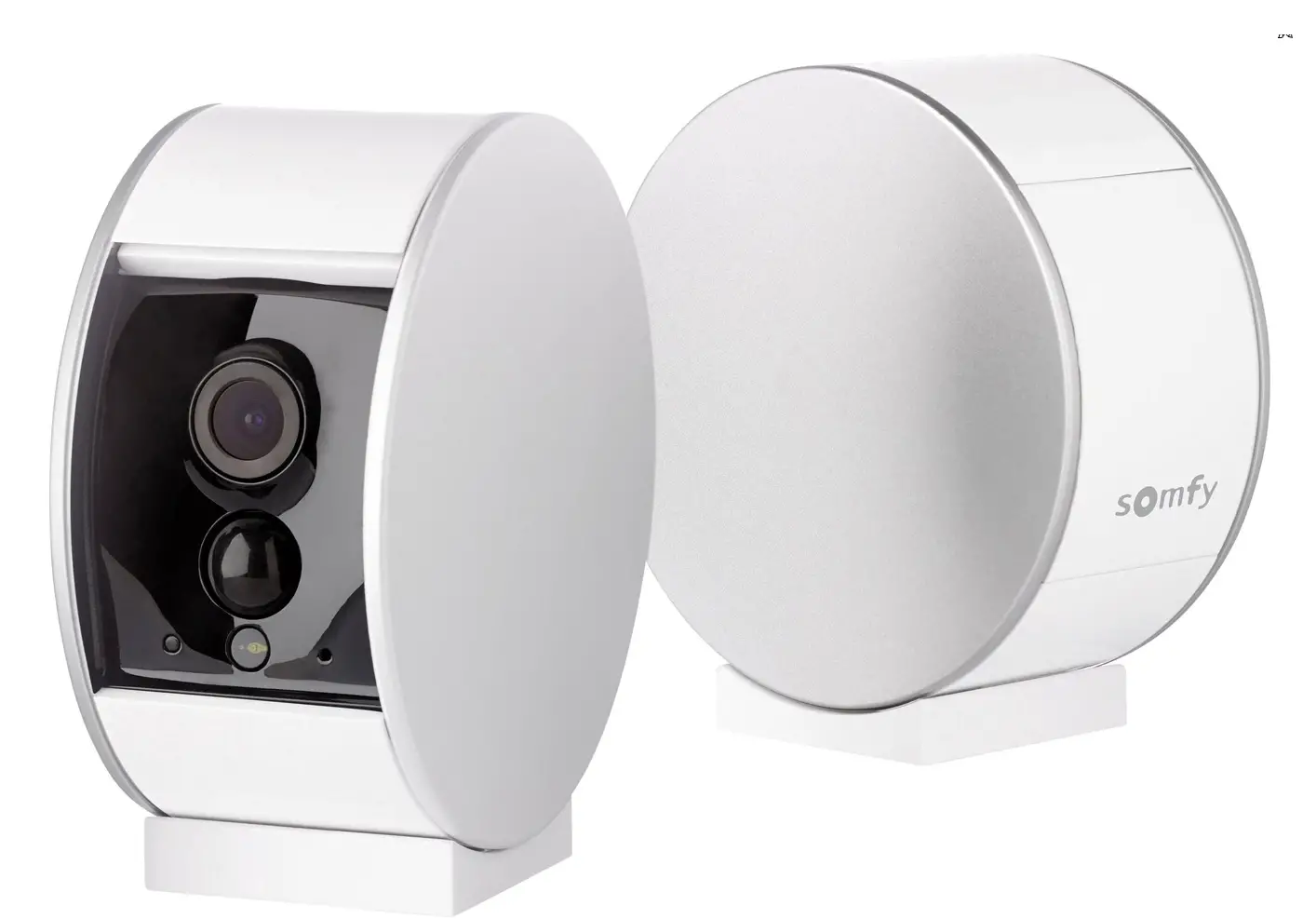

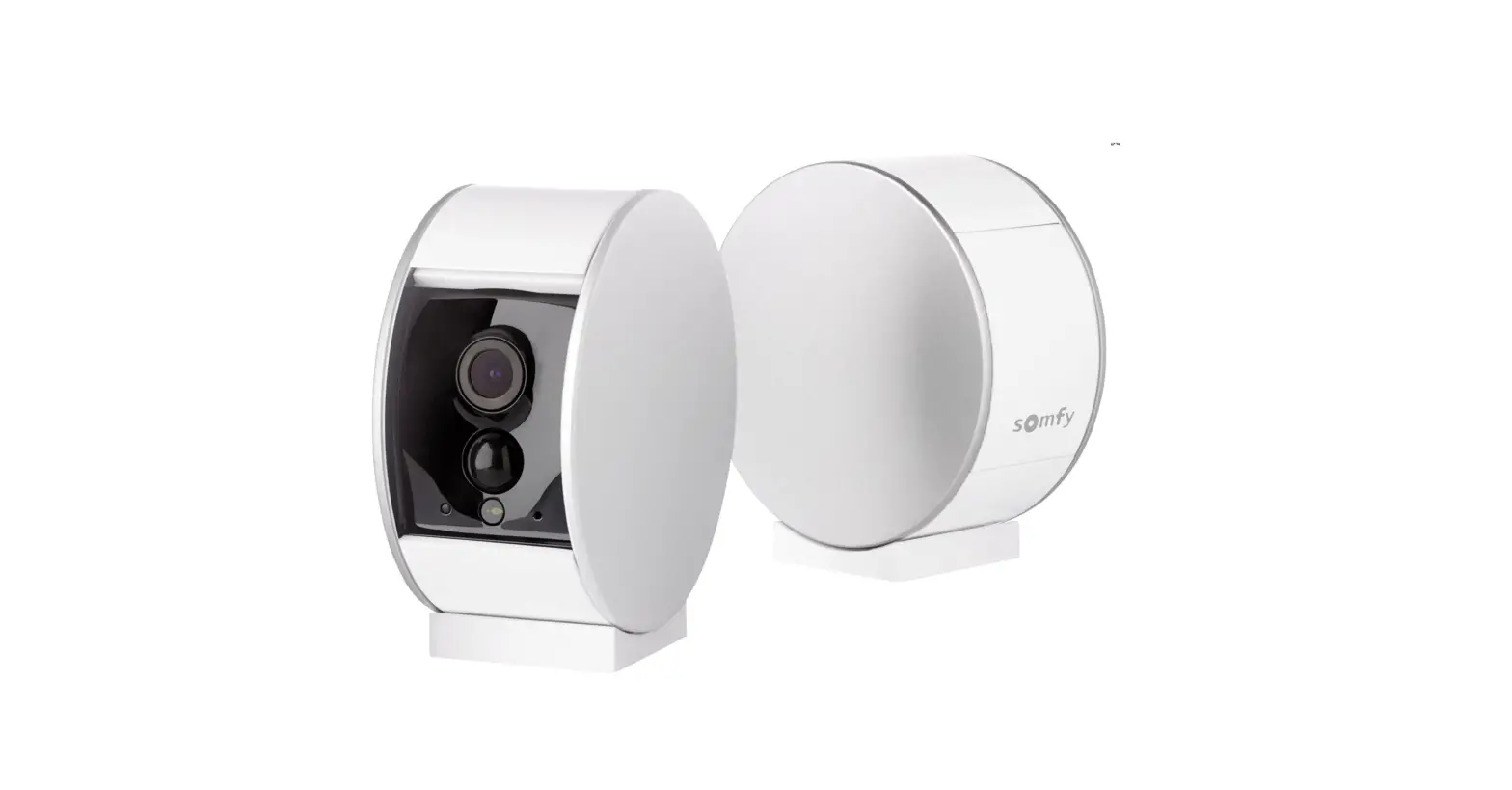

somfy 2401507 Indoor Camera
EN Set up your Indoor Camera
Before you start the installation, please read the attached safety instructions carefully. If you need any additional information concerning this product, please refer to our FAQ or contact one of our advisers.
More information on www.somfyprotect.com/support.

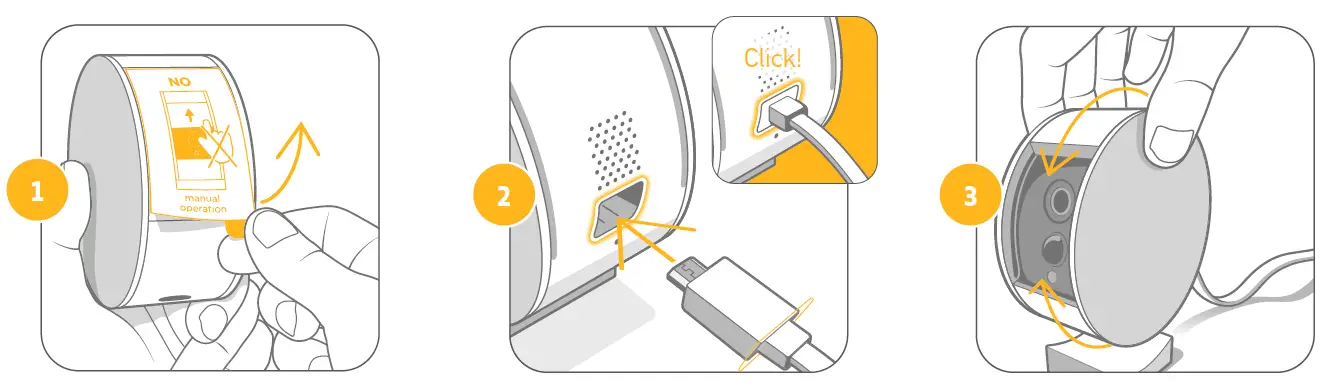

- Remove the protection sticker of the shutter.
- Plug the Indoor Camera into a power outlet making sure that the cord is connected. The shutter will automatically open after a few seconds.
- Place the Indoor Camera on the included support.
The position can be adjusted once the camera is in use.

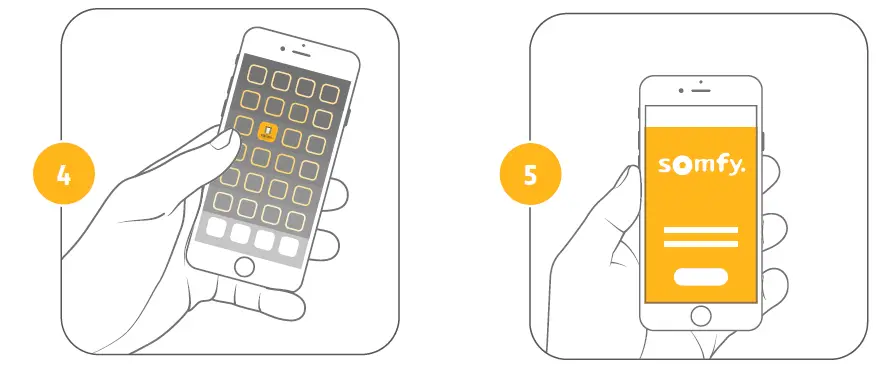

- Download the free «Somfy Protect» app to create your account.
- Follow the instructions on the app to connect the camera to your Wi-Fi network.

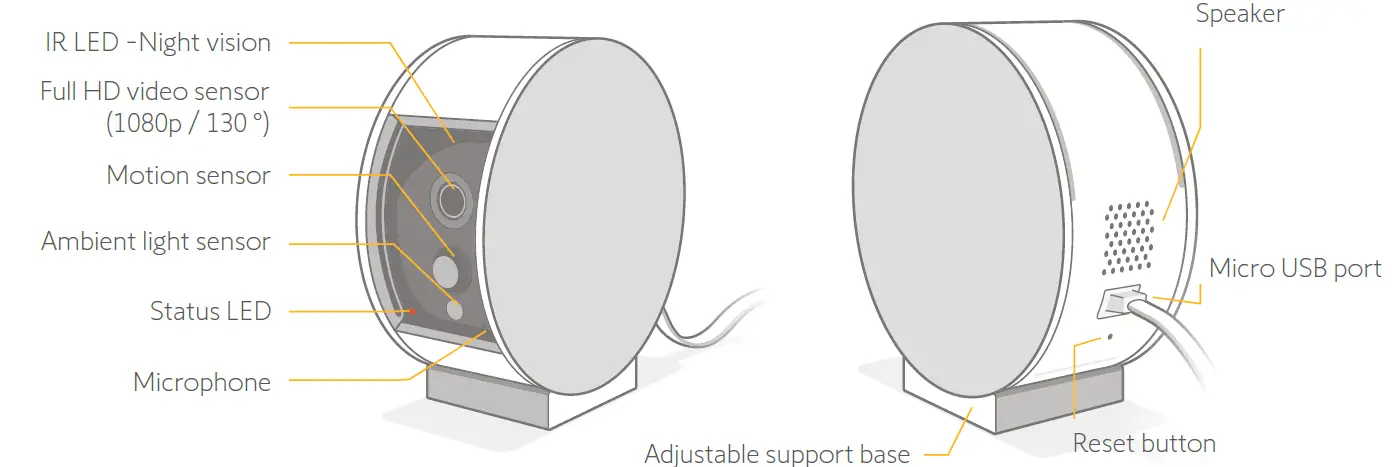

Your Indoor Camera
Technical information
- Video: Full HD 1080p video sensor / Wide angle 130° (diagonal) with fixed focus (60 cm / 1.9 ft to infinity)
- Night vision (up to 6 m/19 ft) with IR mechanical cut filter / Digital zoom x8 / SomfyVision™ motion detection (5 m / 16 ft)
- Audio: Built-in speaker and microphone
- Wi-Fi 802.11 b/g/n compatible Open/WPA/WPA2-Personal/WPA-WPA2 mixed mode (2,4 GHz, e.r.p < 100mW)
- Bluetooth LE (2.4 GHz, e.r.p < 100mW)
- USB adaptor (5 V / 1.5 A)
- Power supply: 100-240V AC, 50-60Hz, 0.35A max
- Size / weight: 43 x 90 mm / 170 g
- Operating temperature: 0-45° C
- Maximum installation height: 2 m / 6.5 ft
Recycling and scrapping
Ensure batteries are separated from other types of waste and are recycled via your local recycling centre.
Do not throw the end-of life product with household waste. It is your responsibility to eliminate all your waste electrical and electronic equipment by asking the distributor to take it back or by using the selective collection system provided by the municipality.
Meaning of the logos mentioned on the mains adapter.
The mains adapter supplied with the product must only be installed in a sheltered, dry location.
The mains adapter supplied with the product is double-insulated and does not therefore need to be earthed.
Direct current
To go further…
To go further, can be used as a standalone camera or installed as an add-on to Somfy Protect security solutions.
