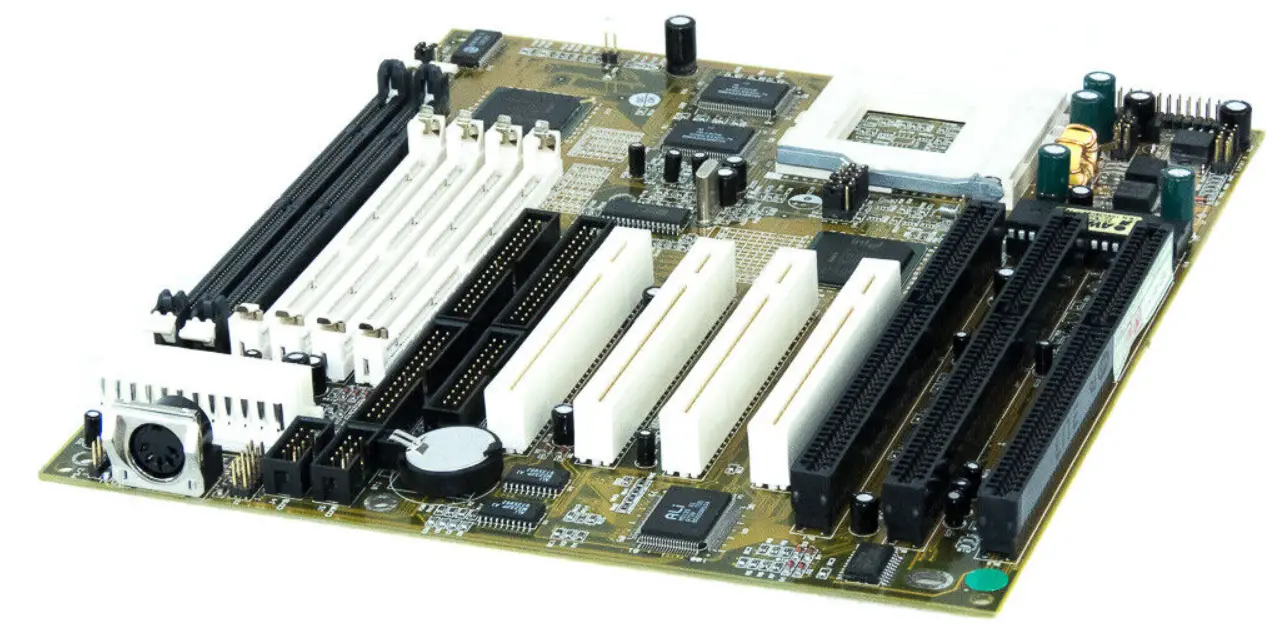

PROCOMP B587 1.1 SOCKET 7 SIMM SDRAM Mainboard
SPECIFICATION
- Device Type Mainboard
- Processor CX 6X86L/CX M1/CX M2/AM K5/AM K6/Pentium/Pentium MMX
- Processor Speed 90/100/120/133/150/166/200/233MHz
- Chip Set Intel 430TX
- Maximum Onboard Memory 256MB (EDO & SDRAM supported)
- Cache 256/512KB
- BIOS Award
- Dimensions 254mm x 218mm
- I/O Options 32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connectors (2)

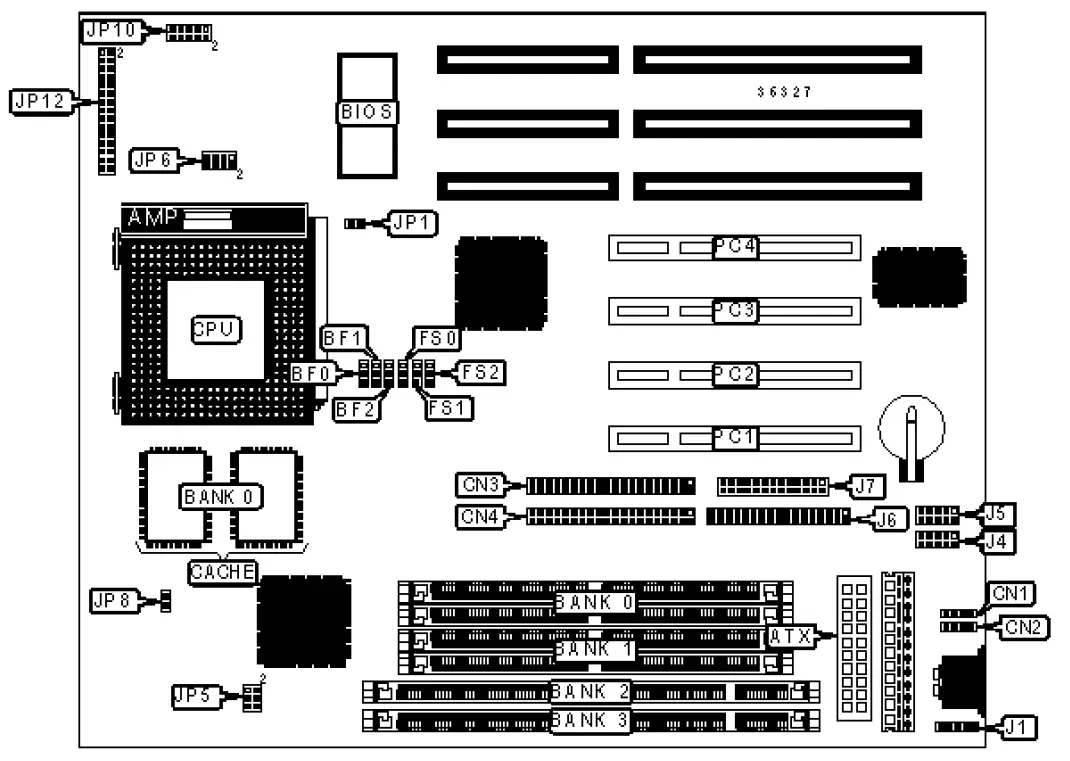

CONNECTIONS
| CONNECTIONS | |||
| Purpose | Location | Purpose | Location |
| ATX power supply | ATX | CPU fan power | JP1 |
| USB connector 1 | CN1 | Reset switch | JP12/pins 1 & 3 |
| USB connector 2 | CN2 | Power LED & keylock | JP12/pins 2/4/6/8/10 |
| IDE interface 2 | CN3 | IDE interface LED | JP12/pins 7 & 9 |
| IDE interface 1 | CN4 | Green PC connector | JP12/pins 13 & 15 |
| PS/2 mouse interface | J1 | Speaker | JP12/pins 14/16/18/20 |
| Serial port 2 | J4 | Green PC LED | JP12/pins 19 & 21 |
USER CONFIGURABLE SETTINGS
| USER CONFIGURABLE SETTINGS | |||
| Function | Label | Position | |
| MTX clock select 60MHz | JP8 | Closed | |
| MTX clock select 66MHz | JP8 | Open | |
SIMM CONFIGURATION
| SIMM CONFIGURATION | ||
| Size | Bank 0 | Bank 1 |
| 8MB | (2) 1M x 36 | None |
| 16MB | (2) 2M x 36 | None |
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
| 32MB | (2) 4M x 36 | None |
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
| 64MB | (2) 8M x 36 | None |
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
| 128MB | (2) 16M x 36 | None |
DIMM CONFIGURATION
| DIMM CONFIGURATION | ||
| Size | Bank 2 | Bank 3 |
| 8MB | (1) 1M x 64 | None |
| 16MB | (1) 2M x 64 | None |
| 16MB | (1) 1M x 64 | (1) 1M x 64 |
| 24MB | (1) 2M x 64 | (1) 1M x 64 |
| 32MB | (1) 4M x 64 | None |
| 32MB | (1) 2M x 64 | (1) 2M x 64 |
| 40MB | (1) 4M x 64 | (1) 1M x 64 |
| 48MB | (1) 4M x 64 | (1) 2M x 64 |
| 64MB | (1) 8M x 64 | None |
| 64MB | (1) 4M x 64 | (1) 4M x 64 |
| 72MB | (1) 8M x 64 | (1) 1M x 64 |
| 80MB | (1) 8M x 64 | (1) 2M x 64 |
| 96MB | (1) 8M x 64 | (1) 4M x 64 |
| 128MB | (1) 16M x 64 | None |
| 128MB | (1) 8M x 64 | (1) 8M x 64 |
| 136MB | (1) 16M x 64 | (1) 1M x 64 |
| 144MB | (1) 16M x 64 | (1) 2M x 64 |
| 160MB | (1) 16M x 64 | (1) 4M x 64 |
| 192MB | (1) 16M x 64 | (1) 8M x 64 |
DIMM VOLTAGE SELECTION
| DIMM VOLTAGE SELECTION | |
| Voltage | JP5 |
| 3.3v | Pins 3 & 5, 4 & 6 closed |
| 5v | Pins 1 & 2, 3 & 4 closed |
CACHE CONFIGURATION
| Size | Bank 0 |
| 256KB | (2) 32K x 32 |
| 512KB | (2) 64K x 32 |
CPU SPEED SELECTION (CX 6X86L)
| CPU SPEED SELECTION (CX 6X86L) | ||||||||
| CPU speed | Clock speed | Multiplier | BF0 | BF1 | BF2 | FS0 | FS1 | FS2 |
| 133MHz | 55MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 150MHz | 60MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
| 166MHz | 66MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| 200MHz | 75MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| Note: Pins designated should be in the closed position. | ||||||||
CPU SPEED SELECTION (CX M1)
| CPU SPEED SELECTION (CX M1) | ||||||||
| CPU speed | Clock speed | Multiplier | BF0 | BF1 | BF2 | FS0 | FS1 | FS2 |
| 133MHz | 55MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 150MHz | 60MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
| 166MHz | 66MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| 200MHz | 75MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
CPU SPEED SELECTION (CX M2)
| CPU SPEED SELECTION (CX M2) | ||||||||
| CPU speed | Clock speed | Multiplier | BF0 | BF1 | BF2 | FS0 | FS1 | FS2 |
| 133MHz | 55MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 |
| 150MHz | 60MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
| 166MHz | 66MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| 200MHz | 75MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
| Note: Pins designated should be in the closed position. | ||||||||
CPU SPEED SELECTION (AM K5)
| CPU SPEED SELECTION (AM K5) | ||||||||
| CPU speed | Clock speed | Multiplier | BF0 | BF1 | BF2 | FS0 | FS1 | FS2 |
| 90MHz | 60MHz | 1.5x | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 | 2 & 3 |
| 100MHz | 66MHz | 1.5x | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| 120MHz | 60MHz | 2x | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| 133MHz | 66MHz | 2x | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| 166MHz | 66MHz | 2.5x | 2 & 3 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||||
CPU SPEED SELECTION (AM K6)
| CPU SPEED SELECTION (AM K6) | ||||||||
| CPU speed | Clock speed | Multiplier | BF0 | BF1 | BF2 | FS0 | FS1 | FS2 |
| 166MHz | 66MHz | 2.5x | 2 & 3 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| 200MHz | 66MHz | 3x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| 233MHz | 66MHz | 3.5x | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||||
CPU SPEED SELECTION (INTEL)
| CPU SPEED SELECTION (INTEL MMX) | ||||||||
| CPU speed | Clock speed | Multiplier | BF0 | BF1 | BF2 | FS0 | FS1 | FS2 |
| 166MHz | 66MHz | 2.5x | 2 & 3 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| 200MHz | 66MHz | 3x | 1 & 2 | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| 233MHz | 66MHz | 3.5x | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
| Note: Pins designated should be in the closed position. | ||||||||
CPU TYPE SELECTION
| CPU TYPE SELECTION | |
| Type | JP6 |
| Single voltage | Pins 1 & 2, 3 & 4 closed |
| Dual voltage | Pins 5 & 6, 7 & 8 closed |
CPU VOLTAGE SELECTION
| CPU VOLTAGE SELECTION | |||||
| Voltage | JP10/
pins 1 & 2 | JP10/
pins 3 & 4 | JP10/
pins 5 & 6 | JP10/
pins 7 & 8 | JP10/
pins 9 & 10 |
| 1.8v | Open | Open | Open | Closed | Open |
| 2.1v | Open | Open | Open | Open | Closed |
| 2.9v | Open | Open | Closed | Closed | Open |
