User Guide
UG001005
AS5070
Socket Board
AS5070-SO_EK_SB
v2-00 • 2020-Dec-11
Introduction
The AAS5070-SO_EK_SB socket board is used for quick programming of the AS5070A and AS5070B magnetic rotary position sensors without soldering due to its ZIF socket.
This board can be used in combination with the AS5xxx-EK-USB-PB UART Programming Board and the provided LabVIEW evaluation software.
Kit Content

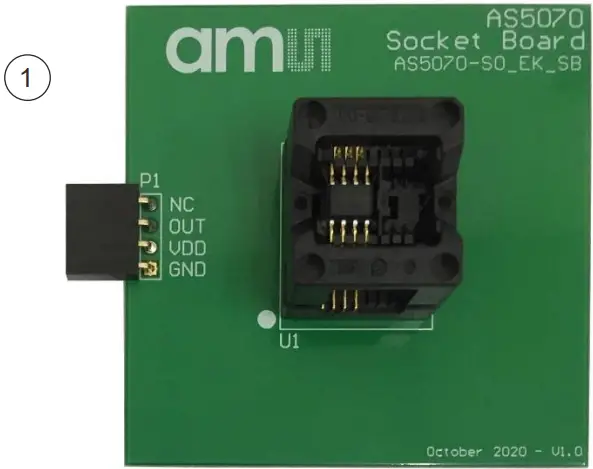

Figure 1: AS5070 Socket Board Kit Content
| Pos. | Item | Comment |
| 1 | AS5070-SO_EK_SB | Socket board |
Ordering Information
| Ordering Code | Description |
| AS5070-SO_EK_SB | AS5070 Eval Kit Socket Board |
Board Description
The PCB offers the direct connecting option to the AS5xxx-EK-USB-PB UART Programmer with the 4-pin single-row connector on the left side. A ZIF Open-Top-Socket for SOIC8 packages is mounted in the middle. Pin 1 of the IC is indicated by a small white dot on the PCB.
All passive components needed for proper operation are included on the bottom side of the PCB.

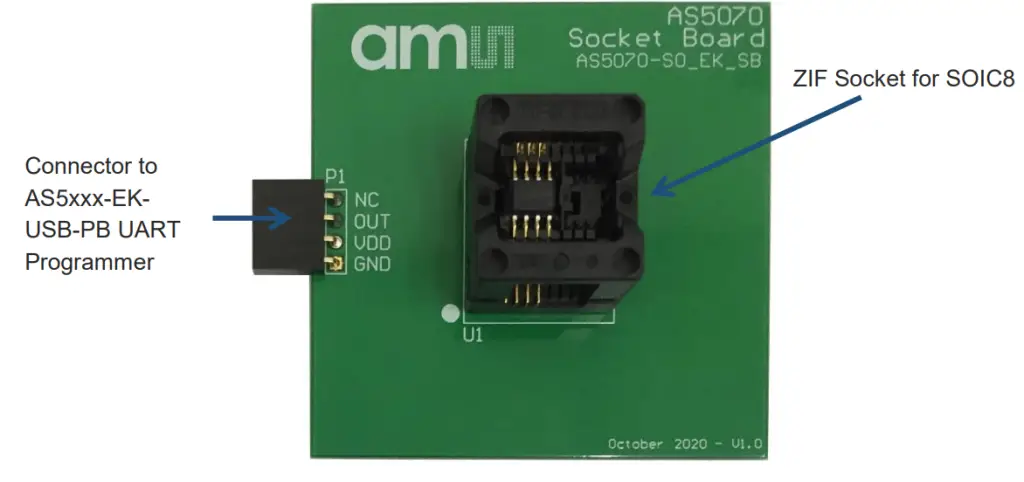

Figure 2: AS5070 Socket Board
AS5070-SO_EK_SB Hardware
AS5070-SO_EK_SB Schematics

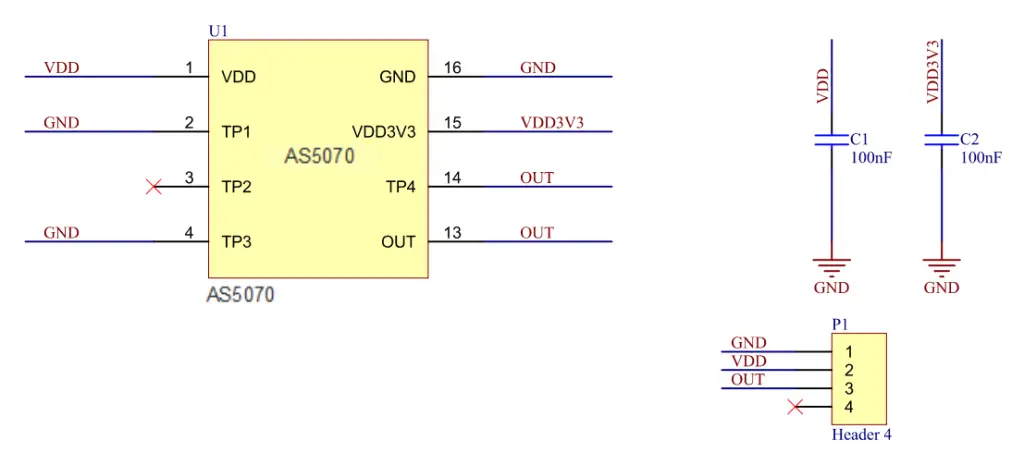

Figure 3: AS5070-SO_EK_SB Schematics
AS5070-SO_EK_SB PCB Layout

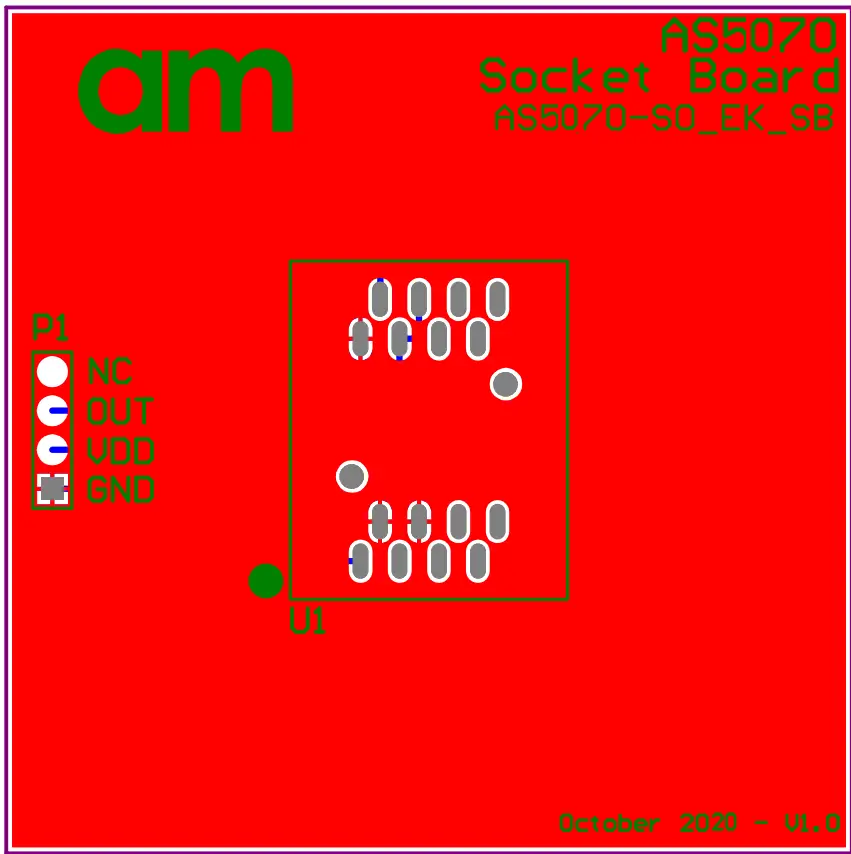

Figure 4: AS5070-SO_EK_SB PCB Layout
Revision Information
| Changes from the previous version to current revision v2-00 | Page |
| Update to the latest template | |
- Page and figure numbers for the previous version may differ from page and figure numbers in the current revision.
- Correction of typographical errors is not explicitly mentioned.
