Motionics 021617 Wireless Crankshaft Deflection Gage Kit User Guide

Wireless Crankshaft Deflection
Gage Kit User Guide

Important Notes

• Turn on both Bluetooth transmitter & digital indicator before pairing.
• Turn off both Bluetooth transmitter & digital indicator after each use. They will NOT turn off automatically.
• Do NOT open the device. Opening causes permanent damage and avoids the warranty.
• Wireless Crankshaft Gage operates on two separate batteries:
  1) Rechargeable built-in Li-Po battery for the Bluetooth transmitter
  2) Coin SR44 or LR44 battery for the digital dial
• Use the punch included in this kit or other 60° punches to create blunt points on crankshaft webs.
• Adjust the adjustable probe to keep the gage travel around middle of its measurement range.

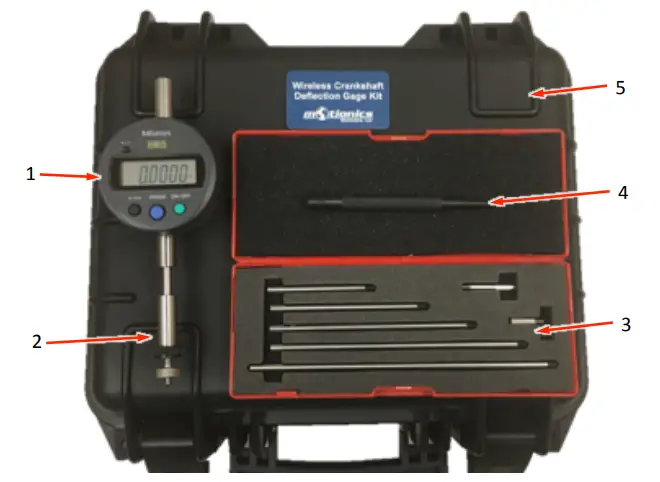

Included In The Package

1. Wireless Crankshaft Gage
2. Adjustable Probe
3. Extension Rod Set (1/2” to 6” one each)
4. 60° Punch

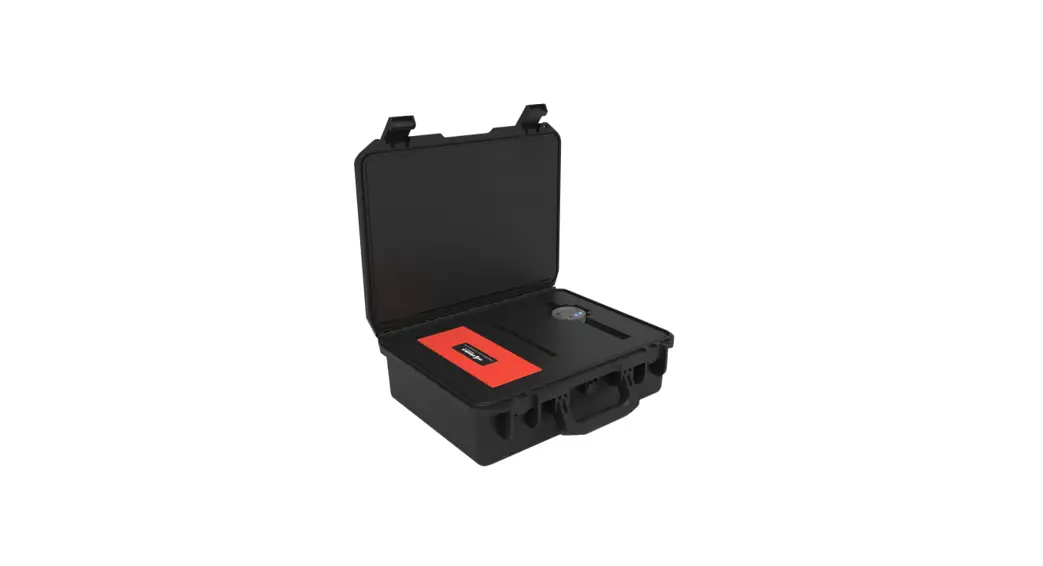

5. Protective Carrying Case
   USB Charging Cable
   USB Power Adapter
   Crankshaft Deflection Test App for iPad

Quick Start

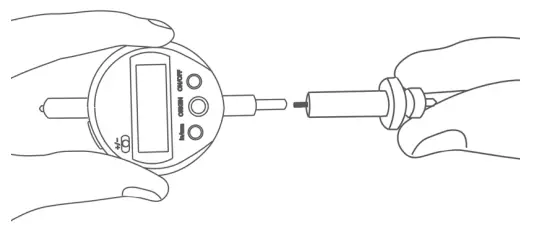

1. Connect wireless gage and adjustable probe. Add extension rods based on cranksha: web gap.

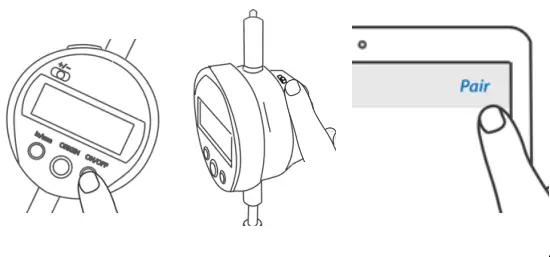

2. Turn on both digital indicator and Bluetooth transmi6er of the gage. Pair the gage in the iPad App.

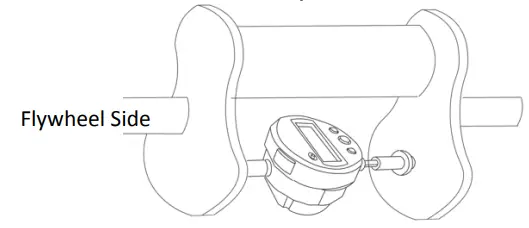

3. Create 60° blunt points on cranksha7 webs using the punch in the kit. Install wireless gage between two blunt points.

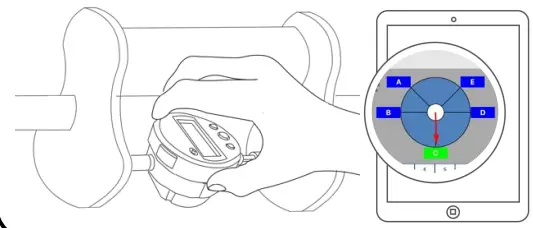

4. Rotate cranksha/ pin to top ver3cal posi3on. Adjust the orienta3on of wireless gage un3l C button turns green in the iPad App.

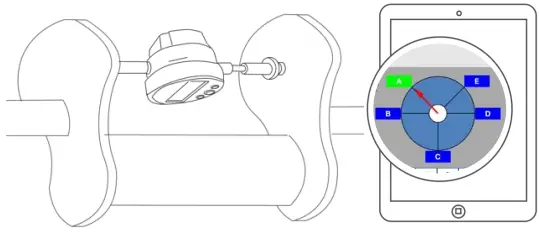

5. Rotate cranksha/ pin to near bo3om position. Once A button turns green, tap on it and start data collection.

6.  Rotate cranksha/ in an1clockwise direc1on, tap buttons B to E one by one when they turn green to finish test for one web.


 Motionics, LLC 8500 Shoal Creek Blvd Building 4 Suite 209 Austin, TX 78757
www.motionics.com [email protected]
© 2017 Motionics, LLC. All rights reserved.
Made in the U.S.A
