HILTI MFP-CLD-I Fixed Point Compact
Product Information
- Product Name: MFP-CLD-I
- Model Number: 2235900 A1-01.2022

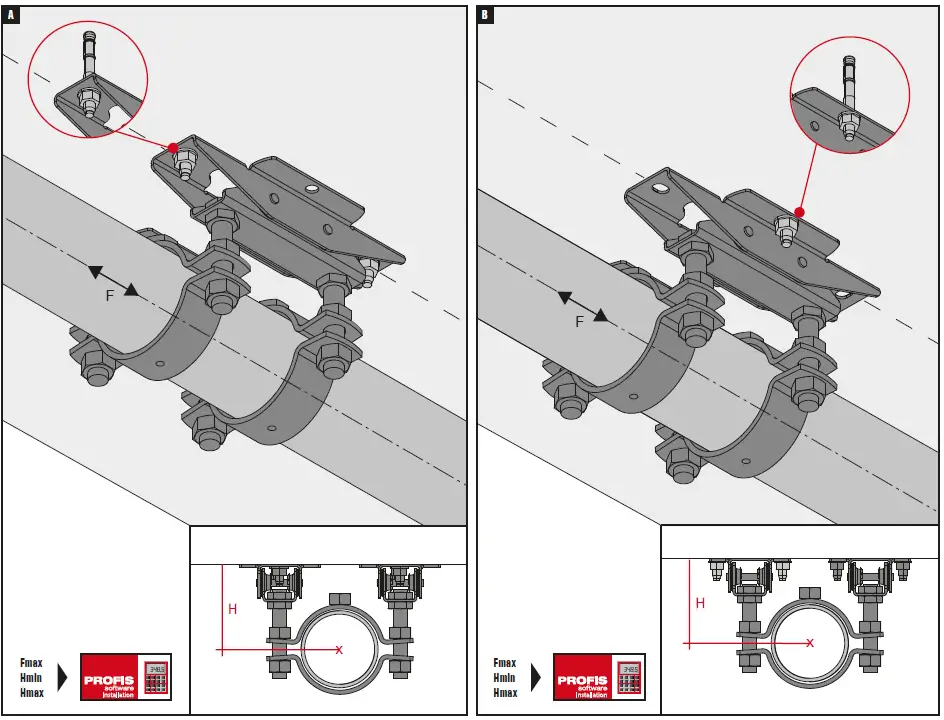

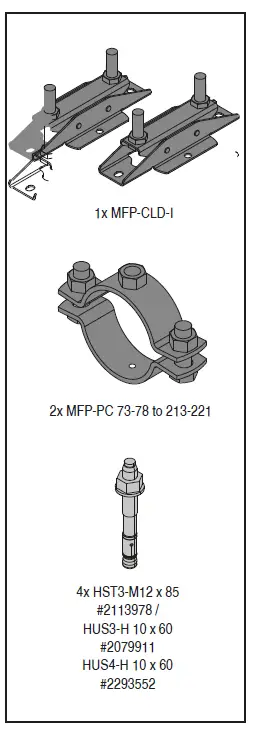

- Components:
- 1x MFP-CLD-I
- 2x MFP-PC 73-78 to 213-221
- 4x HST3-M12 x 85 #2113978 / HUS3-H 10 x 60 #2079911 / HUS4-H 10
x 60 #2293552
- Maximum Force (Fmax): 2x
- Minimum Height (Hmin): > 0mm
- Maximum Height (Hmax): > 3mm
- Torque: 15 Nm Tinst (11 ft-lbs)
- MFP-PC Quantity: 4
Product Usage Instructions

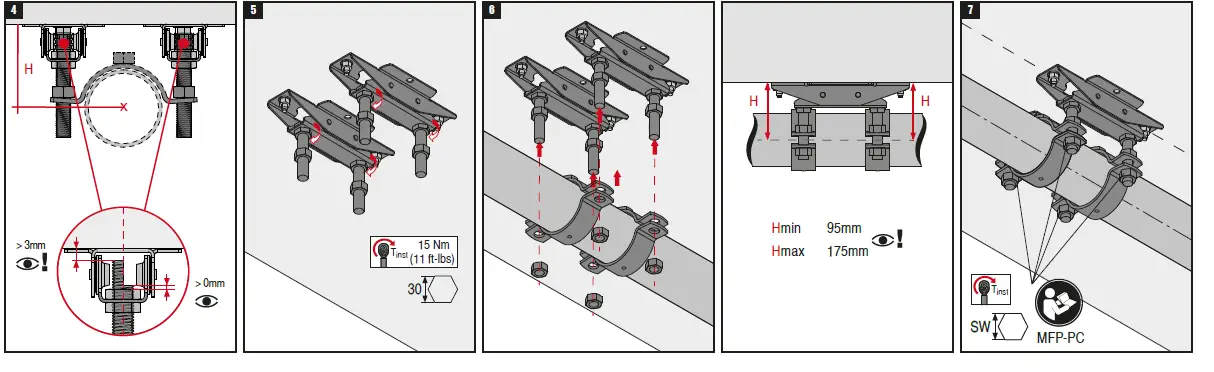

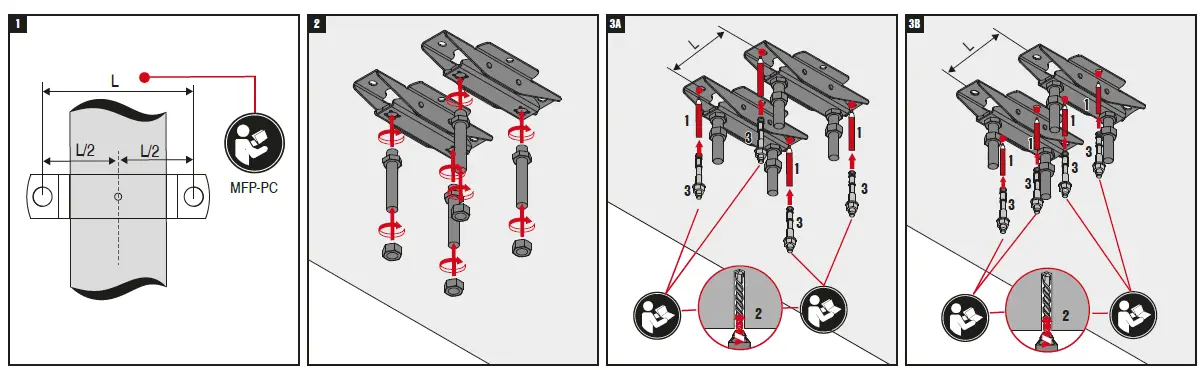

- Assemble the components as per the instructions provided in the manual.
- Place the MFP-CLD-I on a flat surface.
- Adjust the height of the MFP-CLD-I within the range of Hmin (>0mm) and Hmax (>3mm) using the provided components (HST3-M12 x 85 #2113978 / HUS3-H 10 x 60 #2079911 / HUS4-H 10 x 60 #2293552).
- Once the desired height is achieved, use the torque wrench to tighten the components to a torque of 15 Nm Tinst (11 ft-lbs).
- Insert the MFP-PC into the MFP-CLD-I.
- Repeat steps 2-5 for all 4 MFP-PCs.
- The product is now ready to use.
MOUNTING INSTRUCTION
TOOLS REQUIRED
