Hilti Mfp-kf Fixed Points And Sliders Instruction Manual

MFP-KF
MFP-KF Fixed Points and Sliders
Instruction Manual

MFP-KF Fixed Points and Sliders

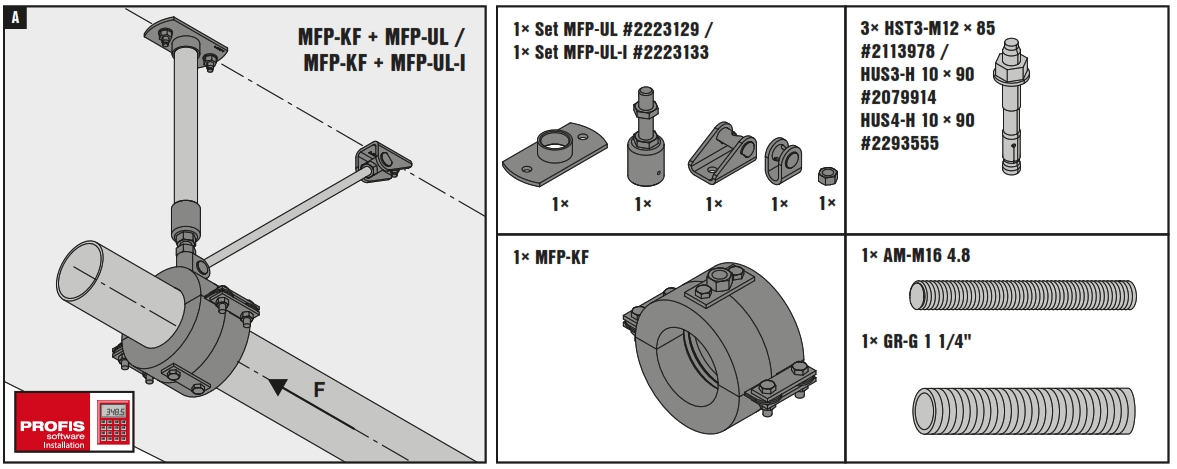

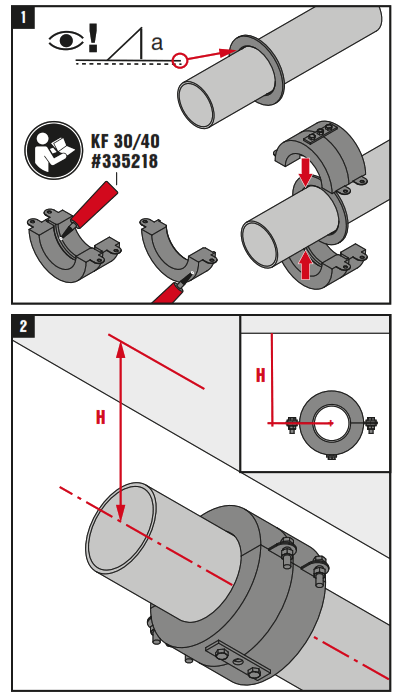

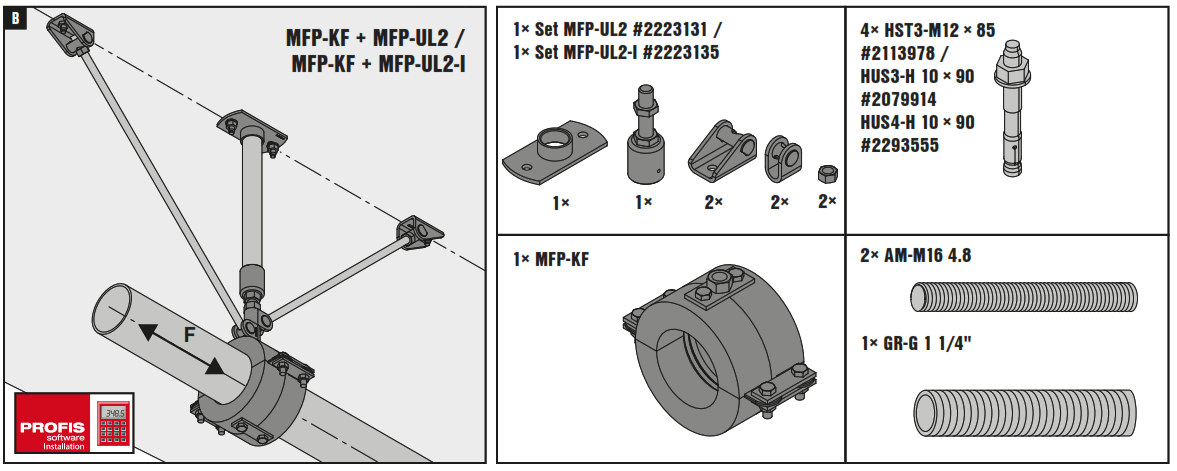

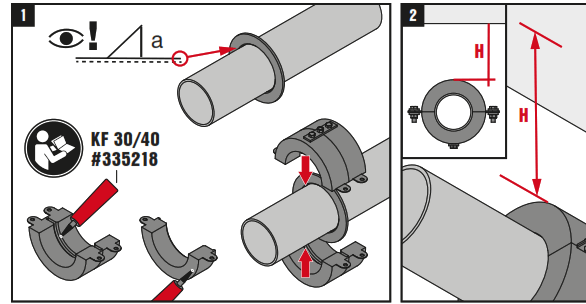

KF 30/40 #335218

Selection of the welding process, welding addition and the design of the fillet weld size is the responsibility of the customer!

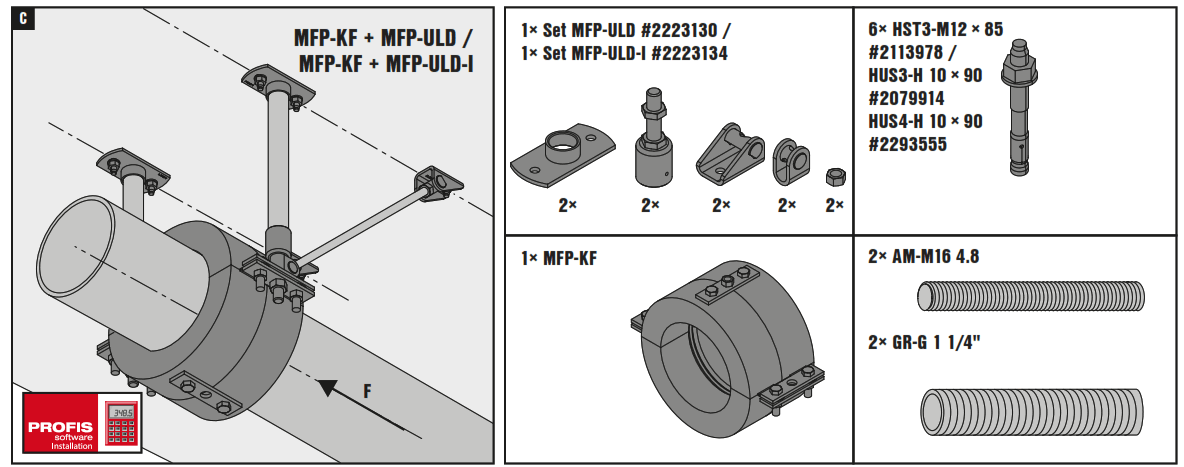

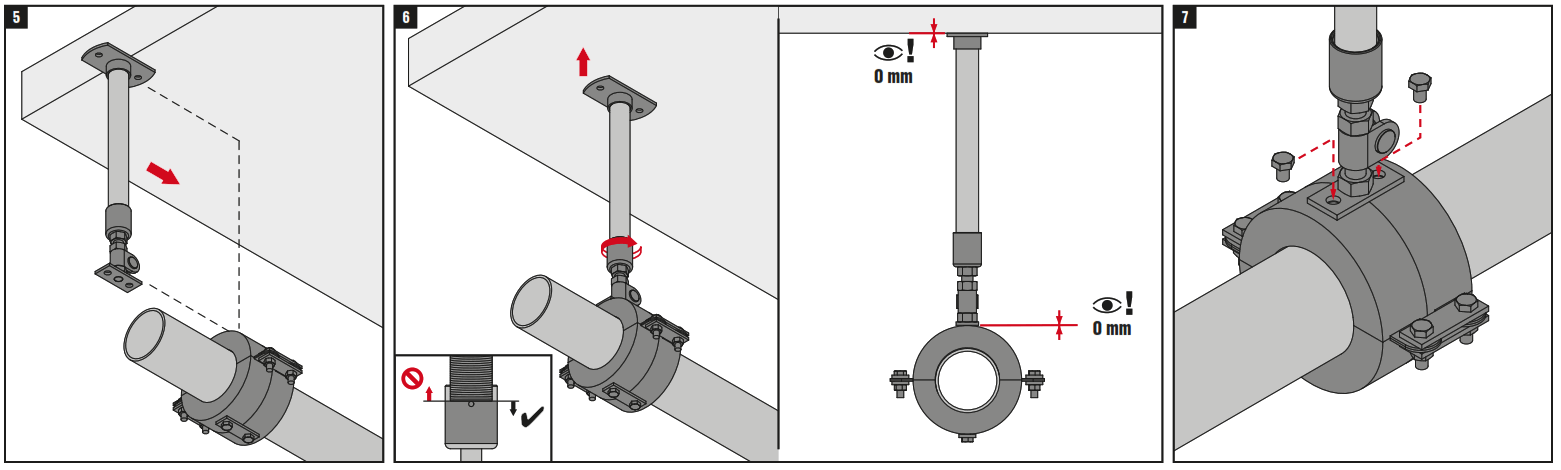

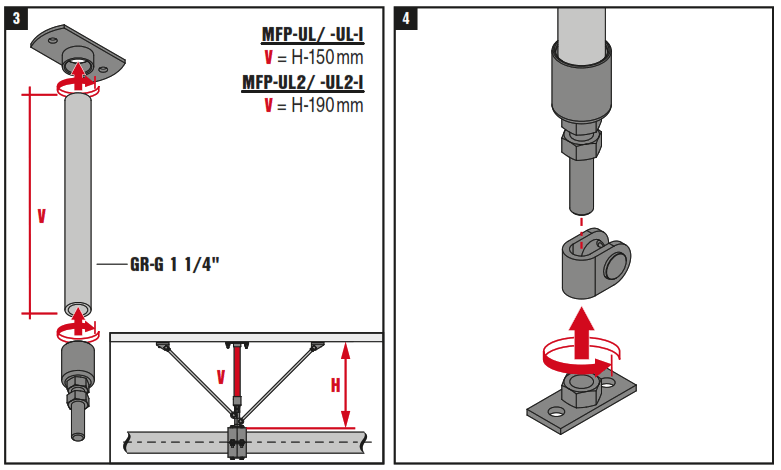

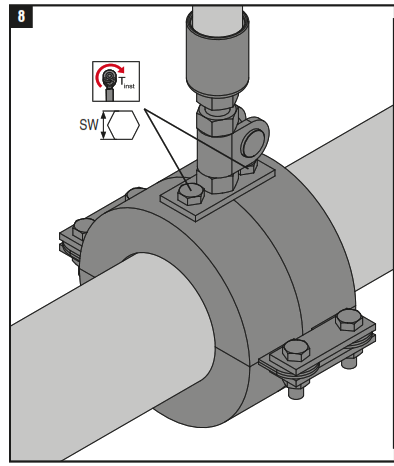

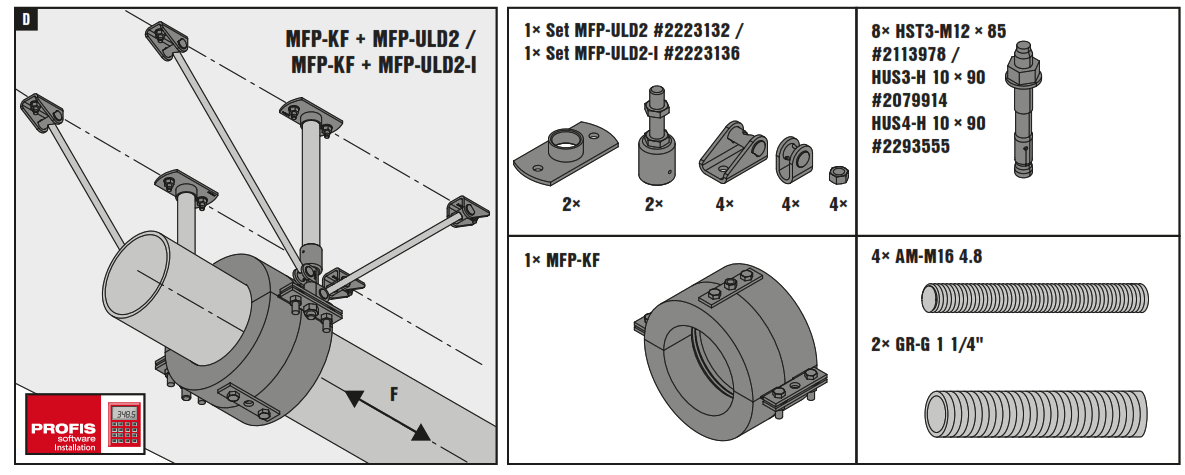

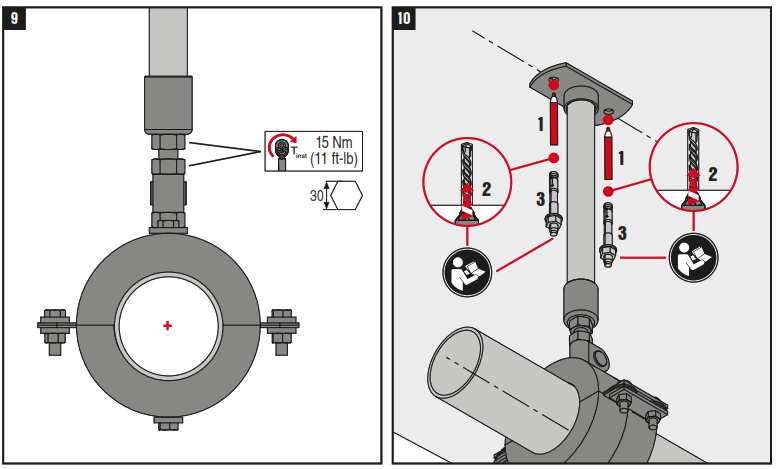

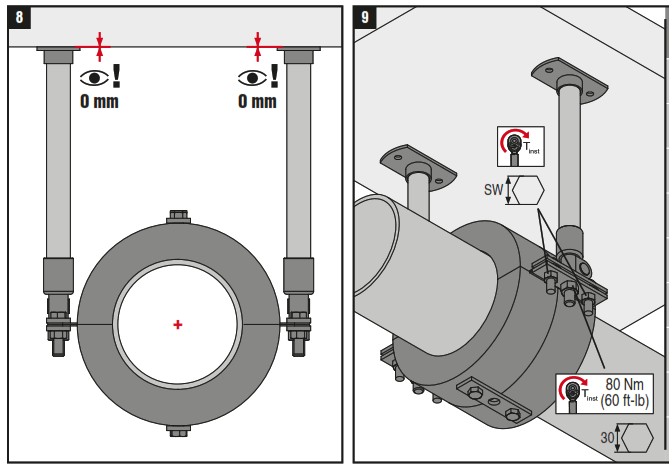

#	Name	SW
2238671	MFP-KF 76	16	12 Nm
2238672	MFP-KF 89	16	12 Nm
2238673	MFP-KF 114	16	12 Nm
2238674	MFP-KF 133	18	20 Nm
2238675	MFP-KF 140	18	20 Nm
2238676	MFP-KF 159	18	20 Nm
2238677	MFP-KF 168	18	20 Nm
2238678	MFP-KF 219	18	20 Nm
2238679	MFP-KF 273	24	45 Nm

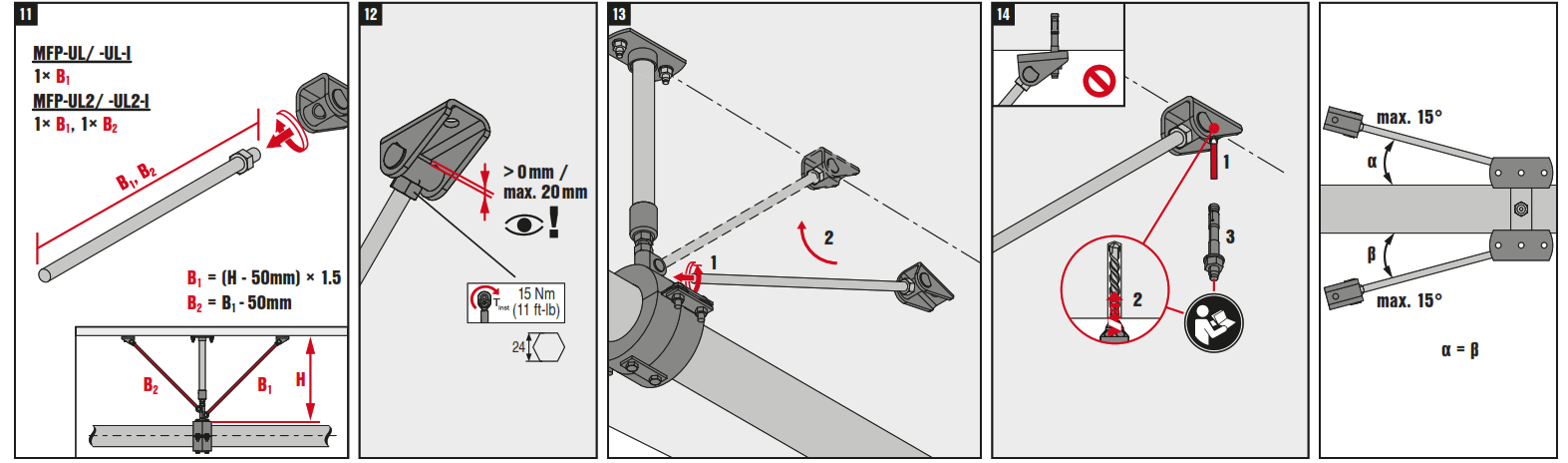

#	Name	SW
2238671	MFP-KF 76	6	7 Nm
2238672	MFP-KF 89	6	7 Nm
2238673	MFP-KF 114	18	20 Nm
2238674	MFP-KF 133	18	20 Nm
2238675	MFP-KF 140	18	20 Nm
2238676	MFP-KF 159	18	20 Nm
2238677	MFP-KF 168	18	20 Nm
2238678	MFP-KF 219	18	20 Nm
2238679	MFP-KF  273	18	20 Nm

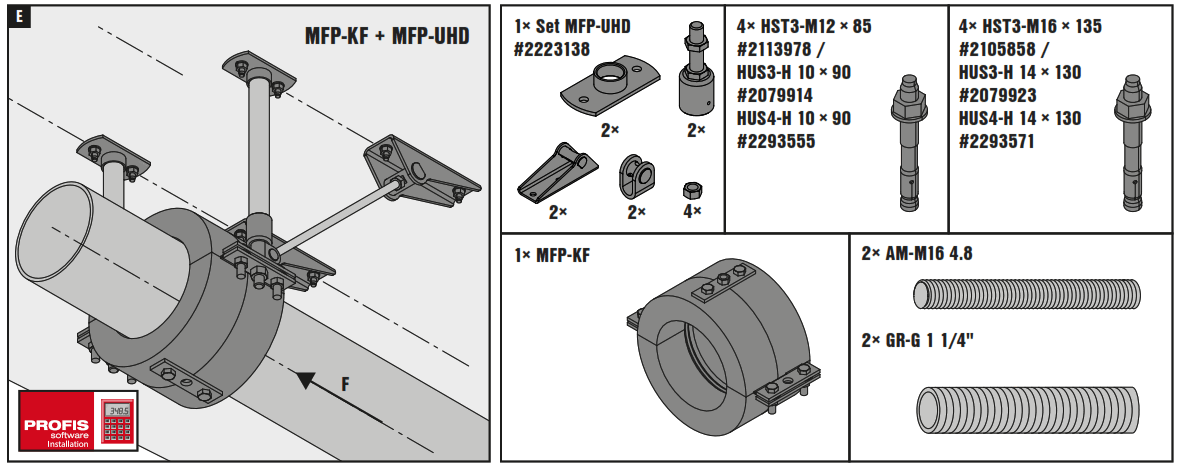

KF 30/40 #335218

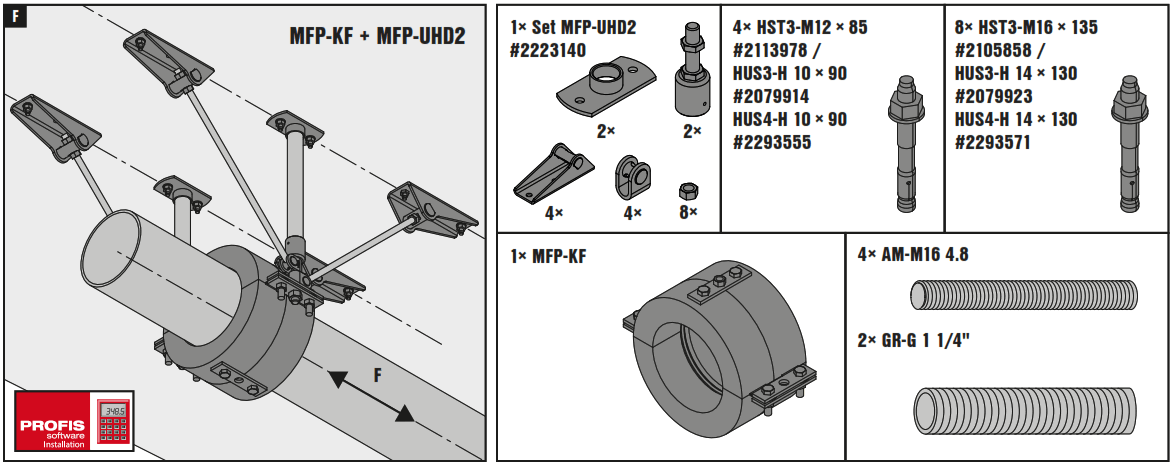

KF 30/40 #335218

Selection of the welding process, welding addition and the design of the fillet weld size is the responsibility of the customer!

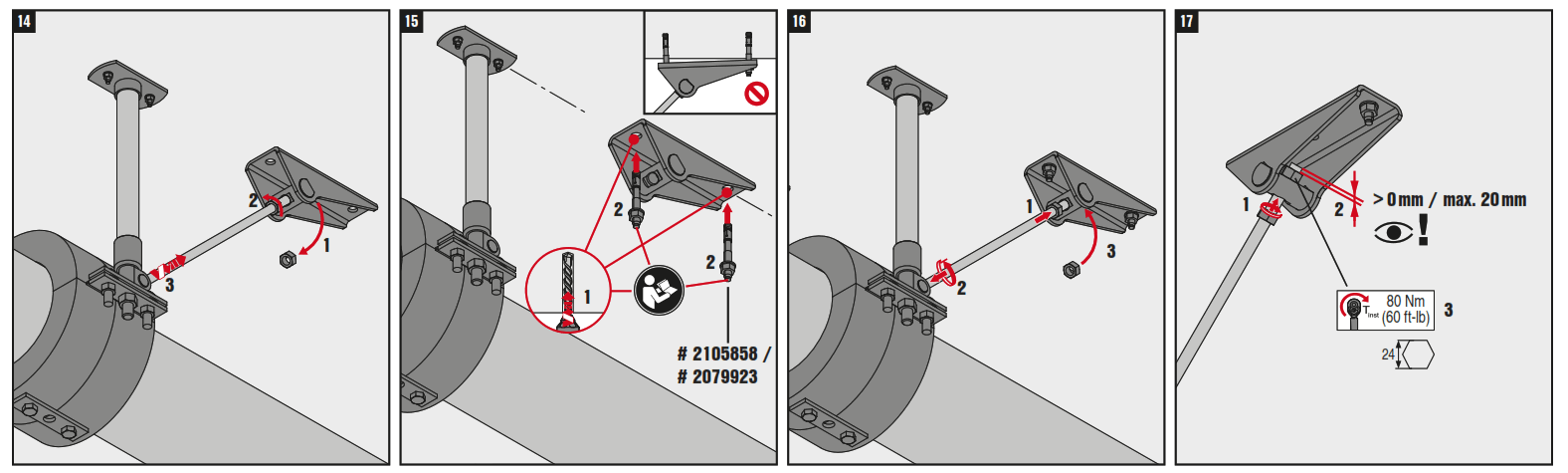

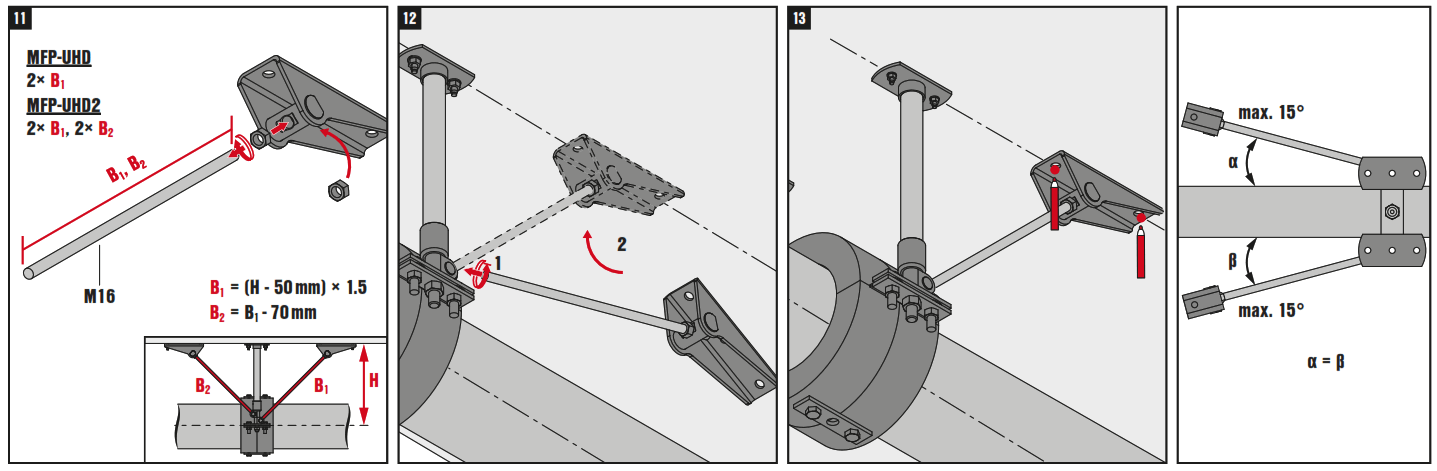

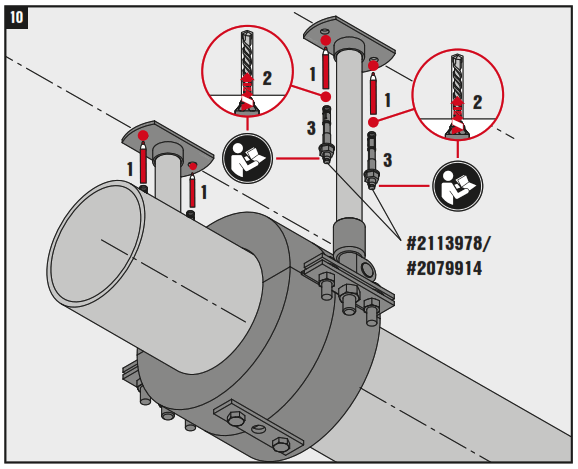

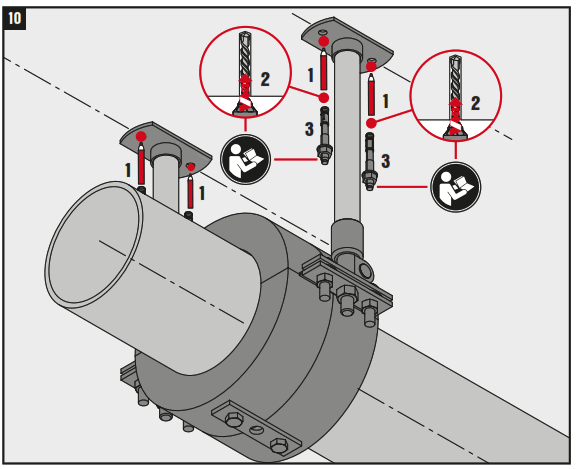

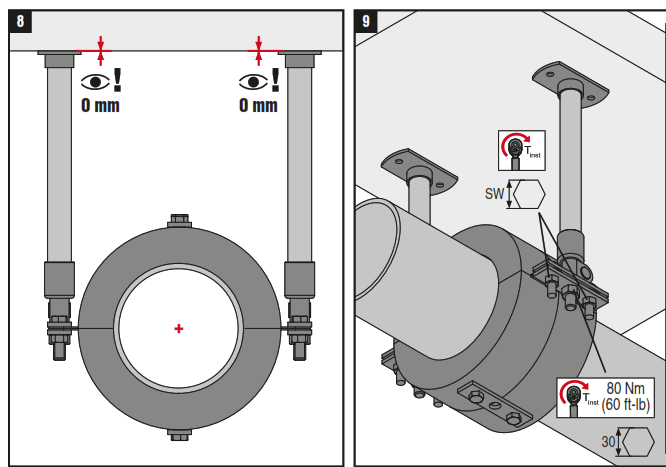

#	Name	SW
2238678	MFP-KF  219	18	20 Nm
2238679	MFP-KF  273	24	45 Nm
2238680	MFP-KF  324	24	45 Nm
2238681	MFP-KF  356	24	45 Nm
2238682	MFP-KF  368	24	45 Nm
2238683	MFP-KF  406	24	45 Nm
2238684	MFP-KF  457	24	45 Nm
2238685	MFP-KF  508	24	45 Nm
2238670	MFP-KF  609	24	45 Nm

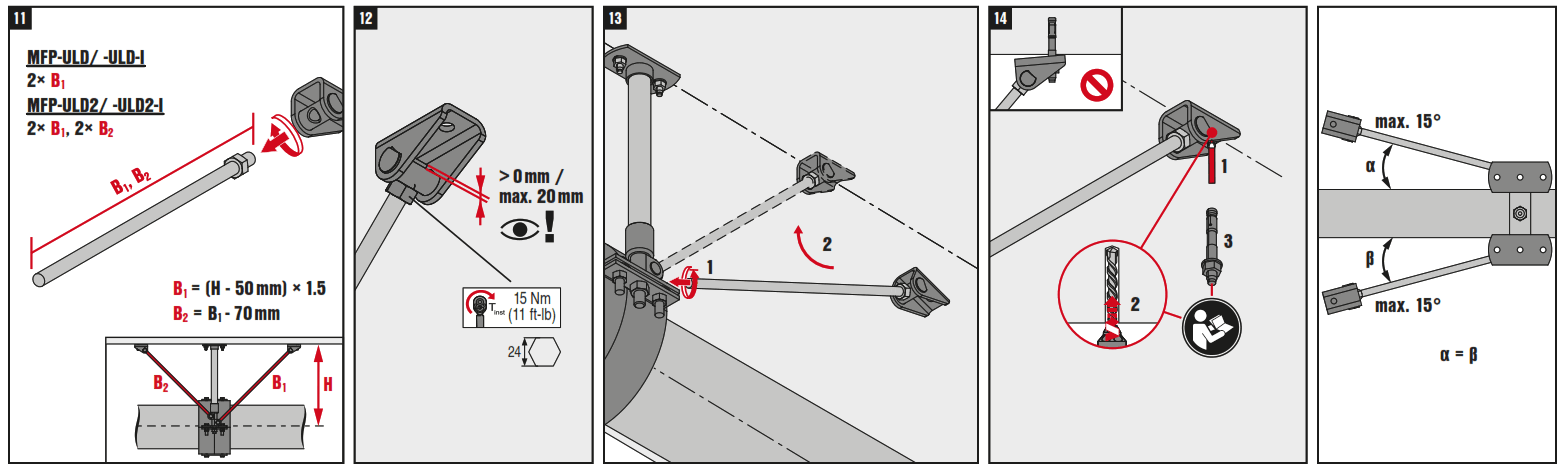

KF 30/40 #335218

KF 30/40 #335218
Selection of the welding process, welding addition and the design of the fillet weld size is the responsibility of the customer!

#	Name	SW
2238678	MFP-KF  219	18	20 Nm
2238679	MFP-KF  273	24	45 Nm
2238680	MFP-KF  324	24	45 Nm
2238681	MFP-KF  356	24	45 Nm
2238682	MFP-KF  368	24	45 Nm
2238683	MFP-KF  406	24	45 Nm
2238684	MFP-KF  457	24	45 Nm
2238685	MFP-KF  508	24	45 Nm
2238670	MFP-KF  609	24	45 Nm
