WEEE Number: 80133970
INSTALLATION INSTRUCTION

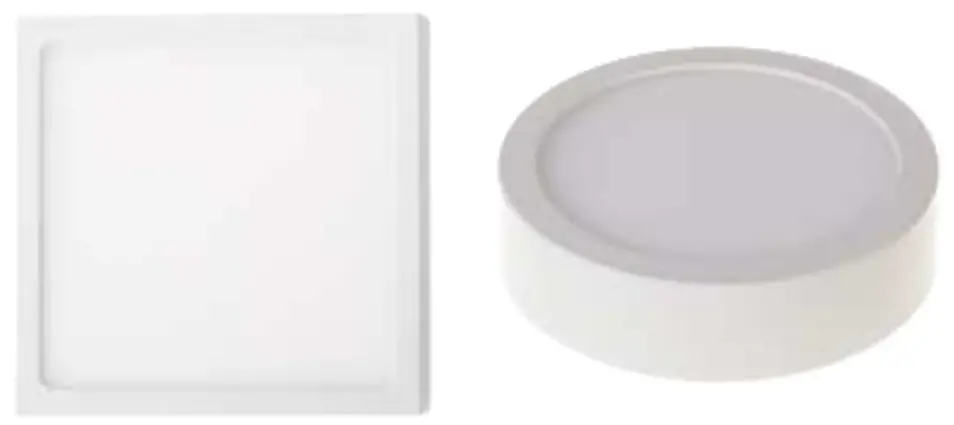

LED PANEL LIGHTS
TECHNICAL DATA:
| Model No: | VT-605 | VT-1205 | VT-1805 |
| Power: | 6W | 12W | 18W |
| Direct Connect Voltage: | 24-Dec | 24-48 | 36-72 |
| Lumens: | 420lm | 1000lm | 1500lm |
| Beam Angle: | 120° | 120° | 120° |
| CRI: | >80 | >80 | >80 |
| Protection Rating: | IP20 | IP20 | IP20 |
| Operating Temperature: | -20°C to +40°C | -20°C to +40°C | -20°C to +40°C |
WARNING
- Please make sure to turn off the power before starting the installation.
- The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.
Caution, risk of electric shock.
This marking indicates that this product should not be disposed of with other household wastes.

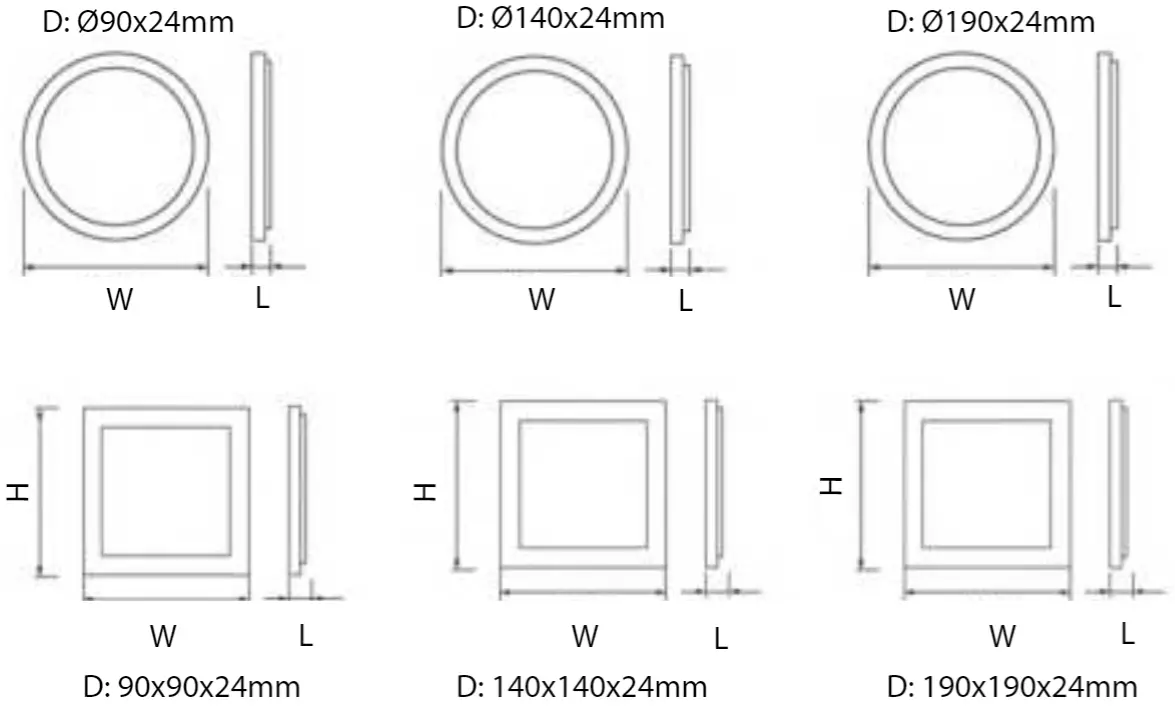

INSTALLATION DIAGRAM:
 |  |
INTRODUCTION & WARRANTY
Thank you for selecting and buying the V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference. If you have any other queries, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at your best.
The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours of Daily operation. Usage of product for 24 hours a day would void the warranty. This product is warranted for manufacturing defects only.
INSTALLATION REQUIREMENT:
- Install only by a certified electrician
- Please connect with the driver properly before connecting the main supply.
- Proper grounding should be ensured throughout the installation
- The lighting should be located in a dry area.

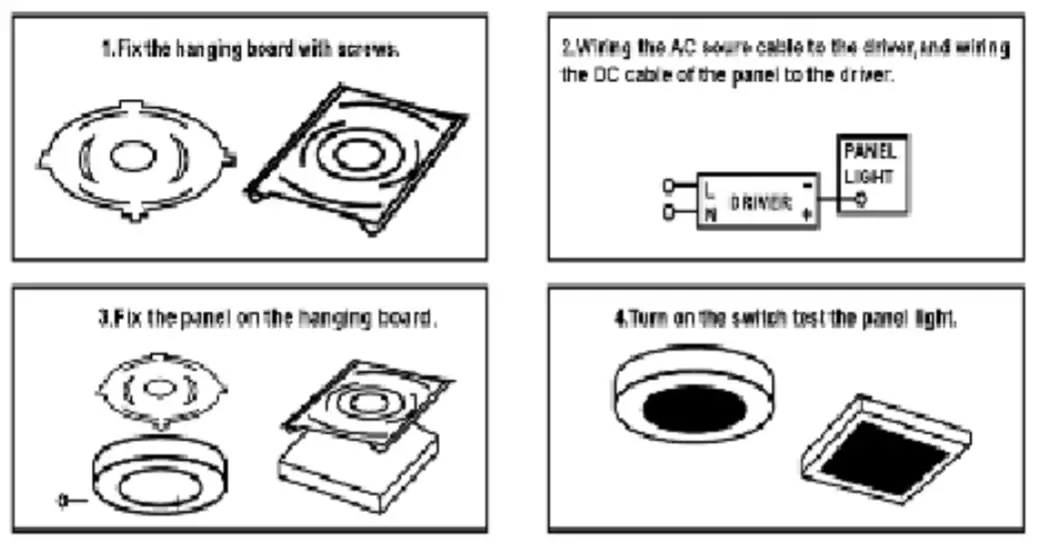

INSTALLATION INSTRUCTION:
Step 1: Fix the hanging board with Screws
Step 2: Wiring the AC source cable to the driver, and wiring the DC cable of the panel to the driver
Step 3. Fix the Panel on the hanging board
Step 4: Turn ON the switch and test the Panel
In case of any query/issue with the product, please reach out to us at:
[email protected]
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
tac.eu
