INSTALLATION INSTRUCTION

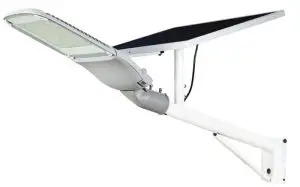

LED SOLAR STREETLIGHT
TECHNICAL DATA:
| Model | VT-ST303 |
| Solar Panel Watts | DC 9V, 50W |
| Lumens | 3000LM |
| Beam Angle | 120° |
| LED Chip Type | SMD 2835 |
| CRI | >80 |
| Maximum mounting height | 6-8 Meters |
| Operation Temperature | -20 to +45°c |
| Battery Type | LiFePO4 6.4V Battery |
| Charging Time | 4-6 hrs Sunlight Charging |
| Working Time | 8-10hrs |
| Maximum installation height | 6-8 Meters |
| No. of LEDs | 572 PCS |
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 3 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. This product is warranted for manu facturing defects only.
WARNING!
- Installation must be performed by a qualified electrician
- Replace any cracked protective shield.
- Keep away from the fire.
- Don’t immerse in the water
- Luminaire cannot be installed in low-lying areas, so as not to soak.
This marking indicates that this product should not be disposed of with other household wastes.

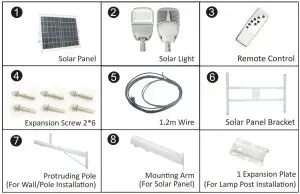

PARTS INCLUDED

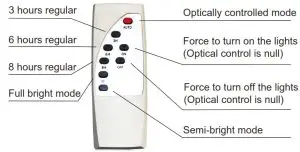

REMOTE CONTROL

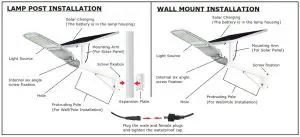

INSTALLATION GUIDE:
- Before installing please remove all the parts to check if all are in good condition or not.
- Install the Protruding Pole on a wall or on a Lamp Pole with the Expansion Screws
- Fix the Solar Panel on the Bracket. Fix them on the Mounting Arm and tighten the screws.
- Place the Mounting Arm on the top pole part of the Protruding Pole
- Fix the Luminaire on the front portion of the Protruding Pole
- Make sure that the connection Plug on the luminaire is carefully stretched out from the hole beneath the Protruding Pole
- Now Connect the plugs and tighten the Waterproof Cap.
- The luminaire should be connected to the solar panel against the sun light. Please makes sure the solar panel is adjusted in correct angle in order to receive sunlight.
- After installation test the light using the remote control.
- The remote control is designed with an operation distance of 8-10m
MAINTENANCE
- Clean the light with a dry, lint-free cloth.
- Check the solar panel for dirt regularly. If dirt or is present remove it to guarantee flawless function of the product.
- Especially during the winter, keep the product free from snow and ice.
- Confirm installation direction is correct (solar panel should be at top)
- Confirm no objects blocking the solar panel to receive sunlight
