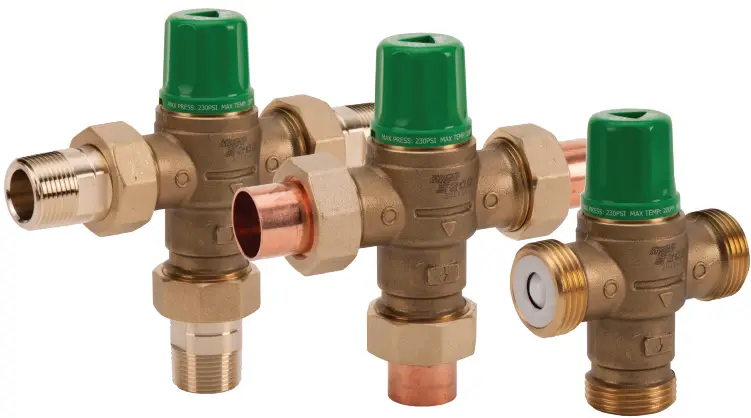

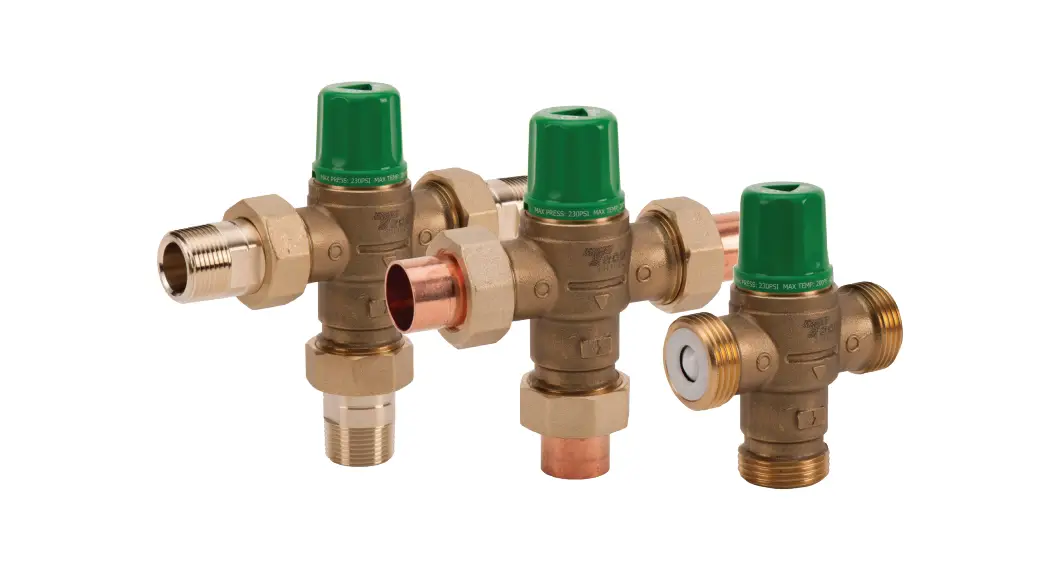

5000 Series Lead Free < .25% Lead Mixing Valve
Instructions
5000 Series Lead Free < .25% Lead Mixing Valve
This versatile NSF 61 ASSE 1017 mixing valve provides the ultimate performance for domestic hot water installations. The 5000 Series allows for domestic hot water storage at temperatures high enough to increase the effective storage capacity of a water heater, kill harmful bacteria and still be delivered at a safe 120˚F or less.
Features
≤ .25% lead
ASSE 1017 Listed
Ideal for Domestic Water Distribution Points
Suitable for use in Potable Water
Delivers Stable Mixed Water Temperature
Extended Mix Temperature Range
of 85-176°F (29-80°C)
Tamper-Resistance Cap
Sweat, NPT, Pex, Press, CPVC Union Connections
Check Valves Included
Low Headloss
Outlet Temperature Strip

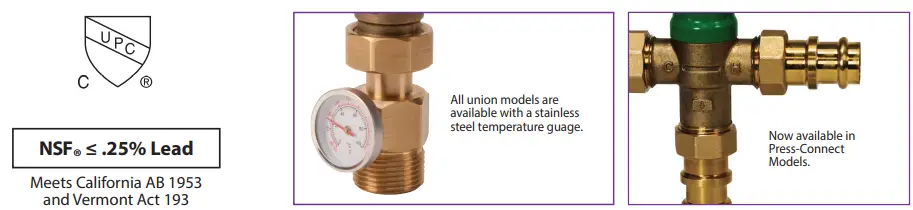

Optional Dial Gauge and Adaptor
Performance
CV: 2.3
Max. Flow: 20 gpm (76 L/Min)
NOTE: Flow should never exceed standards for pipe size.
Min. Flow: 1 gpm (3.8 L/Min)
Hot Supply Temperature: 120-180˚F (49-82˚C)
Cold Supply Temperature: 39-80°F (5-27°C)
Max. Inlet Pressure: 230 psi (15.85 Bar)
Max. Variation in Supply Pressure: 20%
Min. Temperature Differential
Between Hot Supply and Mixed: 10°F (5.6˚C)
Outlet Temperature Range: 85-175 F (29-80˚C)
Factory set to: 115-120˚F (41-45˚C)
Accuracy of Outlet
Temperature: ± 3˚F
Materials
Body: Forged Brass ≤ .25% lead Brass
Internal Components:
≤ .25% lead Brass
Noryl GFN2
Seals: Viton
Spring: Stainless Steel
Piston: Polysulfone
Fittings: Varies (Brass, CPVC, Copper)
Gaskets: EPDM
Temperature Gauge: Stainless Steel
Gauge Fitting: Brass
Approvals
ASSE 1017
cUPC Listed
CSAB125.3
Application
This versatile NSF 61 and ASSE 1017 mixing valve provides the ultimate performance for domestic hot water applications. The 5000 Series ASSE 1017 certification allows for domestic hot water storage at temperatures high enough to increase the effective storage capacity of a water heater, kill harmful bacteria and still be delivered at a safe 120˚F or less. The valves unique design and advanced thermostatic element ensures a stable mixed water temperature throughout the extended 85˚-176˚F range.

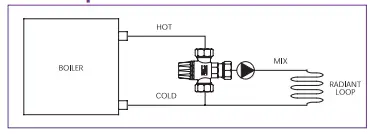

Low Temperature or Radiant Installation

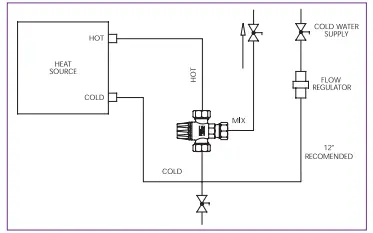

Typical Domestic Water Installation
 |  |

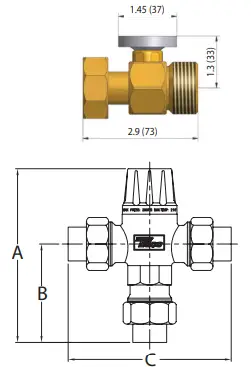

5000 Series Mixing Valve Dimensions Dimensions for reference only
| 5000-3 | BODY ONLY* | 4 | 101.6 | 1.9 | 48.3 | 3.3 | 83.8 |
| 5002-B3 | 1/2″ UNION CPVC | 5.8 | 147.3 | 3.7 | 94 | 7.1 | 180.3 |
| 5002-C3 | 1/2″ UNION SWEAT | 4.8 | 121.9 | 2.7 | 68.6 | 4.8 | 121.9 |
| 5002-P3 | 1/2″ UNION PEX | 5 | 128.5 | 2.9 | 73.7 | 5.4 | 137.2 |
| 5002-T3 | 1/2″ UNION NPT | 5.3 | 134.6 | 3.2 | 81.3 | 5.8 | 147.3 |
| 5002-H3 | 1/2″ UNION PRESS | 4.9 | 124.5 | 3.8 | 96.5 | 7 | 177.8 |
| 5003-B3 | 3/4″ UNION CPVC | 5.8 | 147.3 | 3.7 | 94 | 7.1 | 180.3 |
| 5003-C3 | 3/4″ UNION SWEAT | 5 | 127 | 2.9 | 73.7 | 5.4 | 137.2 |
| 5003-P3 | 3/4″ UNION PEX | 5.1 | 129.5 | 2.9 | 73.7 | 5.4 | 137.2 |
| 5003-T3 | 3/4″ UNION NPT | 5.5 | 139.7 | 3.4 | 86.4 | 6.3 | 160 |
| 5003-H3 | 3/4″ UNION PRESS | 7 | 177.8 | 3.9 | 99.1 | 7.3 | 185.4 |
| 5004-C3 | 1″ UNION SWEAT | 6.1 | 154.9 | 4 | 101.6 | 5.4 | 137.2 |
| 5004-P3 | 1″ UNION PEX | 5.2 | 132.1 | 3.1 | 78.7 | 5.8 | 147.3 |
| 5004-H3 | 1″ UNION PRESS | 7 | 177.8 | 3.9 | 99.1 | 7.3 | 185.4 |
For models with a gauge add -G to the end of the model number. This will change the total valve height.
*Does not include connections
