VNA53A/137 – Buffet Cabinet
Instruction Manual
VNA53A Buffet Cabinet
 | Please generally follow the manufacturer’s instructions! |
 | Please only clean with a damp cloth! |
 | Please mount the product on the bottom support! |
 | Please exclusively use the product indoors! |

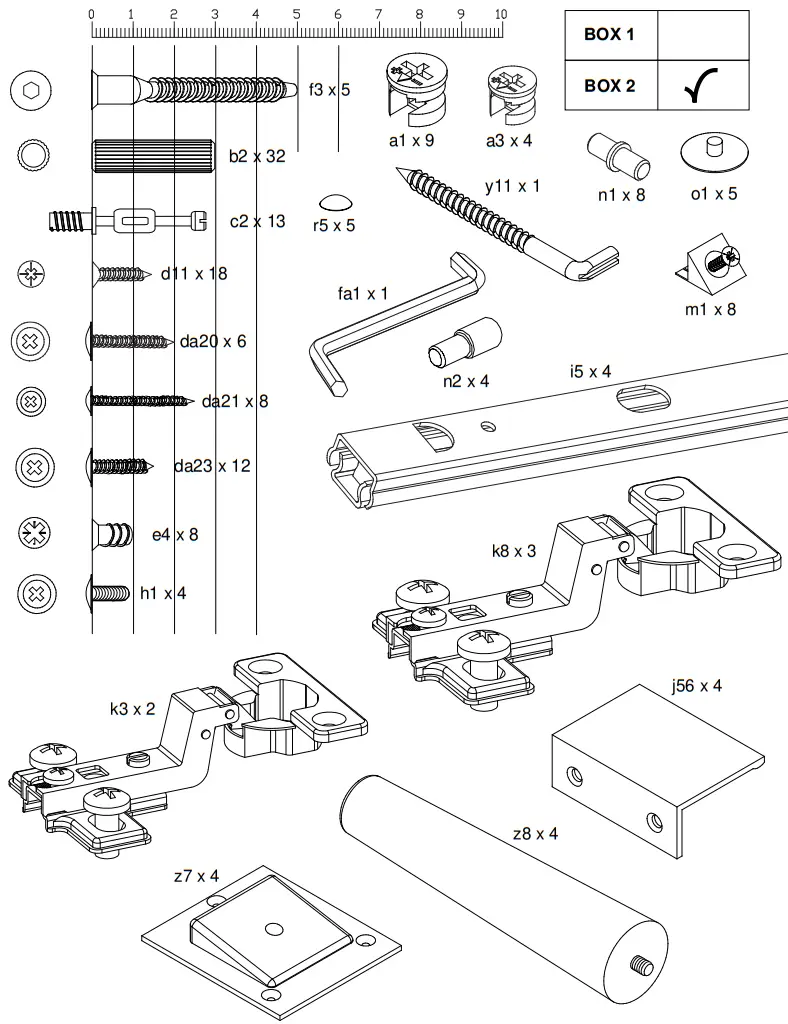

 | Please join the fittings and verify their completeness! |
 | If parts are missing, please turn to the manufacturer! |
 | Please re-tighten the screws after having used the product for a while! |
| Dimensions | ||
| 1 | 1 x | 1014 x 400 x 18 |
| 2 | 1 x | 1014 x 400 x 18 |
| 3 | 1 x | 1194 x 399 x 18 |
| 4 | 1 x | 1194 x 362 x 15 |
| 5 | 1 x | 1194 x 399 x 18 |
| 6 | 2 x | 481 x 361 x 15 |
| 7 | 2 x | 1204 x 492 x 2,5 |
| 8 | 2 x | 480 x 352 x 15 |
| 9 | 1 x | 479 x 352 x 5 |
| 10 | 2 x | 310 x 120 x 12 |
| 11 | 2 x | 310 x 120 x 12 |
| 12 | 2 x | 449 x 105 x 12 |
| 13 | 2 x | 484 x 196 x 16 |
| 14 | 2 x | 459 x 313 x 2,5 |
| 15 | 1 x | 1187 x 484 x 16 |
| 16 | 1 x | 787 x 484 x 16 |
| BOX 1 | 1, 2, 3, 4, 13 |
| BOX 2 | 5, 6, 7, 8, 9, 10, 11, 12, 14, 15, 16 |
 |  |
 |  |
 |  |
 |  |
 |  |

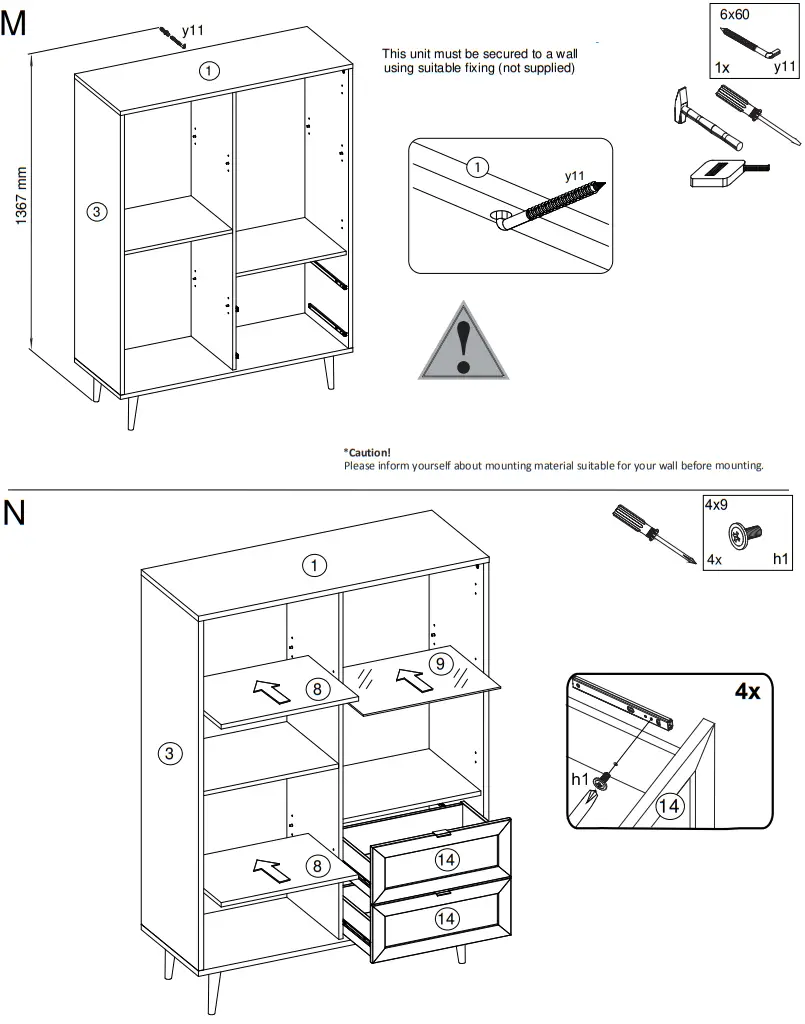

Please ensure to mount the furniture to the wall!

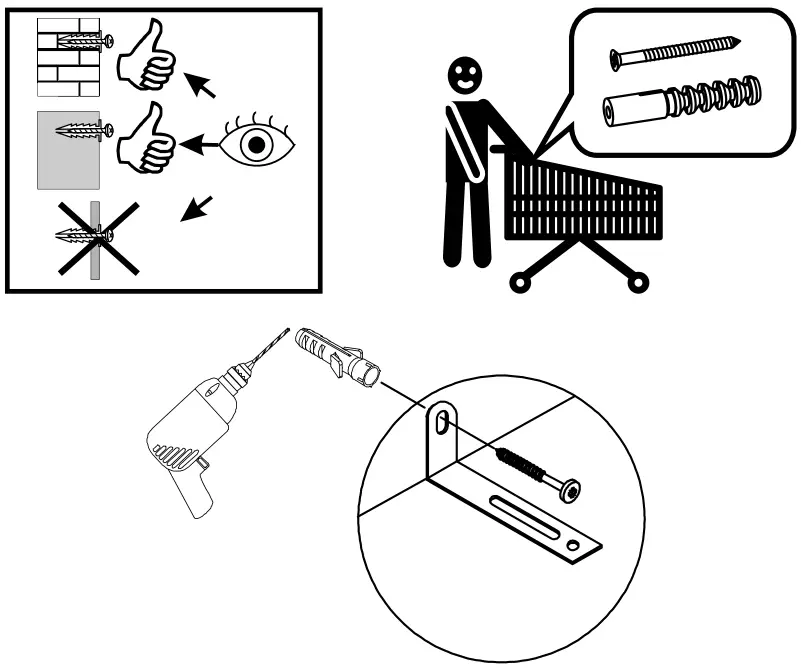

Please get informed on suitable assembly materials before commencing the wall-mounting! Please obtain suitable wall-mounting materials! Ensure all wall-mounting is carried out by competent personnel!
Fioni Gmb
Straßäcker 2
D – 96253 Untersiemau
