Samebike My275 Electric Bike Instruction Manual

MY275 Electric Bike
Instruction Manualhttp://www.gzsamebike.com

importing warning

• This manual includes important safety performance information and service information. Please make sure you have read the following warning content before the first time you use our product.
• If you borrow your electric bicycle to other people, please let the user read this manual, it could help to decrease the risk of an accident.
• Please wear a suitable and safe helmet before riding, please wear clothes with fluorescent and reflective stripes when you ride at night. Don’t exceed the speed limit, it is the main reason of traffic accidents, we should abide by the traffic rule, we shouldn’t exceed the speed limit.
• Don’t touch the charging hole on the bike, or use metal to touch it, otherwise, the accident will be caused by the transient short circuit of the current.
• Zero starting, braking frequent, driving against the wind, carrying people or anything, insufficient air pressure on the tires. All of these will use much electric energy and then reduce the endurance mileage. If you want the best endurance mileage, please do something as follows:
  1. please use assist mode.
  2. on the premise of safety, don’t brake frequently or use zero starts.
  3. Don’t overload.
  4. Before riding, please check the pressure of the tire, and supply enough pressure.
• Our Ebike should avoid prolonged exposure to the sun or rain, avoid storage in places with high temperature or corrosive gas, so as to avoid electroplating parts and paint  surface by chemical corrosion and electrical parts damage, resulting in operational failure and accidents
• Your current insurance business may not cover the situation you may encounter when riding an electric bike, please contact your insurance company or insurance broker for  relevant consultation
• According to the law in China, riding an electric bicycle or a three-wheeled Electric bike must reach the age of 16. If you use this product in other countries, please refer to the local laws and regulations.
• Bicycles are vehicles with certain risk fact factors, please be sure to abide by the traffic rules.
  At the same time, when emergency braking, brake the rear wheel first, then brake the front wheel, when cycling speed is too fast. There is a danger of tipping over if you brake the front wheel suddenly, please ride carefully.

Unpacking and product specs

Remove all packaging material, then inspect each item for any accident damage that may have occurred during shipping.

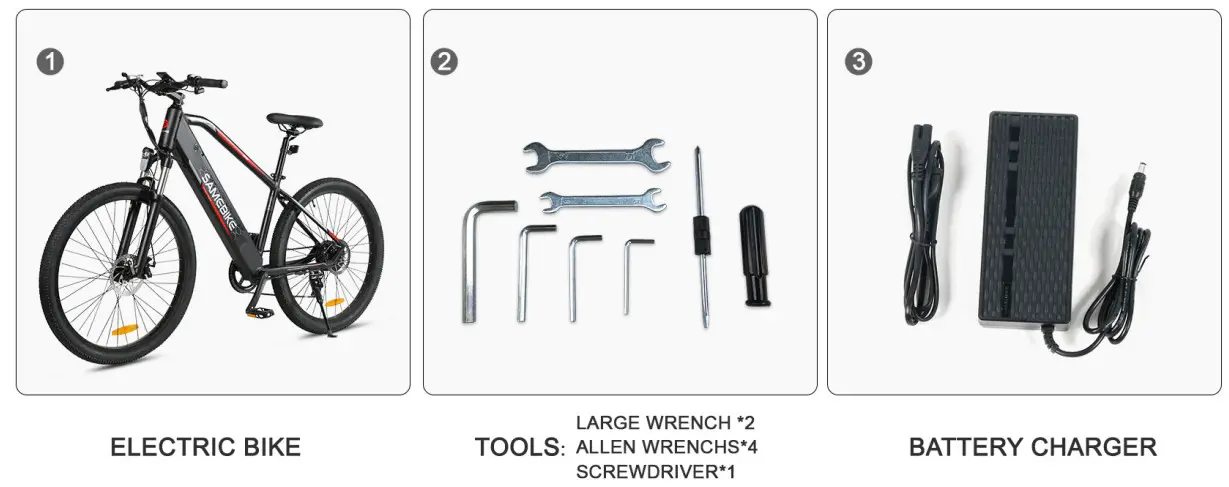

You should find each of these items in your box:

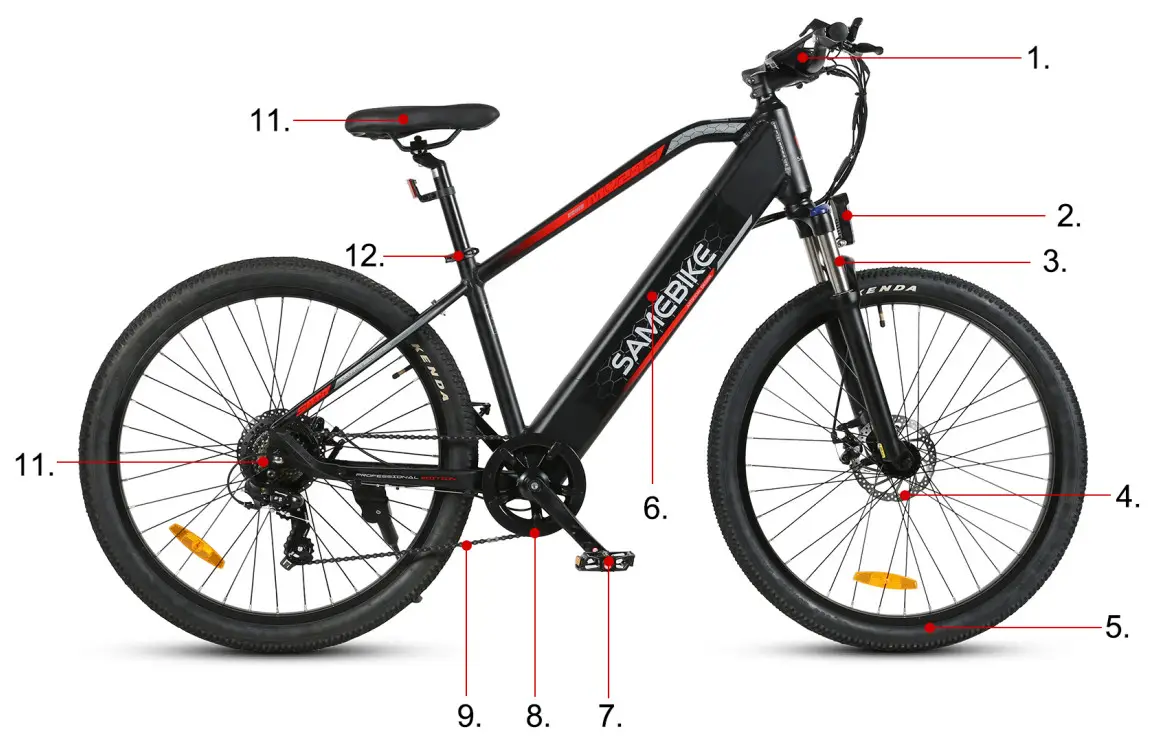

Product Components

Method of product assembly

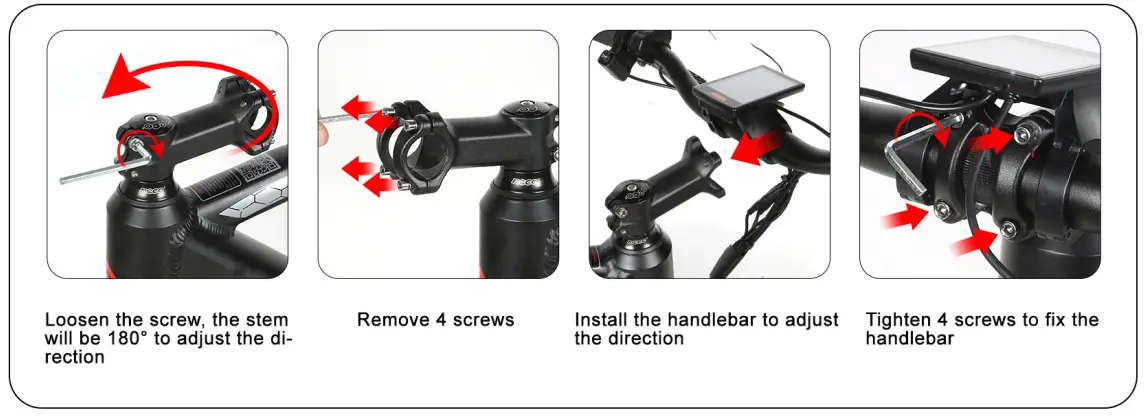

4.1 Adjust handlebar and stem

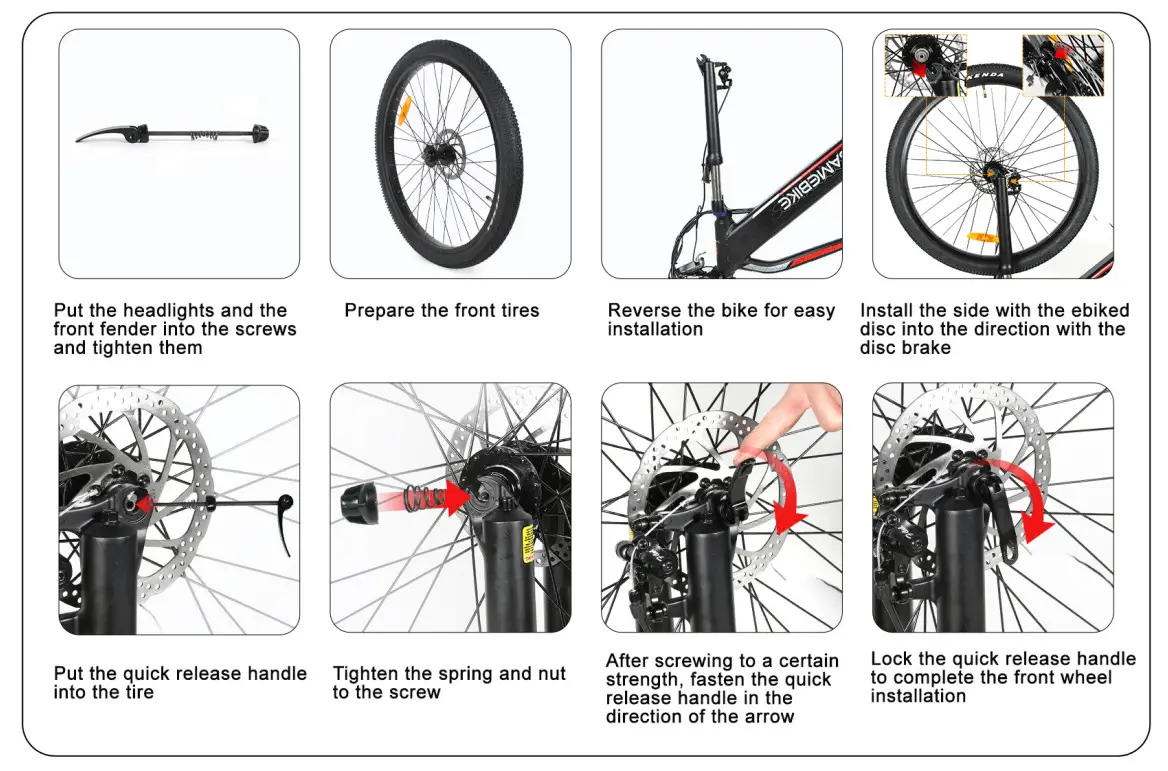

4.2 Installing the front wheel

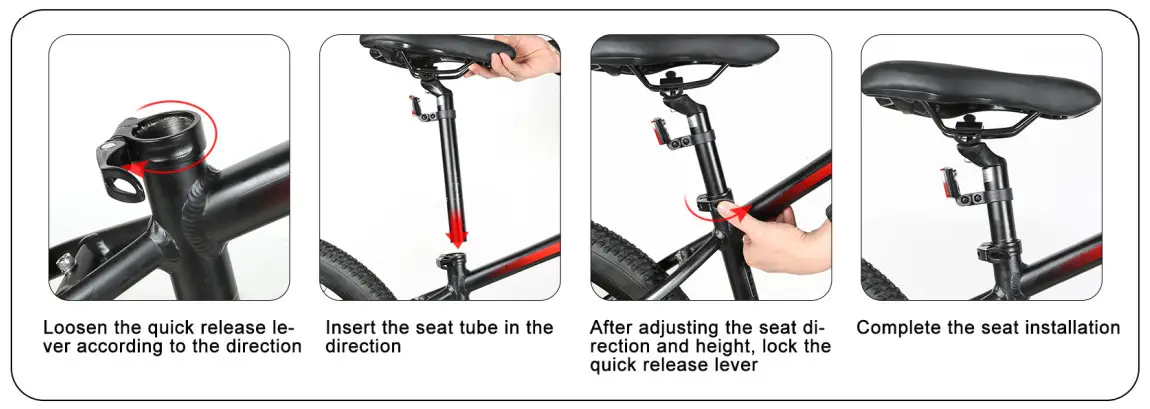

4.3 Seat installation

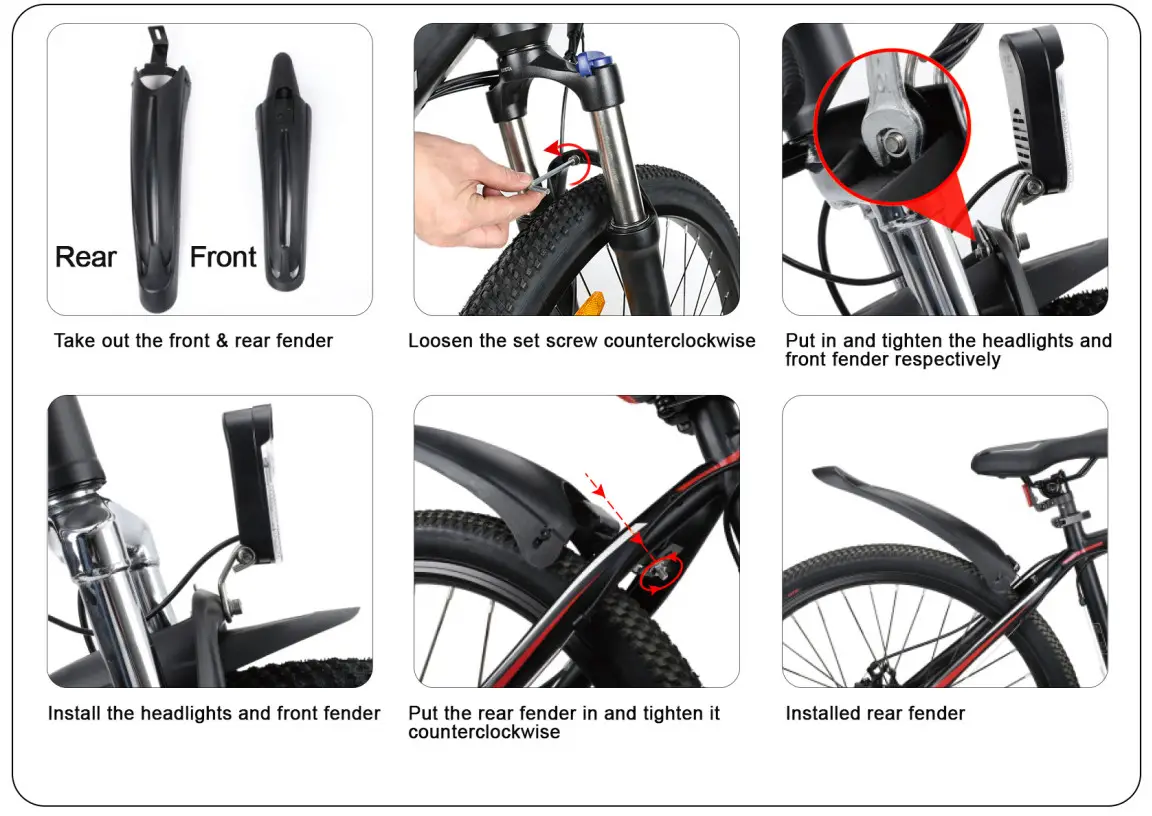

4.4 Assemble the Fender and headlight

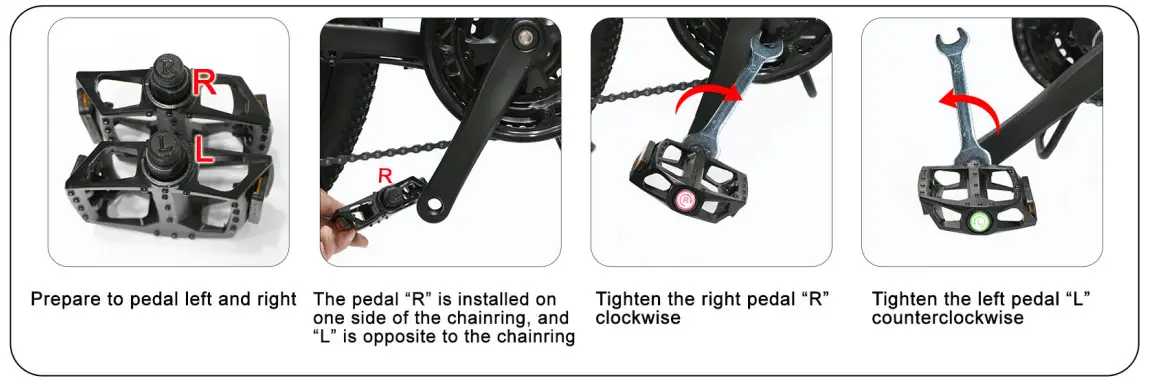

4.5 Mounting pedal

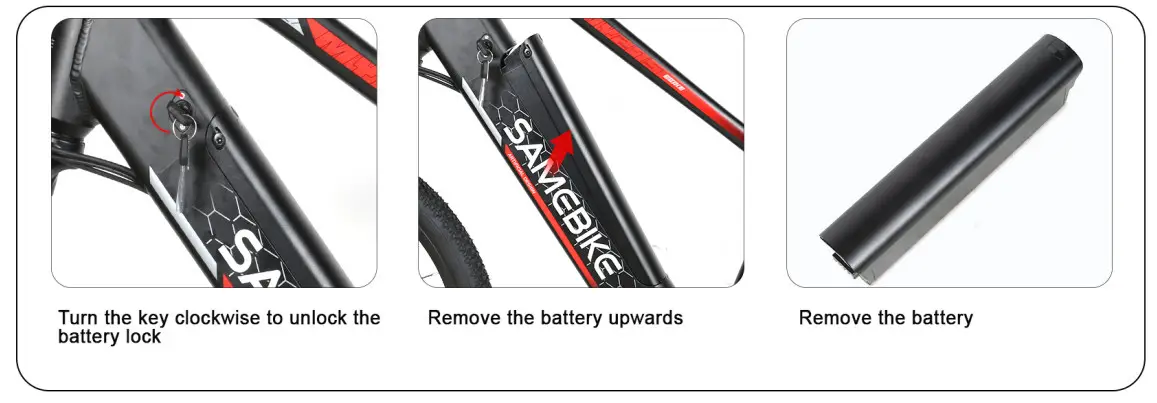

4.6 The method of removing the battery

Product instruction

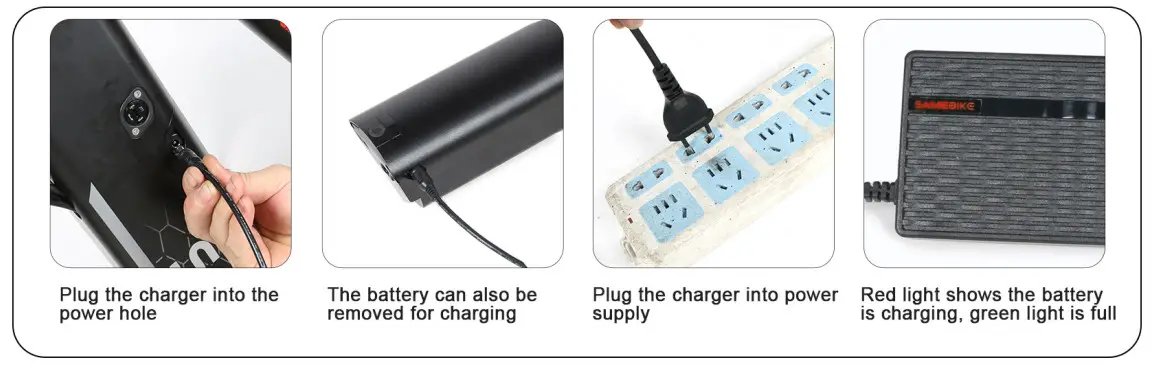

5.1 Charging method

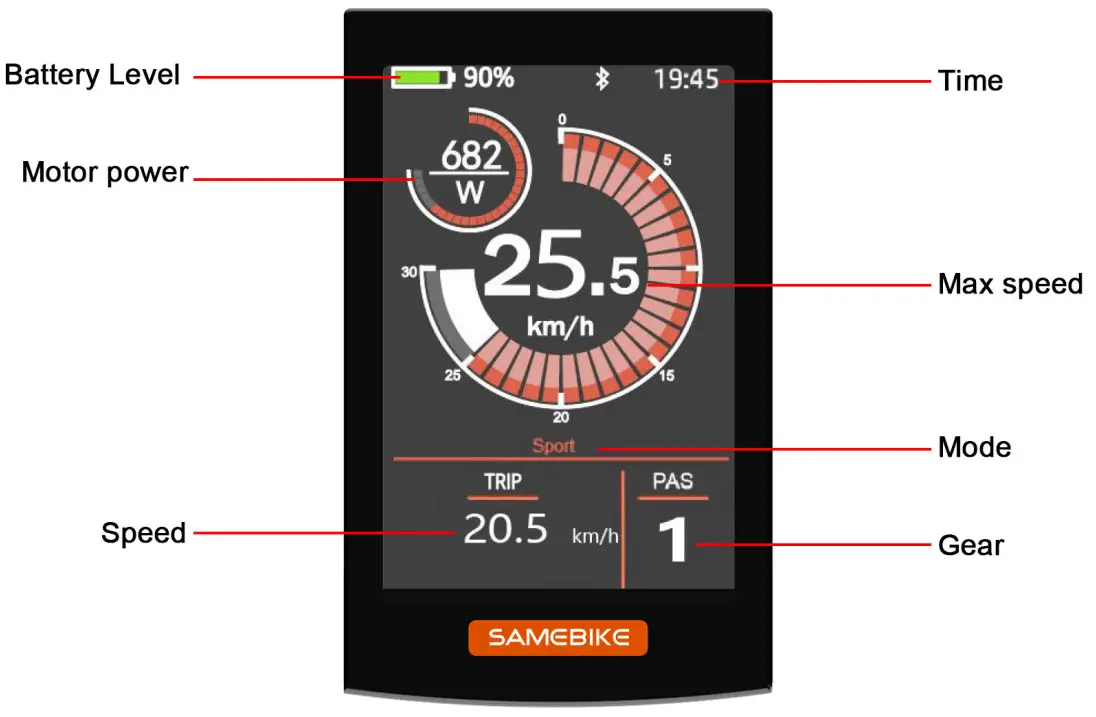

5.2 LCD Display (functional instruction)
Functions
MY275 meter offers a variety of features to meet your cycling needs, including:

• Intelligent electric power display
• Motor power indicator
• Motor power indicator
• Speed display (including real-time speed, maximum speed, and average speed)
• Mileage display (including single mileage and total mileage)
• Assist pushing control and display
• Cycling time display
• Backlight Control and Display
• Error code display
• USB connection indicator
• Multiple parameter settings (such as wheel diameter, speed limit, battery power setting and assist parameter setting, etc.)

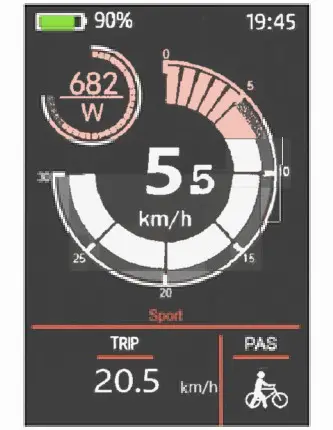

Assist pushing mode
Press and hold the “—” button, and after 2 seconds, the electric bike will enter the state of electric assist pushing mode. Electric bikes travel at a speed of fewer than 6 kilometers per hour.
At the same time, the screen displays” “. Release the “—” button, the electric bike will stop the power output immediately and return to the state before assisting pushing mode.

• Assist pushing mode can only be used when the user is pushing the electric bike. Do not use it while riding.
• Headlight control
  Press the “+” button for 2 seconds to turn on the headlight. After turning on the headlight, the backlight brightness will decrease. Press the “+” button again for 2 seconds to turn off the headlight.

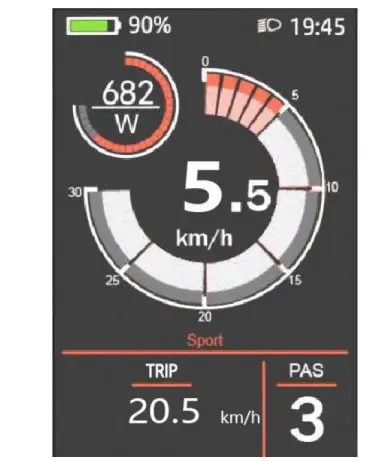

• Power gear selection
  Short press the “+” or’–” button to switch the power gear of the electric bike and change the output power of the motor. The default output power range of the meter is 0-5, 0 stops power output, 1 is the lowest power, and 5 is the highest power. When reaching the Sth gear, press the “+” button again, the meter screen will still display 5, and flash 5  to indicate that the current is the highest gear. After the power-assisted downshift reaches the Oth gear, short press the “—” button again, the meter screen still displays 0,  and 0 flashes to indicate that the current is the lowest gear.
  Meter startup default gear is 1.

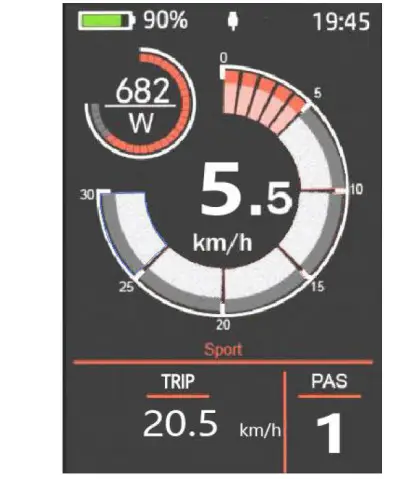

Motor power and USB connection indicator
The output power of the motor can be known through the meter. When the meter is inserted into the USB external device, the meter will be shown as shown in the picture below.

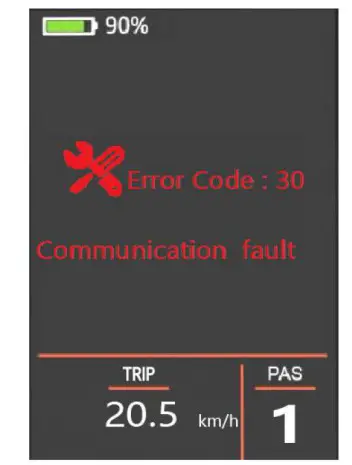

Error code display
When the electric bike electronic control system fails, the meter will display the error code automatically. For the detailed definition of the error code, see Attached Table 1

Schedule 1: Table of error code definitions

When the error code is displayed, please troubleshoot the fault in time. After the fault occurs, the electric bike will not run normally.

 Notes

1. Before riding, please read the (User’s Manual) carefully. Please check whether the parts are in good condition to ensure the safety of your riding.
2. Please check the status of the vehicle. Please check the brake, wheel, handlebar, folding buckle, and quick release part of the electric bike to make sure the electric bike has good status.
3. Please check the electrical system: To know whether the battery power is enough. if it is not enough, you need to charge it as soon as possible.
4. Please check whether the brake system works properly. If it doesn’t work properly, please stop using it, and please contact the official customer service person.

Warranty Policy

1. Users should operate in accordance with the product manual. In case of any performance fault caused by the production quality, the company shall perform the obligations of  the three guarantees in accordance with the provisions of relevant laws and regulations of the state
2. The company is still responsible for the after-sales service of the faults beyond three guarantees and the major components in the Three guaran-tees, but there will be a cost for repair.
3. If the battery replacement over the warranty time, Our company will supply the battery at factory price. To ensure safety and not pollute the environment the battery must be 1 :1 recycling and returned to the battery manufacturer.
