ML-MRWBB-60-M Wide Body Batten
Installation Guide

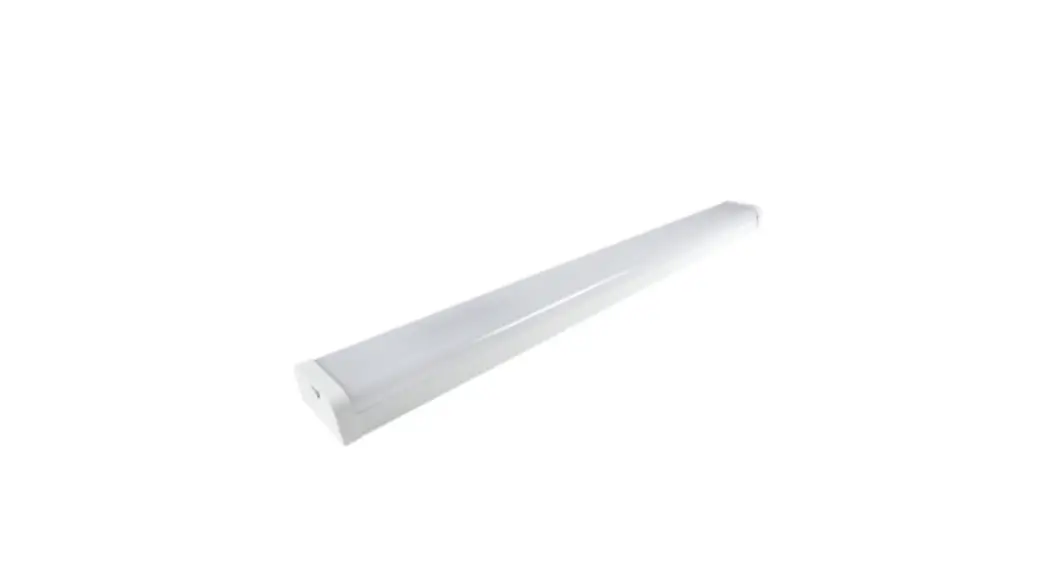

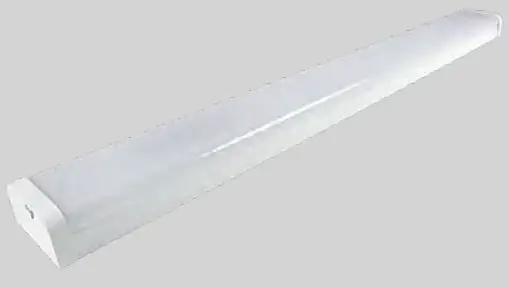

Wide body batten
Product information
Our new MR Wide Body Batten has been designed to be fast and flexible. Utilizing a robust 1 piece metal body with integrated end caps, fit-off is exceptionally quick and easy. Multiple entry points enable cables to be run either in from the back of the fitting or the ends to meet up with the large PA16 terminal block. Once the base is mounted and wiring fits off, the diffuser quickly snaps in place without any tools and it’s on to the next job. Just like all of our MR products, the MR Wide Body is supported by our 5-year warranty.
TECHNICAL INFORMATION
| ML-MRWBB-60-M | ML-MRWBB-120-M | |
| Total Power: | 20W* | 38W* |
| Lumen Output: | WW 1600lm NW 1800lm W 1700lm | WW 3300lm NW 3700lm W 3500lm |
| Colour Temp: | WW 3000K NW 4000K W 5700K | |
| IP Rating: | IP40 | |
| Efficacy: | WW 80lm/w NW 90lm/w W 85lm/w | WW 86lm/w NW 97lm/w W 92lm/w |
| CRI: | 83 | |
| Beam Angle: | 130° | |
| Temp Range: | -20° to +45° | |
| Dimmable: | No | |
| Power Supply: | Built-in Driver 220-240V~ 50/60Hz | |
| Average Life: | 50,000 hrs** | |
| Operating current at 240V: | ≤0.12A | ≤0.21A |
| Input current/inrush | 10.8 A/320uS | 15.7A/304uS |
| Power Factor: | >0.9 | |
| Earth leakage current (mA) | <0.5mA | |

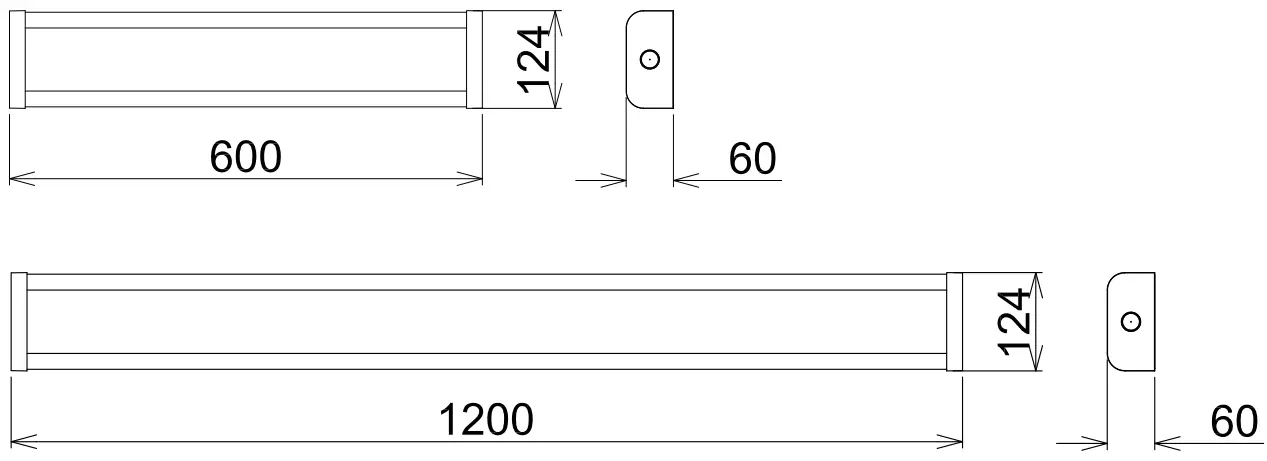

| Dimensions: | 600*124*60mm | 1200*124*60mm |
| Weight: | 1.18kg | 2.14kg |
| Warranty: | 5 Years | |
| Kit Includes: | 1x WIDE BATTEN, 1x installation kit | |
*Total power consumed including driver
** Average life is calculated on expected average lifespan

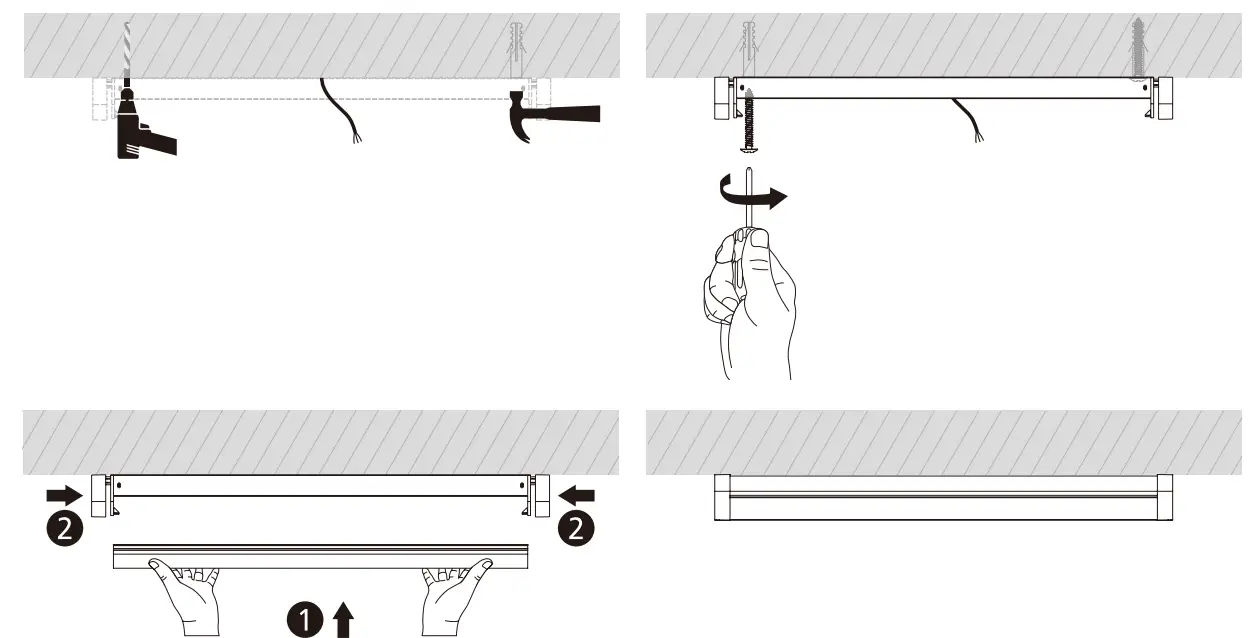

SURFACE MOUNTED
- Turn the power off before commencing installation.
- Always use suitable fixings for your type of installation.

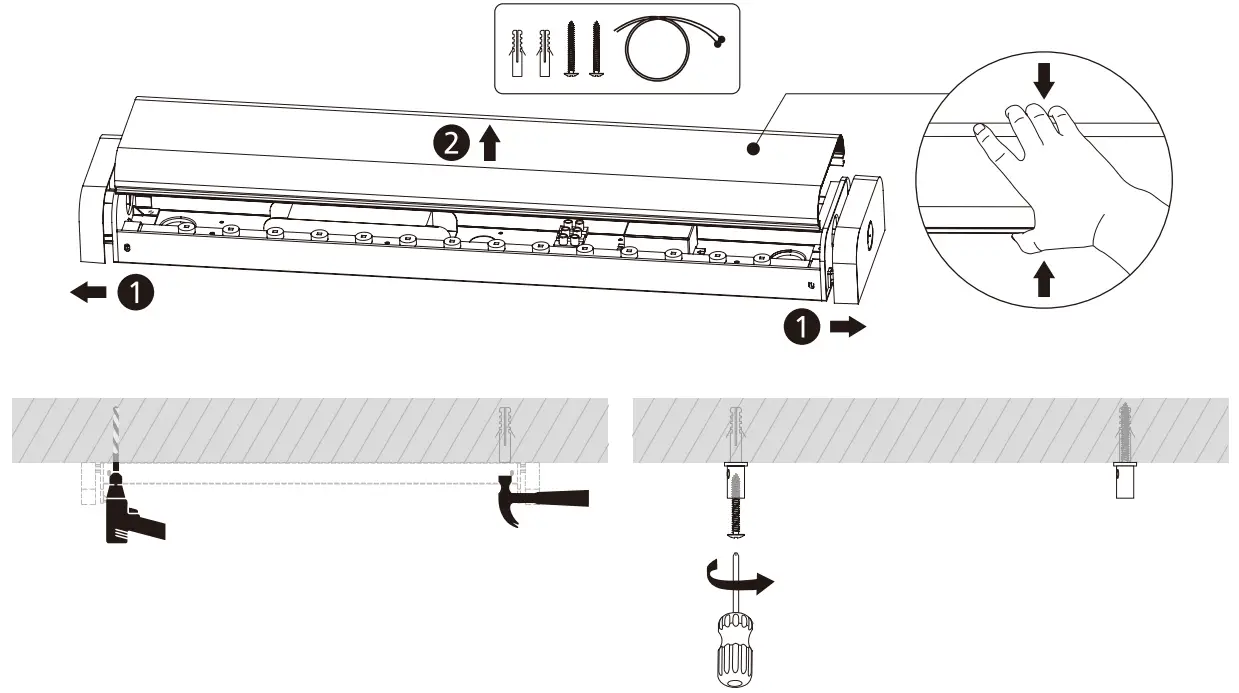

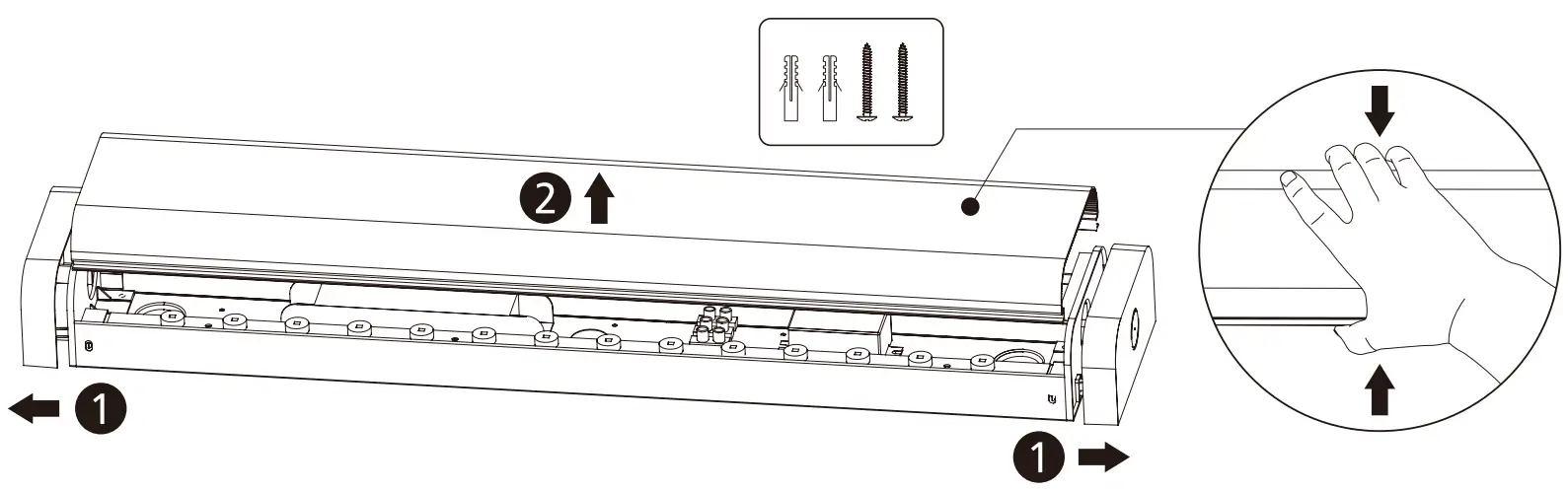

- Un-clip the end caps on each side of the fitting, squeeze the diffuser in the center to detach and gain access to the internal componentry.
- When running cables into the fitting ensure you use a suitable sealant to prevent any future water penetration.
- Wire MR wide body batten according to the labels on the terminal..
- Select the desired CCT output on the switch
- Re-install the diffuser onto the base and press the end caps in.
- Test and commission.

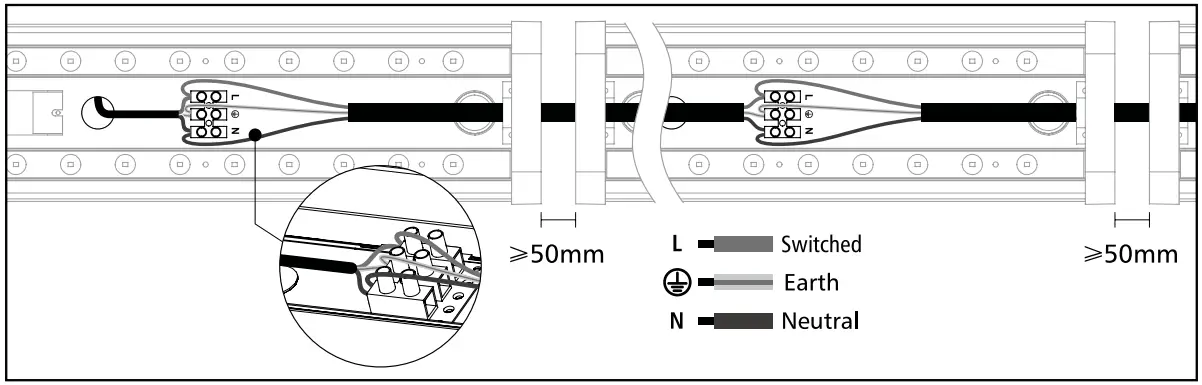

WIRING GUIDE

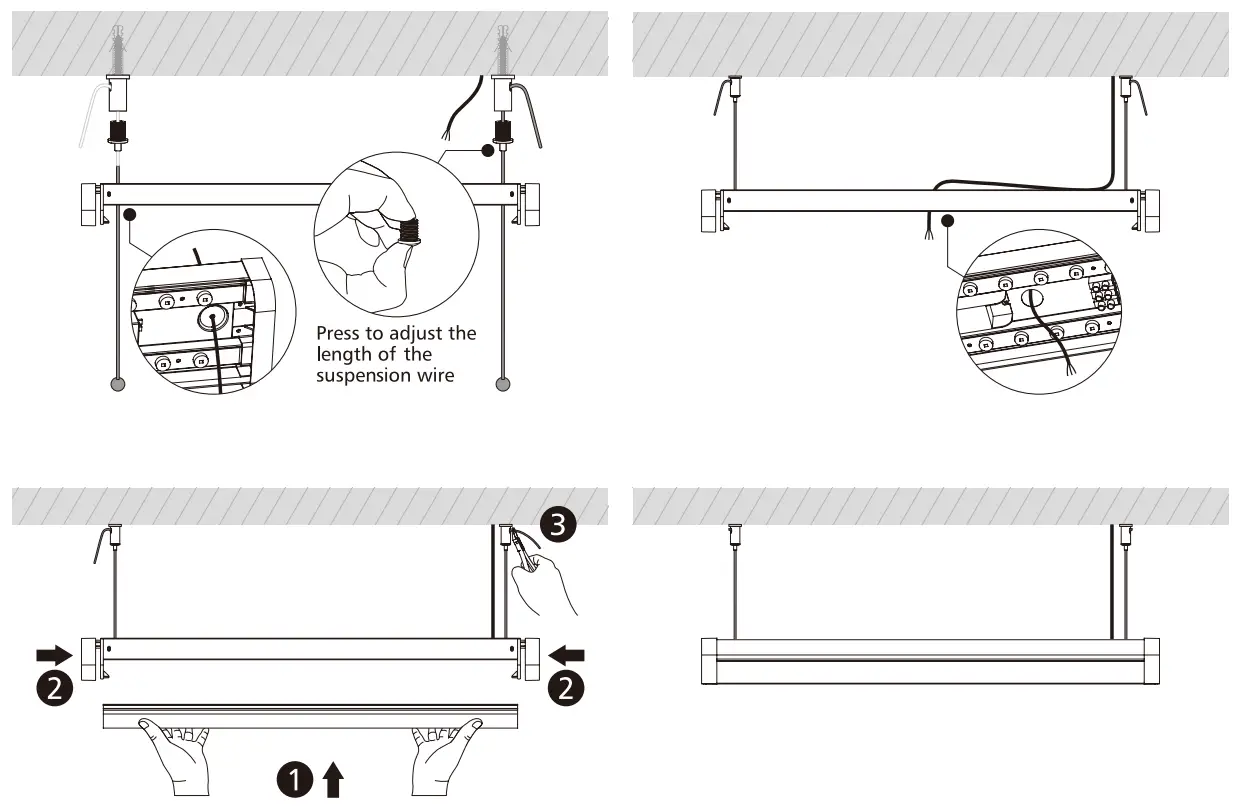

SUSPENDED

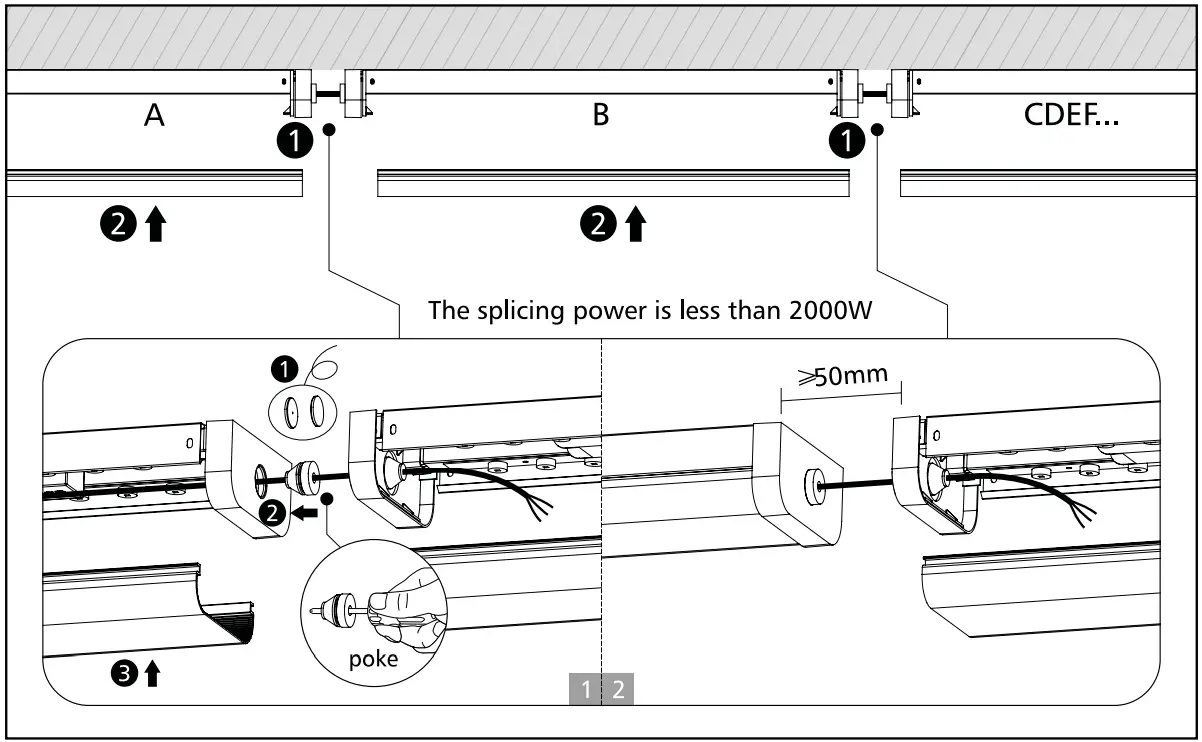

SPLICING WIRE CONNECTION
PLEASE NOTE
MUST BE INSTALLED BY A LICENSED ELECTRICIAN
- Read instructions carefully before attempting to install the fitting. Retain this guide for future reference
- Disconnect power before installing or servicing
- This fitting is for indoor use and should not be used in areas with limited ventilation or high ambient temperatures
- Do not extend low voltage cables from the output of the power supply
- All components must not be mechanically stressed
- Be careful not to damage or destroy conductive paths on the circuit board
- Follow all relevant electrical and safety standards (including AS3000)
- Correct electrical polarity must be observed as the wrong polarity may destroy the product and is not covered under the warranty
- Damage by corrosion will not be honored as a material defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture, condensation, and other harmful elements
T. 1300 222 445 | www.melec.com.au
Data is subject to change, visit our website for up-to-date information
For further information about our Warranties please go to:
melec.com.au/legal/warranties
Version 3
