TP-Link N300 WiFi Extender (RE105), WiFi Extenders Signal Booster
Specifications
- Product Dimensions
3.15 x 2 x 2.7 inches - Item Dimensions LxWxH
3.15 x 2 x 2.7 inches - Item Weight
6.4 ounces - Series
RE105 - Wireless Type
802.11n, 802.11b, 802.11a, 802.11g - Data Transfer Rate
300 Megabits Per Second - Frequency Band Class
Single-Band - Brand
TP-Link
Introduction
TP-Link is a well-known manufacturer of dependable networking hardware and accessories that is present in all facets of daily life. With a track record of stability, performance, and value, TP-Link has chosen a range of products to satisfy every user’s networking requirements. The company is already growing now to meet the demands of tomorrow as the connected lifestyle continues to develop.
The goal of WiFi boosters, repeaters, and extenders is to increase WiFi coverage. The distinction between products that manufacturers refer to as “extenders” and products that they refer to as “repeaters” is not entirely obvious. However, not all WiFi extenders work in the exact same way.
What’s In the Box?
- 1 x RE105/300Mbps
- Wi-Fi Range Extender1
- Quick Installation Guide

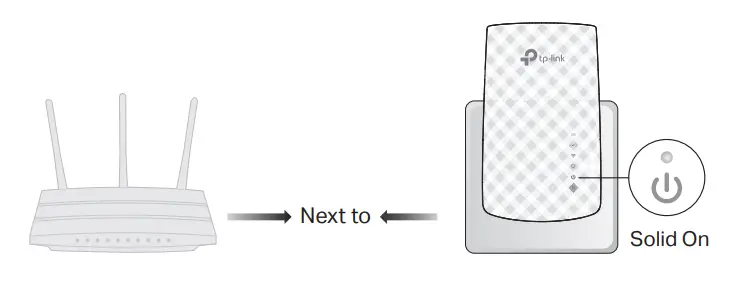

Power On
Plug the extender into a power outlet next to your router. Wait until its Power LED turns solid on.
Set-Up
Via the Tether App
- Get the up-to-date Tether app from the Apple App Store or Google Play, or simply scan the QR code.
- Launch the Tether app and log in with your TP-Link ID. If you don’t have an account, create one first.

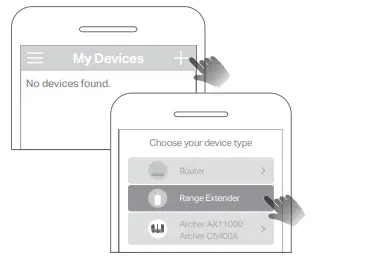

- Tap the button and select Range Extender.
Note If you cannot find your device, please refer to
- Follow app instructions to complete the setup. The LED should turn solid on, indicating successful connection to your router
Note: If the LED does not turn solid on, please refer to FAQ > Q2
More Setup Methods
Via a Web Browser
- Connect your computer or smartphone to the extender’s network TP-Link_Extender.
- Visit http://tplinkrepeater.net or http://192.168.0.254 in a web browser. Create a password to log in.
- Follow web instructions to complete the setup.
Via the WPS Button
- Press the WPS button on your router
- . Within 2 minutes, press the WPS button on the extender for 1 second. The LED should change from blinking to solid on, indicatingsuccessful connection.
- . If the extender connects to a dual-band router, repeat steps 1 and 2 to connect to the other band.
Extended Network Names
Router’s network name with _EXT at the end
or
Same as your OneMesh router
(See back for OneMesh details)
Passwords
Same as your router
For more details, please refer to the user guide at
https://www.tp-link.com/support/download/

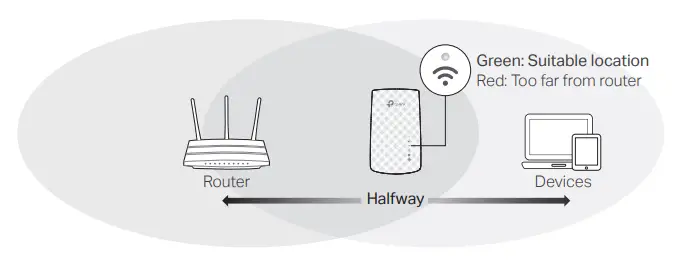

Relocate
- Plug in the extender about halfway between your router and the Wi-Fi dead zone. The location you choose must be within the range of your router.
- Wait for about 2 minutes until the LED turns solid green. If it doesn’t, relocate the extender closer to the router to achieve better signal quality
Tip
For more intuitive location assistance, access extender settings via the Tether app and go to Tools > Location Assistant.

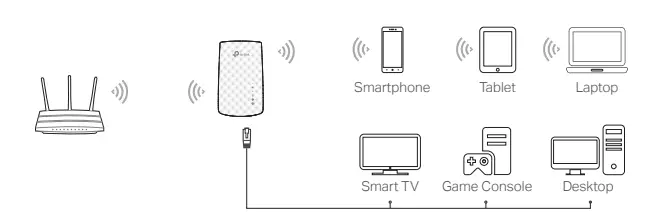

Enjoy!
Connect your devices to the extender wirelessly or via an Ethernet cable, then enjoy the internet. The password of your extended network is the same as your host router.
Tip
You can also set up the extender in Access Point mode to transform your existing wired network to a wireless one. For details, refer to the user guide at https://www.tp-link.com/support
Manage the Extender
After setup, you can manage the extender via any of the methods below.
Note
If your extender and router use the same network name, Method 1 is recommended.
Method 1 Via the Tether App
- Connect your smartphone to the extender‘s or router’s network.
- Launch the Tether app, select your extender, and log in.
- Manage the extender as needed.
Method 2 Via a Web Browser
- Connect your computer or smartphone to the extender’s network. If you are using a computer, unplug the Ethernet cable if any.
- Launch a web browser, enter http://tplinkrepeater.net in the address bar, and log in.
- Manage the extender as needed.
OneMeshTM with Seamless Roaming
TP-Link OneMeshTM router and extenders work together to form one unified Wi-Fi network. Walk through your home and stay connected with the fastest possible speeds thanks to OneMesh’s seamless coverage.
Unified Wi-Fi Network
Routers and extenders share the same wireless settings, including network name, password, access control settings, and more.
Seamless Roaming
Devices automatically switch between your router and extenders as you move through your home for the fastest possible speeds
Easy Setup and Management
Set up a OneMesh network with a push of WPS buttons. Manage all network devices on the Tether app or at your router’s web management page.
To check the full list of TP-Link OneMesh devices, scan the QR code, or visit https://www.tp-link.com/One-Mesh/compatibility.

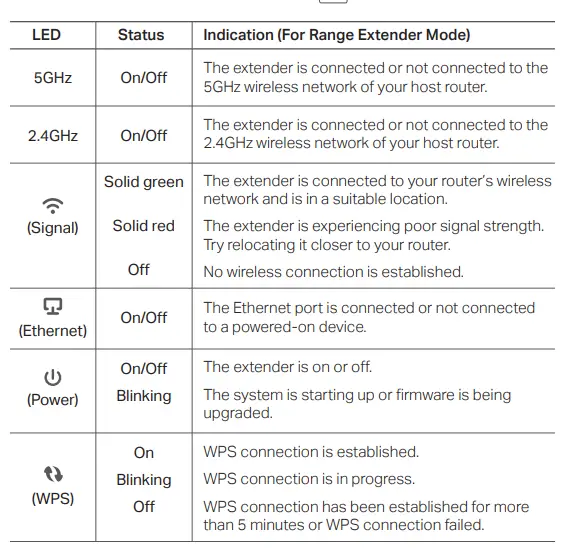

LED Explanation
Safety Information
- Keep the device away from water, fire, humidity, or hot environments.
- Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
- Do not use devices where wireless devices are not allowed.
- The socket outlet shall be installed near the equipment and shall be easily accessible.
Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU, and (EU)2015/863.
The original EU declaration of conformity may be found at t https://www.tp-link.com/en/ce
- To communicate with TP-Link users or engineers, please join the TP-Link Community at
- If you have any suggestions or needs for our product guides, you are welcome to email [email protected]
- For technical support, the user guide, and other information, please visit https://www.tp-link.com/support/, or simply scan the QR code
Frequently Asked Questions
What should I do if the Tether app cannot find my device during setup?
Try another method by following the steps below:
- Connect your smartphone to the extender’s network TP-Link_Extender.
- Launch the Tether app, and select your extender.
Tip
If you have connected to the extender’s Wi-Fi but still cannot find your device, try turning off your cellular data
- Follow app instructions to complete the setup.
If you are still having problems, contact our technical support
What should I do if the LED doesn’t turn solid on after completing setup via the Tether app or web browser?
You may have entered an incorrect Wi-Fi password for your host router during the configuration. Check the password and try again. Make sure the extender is close to your router, preferably within 16 feet, and away from large electrical appliances. If you have enabled wireless MAC filtering, wireless access control, or access control list (ACL) on your router, disable them first, then follow any method on the front page to complete the configuration. Try setting it up via the WPS button. Reset the extender and go through the configuration again. If you are still having problems, contact our technical support.
How do I reset the extender?
With the extender powered on, use a pin to press the RESET button for 1 second. The extender will reboot.
The TP-Link RE650 AC2600 Wi-Fi Range Extender is the best Wi-Fi extender on the market, according to our extensive lab tests and actual user experience in a real home. It is a plug-in device with excellent performance and range that is simple to set up in almost any space.
Connect your Range Extender to an electrical socket close to your primary Router/AP. 2. Press the WPS button on your primary router or AP first, then press the Range Extender’s WPS button soon after.
But what if your house is bigger than what a single Wi-Fi router can handle? If so, you could always purchase a second TP-Link Wi-Fi router and use it as a repeater. That implies that you will be able to expand the range of your main router so that it covers the entire building.
You don’t need to change your router because Wi-Fi extenders normally operate with any current router. An extender can greatly expand the range of your network; if placed properly, you can even obtain coverage outside, such as in your backyard.
Simply click “Sharing Network” under “Advanced—-Wireless—-Wireless Settings,” and a QR code will be generated. Scan this QR code using the camera app on your devices. Your devices will immediately establish a WiFi connection with your TP-Link router. You must have a camera or an app that can scan QR codes.
It will expand coverage. So let’s say you have a modem with 100mbs speed and downstairs you can only get 10mbs by using this you will get more than 10mbs downstairs. However, if your original modem can give 100mbs that’s the max speed you can get
Yes, our WiFi extenders are universally compatible with WiFi routers.
This is what it says in the back: “Model: TL-WA855RE Power: 100-240V~50/60Hz 0.3A” I hope this information helps.
Theoretically, yes – however it is generally not recommended to daisy chain Wi-Fi extenders to each other, as they operate using the half-duplex transmission. Each “link” in the chain will reduce the overall Wi-Fi bandwidth, potentially resulting in a sub-optimal Wi-Fi environment. Instead, we would recommend considering a Whole Home Mesh Wi-Fi solution, such as our Deco M5.
The extender cannot be used in bridge only mode. You can use it as a bridge but you cannot turn off the re-broadcasted wifi signal. It creates another SSID that you cannot disable.
Yes, it isn’t brand specific. I use it to extend a Linksys router.
This works with most routers, cable WiFi & store purchased.
I have Xfinity and it works great.
After plugging in the extender, some basic, easy setup steps are required. It includes a Quick Installation Guide that goes over the optional setup methods and how to quickly complete them.
