August Wireless Presenter
Introduction
This wireless presenter is suitable for any presentation or PowerPoint occasion. With it, you don’t need to stand beside your computer or have an assistant. It is very simple to use, just plug and play, and no driver is required.
The device enables you to control your presentation wirelessly up to 10 meters (32 feet) away, thanks to the advanced Radio Frequency (RF) technology that works through walls.
It combines the functions of a laser pointer and remote control. It is tailored as a convenient tool for presentations, teaching, meetings, speeches and training etc.
Operating System
The device supports Windows 98 /ME/ 2000 / 2003 / XP / Vista /7/ 8 /10, Linux and Mac OS

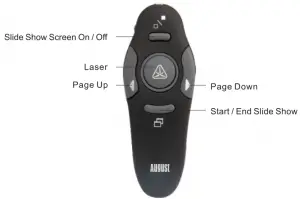

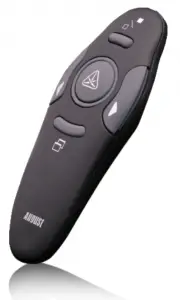

Parts & Functions
Front
Back
Take out the USB receiver
Once the USB receiver is connected to a computer, it would normally detect the signal sent from the presenter automatically, if however it does not due to interference caused by other devices, press Connect to re-establish the connection.

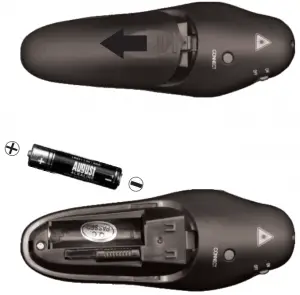

Battery Installation
- The unit is powered by 1 xAAA battery
- Remove the battery compartment cover
- Insert 1 xAAA battery into the battery holder
- Put the battery compartment cover back in position
Press and slide out the battery cover
Note:
- Do not insert battery into the presenter in the wrong direction.
- Do not leave bad or exhausted battery in the presenter.
- If you do not use the presenter for a long period of time, remove the battery to avoid possible damage from battery corrosion.
- If the presenter does not function correctly or if the operating range becomes reduced, try to replace the battery with new one.
Technical parameters
Presenter
| Technology | Radio Frequency |
| Frequency | 2.4GHz |
| Control distance | Upto 15m |
| Laser distance | Upto 300m |
| Battery | 1 x AAA battery |
| Work voltage | 1.5V |
| Laser wavelength | 650nm |
| Max transmitting power | <1mW |
| Transmitted power range | 0.43-0.95mW |
| Product size | 106 x 39 x26 mm (Lx Wx H) |
| Weight | 29g (without battery) |
USB receiver
| Operating system | Windows 98 /ME/ 2000 / 2003 / XP /Vista/ 7/8/10, Linux and Mac OS |
| USB version | USB 1.1 compatible with USB 2.0 |
| Work voltage | 4.5-5.5V |
| Size | 29 x 16 x 5 mm (L x W x H) |
| Weight | 2g |
Warning:
Laser radiation
Class 2 laser product
Do not view directly with optical instruments
Do not point at people and animals
Please keep out of reach of children
Note:
Please note this instruction is only intended for reference. August International Ltd reserves rights to revise the product specifications, features and design without notice.
This product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The Declaration of conformity may be consulted on line at http://www.augustint.com/en/declaration.
