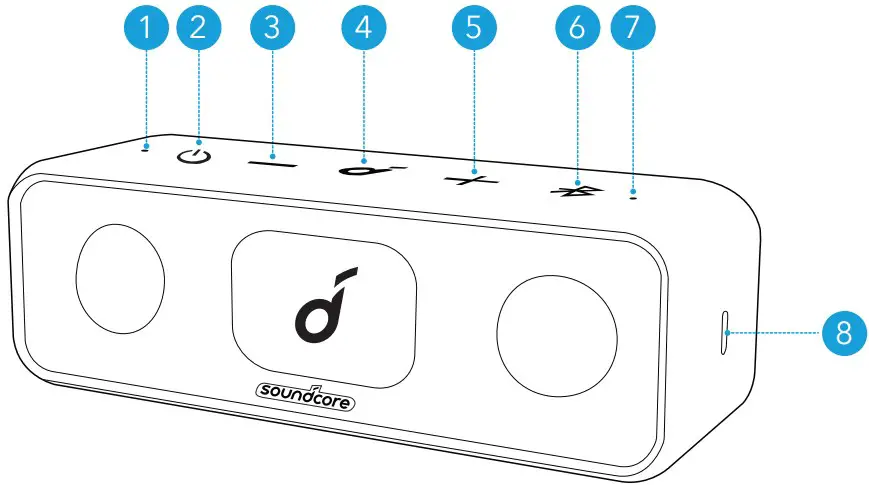

At a Glance

1. Power LED
2. Power button
3. Volume down button
4. Multi-function button
5. Volume up button
6. Bluetooth/PartyCast button
7. Bluetooth/PartyCast LED
8. USB-C charging port

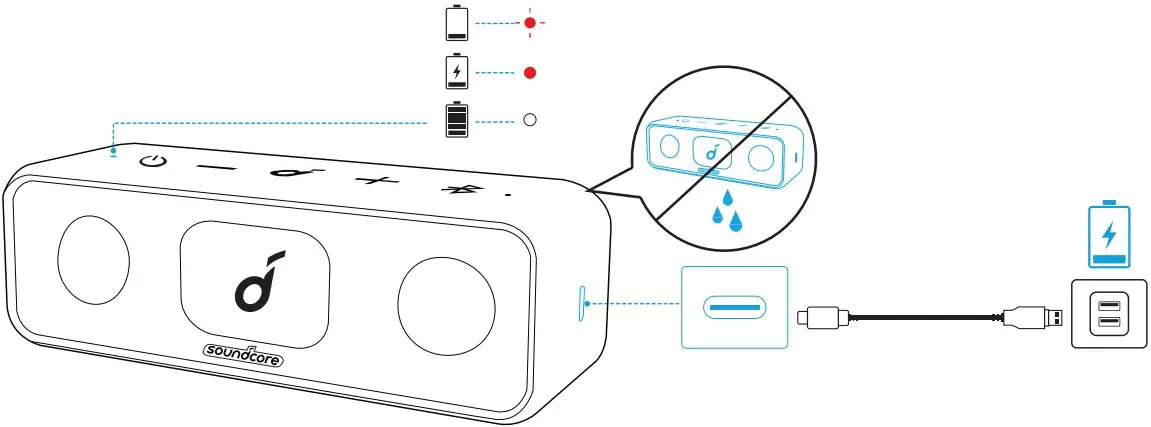

Charging

• Fully dry off the USB port before charging.
• Use the provided USB-C cable to prevent any damage.
• Fully charge this speaker before the first use to prolong the lifespan of the built-in battery.
• Disconnect this speaker from the charger when fully charged. Do not charge for extended periods.


	Flashing red	Low battery
	Steady red	Being charged
	Steady white	Fully charged

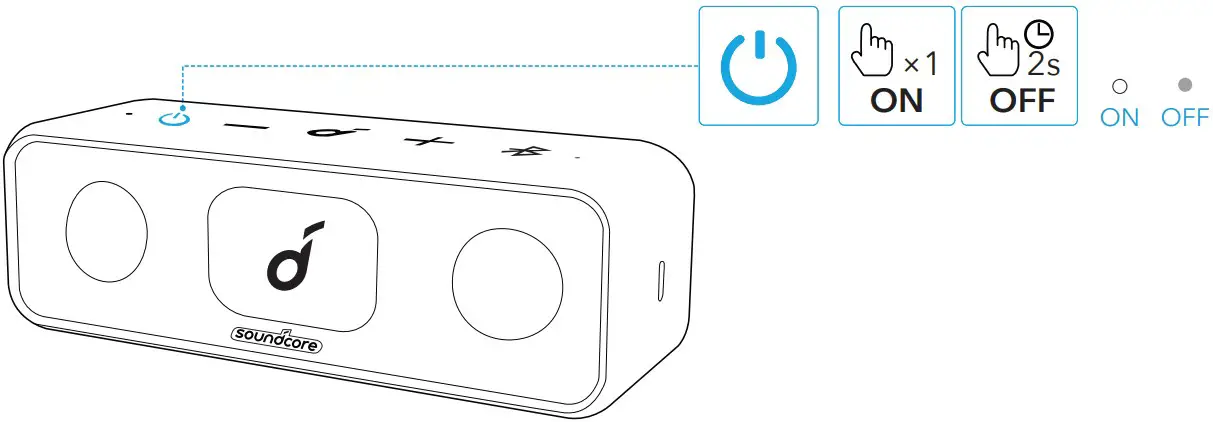

Powering On/Off

Power on		Press
Power off		Press and hold for 2 seconds

• This speaker will power off automatically 30 minutes after no audio input or button inactivity

Using your Sound core 3

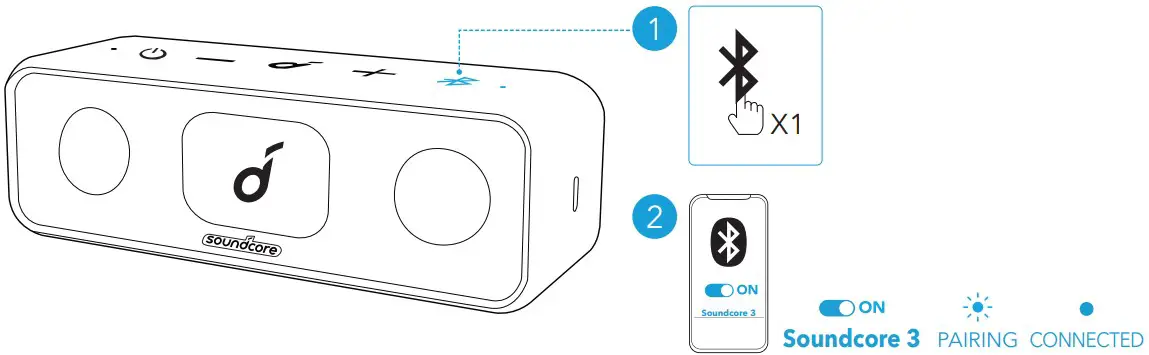

Bluetooth Mode
With this speaker, you can enjoy music through your Bluetooth-enabled devices.

	Press	Enter Bluetooth pairing mode
	Flashing blue	pairing pairing
	Steady blue	Bluetooth Connected

• Dual Bluetooth Connection: This speaker can pair up to 2 mobile devices via Bluetooth. To pair with another device, press the Bluetooth button to re-enter Bluetooth pairing mode.
• This speaker can only play music on one mobile device at a time. To play from another connected device, pause the currently active device first.
• Each time you power on your Soundcore speaker, it will automatically connect to your last connected device if available within the Bluetooth range. If not, press the Bluetooth button to enter Bluetooth pairing mode.

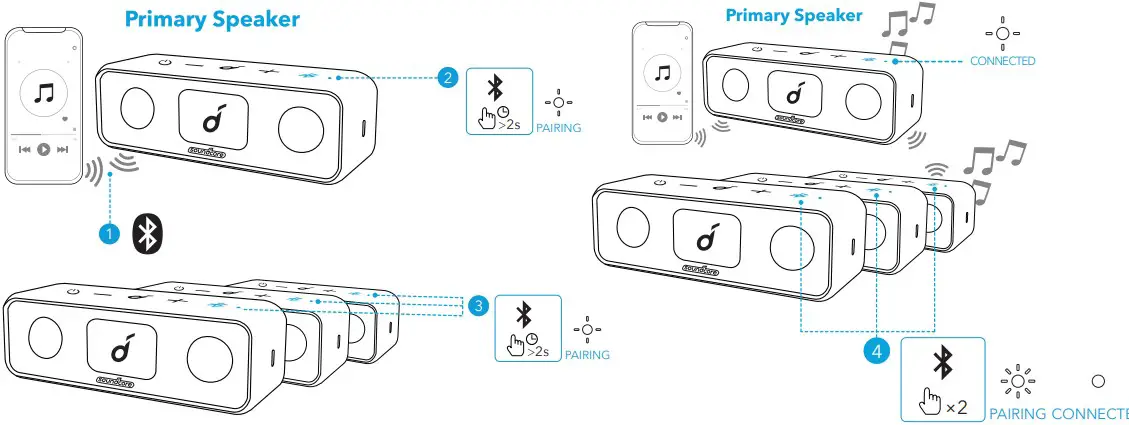

Party Cast Mode

1. Press and hold the Bluetooth button for 2 seconds on the Sound core 3 that’s currently connected to your device as the primary speaker.
2. Repeat Step 1 on the other Sound core 3 you want to connect and then press the Bluetooth button twice to make them secondary speakers in Party Cast pairing.
3. The secondary speakers will automatically connect with the primary speaker.

* Sound core speakers with Party Cast function can be connected with Sound core 3.

	Press and hold for 2 seconds	Enter Party Cast pairing mode
	Flashing white	Party Cast pairing
	Flashing white (Primary speaker)
	Steady white (Secondary speakers)	Party Cast connected

• Any secondary speaker can be switched to become the primary speaker by pressing the Bluetooth button twice and connecting to your smartphone. Any primary speaker can be switched to become the secondary speaker by pressing the Bluetooth button twice and searching for an available primary speaker.
• To exit the Party Cast mode, press and hold the Bluetooth button on any speaker for 2 seconds.

	Press	Play/Pause
	Press twice	Next track
	Press three times	Previous track
	Press or press and hold	Adjust volume
	Press	Answer/End a call
	Press	Answer a second incoming call and put the current call on hold
	Press and hold for 2 seconds	Reject an incoming call

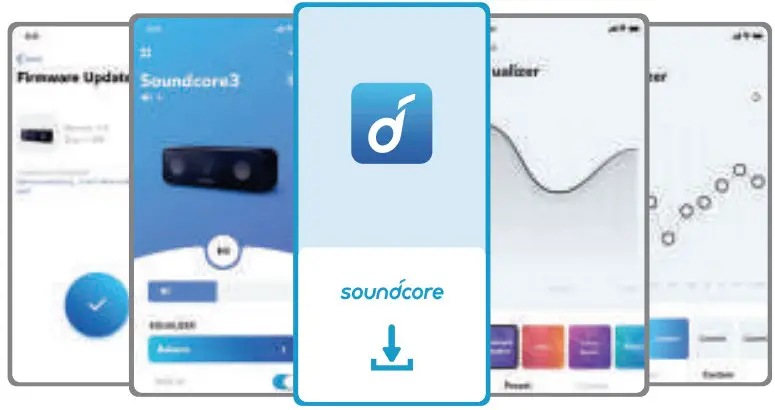

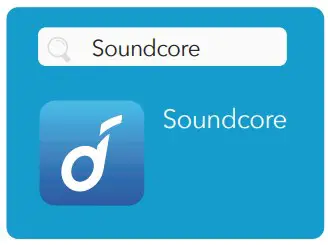

Sound core App

Download the Soundcore App for enhanced product experience.

• Check product information
• Update firmware
• Indicate battery status
• Remotely control the volume and play/pause
• Customize EQ settings
• Set Auto-power off time

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc

Specifications

Specifications are subject to change without notice
