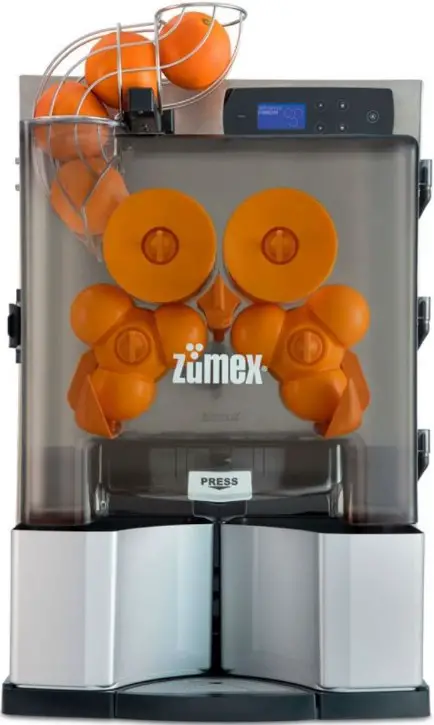

Zumex Essential Pro Citrus Juicer Instruction Manual

Zumex Essential Pro Citrus Juicer Instruction Manual

ASSEMBLY INSTRUCTIONS

CHECK THAT YOU HAVE RECEIVED ALL THE MATERIAL CORRECTLY:

COMPONENTES KIT ELEVACIÓN

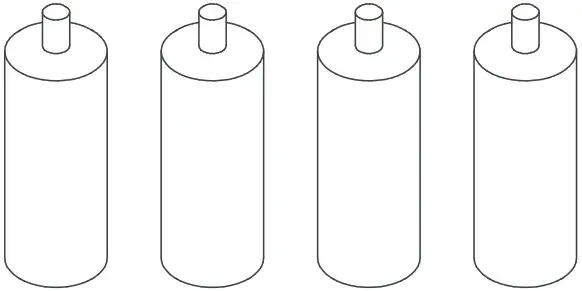

1. LEGS (x4

2. INSTRUCTIONS

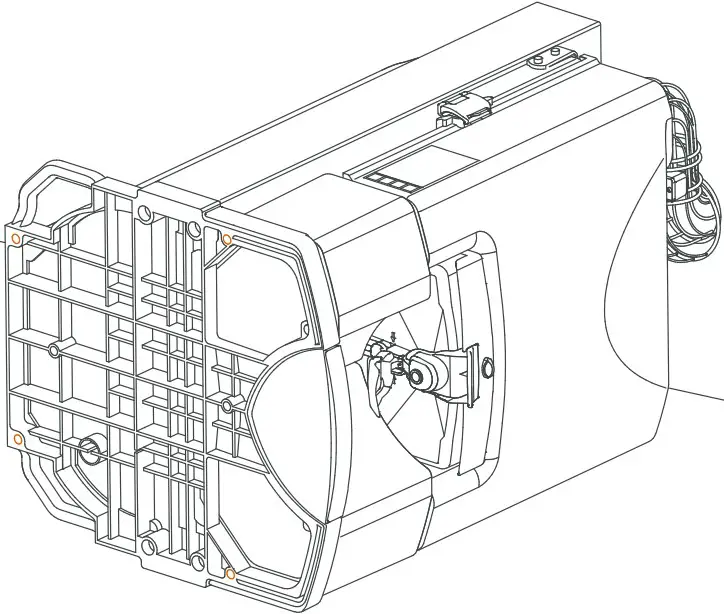

PLACE MACHINE IN ASSEMBLY POSITION

1. Protect this area to prevent damages to the machine.
2. Carefully place the machine on one of its sides, previously protecting this area to prevent damage to the machine. This operation must be carried out between two people, so that the base of the machine is in view, facilitating the work process.


FIT THE ELEVATION KIT
There are four holes on the base of the machine marked in where the legs go. The legs are supplied with some screw-in studs that are already fitted into the ends of the legs. We must fully insert them into the holes (A) on the base and then screw the legs in as far as they will go.

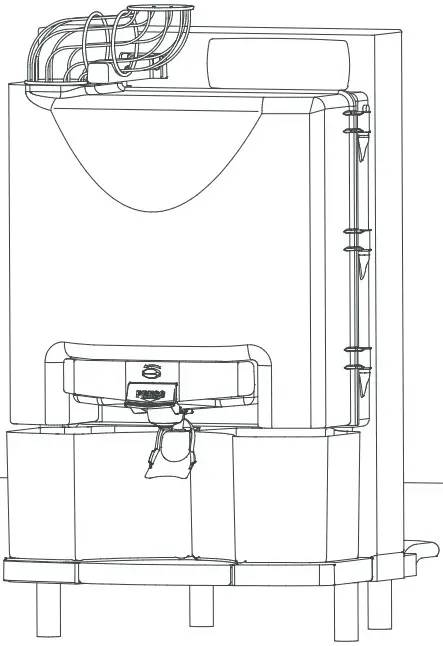

PUT THE MACHINE BACK INTO ITS WORKING POSITION
Carefully stand the machine back up again leaving it in its working position.
NOTE: Once this operation has been carried out with all four legs, these can be mounted and removed when required without the screw-in studs coming out of their housing
