Drawing and description

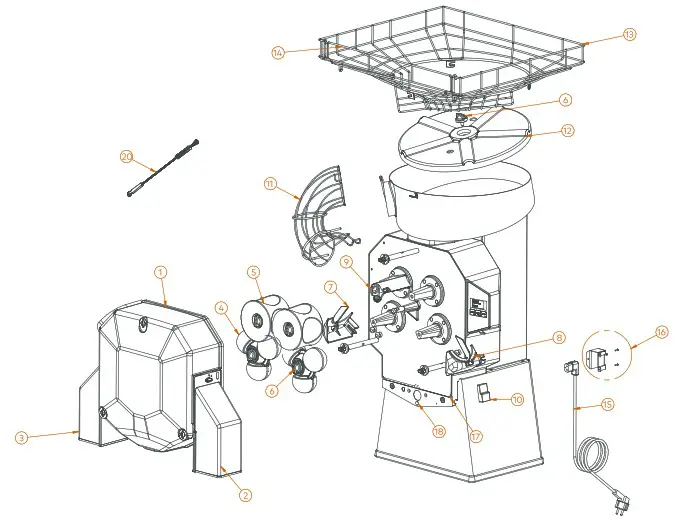

Speed Pro Self Service Podium Automatic Citrus Juicer
Speed Pro. Speed Up
Fig. 1

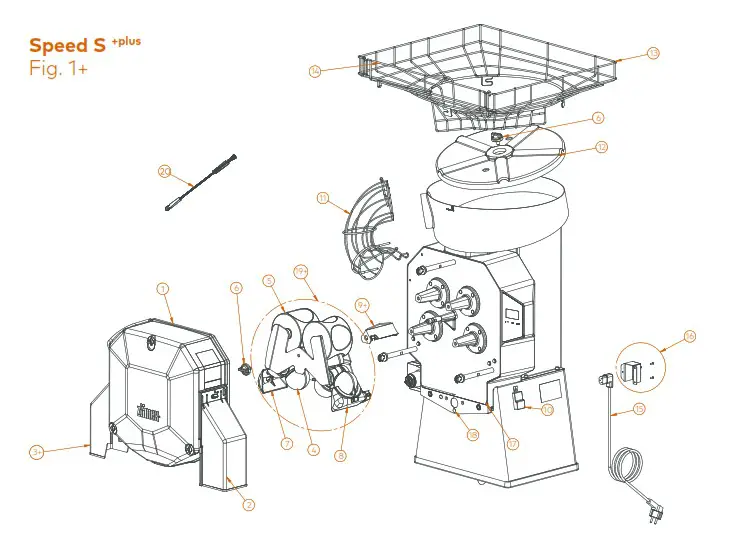

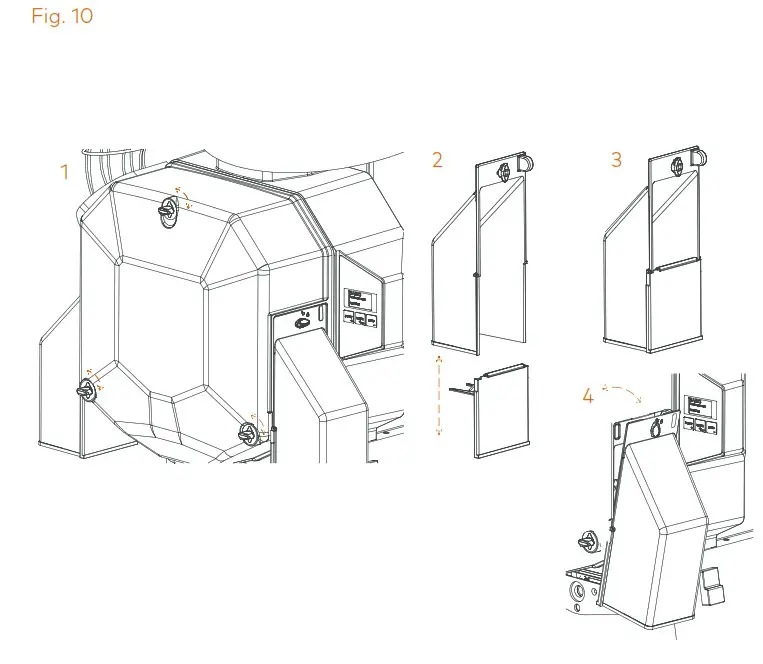

| 1 | SPEED PRO COVER |
| 2 | RIGHT COVER SIDE OUTLET |
| 3 | LEFT COVER SIDE OUTLET |
| 4 | LOWER PRESSING UNIT |
| 5 | UPPER PRESSING UNIT |
| 6 | PLASTIC SECURING KNOB |
| 7 | LEFT PEEL EJECTOR |
| 8 | RIGHT PEEL EJECTOR |
| 9 | BLADE HOLDER |
| 10 | BUTTON RUBBER PROTECTION |
| 11 | FEEDER ELBOW D85 WITH LOCKING SYSTEM |
| 12 | FEEDER PLATE |
| 13 | FEEDER BASKET |
| 14 | FEEDER BASKET DOOR |
| 15 | POWER CABLE |
| 16 | CABLE PROTECTOR |
| 17 | SS/TANK TRAY GASKET |
| 18 | CONTAINER BOLT |
| 20 | BRUSH |
| 3+ | LEFT COVER SIDE OUTLET |
| 9+ | BLADE HOLDER |
| 19+ | 1STEP KIT |
SS: Self Service / Self Service All-in-One. Tank: Tank All-in-One. Cooler: Cooler Podium.

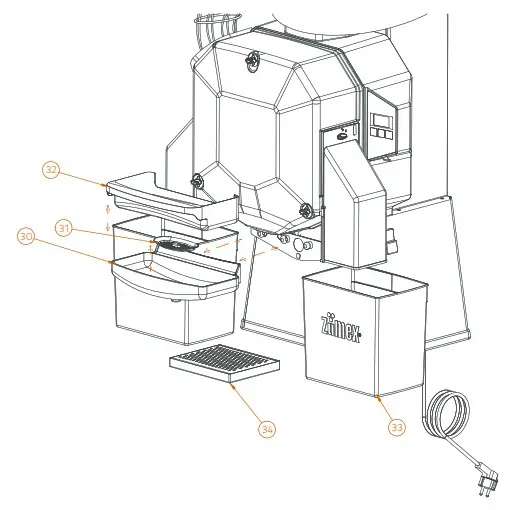

Speed Pro Basic
Fig. 2

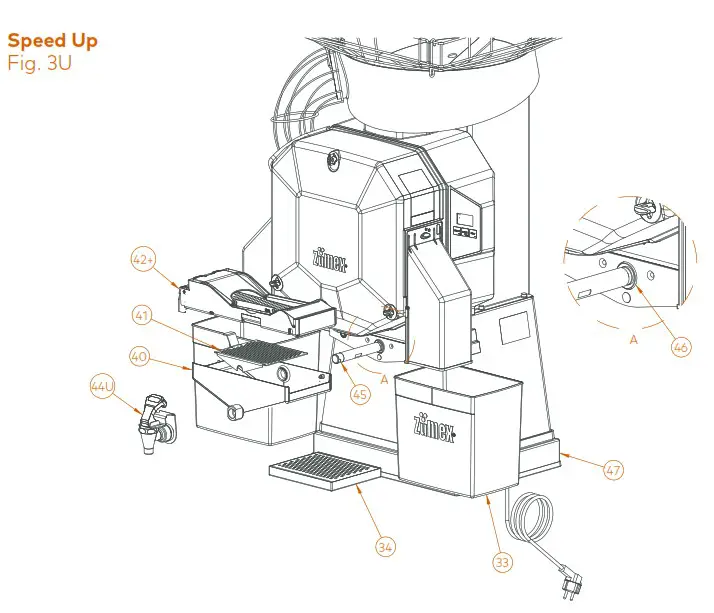

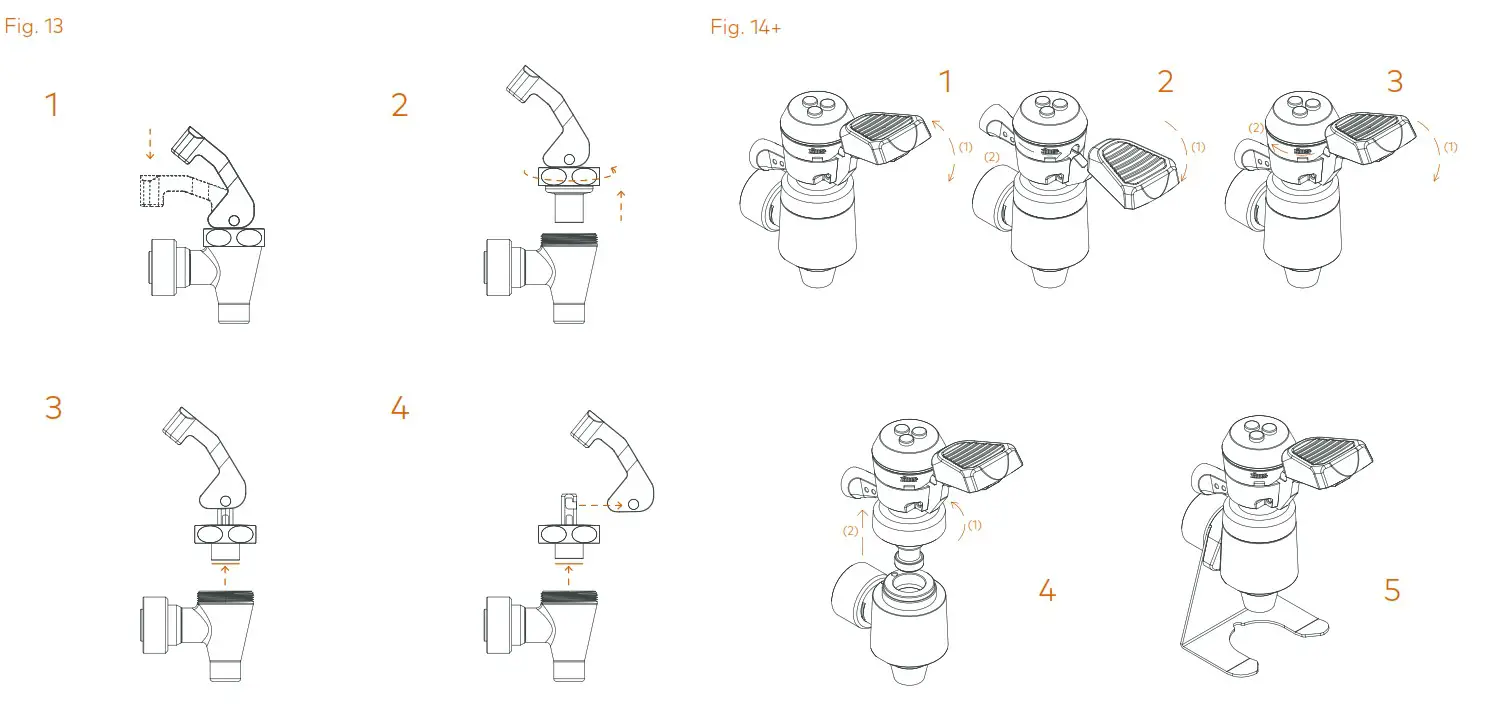

| 30 | PLASTIC JUICE CONTAINER |
| 31 | PLASTIC INNER FILTER |
| 32 | PLASTIC JUICE FILTER |
| 33 | PEEL BUCKET |
| 34 | DRIP TRAY |
| 33 | PEEL BUCKET |
| 34 | DRIP TRAY |
| 40 | SS JUICE CONTAINER |
| 41 | SS SUB-FILTER |
| 42+ | AUTOMATIC PULPOUT SYSTEM |
| 44U | SS UP TAP |
| 45 | TAP DETECTOR TUBE |
| 46 | DETECTOR TUBE GASKET |
| 47 | MACHINE SUPPLEMENT |
| 42+ | AUTOMATIC PULPOUT SYSTEM |
| 44+ | SS S +PLUS TAP |

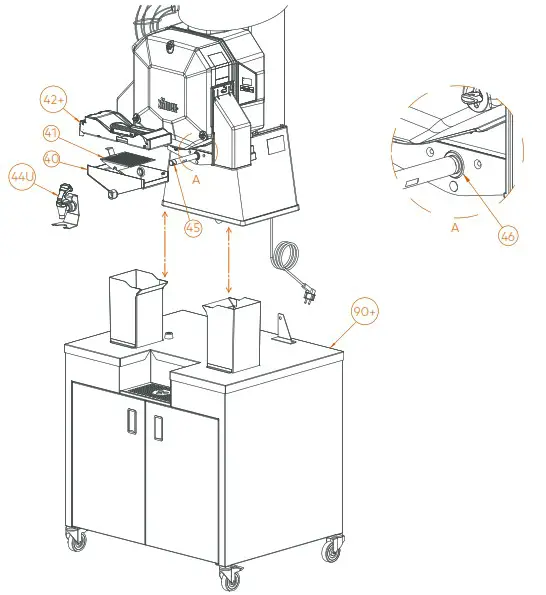

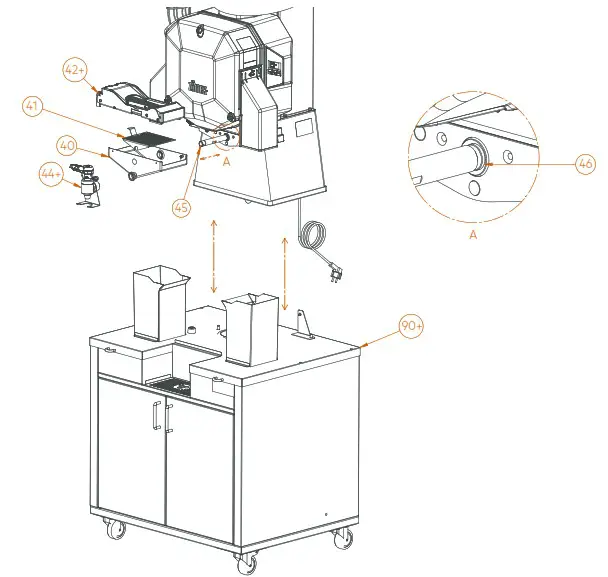

Speed Up All-in-One
Fig. 4U
| 40 | SS JUICE CONTAINER |
| 41 | SS SUB-FILTER |
| 42+ | AUTOMATIC PULPOUT SYSTEM |
| 44U | SS UP TAP |
| 45 | TAP DETECTOR TUBE |
| 46 | DETECTOR TUBE GASKET |
| 90+ | UP PODIUM |
Speed S+plus All-in-One
Fig. 4+
| 42+ | AUTOMATIC PULPOUT SYSTEM |
| 44+ | SS S +PLUS TAP |
| 90+ | SS PODIUM S +PLUS |

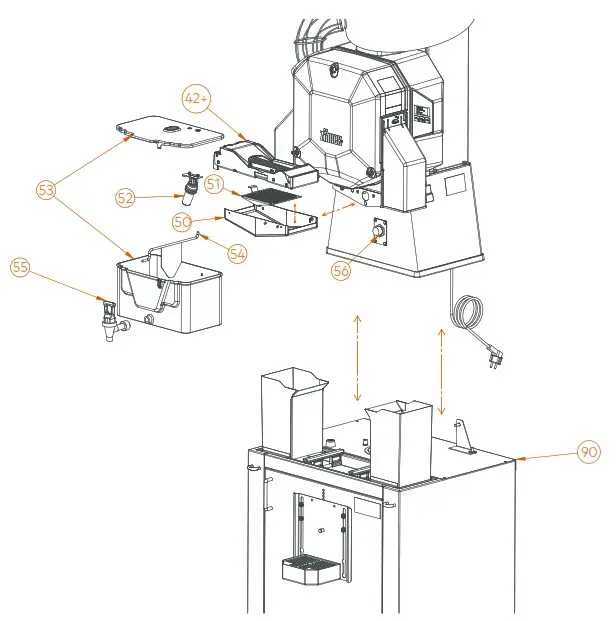

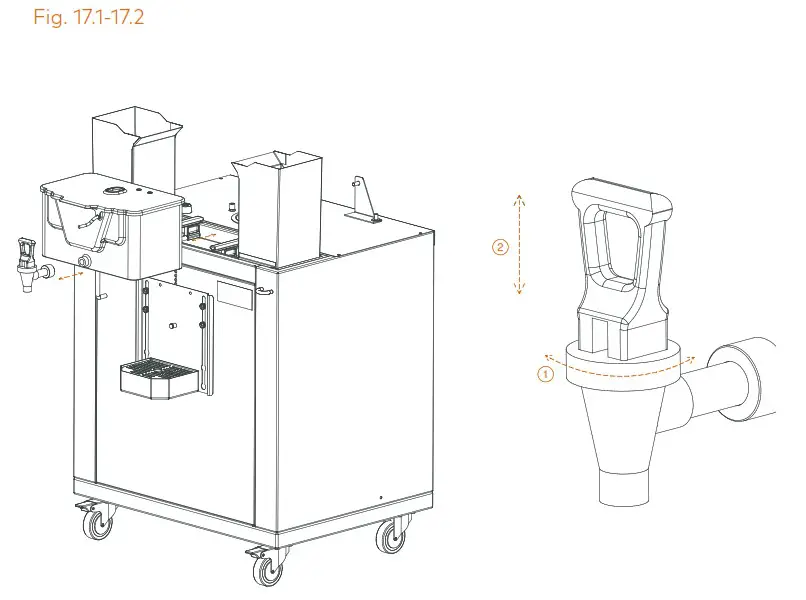

Speed S +plusTank All-in-One
Fig. 5+
| 42+ | AUTOMATIC PULPOUT SYSTEM |
| 50 | TANK JUICE CONTAINER |
| 51 | TANK SUB-FILTER |
| 52 | TANK/COOLER BUOY |
| 53 | TANK |
| 54 | SHAKER |
| 55 | TANK TAP |
| 56 | LEVEL DETECTOR |
| 90 | SS/TANK PODIUM |

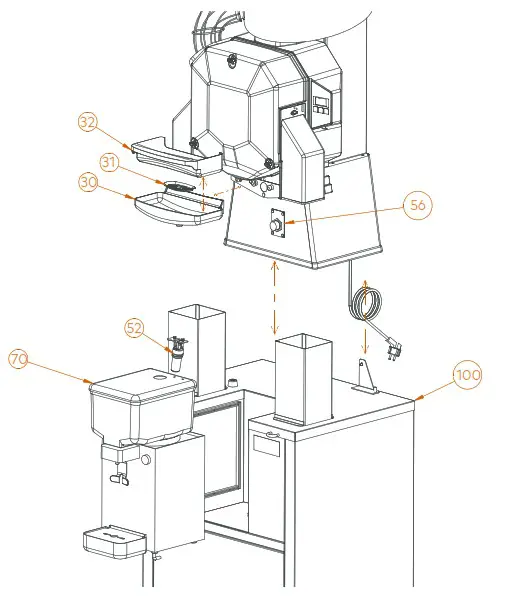

Speed Pro Cooler Podium
Fig. 6
| 30 | PLASTIC JUICE CONTAINER |
| 31 | PLASTIC INNER FILTER |
| 32 | PLASTIC JUICE FILTER |
| 52 | TANK / COOLER BUOY |
| 56 | LEVEL DETECTOR |
| 70 | COOLER UNIT |
| 100 | COOLER PODIUM |

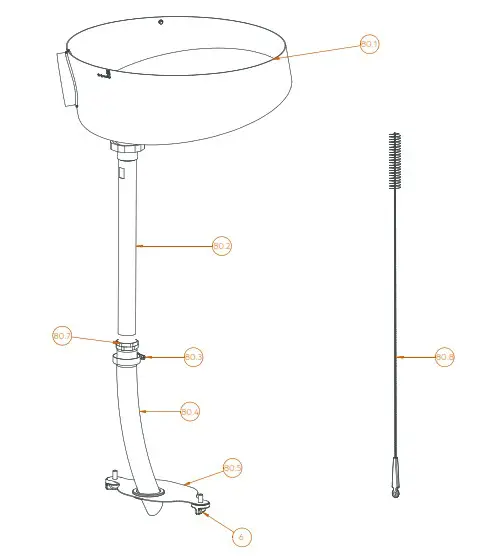

Drain&Clean
Fig. 7.1
| 80.1 | FEEDER WITH DRAIN |
| 80.2 | SS MAIN TUBE |
| 80.3 | METAL CLAMP |
| 80.4 | HOSE |
| 80.5 | INNER STAND COVER |
| 6 | PLASTIC SECURING KNOB |
| 80.7 | TUBE NUT |
| 80.8 | BRUSH |

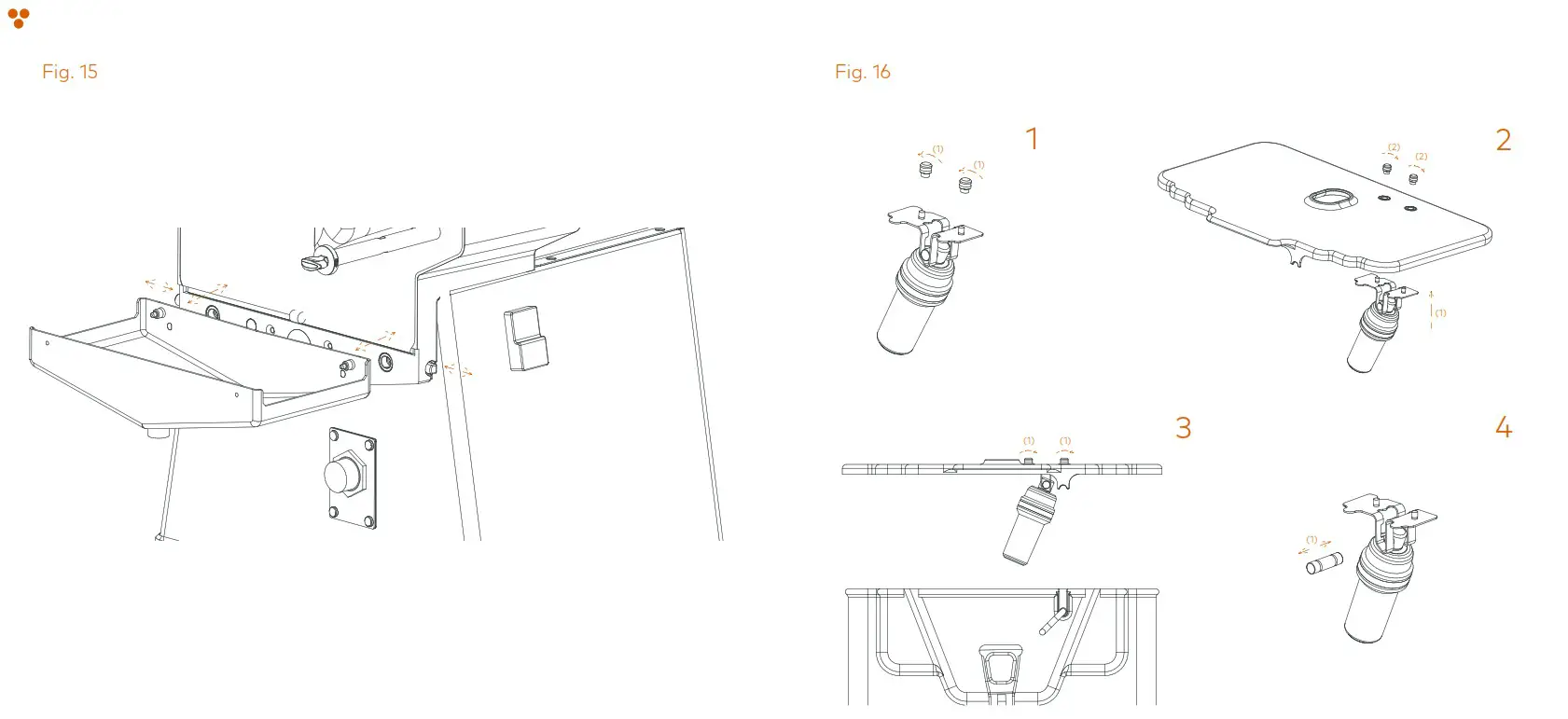

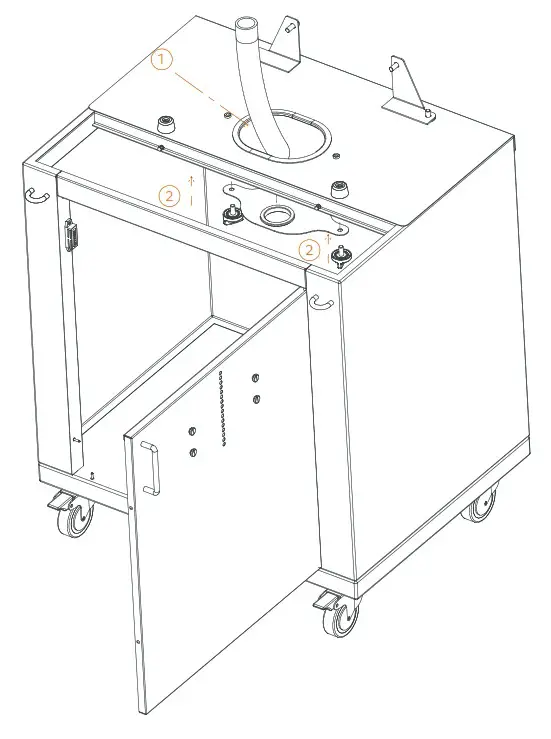

Drain&Clean
Fig. 7.2

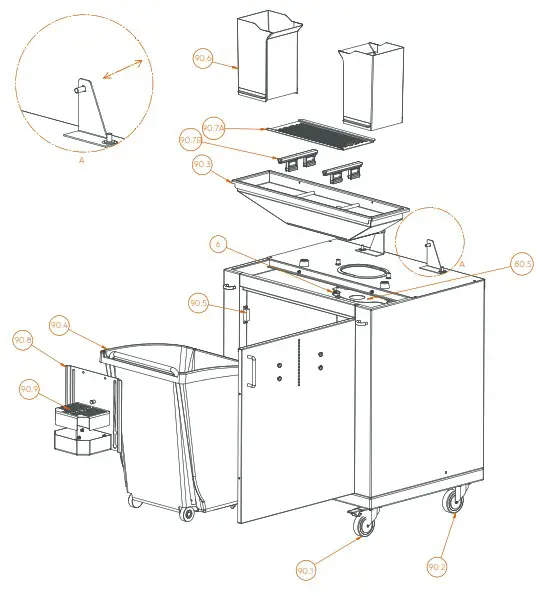

Podium (Speed S +plus Tank All-in-One)
Fig. 8
| 6 | PLASTIC SECURING KNOB |
| 80.5 | SS/TANK STAND COVER |
| 90.1 | SWIVEL WHEEL WITH BRAKE |
| 90.2 | SWIVEL WHEEL WITHOUT BRAKE |
| 90.3 | STAND HOPPER |
| 90.4 | WASTE BIN |
| 90.5 | DOOR LOCK MAGNET |
| 90.6 | PEEL OUTLET |
| 90.7 A | SS STAND FILTER |
| 90.7 B | TANK GUIDES |
| 90.8 | TRAY FRONT |
| 90.9 | TRAY FILTER |

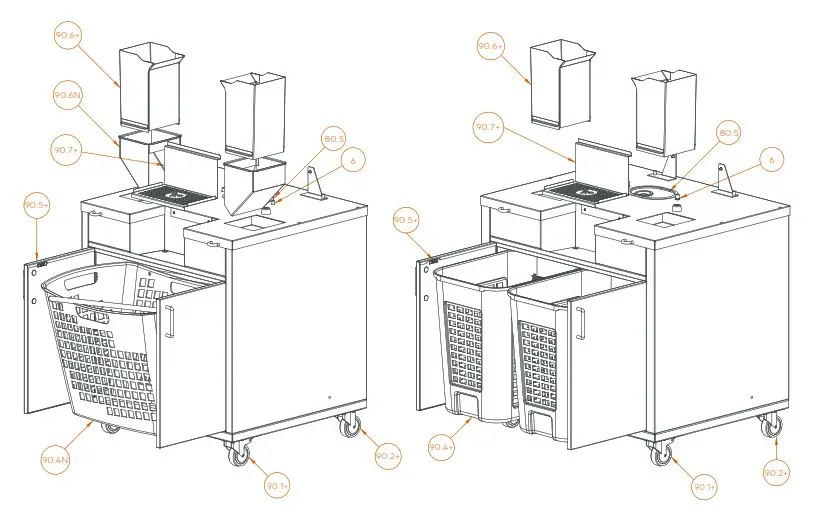

Podium Mirror (Narrow / Wide)
Fig. 8.1

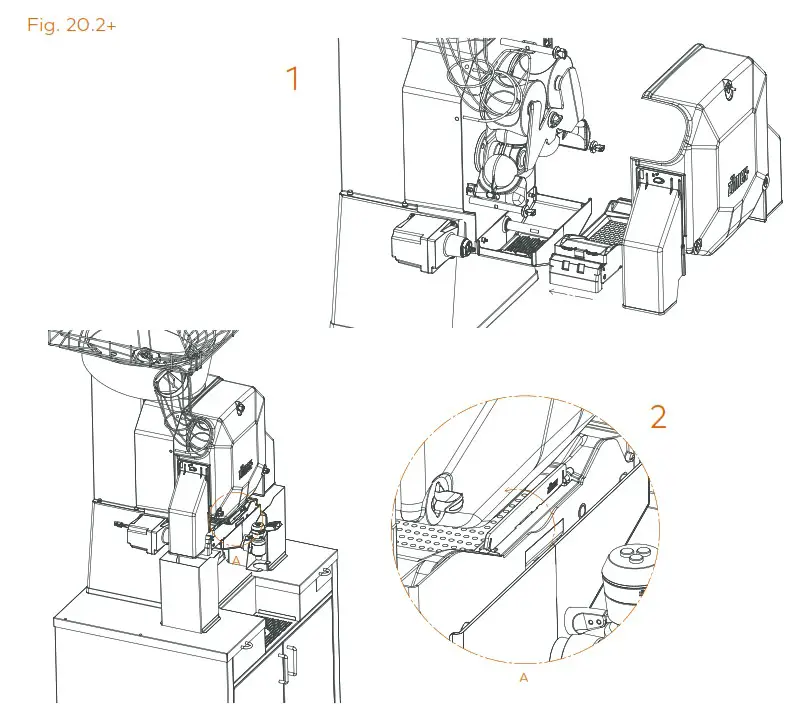

| 6 | PLASTIC SECURING KNOB |
| 80.5 | SS/TANK STAND COVER |
| 90.1+ | SWIVEL WHEEL WITH BRAKE |
| 90.2+ | SWIVEL WHEEL WITHOUT BRAKE |
| 90.4+ | WASTE BIN |
| 90.4N | WASTE BIN |
| 90.5+ | DOOR LOCK MAGNET |
| 90.6+ | PEEL OUTLET |
| 90.6N | PEEL OUTLET |
| 90.7+ | TWO-POSITION TRAY |

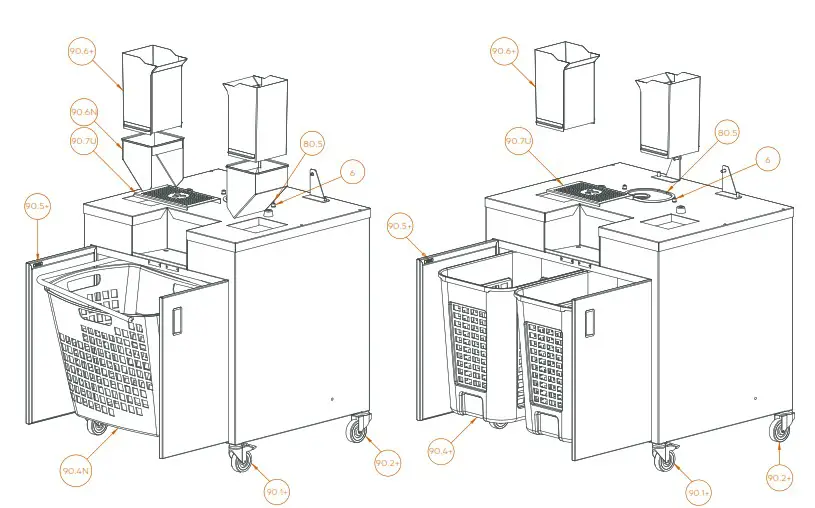

Podium Black (Narrow / Wide)
Fig. 8.2

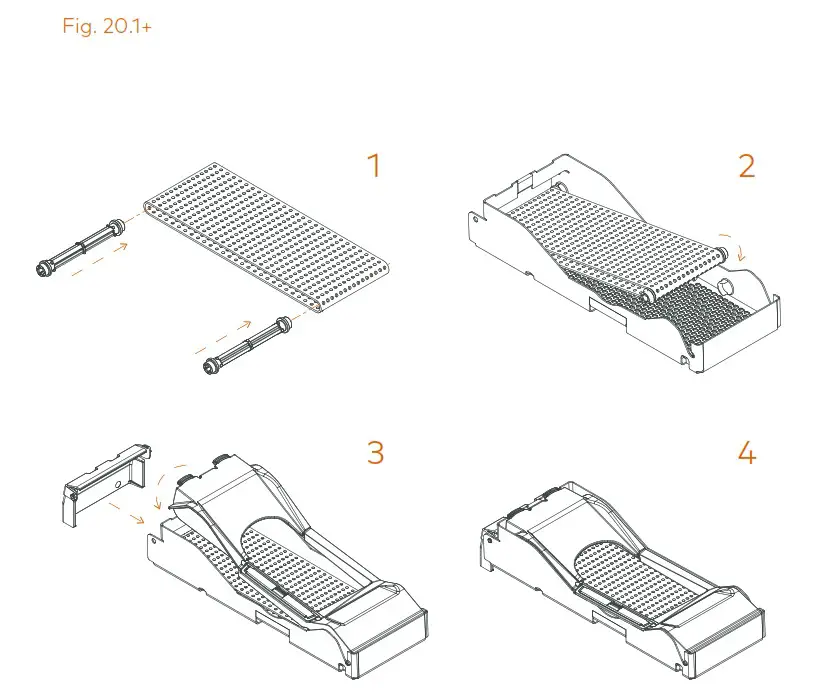

| 6 | PLASTIC SECURING KNOB |
| 80.5 | SS/TANK STAND COVER |
| 90.1+ | SWIVEL WHEEL WITH BRAKE |
| 90.2+ | SWIVEL WHEEL WITHOUT BRAKE |
| 90.4+ | WASTE BIN |
| 90.4N | WASTE BIN |
| 90.5+ | DOOR LOCK MAGNET |
| 90.6+ | PEEL OUTLET |
| 90.6N | PEEL OUTLET |
| 90.7U | TRAY FILTER |

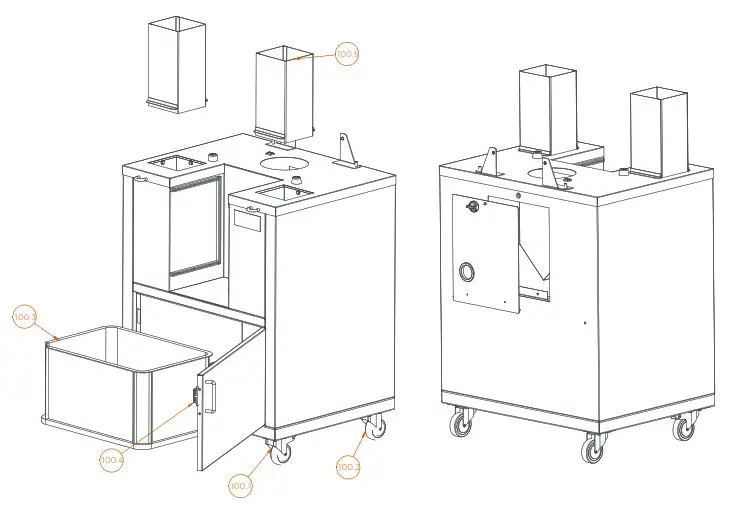

Podium (Speed Pro Cooler)
Fig. 9.1-9.2
| 100.1 | SWIVEL WHEEL WITH BRAKE |
| 100.2 | SWIVEL WHEEL WITHOUT BRAKE |
| 100.3 | PEEL BUCKET |
| 100.4 | DOOR LOCK MAGNET |
| 100.5 | PEEL CHUTE |

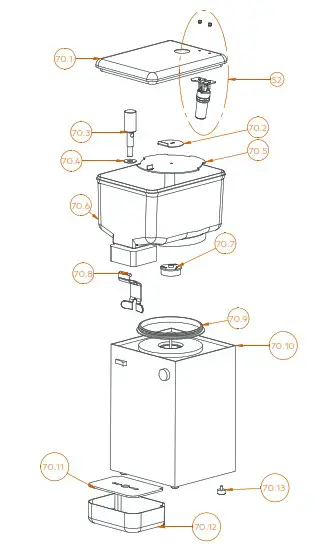

Fig. 18
| 52 | TANK / COOLER BUOY |
| 70.1 | TANK COVER |
| 70.2 | COUPLER PLATE |
| 70.3 | TAP PISTON |
| 70.4 | TAP GASKET |
| 70.5 | PUMP COVER |
| 70.6 | TANK |
| 70.7 | PUMP TURBINE |
| 70.8 | TAP CONTROL LEVER |
| 70.9 | TANK GASKET |
| 70.1 | COOLER UNIT |
| 70.11 | TRAY GRATING |
| 70.12 | DRIP TRAY H |
| 70.13 | LEVELLING FOOT |

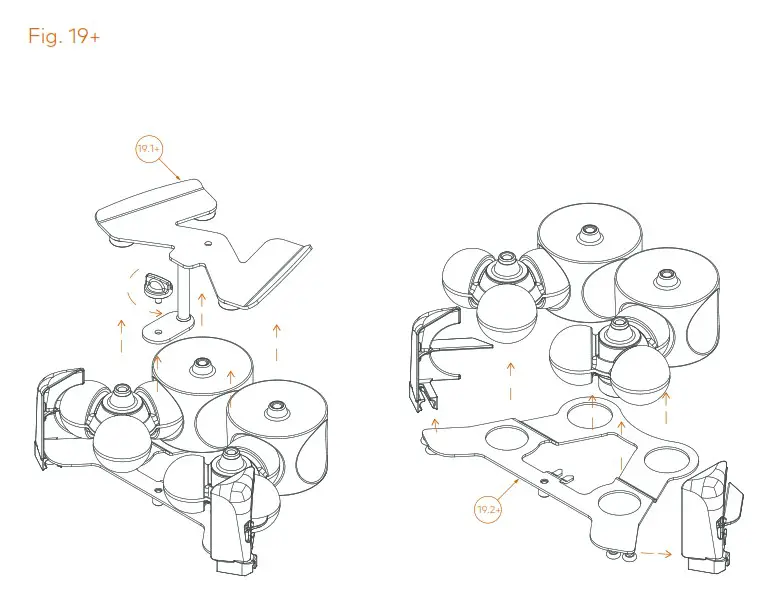

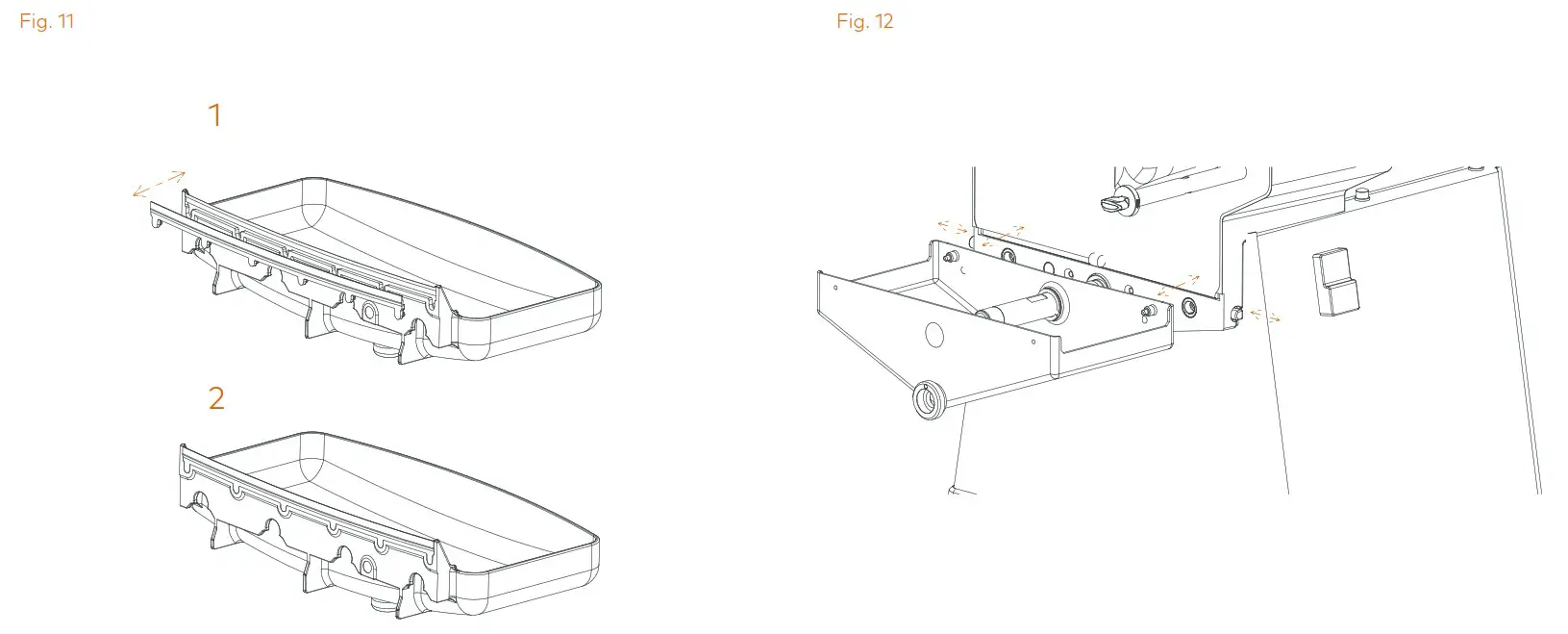

| 19.1+ | FRONT HOLDER |
| 19.2+ | REAR HOLDER |
