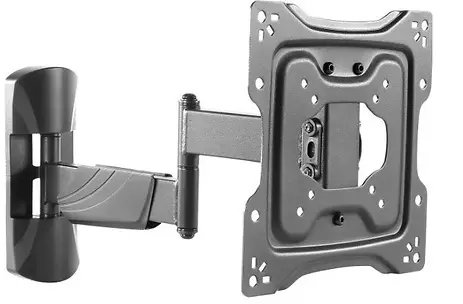

blue built BBRWM3243 Monitor TV Steun

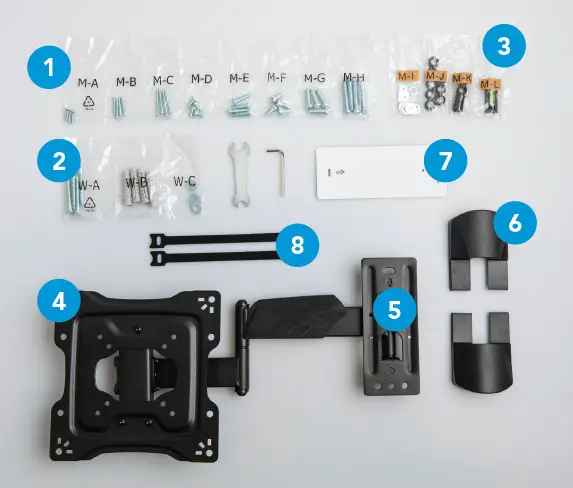

In the box
- Bag of screws
- screws and plugs for the wall,
- bag of screws, washers,spacers for the TV, and spirit level,
- TV frame,
- wall mount,
- cover caps,
- a template,
- velcro for your cables.

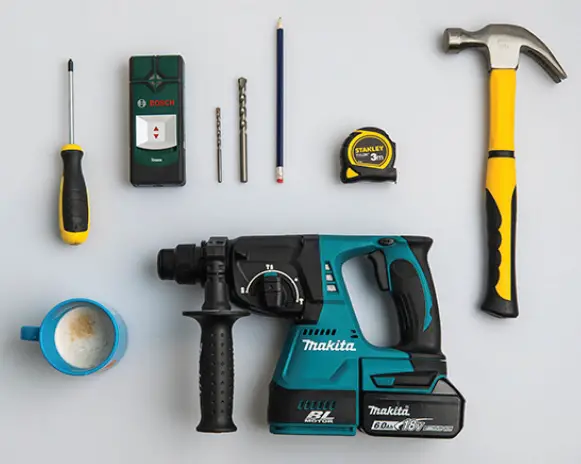

Your own tools
Cross-head screwdriver, pipe locator, 5 mm drill, 8 mm drill, pencil, tape measure, hammer, impact or concrete drill and a cup of coffee.
CHECKLIST
Suitable surface area:
- Solid brick
- Solid concrete
Prior to drilling:
Use the pipe locator to check if there aren’t any pipes or cables behind the wall.
Do you have a question?
Coolblue.nl/en/customer-service

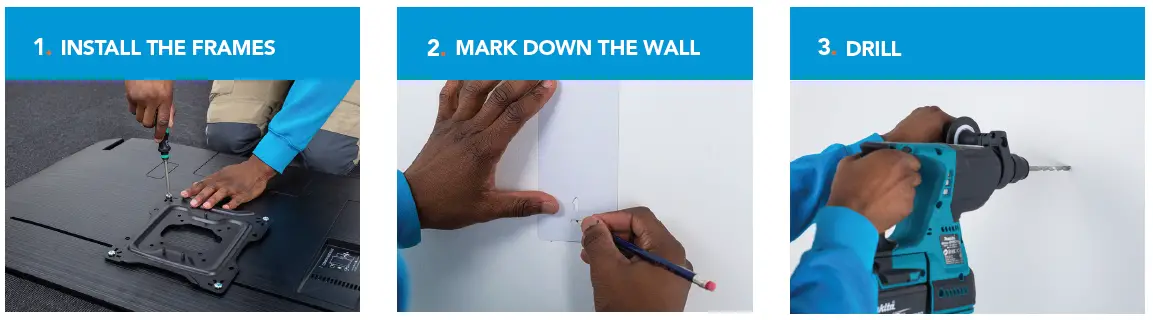

- INSTALL THE FRAMES
Detach the TV frame from the arm with the wrench. Place the TV frames 4 on your TV as pictured. Look in bags M-A through M-H 1 for the screw that fits your TV. You only need 1 set of screws. “Attach the frame to the TV with screws. Place washer (M-I) 3 or spacer (M-J or M-K) 3 in between.
- MARK DOWN THE WALL
Draw an X on the wall where the middle of the TV should align.
Place the template 7 on the wall and draw the drill holes using the spirit level (M-L) 3 . - DRILL
Drill with precision by first using the 5mm drill, and then the 8mm drill. Drill as deep as the screws (W-A) 2 are in length. Hammer the plugs (W-B) 2 into the drill holes.

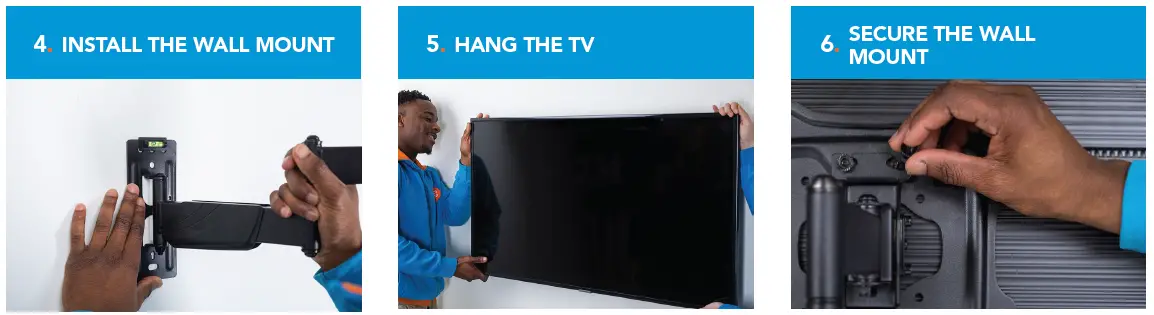

- INSTALL THE WALL MOUNT
Drill the wall mount onto the wall. Use the spirit level for accuracy. Place the cover caps 6 on the wall mount. - HANG THE TV
Lift the TV with 2 people and hook the TV frame onto the arm of the mount. - SECURE THE WALL MOUNT
Tighten the television with the small black screws, that you loosened in step 1.
Tilt the mount to the desired angle and secure it in place with a hex key.
Coolblue isn’t liable for any damage, accidents, or arguments with boy/girlfriends as a result of incorrect installation. Not sure if you can do this on your own? Ask a skilled installation expert for advice.
Coolblue - anything for a smile
