Toolour 2PC-6B LED 5X Magnifying Glass Light Desk Lamp User Manual
Safety Instructions
- Power applied on this appliance must match with the rated voltage.
- Desktop for installing magnifying lamp should be placed and secured firmlyon flat ground in case of falling of magnifying lamp.
- Do not place the magnifying glass in direct sunlight. Reflection of direct sunlight by the glass could cause a fire.
- Children are not allowed to operate this appliance unless sufficient super vision is provided.
- Never use detergent, gasoline, furniture polish, paint thinner, or other chemicals to clean any part of the magnifying glass, as it will damage the lens.
Package Contents

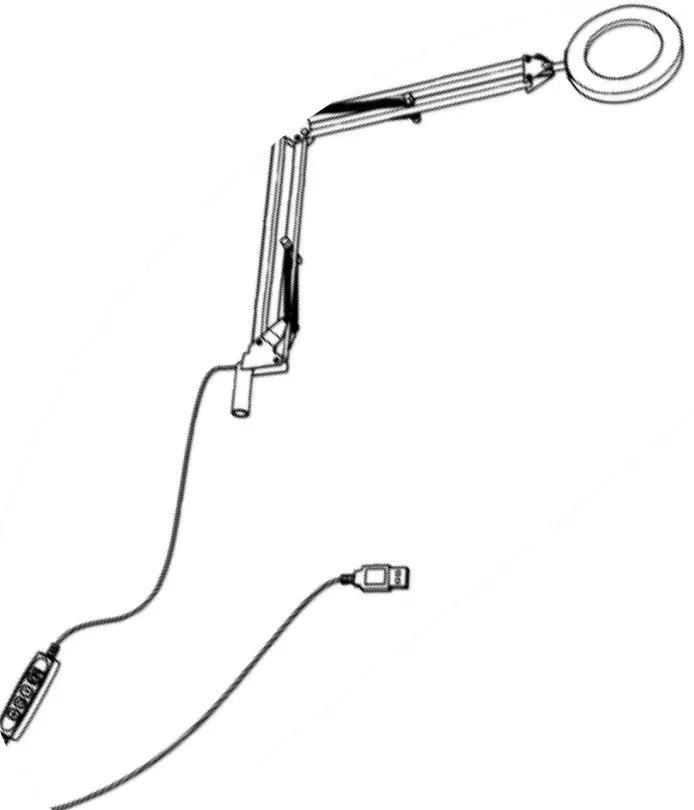

- Magnifying lamp x 1

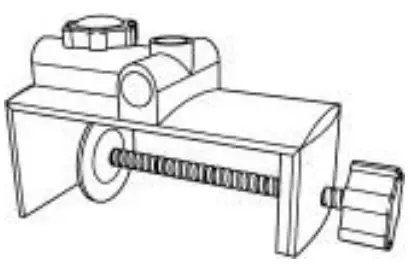

- Mounting Clamp x1

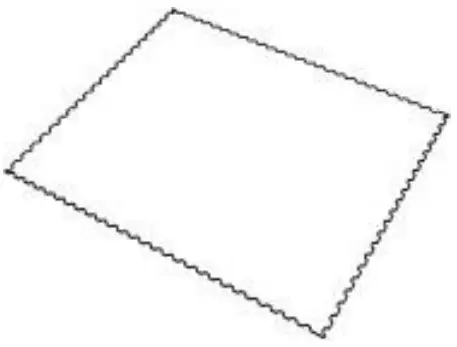

- Cloth x1
Specifications
| Overall Dimensions (L x W x H) | 27 15/16” x 6 5/16” x11/8” (71 x 16 x 2.9cm) |
| Voltage | 100 to 240V |
| Power | 12 W |
| Luminous Flux | 800 to 1200lm |
| Color Temperature | 3,000 to 6,500k |
| Working Hours | 25,000 hours |
| Net Weight | 2.3 Lbs (1.05kg) |
Assembly Instructions

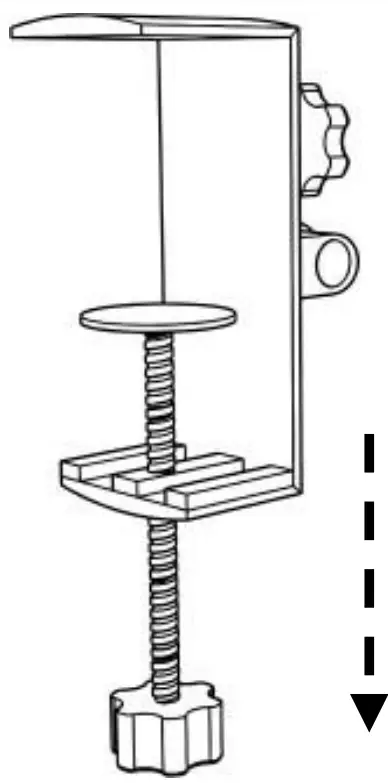

- Loosen Mounting Clamp

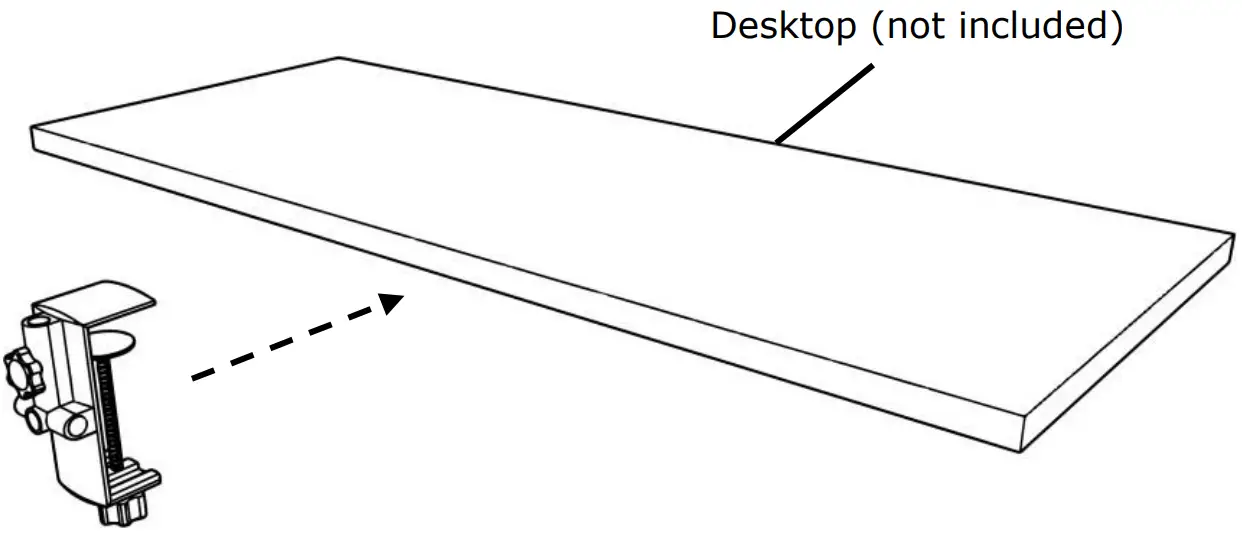

Rotate the knob of mounting clamp anticlockwise to loosen mounting clamp to leave enough space to connect desk. - Fix Mounting Clamp to Desktop
Fix mounting clamp to your desktop and rotate the knob of clamp clockwise until it is secured firmly to the desktop.

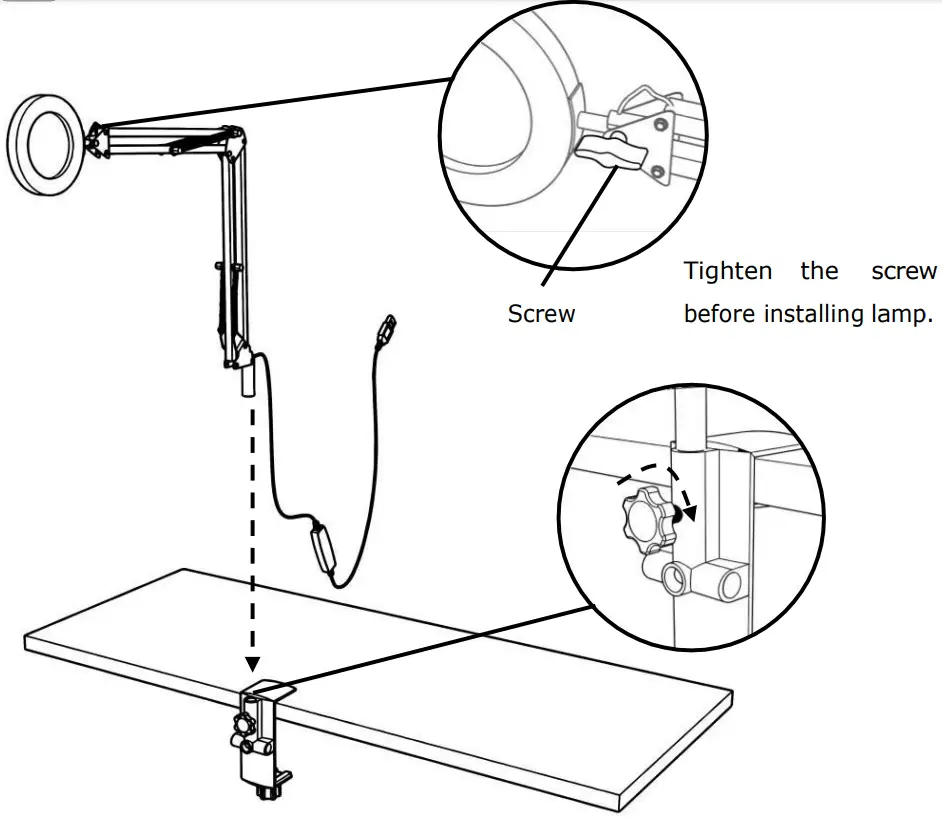

Please ensure that the desktop for installing magnifying lamp is placed and secured firmly on flat ground in case of falling of magnifying lamp. - Install lamp onto Mounting Clamp
Insert the magnifying lamp into the mounting clamp hole fully.

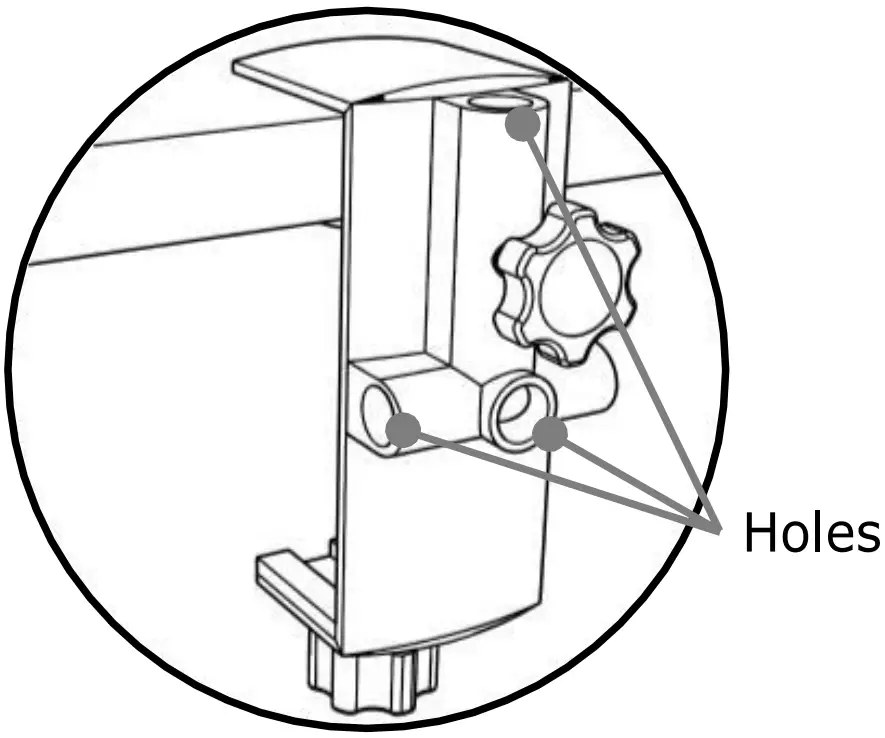

Note:
You are enabled to utilize either clamp hole to connect magnifying lamp as needed.

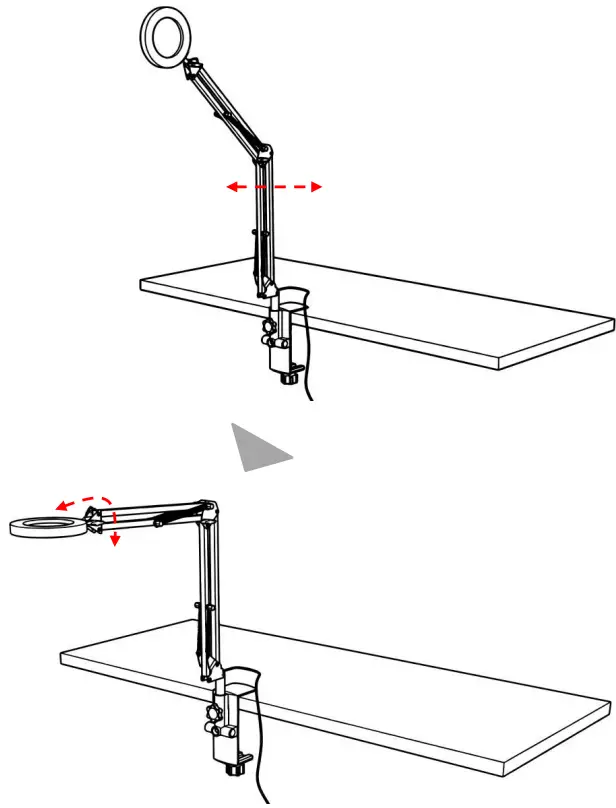

- Adjust Mounting Clamp

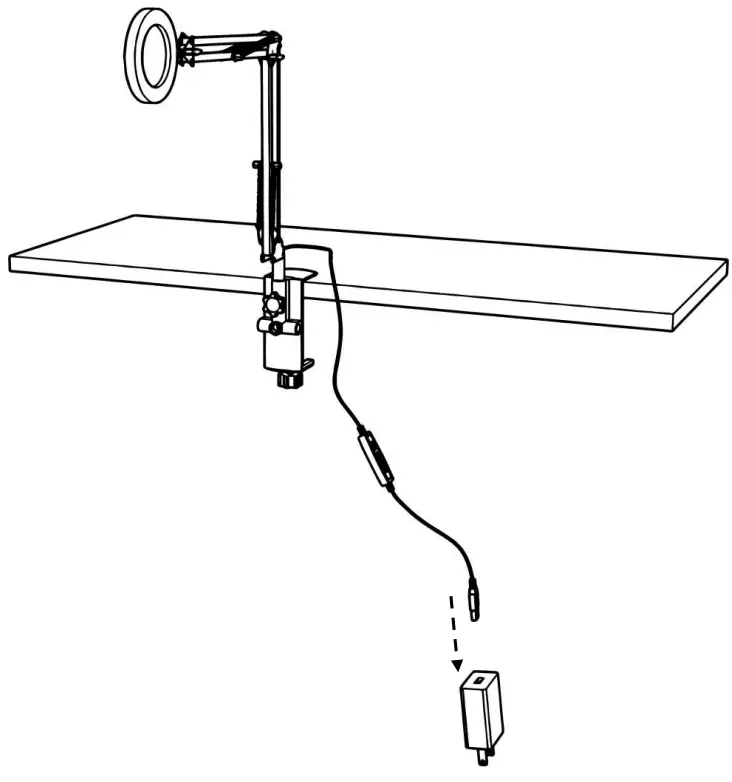

Move the lamp neck forwards and backwards to adjust the position. Rotate the lamp head to adjust the lighting angle of lamp. - Connect Lamp to Adaptor
Operation Instructions

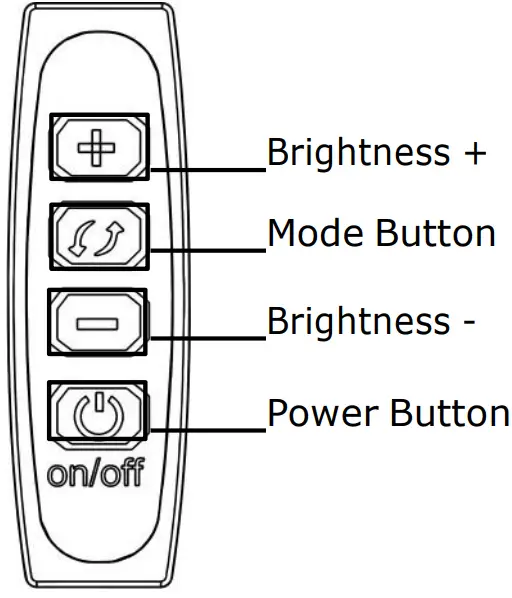

About Controller
Power Button: Press to turn on or off the light. Brightness+/-:Press to adjust the brightness among 10 degrees.
Mode Button: Press to shift among 3 modes (warm white, natural white and cool white).

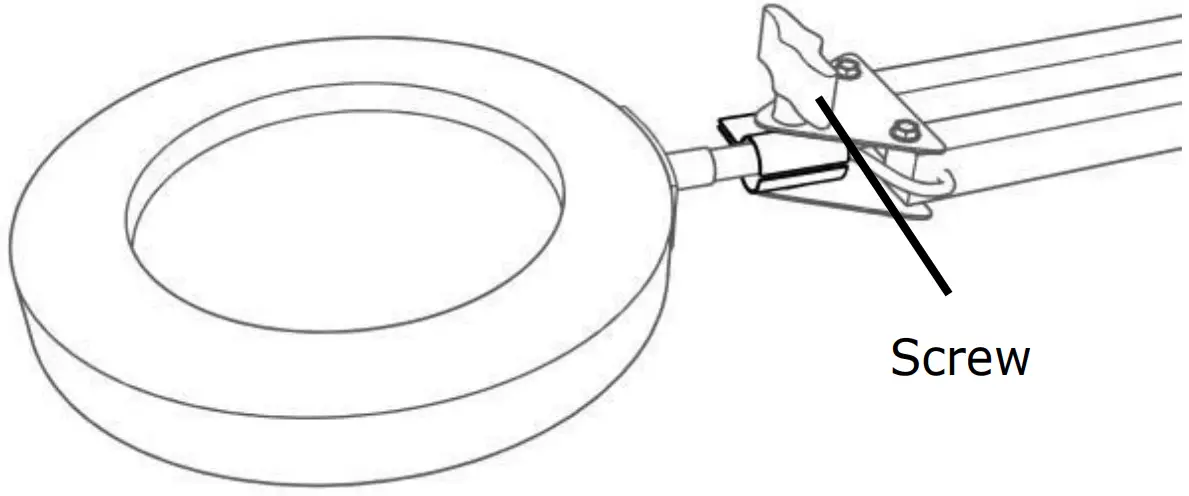

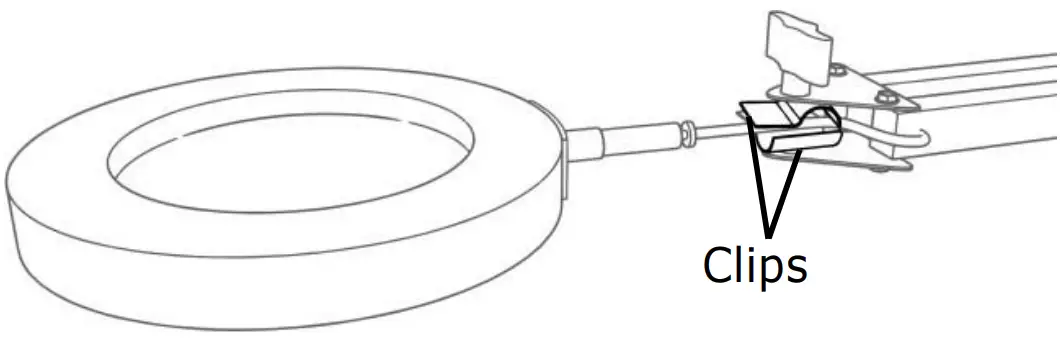

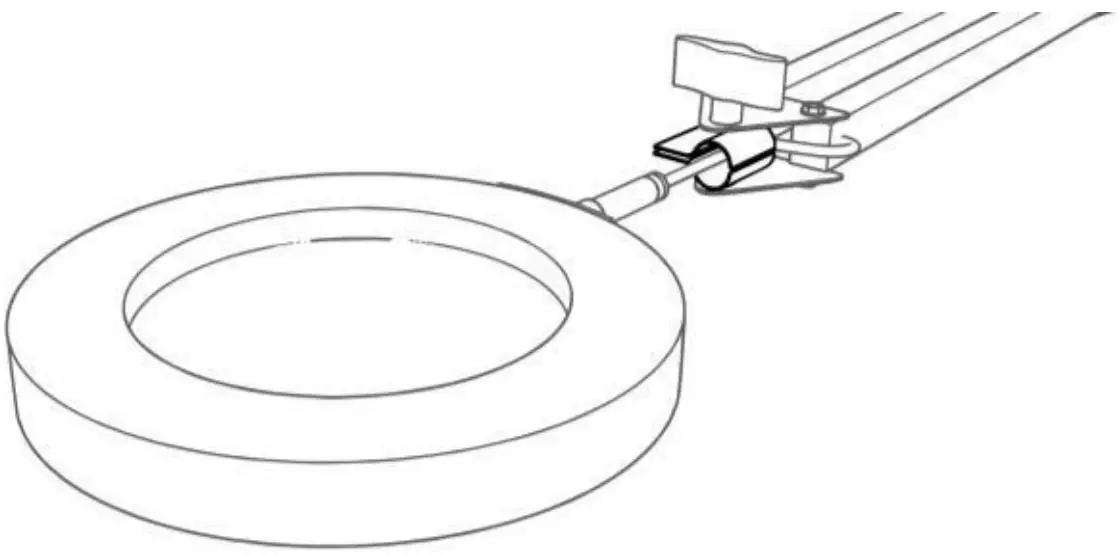

About Inserting Lamp head to Neck
Note: It is possible that the lamp head loosens out from the neck, please refer to the following steps to install it back to the lamp neck.
- Adjust the position of clips on the neck and insert the cord of lamp head into clips.
- Align the clips to the same position.
- Tighten the screw to secure the lamp head.
