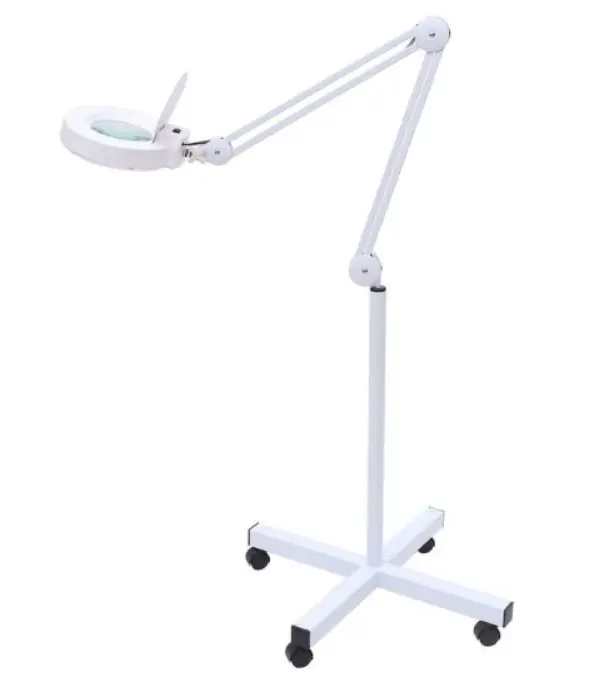

anslut 019927 10W Work Lamp with Magnification LED
SAFETY INSTRUCTIONS
- Only intended for indoor use.
- Never attempt to dismantle or repair the product yourself. Any repairs must be carried out by an authorised electrician.
- Pull out the plug before cleaning and maintenance.
- A damaged power cord must be replaced by an authorised service centre, or a qualified person, to ensure safe use.
- Do not connect the product to the mains while it is still in the pack.
- Do not look directly into the light when it is switched on. Never point the beam at the eyes of people or animals.
- The light source is not replaceable. Discard the product if the light source stops working.
SYMBOLS
TECHNICAL DATA
- Rated voltage: 230 V ~ 50 Hz
- Output: 10W
- Luminous flux: 730 Im
- Life span: 25 000 h
- Diffusion angle: 720°
- Cord length: 7.5 m
DESCRIPTION
Work lamp with magnification adjustable both horizontally and vertically. Fastens to workbench/table and provides a reflection-free light.
Use
- Place the product in the required place.
- Plug the plug into a power point.
- Turn the light on with the switch.
MAINTENANCE
Wipe the product with a dry, soft cloth when necessary.
PRODUCT INFORMATION SHEET
| Supplier’sname or trademark: | Anslut | |||
| Supplier’s address (‘): | Jula AB, Julagatan2, SE-53237 Skara | |||
| Number of hot zones and/or surfaces: | ||||
| Type of light source: | ||||
| Lighting technology used: | LED | Non-directional or directional: | DLS | |
| Light source connected to mains supply or light source not connected to mains supply: | MLS | Connected light source (CLS): | no | |
| Light source with optional colour: | no | Envelope: | no | |
| High luminance light source: | yes | |||
| Anti-glare shield: | yes | Can be used withdimmer: | no | |
| Product parameters | ||||
| Parameter | Value | Parameter | Value | |
| General product paramete : | ||||
| Energy consumption in on-mode (kWh/ 1000 hi | lOx | Energyefficiency class | ||
| Useful luminous nux (¢..,), indicating if it refers tothe fiux in a sphere (360°), in a wide cone (120°) or in a narrow cone (90°). | 730 wide cone | Correlated colour temperature, rounded to the nearest 100 K, or the range of correlated colour temperatures, rounded to the nearest 100 K, that can be set. | 3500 [x/x…x] | |
| On-mode power (p ), expressed in watt. 00 | 10 x,x | Standby power (p,,), expressed in watt and rounded to the second decimal. | 0 x,xx | |
| Networked standby power (p ,) for CLS, 0 expressed in watt and rounded tothe second decimal. | x,xx | Colour rendering index (CRI), rounded to the nearest integer, or the range of CRI values that can be set | 80 [x/x…x] | |
| Outerdimensions without separate actuator for lighting and non-lighting parts, where appropriate (in mm) | Height | 480x | Spectral power distribution in the range 250 nm to 800 nm, at full-load. | [graphic] |
| Width | 770x | |||
| Depth | 210x | |||
| Claimof equivalent power(‘). | [yes/-] | If yes, equivalent power (WI | ||
| Chromaticitycoordinates (x and y) | x: 0.409 y 0.394 | |||
| Parameters for directional light sources: | ||||
| Peak luminous intensity(cd) | 338 X | Beam angle in degrees, or the range of beam angles that can be set | 120[x/x…x] | |
| Parameters for LED and OLEO light sources: | ||||
| R9 colour renderingindex value | 2x | Life span factor | 0.90x,xx | |
| Luminous fiux ratio | 0.96x,xx | |||
| Parameters for LED and OLEO mains light sources: | ||||
| Displacement factor (cos q>l) | 0.50 x,xx | Colour consistency in MacAdam ellipses | 6x | |
| Claimthat an LED light source replaces a nuorescent light source without integrated ballast of a specific wattage. | [yes/-] | If yes, claimed replacement power (WI | ||
| Flicker metric {Psi LM) | lO x,x | Stroboscopiceffect metric {SVM) | 0.9 x,x | |
