Industrial 83W SFP PoE Injector

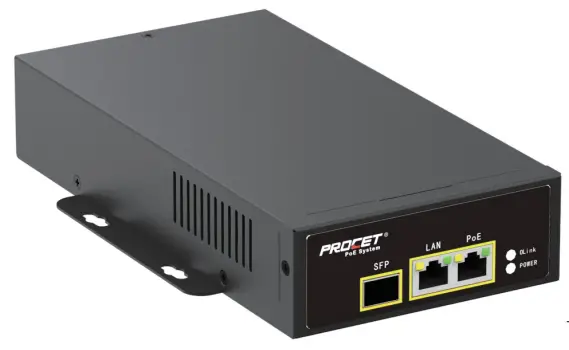

Product Overview
PT-PSE109GBRO-AH-S is a single-port industrial PoE Injector with SFP fiber connection port. It is specially designed for complex backhaul and networking applications.It provides 55Vdc, 1.5A power for remote PDs
over full 4 pair output with lighting surge protection. It supports 1000Mbps(Gigabit) device.
The PoE output port support IEEE802.3af/at, PoE++ standard making it compatible with PoE, PoE+, PoE++ devices, such as wireless APs, IP cameras, VoIP phones, base stations, door locks, displays, POS, information kiosks and other high-power Ethernet backhaul devices.
PT-PSE109GBRO-AH-S is designed for indoor use but can work outdoor by covered with waterproof case. It works with 100-240Vac input and operates under -40℃ to +65℃.
It has detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard compliant PD is detected. The effective distance is 100M over Cat5e/Cat6 cables.
It works like a switch, data is interoperable among LAN port, PoE port and SFP port. It is easy to install with 4 mounting holes.

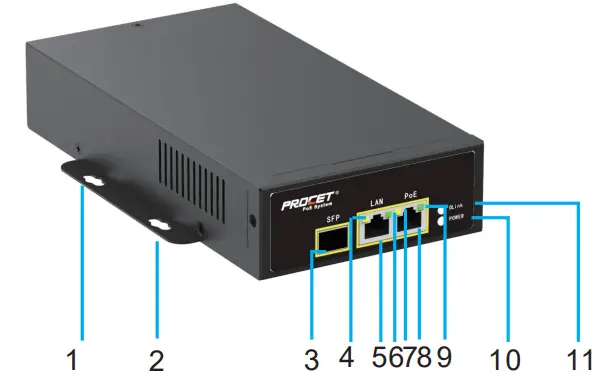

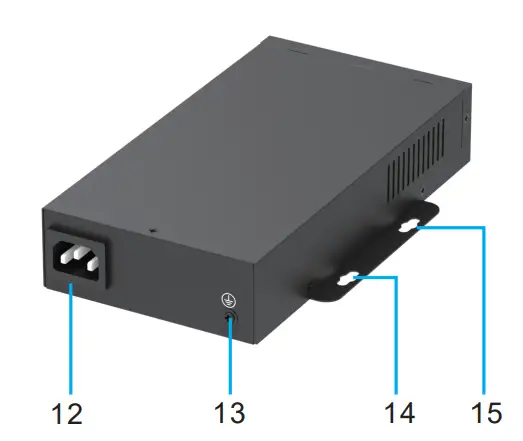

Product Profile
3. SFP: Fiber data input port
4. LAN data indicator
5. LAN: Data input port
6. Unused
7. PoE data indicator
8. PoE: Data&Power output port
9. PoE Load indicator
10. Power indicator
11. SFP fiber indicator
12. AC input port
13. Earth
1,2,14,15. mounting hole

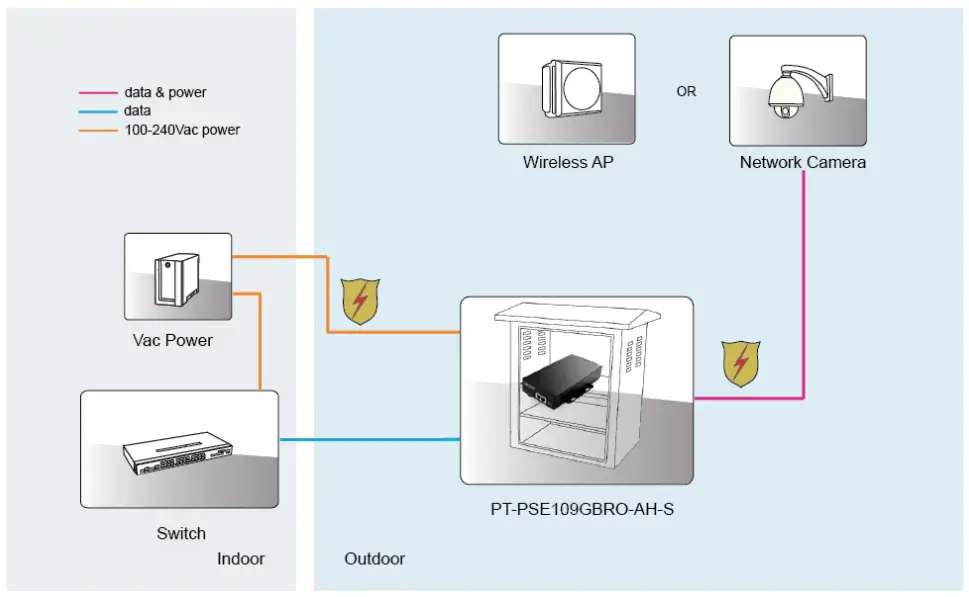

Product Working Diagram
Specification
Standard
– IEEE802.3ab 1000Base-T Gigabit Ethernet
– Full compliant with IEEE802.3af/at, PoE++
– RoHS Compliance
– WEEE Compliance
Input & Output
– Input :100-240Vac 2.0A 50/60Hz
– Output: 55Vdc 1500mA
– Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
– Data Speed: 10/100/1000BASE-T RJ45 Interfaces 1000BASE-X SFP Interfaces
Working Environment
– Operating Temperature: -40℃ to 65℃
– Operating Humidity: 20% to 90%, non-condensation
– Storage Temperature: -40℃ to 85℃
– Storage Humidity: 10% to 90%, non-condensation
– Operating Altitude: up to 10,000 f
Safety Approvals
– cUL/UL
– KC
– RCM
– NOM
– BSMI
– CE
– SAA
– PSB
– SII
– EAC
– FCC
– ST
– CCC
– Ukrain
– BIS
– PSE
– CM
– LOA
– CB
AC Surge Protection
– Line-Earth 1.2/50us (8/20us): 6KV
– Line-Line 1.2/50us (8/20us): 4KV
PoE Surge Protection
– Protected line: 1,2,3,4,5,6,7,8
– Common mode surge protection(10/700us): 6KV
– Differential mode surge protection (10/700us): 6KV

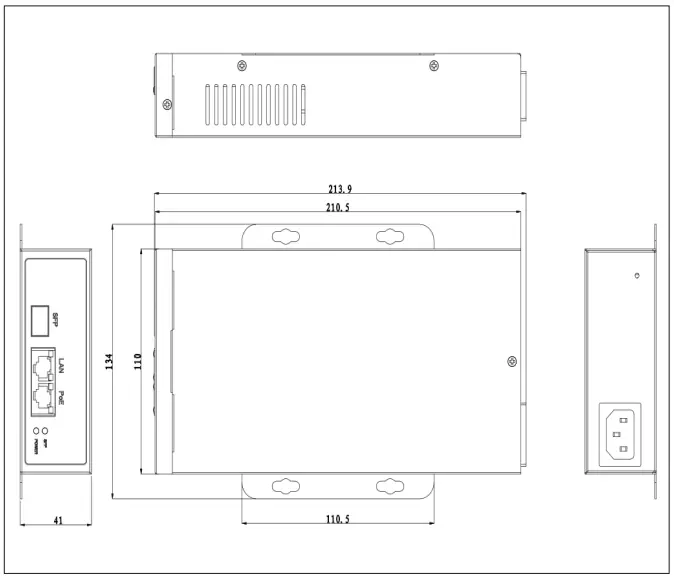

Mechanical Characteristics
– Case: Metal
– Color: Black
– Mounting: Wall-mounted
– IP Rated: IP20
– Size: 213.9mm X 134.0mm X 41.0mm
– Weight: 1104g
Performance Data
Order Info
PT-PSE109GBRO-AH-S 55Vdc/1.5A/1000Mbps/(4,5+,7,8-) and (3,6+,1,2-)/Surge Protection/Active
Packing
PT-PSE109GBRO-AH-S x 1 Power Cord x 1 (Optional) Operation Manual x 1
