PoE+ INJECTOR, 802.3af,
10/100/1000 Mbps, 15.4 Watt
Manual
DN-95102-1
Introduction
DN-95102-1, the single-port PoE injector, it provides 15.4W and it ensuring safe operation of any standard PoE data terminal.
DN-95102-1 offers a cost-effective, IEEE 802.3af compliant solution for IP phones, WLAN access points, network cameras, and another IP terminal
installations.
DN-95102-1 was designed as AC input PoE injector with 100-240V AC input. It is easily and cost-effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.
Package Content
PoE Injector x 1
AC Power cable x 1
Product manual x 1

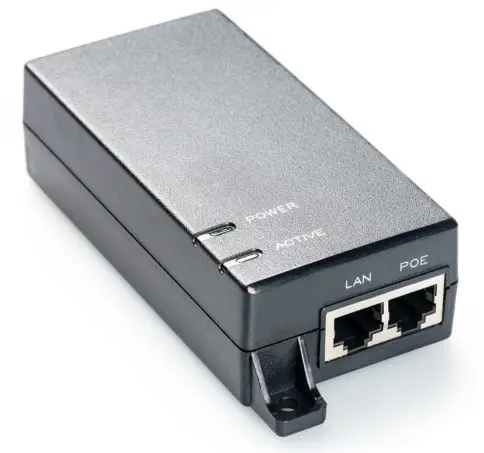

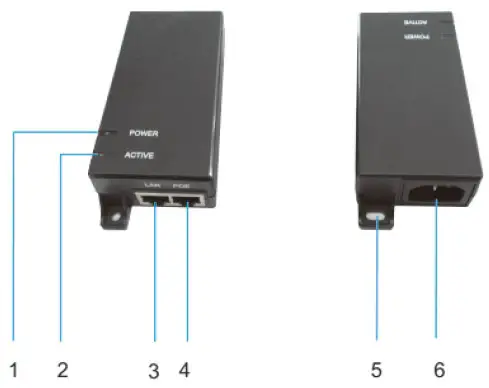

- Power instruction
- Load activations instruction
- Data input port
- PoE power input
- Installation holes
- AC power input
Key Features
– Detection chip inside, will do detection before power
– Output power 15.4W
– Output current 320mA
– Power Pins: 4/5(+), 7/8(-)
– Small size, lower cost.
– Support power for IEEE802.3af at the terminal equipment

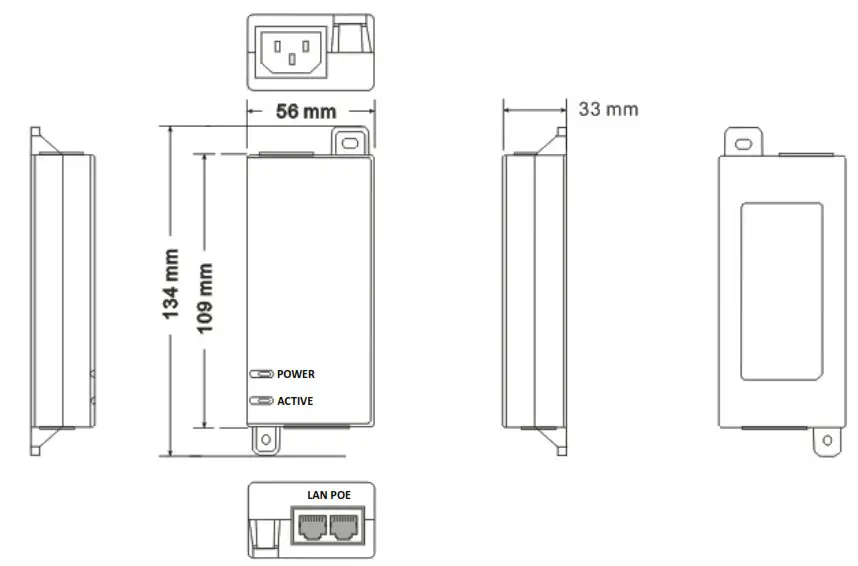

Outline Drawing
Specifications
Standard
– IEEE802.3 10Base-T Ethernet
– IEEE802.3u 100Base-Tx Fast Ethernet
– Support IEEE802.3af standard terminal equipment
PoE Power Output
– Power Pins: 4/5(+), 7/8(-)
– Data Rate: 10/100/1000Mbps
– Output voltage:48VDC
– Output current: 320mA
– Input AC voltage: 100-240VAC
– AC input current: 0.5A@100-240VAC
– AC Hz: 50-60Hz
Dimension & Weight
– Size: 134mm*56mm*33mm
– Weight: 175g
LED Instruction
– AC POWER LED: Green
– Active Load LED: Green
Working Environment
– Operating Temperature: -5 to +45°C
– Operating height: -304.8 meters to 3048 meters
– Operating Humidity: Maximum 90%, Non-condensing
AC Surge Protection
– 1.5KA (8/20us)
– 2.0KV (1.2/50us)

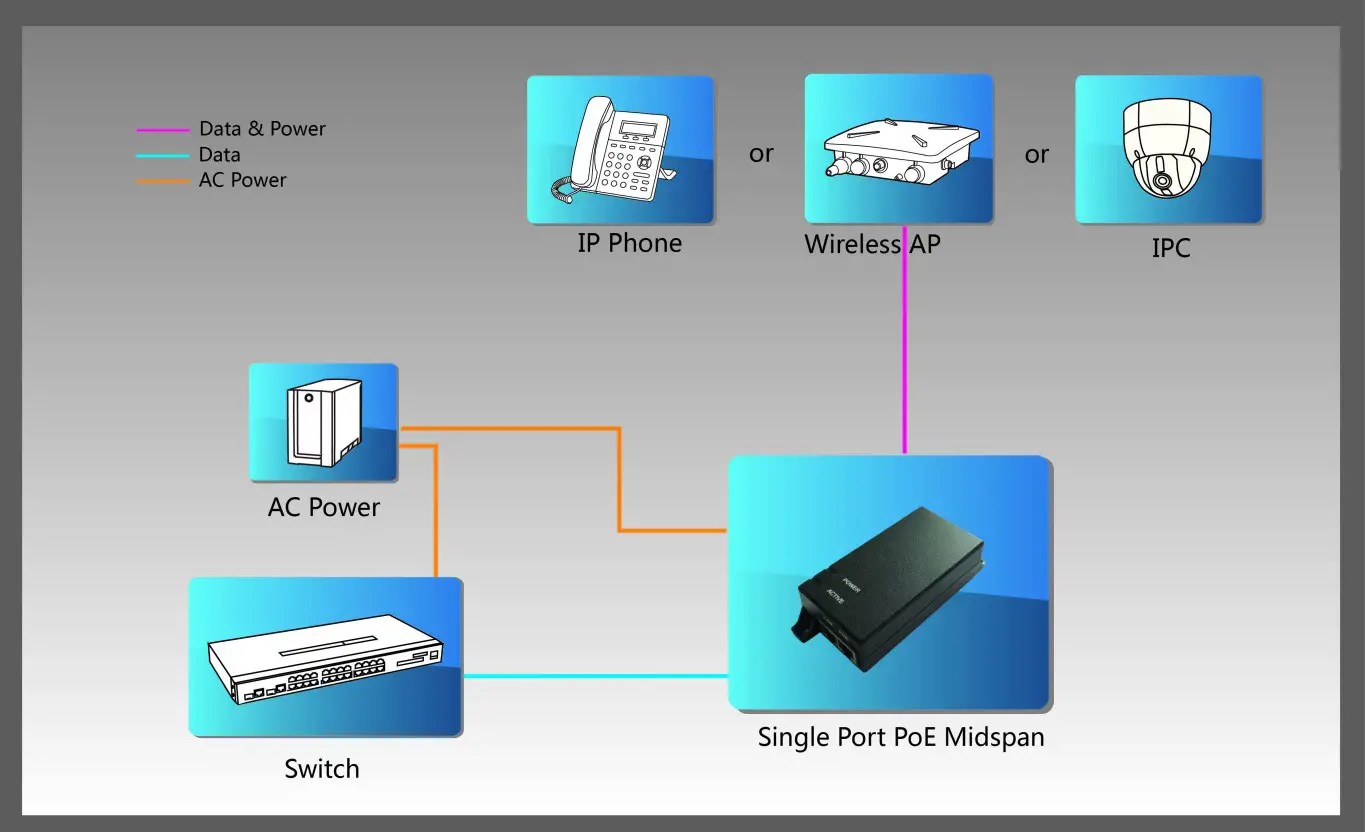

Application Picture
Hereby Assmann Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below-mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
