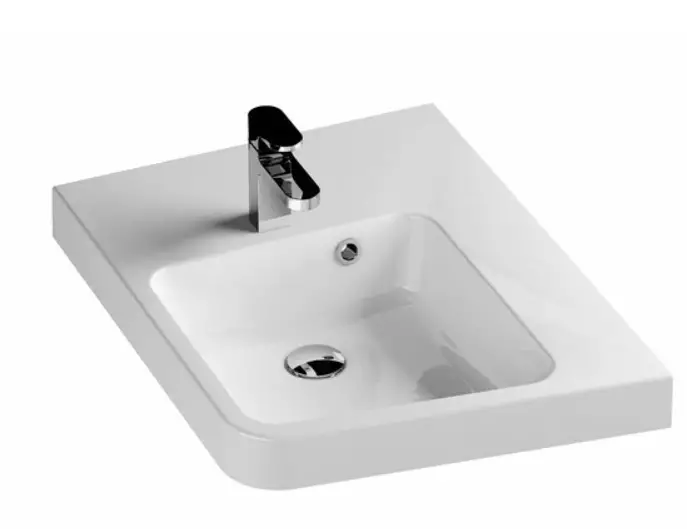

RAVAK Be Happy L Umyvadlo Corner Wash Basin

RAVAK-Be-Happy-L-Umyvadlo-Corner-Wash-Basin-product-image

Instruction

RAVAK-Be-Happy-L-Umyvadlo-Corner-Wash-Basin-1RAVAK-Be-Happy-L-Umyvadlo-Corner-Wash-Basin-2

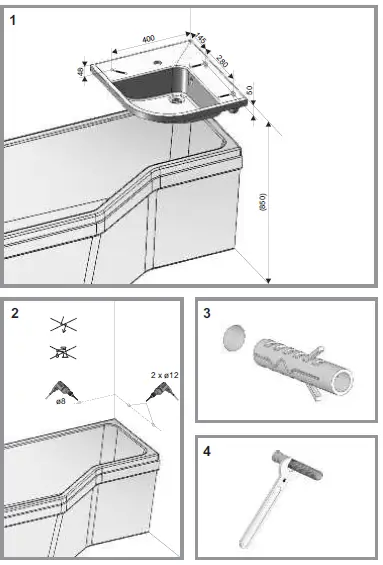

In order to secure the correct functioning, the product may be fitted only to solid walls of bathrooms made of full bricks or concrete for which the enclosed wall plugs with screws are designed.
When installing on the specific materials of the walls (porous concrete, hollow bricks or plasterboard) it is necessary to reinforce the place where the washbowl is positioned, by the structure with
the sufficient load carrying capacity and use the corresponding wall plugs and screws.

RAVAK-Be-Happy-L-Umyvadlo-Corner-Wash-Basin-3RAVAK-Be-Happy-L-Umyvadlo-Corner-Wash-Basin-4RAVAK-Be-Happy-L-Umyvadlo-Corner-Wash-Basin-5RAVAK-Be-Happy-L-Umyvadlo-Corner-Wash-Basin-6
