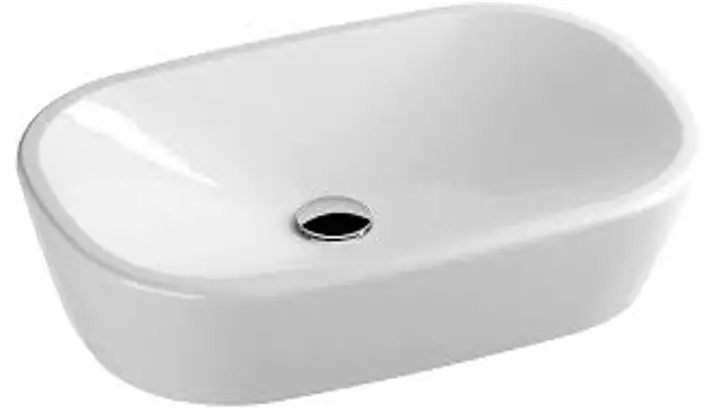

600 Countertop Washbasin

UMYVADLO CLASSIC 600
700, 800 L, R

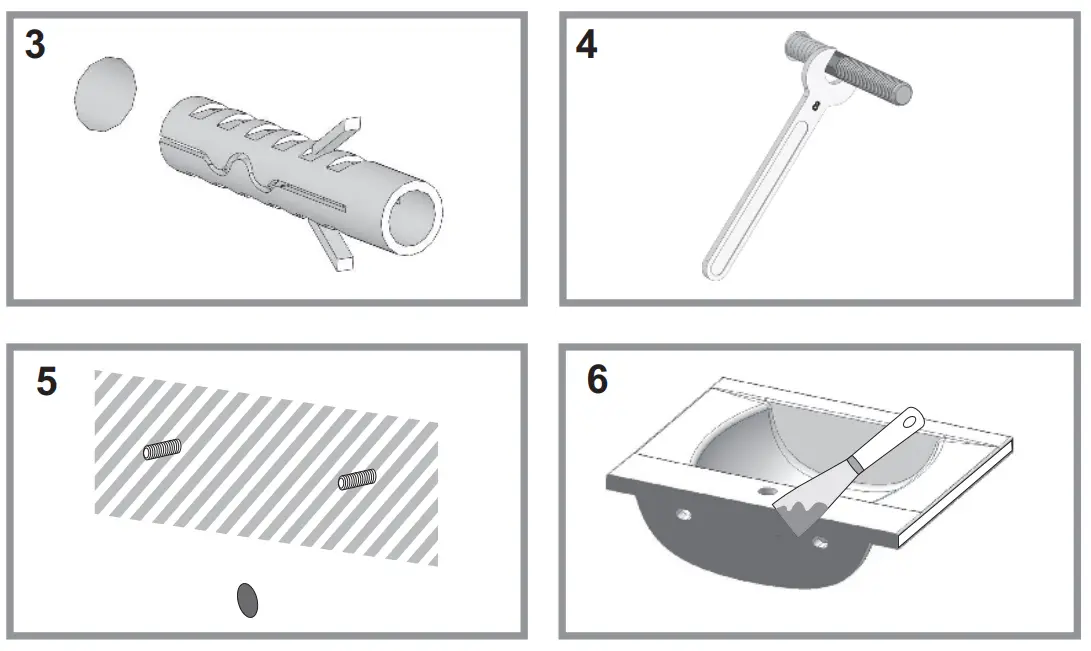

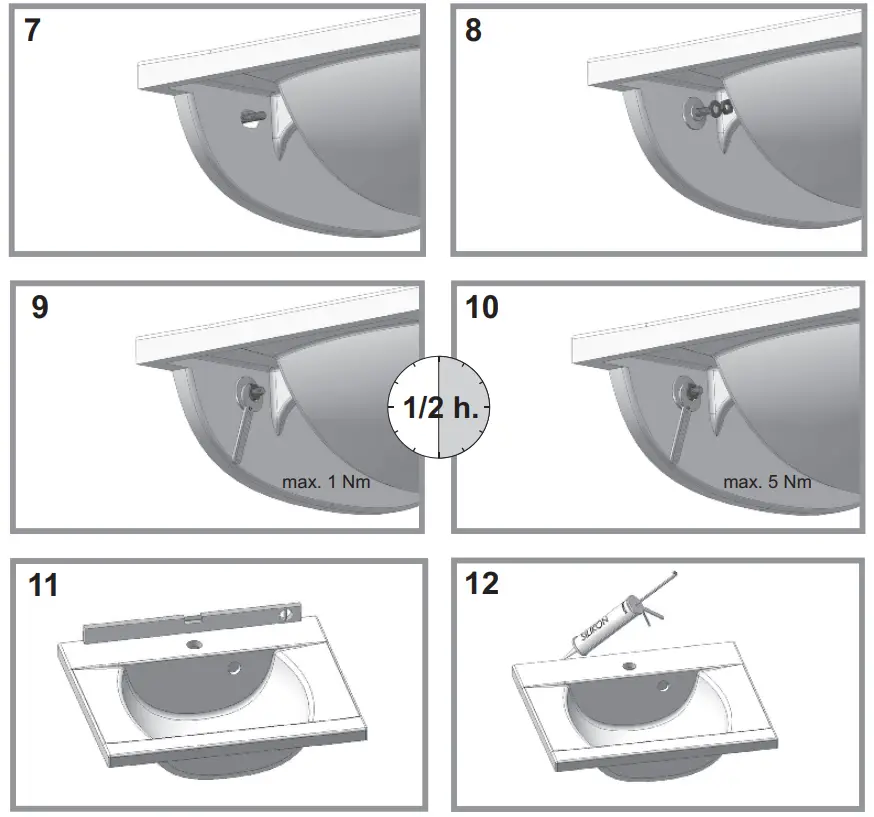

INSTALLATION INSTRUCTIONS

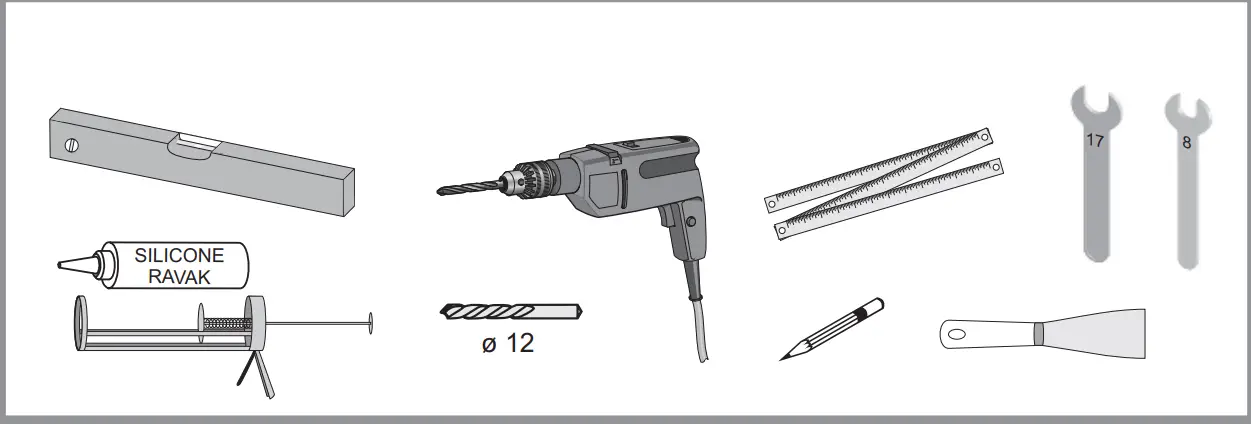

TOOLS

In order to secure the correct functioning, the product may be fitted only to solid walls of bathrooms made of full bricks or concrete for which the enclosed wall plugs with screws are designed. When installing on the specific materials of the walls (porous concrete, hollow bricks, or plasterboard) it is necessary to reinforce the place where the washbowl is positioned, by the structure with sufficient load-carrying capacity and use the corresponding wall plugs and screws.

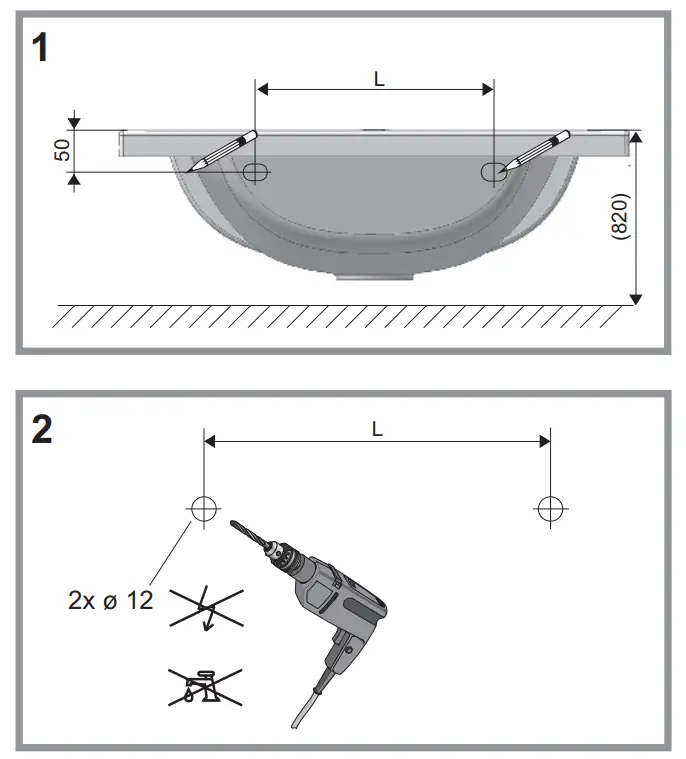

L = 280 …….CLASSIC 600
L = 280 …….CLASSIC 700
L = 440 …….CLASSIC 800 L, R

Trennmittel, z. B. Schmierseife
Weisszement

MAINTENANCE

– Clean the plastic parts with a cloth and mild detergent. Never use any abrasive pastes, dissolvents, acetone or detergents, and disinfectants, that contain chlorine. The manufacturer accepts no liability for any type of use or care other than those contained in these instructions. The manufacturer reserves the right to introduce technical changes without notice. The guarantee is 24 months from the date of sale. For further information about assembly, use, and care contact your local dealer.
The manufacturer recommends:
RAVAK CLEANER – works to remove old and dried-on debris from glass surfaces, shower frames, enamel and acrylic bathtubs, washbasins, and water taps;
RAVAK DISINFECTANT – is a special preparation with considerable antibacterial and anti-fungal effects.
For further information, contact your local Ravak dealer.
The manufacturer reserves the right to amend or improve on existing designs or features.
Please help preserve the environment by observing local country guidelines or laws regarding recycling. Materials that are not suitable for recycling must be disposed of at an official and suitable waste control center.
