UUO P6 Projector for Outdoor Home

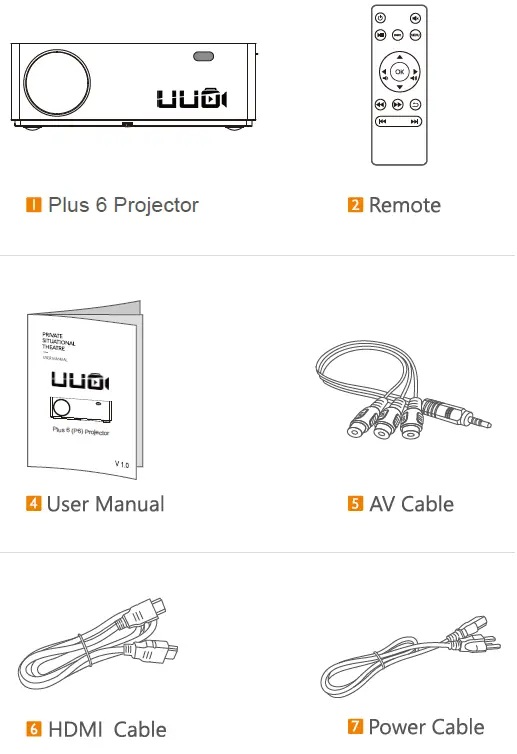

Packing List

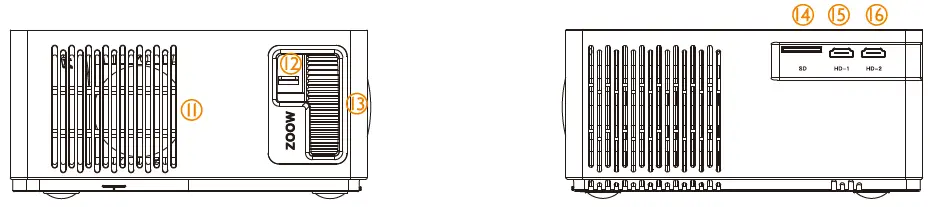

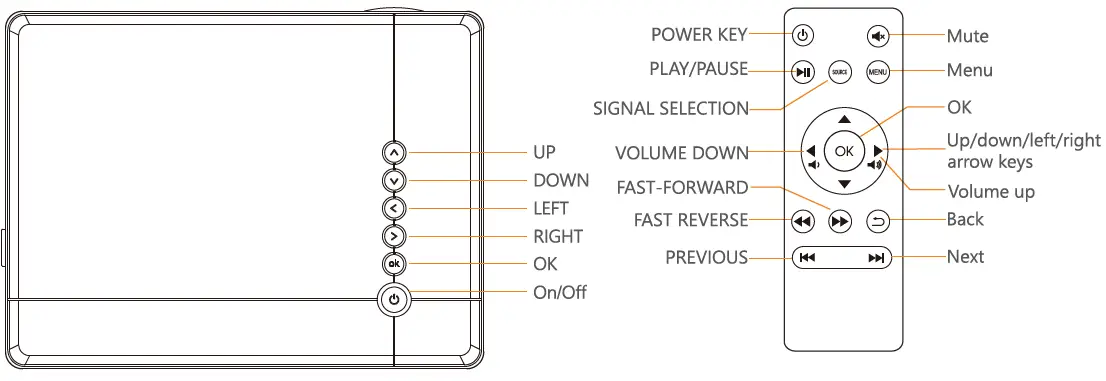

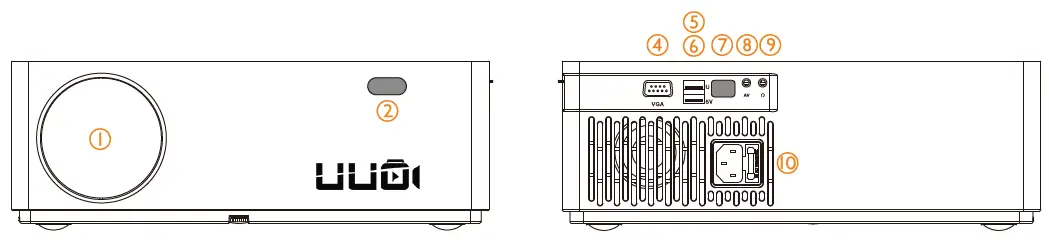

Function Overview

- CAMERA LENS
- IR WINDOW
- VGA
- USB
- 5V OUT
- IR WINDOW
- AV IN
- AUDIO OUT
- POWER IN PUT
- SPEAKER
- KEYSTONE
- FOCUS
- SD CARD SLOT
- HD-1
- HD-2

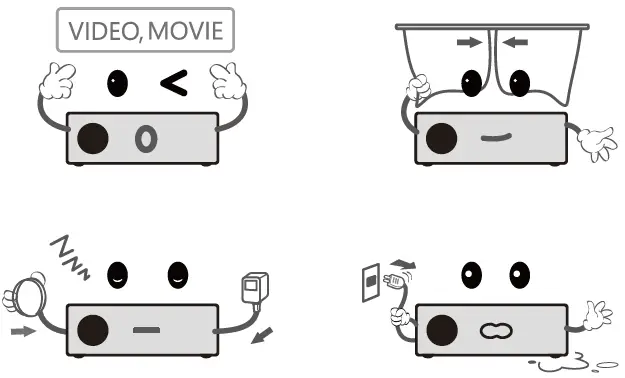

Quick Start

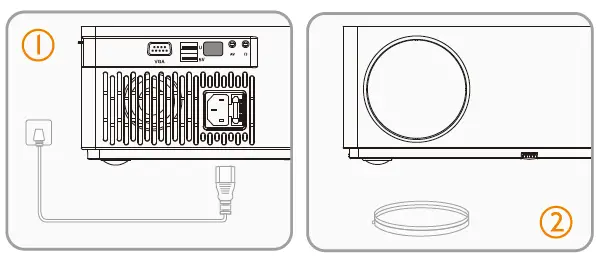

- Plug the power cord into an outlet
- Take off 1he lens cover.
- Connect your device to the projector correctly.

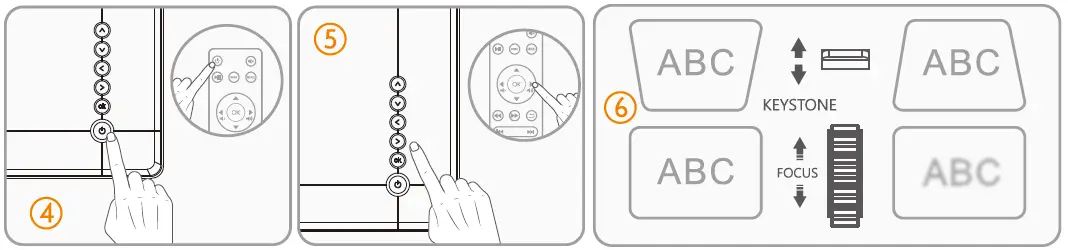

- Press the power button to tum on 1he projector.
- Choose the right type of program 10
- Adjust the keystone and focus ring 10 get the best image performance.

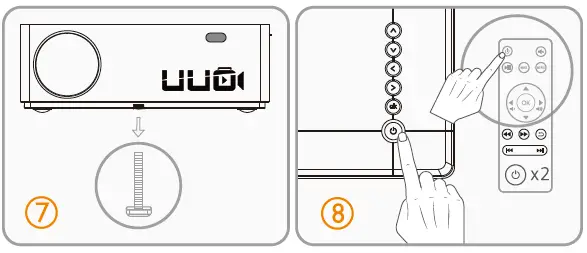

- Adjust the kickstand accordingly.
- Press the power button twice t0 turn off the projector.


Input Source

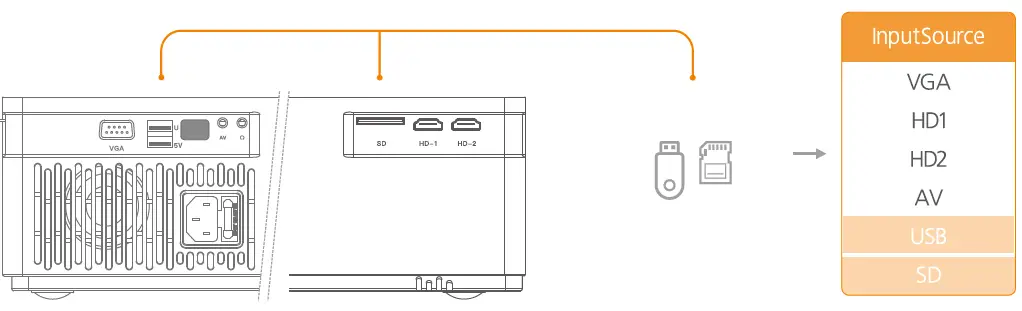

Multimedia Connection

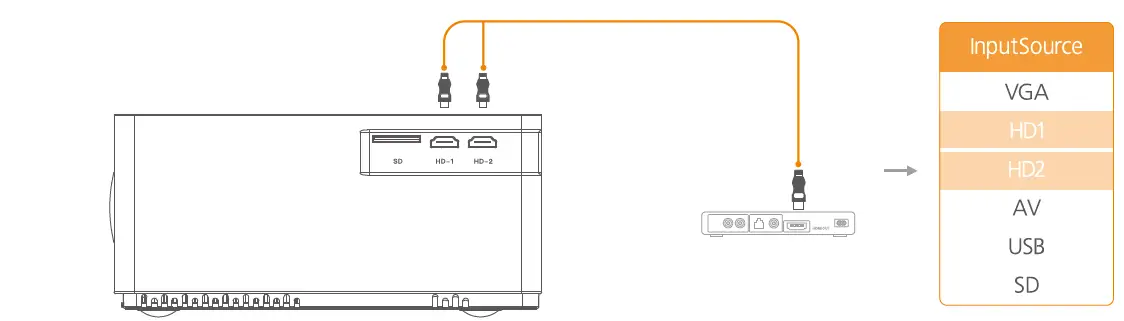

HDMI Connection

VGA Connection

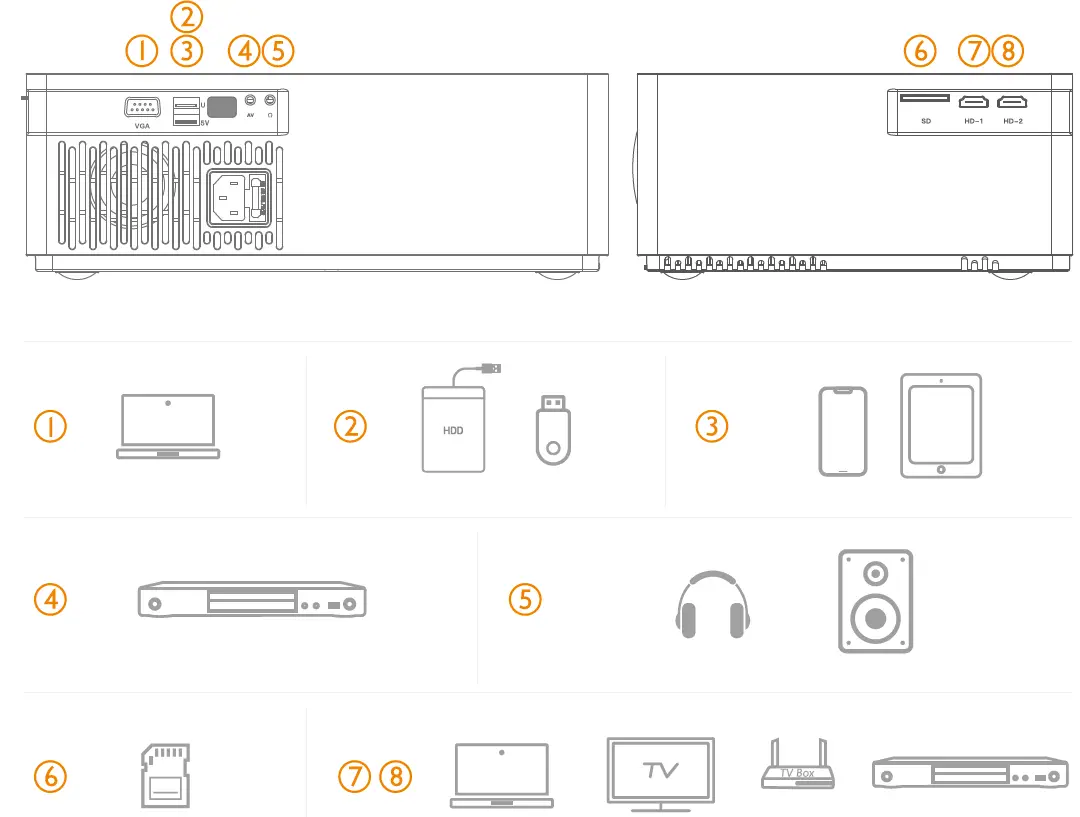

PROJECTOR CONNECTION

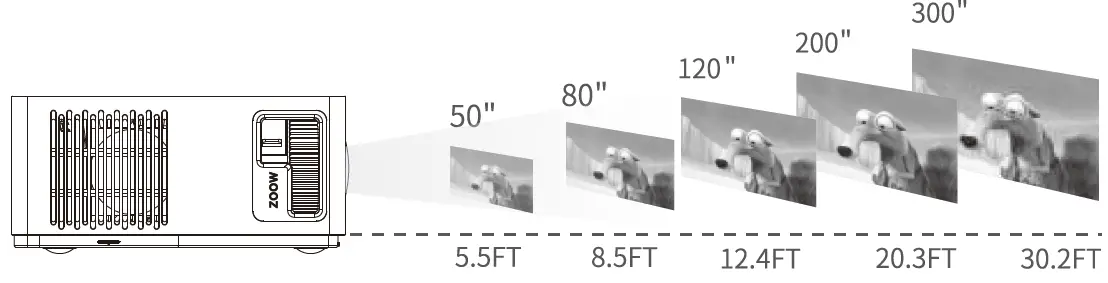

PROJECTION DISTANCE & SIZE

SPECIFICATION
- Display Technology LED
- Light Source LCD
- Native Resolution 1920*1080
- Resolution Supported: 576i, 576P, 720i, 7ZOP, 1080i, 1080P
- Projection Distance6FT-30.2FT(1.7M-9.2M)
- Projection Size 50′-3001
- Foals Manual
- Aspect Ratio 4:3/16:9/auto
- Speaker 5W* 4ohm
- Keystone Collection +15
- Unit Dimension l 1*9 4.1 inch
- Installation Type Front/Rear/Celling
- Power Supply ACI00·2<IOV
- Unit Net Weight 71B
- Video Format Supported AVI/M~4/MKVIFLV/MCN/ RMVB/3GP/MPEGI MPEG2/H.264/XVIL
- Photo Format Supported BMP/JPG/JPEG/PGN/GIF
- Audio Format Supported MP2/MP3/PCM/RAC/ WMA/AK

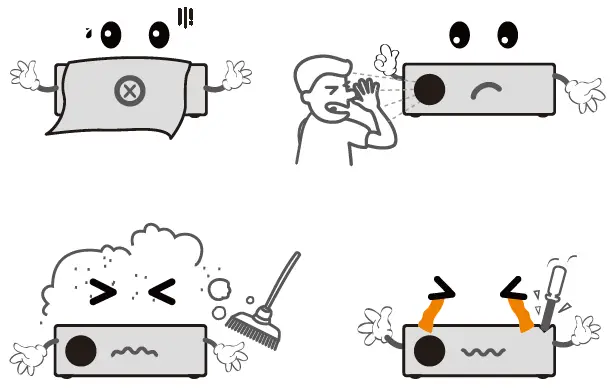

Notice
TROUBLESHOOTING GUIDE


- Blurry image
- Adjust focus ring/keystone.
- Projector and screen/wall must be in effective distance.
- Remote Unresponsive
- Make sure remote points at IR receiver directly.
- Do not cover IR receiver.
- Mobile Connection
- i0S: Genuine lightning to HDMI cable
- Android: Micro USB to HDMI adapter/Type C to HDMI cable.
- Upside down Images
- Enter “Menu” on projector or remote to flip the projection image.
If you have any questions about our products and you can contact our customer support any time!
CUSTOMER SUPPORT
- North America [email protected]
- United Kingdom [email protected]
- Deutschland [email protected]
- France [email protected]
- España [email protected]
- Italia [email protected]
- Website uuomall.com
Frequently Asked Questions
Yes, if your smartphone or tablet has the proper HDMI cord adapter.
I bought it, but I returned it. However, I did get a different projector from Amazon.
Their delivery is typically excellent!
Gratitude for selecting the UUO P6 1080p projector.We do not advise playing outside in a hot and arid environment. Because the projector’s brightness will be affected by the strong sunlight. On overcast days, in the evening or around midnight, we advise playing indoors or outside. So that you can take pleasure in high-definition video effects.
A home theatre projector should have a resolution of 1920 x 1080, or Full HD & 4K UHD (3840X2160, referred to as true 4K). To be able to display HD movies or games, a good home theatre projector must have at least these pixel requirements.
Forget about 4K and HDR; ambient light is the major problem with projector image quality. Any other light in the room is likewise directed toward the screen by the projector, which projects light onto it. The image’s brightest areas aren’t significantly impacted, but its darker areas are.
Choose the proper location. Decide where you’re going to store the item before you do anything else. Set up the screen, if desired. Get the appropriate height. Connect everything, and then turn it on. An alignment image is projected. Shut the doors and windows. Choose the appropriate picture mode. Incorporate improved audio (optional)
The projector can display pixels up to this number. A Full HD projector will therefore have a genuine resolution of 2,073,600 pixels, or 1920 horizontal pixels and 1080 vertical pixels (therefore 1080p). The image’s sharpness and level of detail will depend on the native resolution capacity.
Any projector can be used as a TV; however you might require additional equipment. You might be able to use your projector as a TV right out of the box if it has built-in apps. Additionally, you can link your projector to a streaming device, cable box, or TV tuner.
Around 1,500 to 2,000 hours
Although some bulbs can last up to 5,000 hours, most projector lamps endure between 1,500 and 2,000 hours. The majority of projectors will require one to two bulb changes at this time. The high-pressure mercury and xenon used in projector lamps cause bulbs to dim over time, unlike ordinary bulbs that burn out after being used up.
However, due to the nature of projecting and projector screens, projectors can only function properly when the desired brightness is produced at the projector.
To cast a huge image, traditional projectors require a lot of area. Typically, you need at least 100 inches between the projector and screen in order to cast a 100-inch image. A projector with a short-throw lens, which enables it to cast a larger picture from a closer distance, may be necessary for a tiny room.
Power Use by Projector
The power consumption of projectors is known to vary greatly; it typically ranges from 50W for the smallest projectors to 150-800 watts for the significantly larger ones.
TVs and other screens emit direct blue light that harms the eyes. Even the indirect blue light from a projector is much easier on the eyes. Projectors are the best choice only in terms of eye health, along with additional safety aspects, which you may read about below.
You have a dirty projector lens. If you’ve ensured that your surface is clean and smooth, a dirty lens could also be to blame for the projector’s blurriness. When you use a projector frequently, it can be simple to forget to clean the lens because it does collect dust over time.
