Zumimall B08dfdg3mg Wireless Security Camera Installation Guide

Zumimall B08dfdg3mg Wireless Security Camera Installation Guide

ZUMIMALL-B08DFDG3MG-Wireless-Security-Camera-LOGO

ZUMIMALL B08DFDG3MG Wireless Security Camera

ZUMIMALL-B08DFDG3MG-Wireless-Security-Camera-PRODUCT-IMAGEZUMIMALL-B08DFDG3MG-Wireless-Security-Camera-01

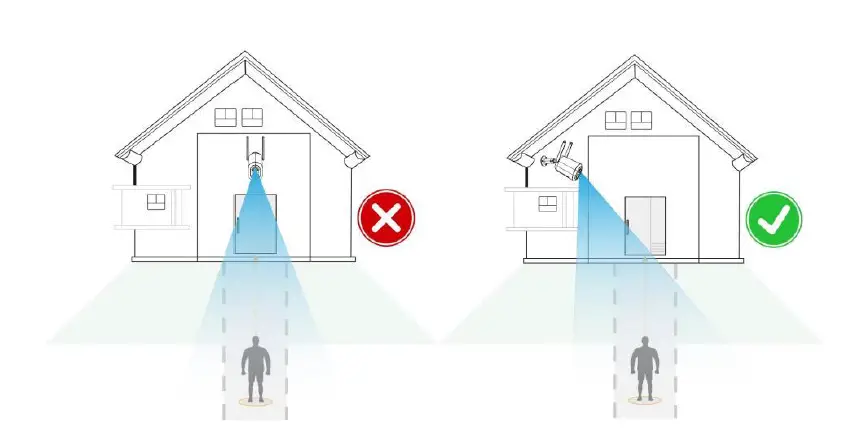

  1. It is not recommended to install the camera perpendicular to moving objects, otherwise it may fail to detect motion events or cause delays.
  2. A camera motion sensor that is more sensitive to lateral motion within its field of view than to motion directly toward or away from the camera.

ZUMIMALL-B08DFDG3MG-Wireless-Security-Camera-02

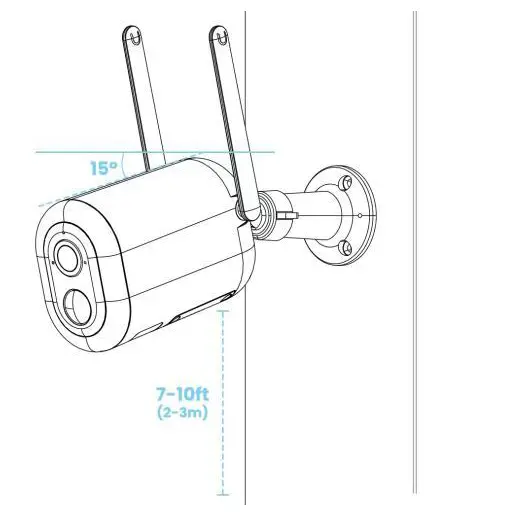

  1. Recommended installation height: 7-10 feet from the ground.
  2. Recommended installation angle: the down-tilt angle of the lens is 15°to obtain the best alarm detection range.

ZUMIMALL-B08DFDG3MG-Wireless-Security-Camera-03

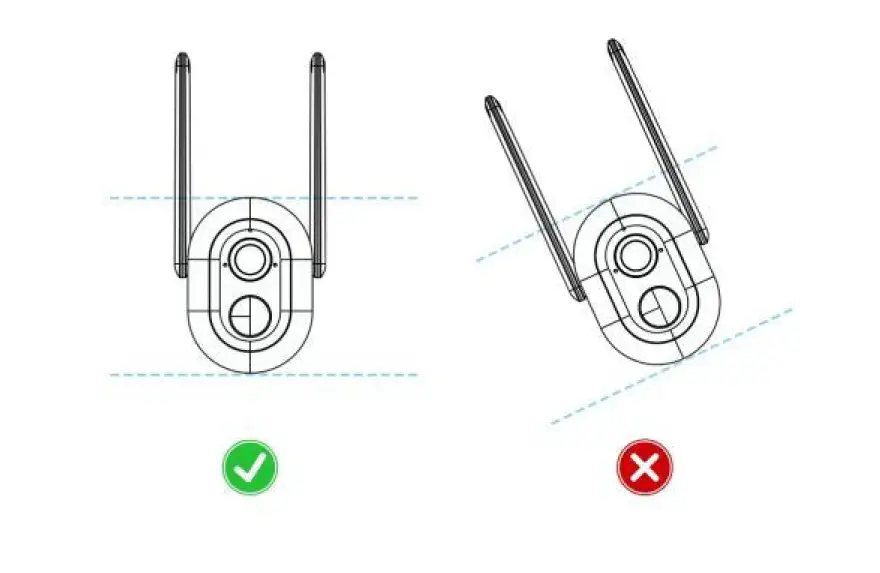

  1. Keep the PIR lens level for best results.
