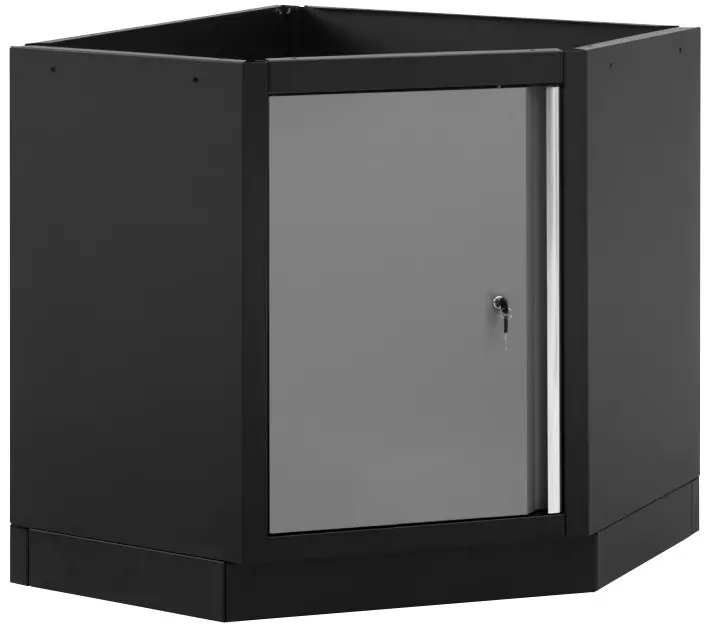

Hard Head 022779 Corner Cabinet User Manual
SAFETY INSTRUCTIONS
IMPORTANT:
Read these instructions carefully before installation and save them for future reference.
SYMBOLS
Read the instructions.
TECHNICAL DATA
- Size: W86.4xH91xD86.4 cm
- Wax load: 60 kg
DESCRIPTION

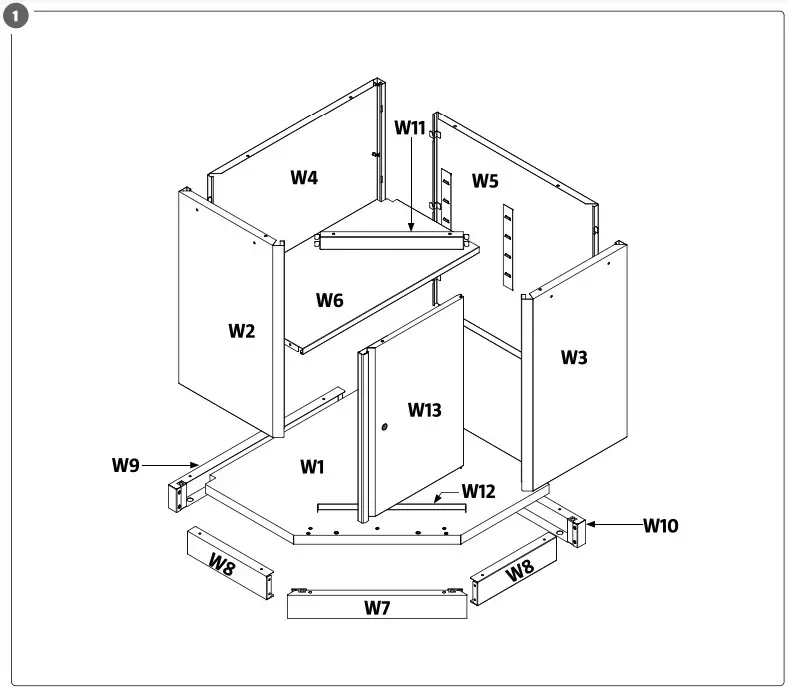

PARTS
FIG. 2
| Number | |
| W1 | 1 |
| W2 | 1 |
| W3 | 1 |
| W4 | 1 |
| W5 | 1 |
| W6 | 1 |
| W7 | 1 |
| W8 | 2 |
| W9 | 1 |
| W10 | 1 |
| W11 | 1 |
| W12 | 1 |
| W13 | 1 |

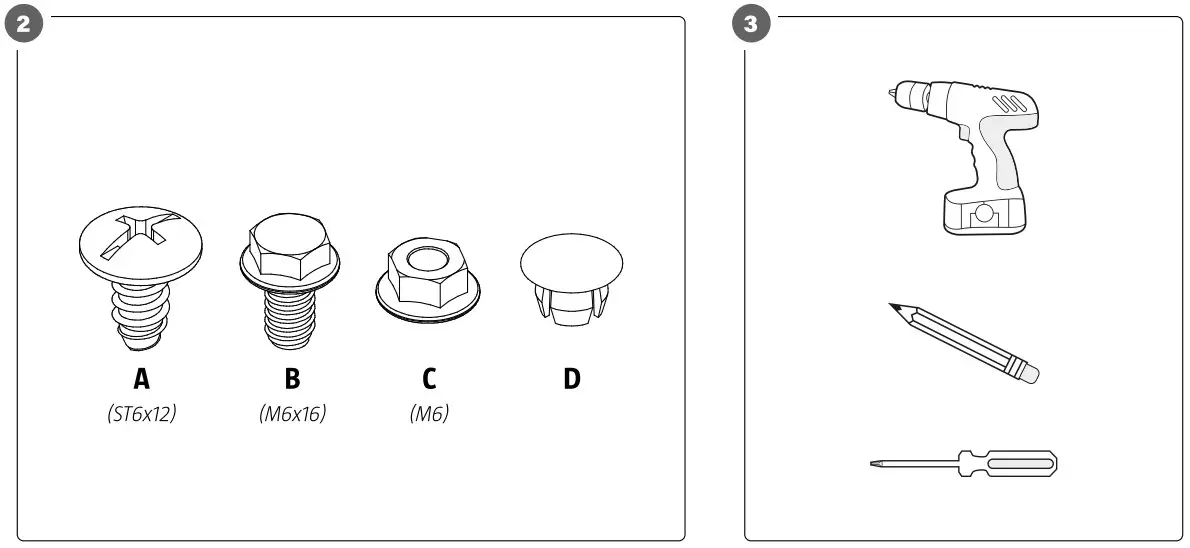

ACCESSORIES FOR ATTACHMENT/INSTALLATION
| Description | Number | |
| A | Screw (st6X12) | 21+1 |
| B | Bolt (M6x16) | 18 |
| C | Nut (M6) | 2 |
| D | Plastic plug | 2 |
FIG. 2
INSTALLATION
TOOLS NEEDED FOR CORRECT INSTALLATION FIG. 3
- Cordless drill
- Pen
- Phillips screwdriver
CORNER CUPBOARD

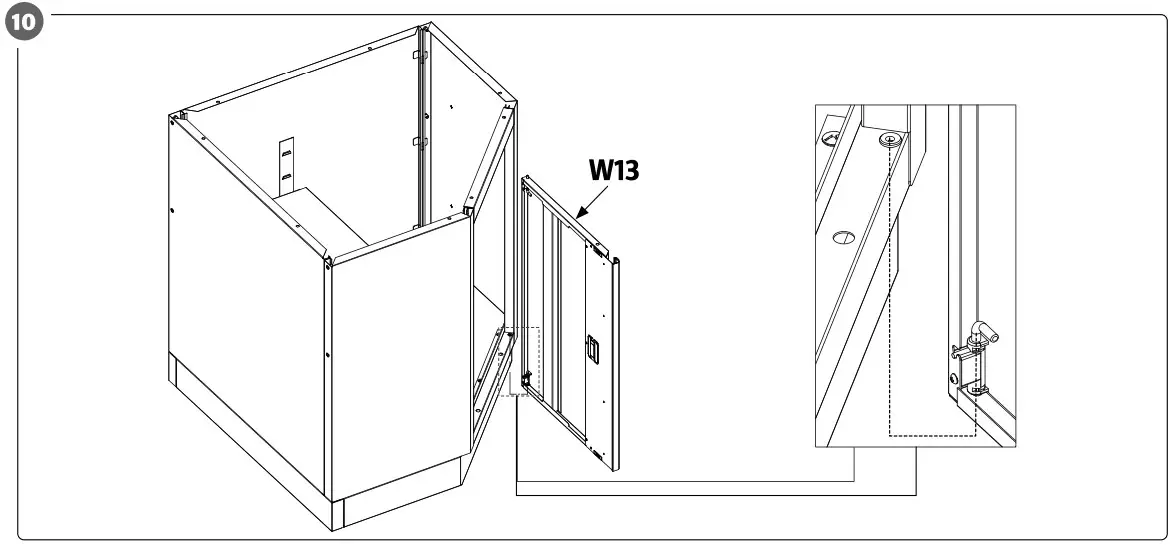

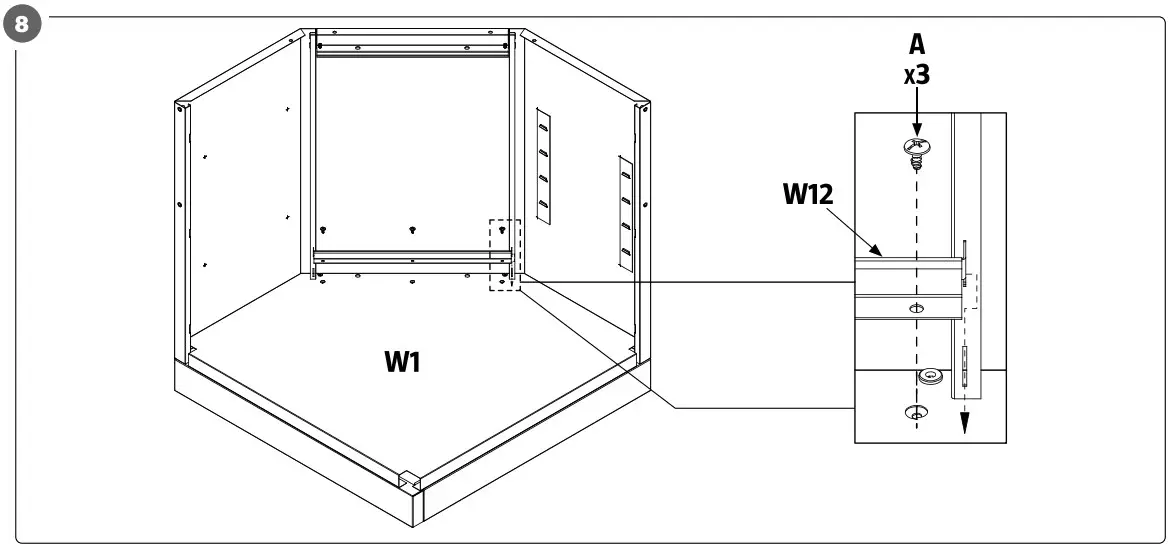

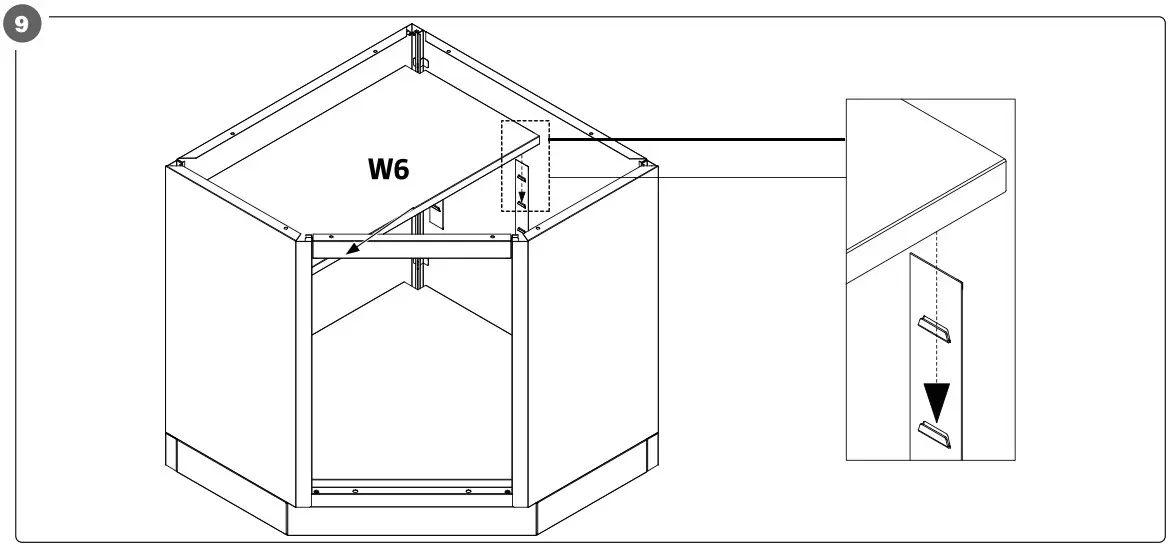

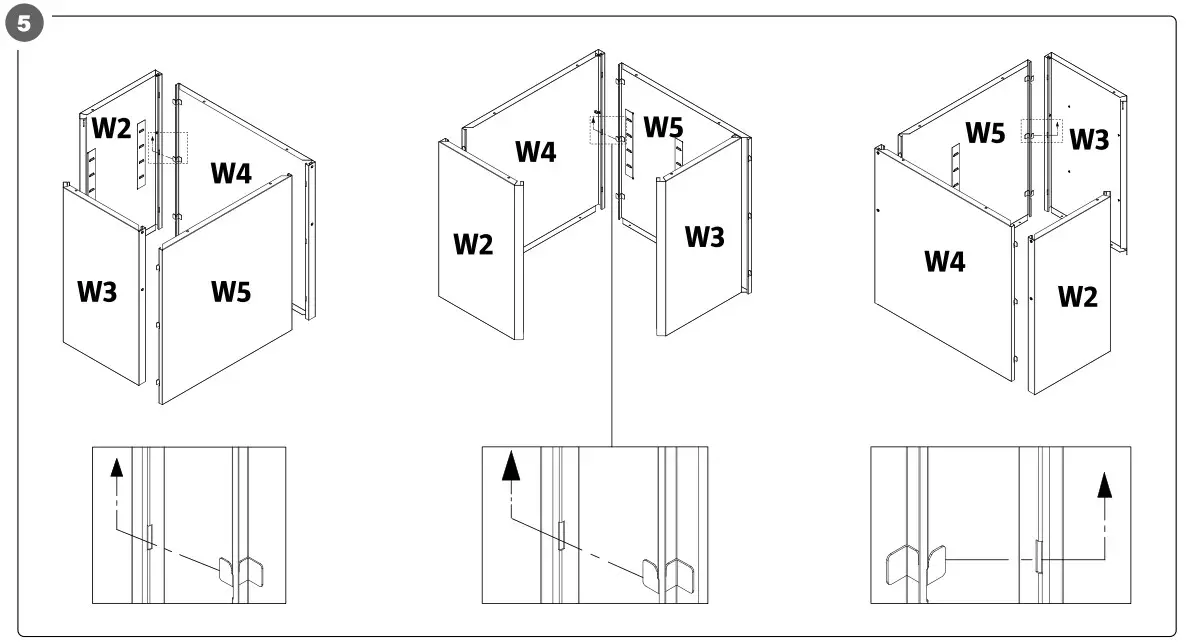

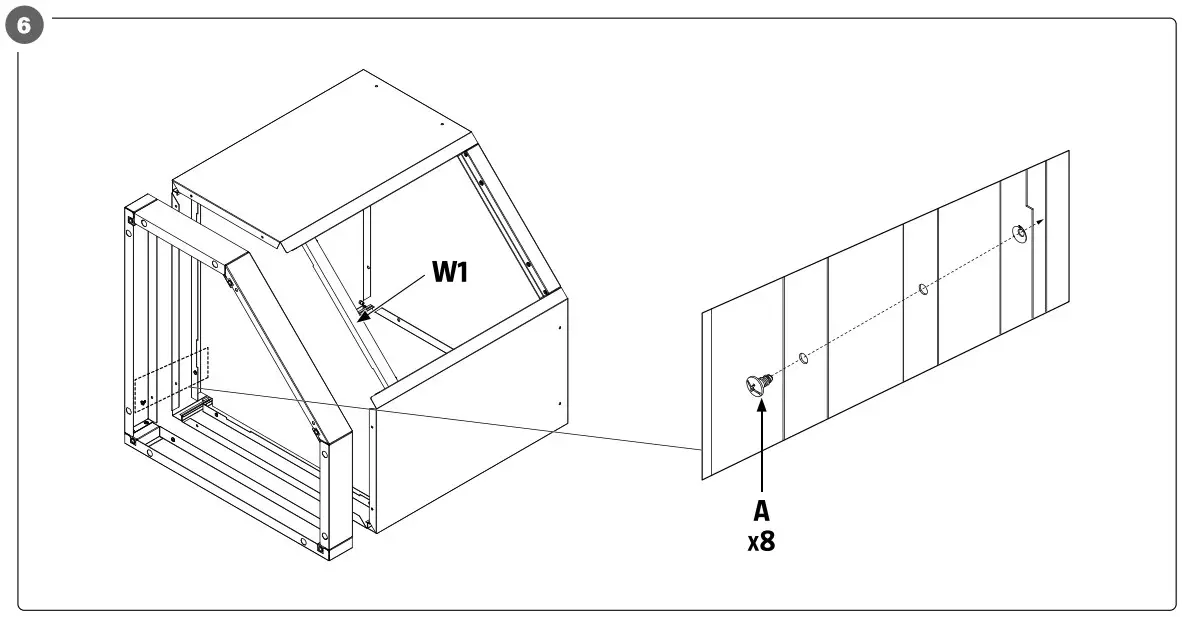

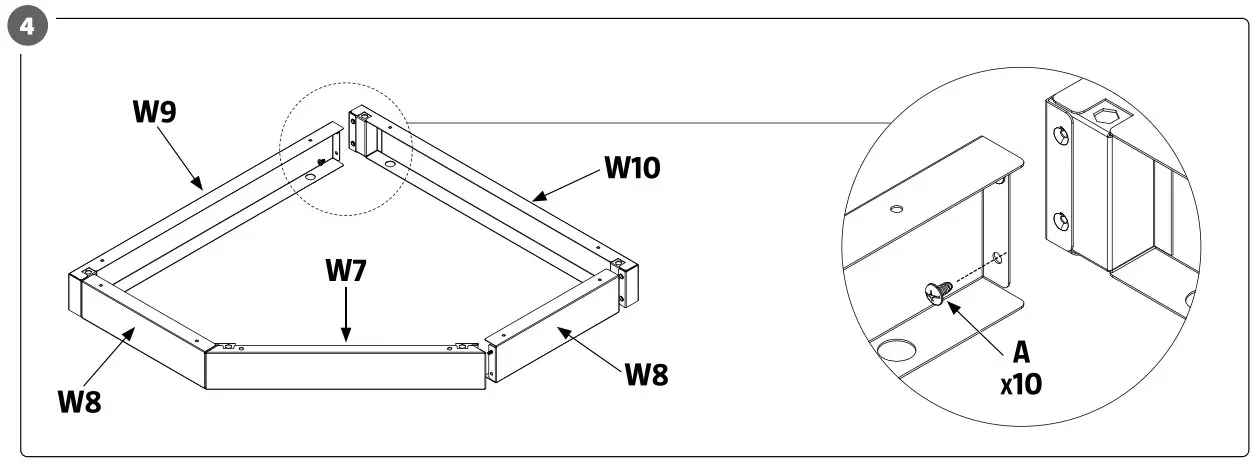

FIG. 4-10
Jula AB reserves the right to make changes to the product. Jula AB claims copyright on this documentation. It is not allowed to modify or alter this documentation in anyway and the manual shall be printed and used as it is in relation to the product. For the latest version of operating instructions, refer to the Jula website.
