Tapo D230 V1 Video Doorbell Camera Kit User Guide

tapo D230 V1 Video Doorbell Camera Kit

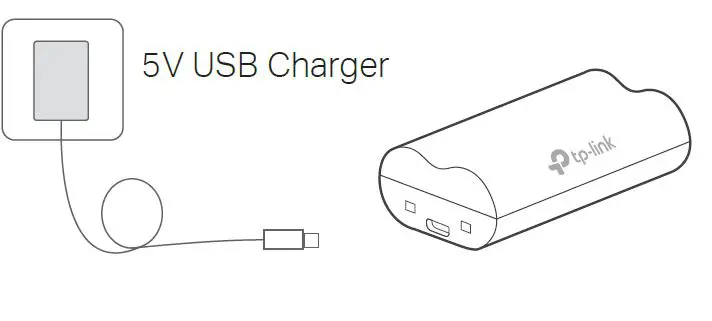

Charge the battery

• Charging: Solid amber
• Fully charged: Solid green

Notes:

1. Charge the battery before use. This will take about 5~6 hours.
2. If you want to use the doorbell while charging the battery, we recommend purchasing another battery for your convenience.

Insert the Battery

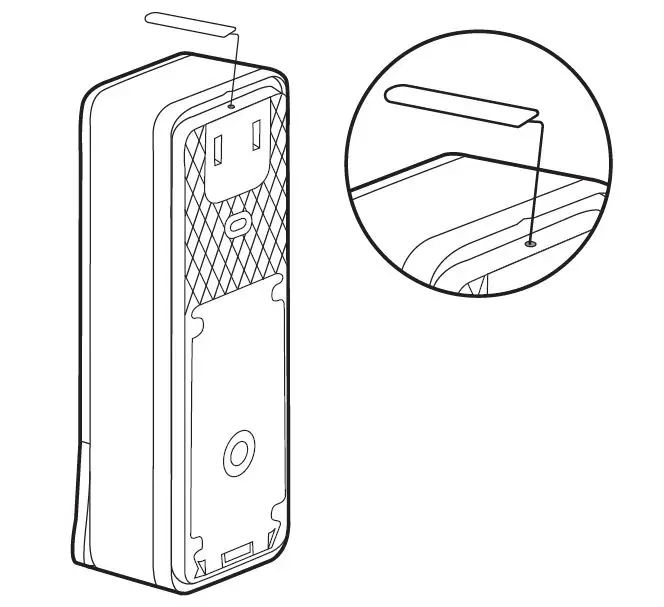

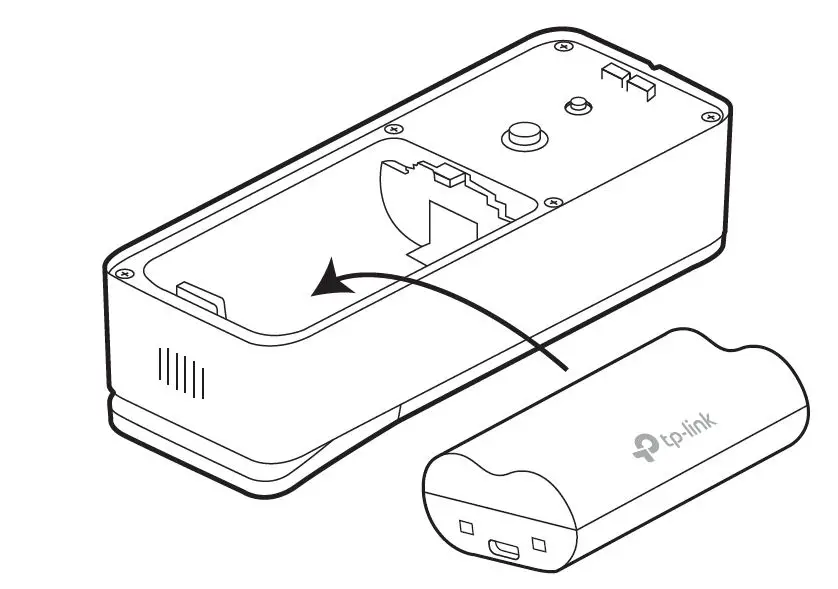

1. Use a pin to detach the doorbell.2. Insert the charged battery.

Set Up the Hub and Doorbell

1. Get the Tapo app from the App Store or Google Play.
2. Follow the instructions in the Tapo app to set up your hub.
3. Follow the instructions in the Tapo app to set up your doorbell.

Install the Doorbell

*Preview video on the Tapo app to find the desired installation location.

Option 1. Stick to a clean wall

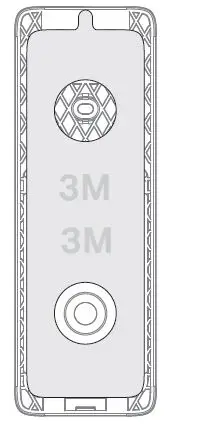

1. Attach the included adhesive to the back of the bracket.

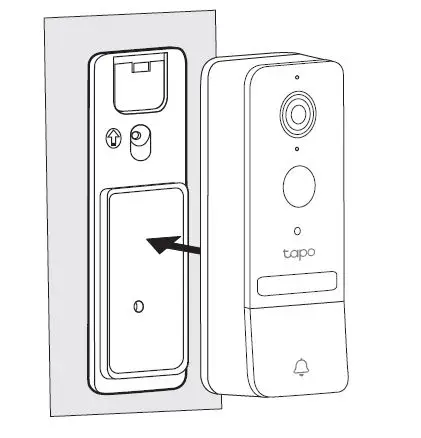

2. Stick the bracket with adhesive to a clean wall. Then attach the doorbell to the bracket

Option 2. Mount to the wall

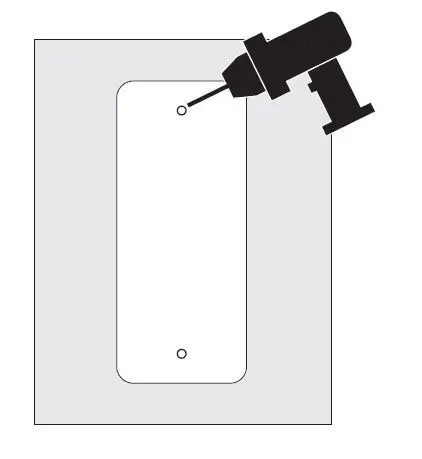

1. Stick the mounting template to the desired mounting place. Drill two holes according to the template

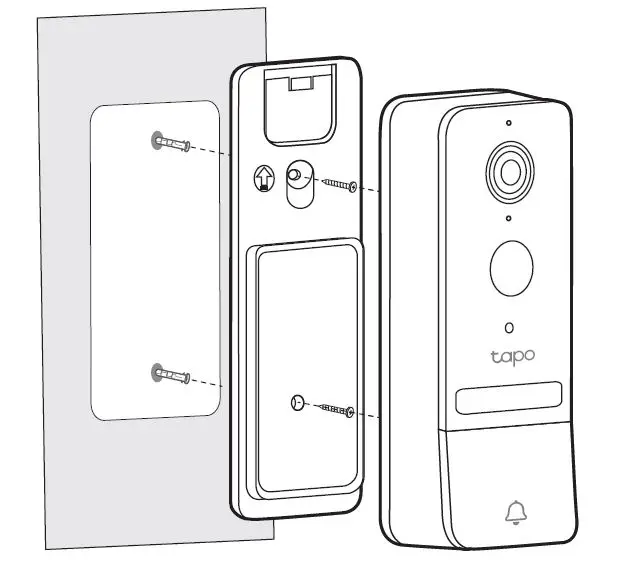

2. Insert two anchors into the holes and use the screws to affix the bracket over the anchors.
   Then attach the doorbell to the bracket.

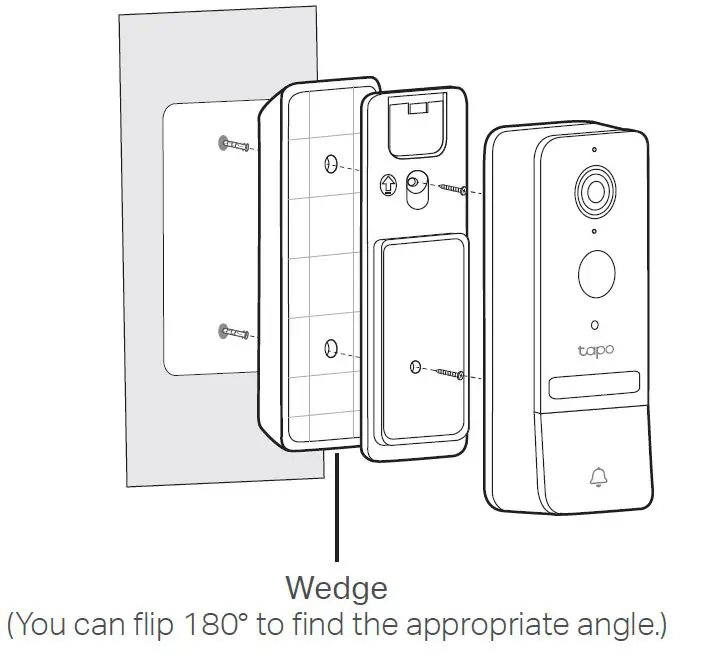

(Optional) Use 15° Mounting Wedge to Adjust Angle
To adjust the viewing angle of the doorbell, you can use the 15° mounting wedge within the package.

1. After drilling holes, insert two anchors into the holes.
2. Place the bracket above the wedge.
3. Use the screws to affix the wedge and bracket over the anchors.
4. Attach the doorbell to the bracket.

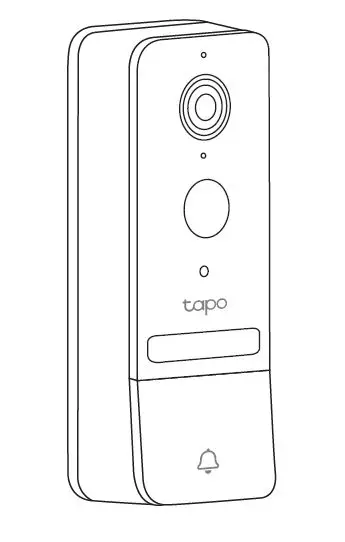

Doorbell Appearance

Front

1. Lens
2. Motion Sensor
3. Spotlight
4. Ring Button
5. Microphone
6. Status LED
   Indicates the status of your doorbell.
7. Light Sensor
8. Speaker

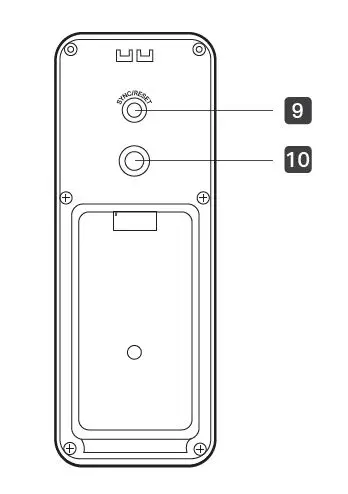

   Back
9. SYNC/RESET Button
   • Press for 1s: Pair with the hub
   • Press and hold for about 5s: Reset the doorbell
10. Anti-Theft Button
    When the Anti-Theft Alarm is enabled on the Tapo app, an alarm will trigger once the doorbell is removed.
    • Press and hold for 5s: Pause the alarm (Continues to alarm when released)
    • Press and hold buttons 9+10 simultaneously for 10s: Disable the anti-theft alarm feature

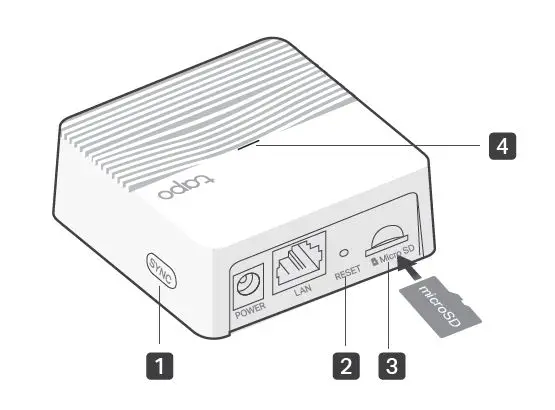

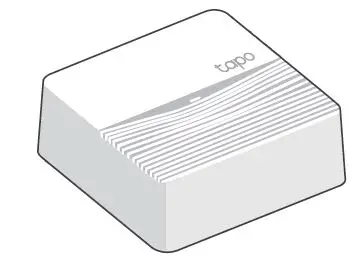

Hub Appearance

1. SYNC Button
   Press to pair with the doorbell, or silence the hub when it rings.
2. RESET
   Use a pin to press and hold for about 5 seconds until the hub LED quickly blinks red to reset the hub.
3. microSD Card Slot
   Insert a microSD card▲ to record doorbell videos locally.
   Initialize the microSD card within the Tapo app first.
   ▲microSD card not included
4. Status LED
   Indicates the status of your hub.

Light Indications

Hub Status LED

Doorbell Status LED

How to Remove Battery

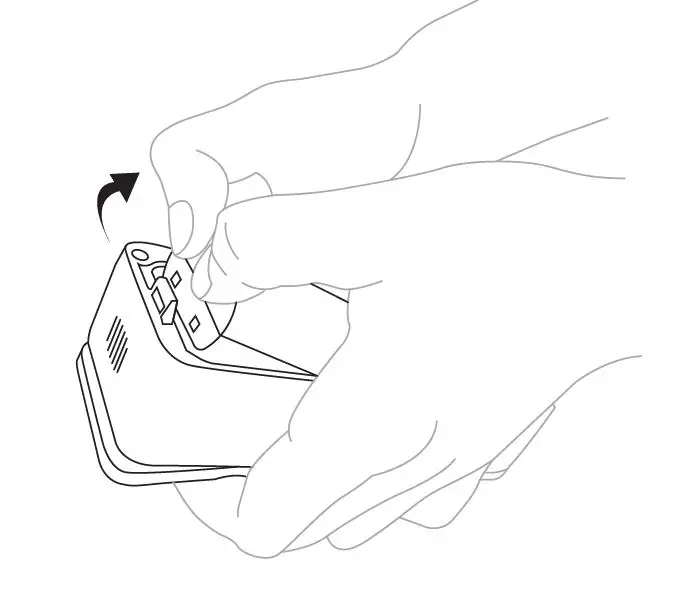

Use a pin to detach the doorbell and firmly pull out the battery.

For technical support, user guides, FAQs, warranty and more, please visit www.tapo.com/support/

Safety Information

• Do not use damaged charger or USB cable to charge the device.
  Do not use any other chargers than those recommended. Do not use the device where wireless devices are not allowed.
• Adapter shall be easily accessible.
• Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don’t hesitate to contact us.
• Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
• Do not disassemble, repair or modify the product.
• Do not place near automatically controlled devices such as fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.
• Observe restrictions on using wireless products in fuel depots, chemical plants or when blasting operations are in progress.
• Do not use liquid to clean the product. Only use a dry cloth.
• Never put metal objects inside the product. If a metal object enters the product turn off the circuit breaker and contact an authorised electrician.
• This product is not intended to be used when providing medical care. Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids to determine if they are adequality shielded from external RF (radio frequency) energy.
• Do not use this product in health care facilities. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
• Do not place heavy objects on top of the product.
• When you leave the product unused for a long time unplug the product from the power outlet.
• This product may interfere with other electronic products such as TV, radios, personal computers, phones or other wireless devices.
• Always follow the local waste and recycle laws when you get rid of the used battery.
• Do not use the product if the casing has been broken. Danger of electric shock.
• Never touch the product with wet hands.
• The mounting height should not be higher than 2 meters. Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

CAUTION!
Risk of fire or explosion
if the battery is replaced by an incorrect type

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.
The original EU declaration of conformity may be found at https://www.tapo.com/support/ce/
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017.
The original UK declaration of conformity may be found at https://www.tapo.com/support/ukca/
