Ignis Awf592 Washer Dryer Instruction Manual

Washer Dryer Ignis AWF592

Operating Instructions

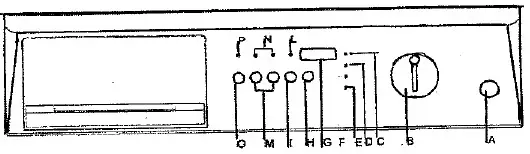

Control Panel

A  Open the door button, press the button to open the door

B  ON-OFF and washing and drying program selection knob This allows you to: switch the machine on and off, select washing temperatures, select the drying program
C  Time remaining shown on display LED Indicates that the display is showing the total duration of the selected program before the program starts, and the time remaining while the program is running
D  The spin speed shown on display LED Indicates that the display is showing the maximum speed for the selected program
D Delicate cycle drying time for delicates shown on display LED Indicates that the display is showing the drying time for delicate garments
F Intensive cycle drying time shown on display LED Indicates that the display is showing the drying time for cotton and colored garments
G  DISPLAY This display shows:

• Time remaining
• Delayed start (if necessary)
• Spin speed
• Drying times
• Cycle pause
• End of cycle
• Error codes

H Select spin speed button or stop with tub full Press the button repeatedly to select the required spin speed, the following are available: 0000: spin disabled and stop with a tub full From 600rpm to the max speed indicated: cotton and coloreds From 600 to 900 rpm: for synthetics, delicates, and woolens
I Select program and drying time button
Press the button repeatedly to select drying times up to a max of 2 hours.
Increments of 10 minutes, starting from 20 minutes.
Synthetic and delicate items – 60°C Cotton and colored garments – 90°C Select programs and drying time button enabled LED This lights up when drying times are being selected and during the drying phase
M  Option buttons Quick wash button reduces the overall duration of the wash cycle. This should be used to wash small loads or less dirty washing
Increase water button: Use this button for very delicate fabrics
Easy Iron button: Reduces creasing on garments at the end of the program
Economy cycle button: Use this for cotton programs and an extended was at 35°C is carried out
Extra rinse button: To use in areas with soft water or to improve rinsing
Delicates button: This reduces movement of the drum and therefore of the washing
Half Load Button: Use this for a smaller amount of washing to save water, detergent and electricity. Should not be used for synthetics or woolens

N Option enabled LED’s: these light up when the relative option button is pressed and indicate that the option has been elected
O Press to start the selected washing program.
If during a wash cycle, press `Start/Pause’ button for approx 3 seconds to pause the current wash cycle. To resume the wash cycle press the `Start/Pause’ button again

P Start-Pause button LED, which lights up when the washing cycle starts and remains on until the end of the program

Detergent Tray

Located at the left of the control panel. Pull out to open. The tray comprises four compartments:

1. Pre-wash detergent
2. Main wash detergent
3. Fabric softener, starch etc
4. Used for bleach

Washing Instructions

Washing		Bleaching
	Machine wash at max 90°C	Bleaching allowed		Do not bleach
	Machine wash at max 60°C
		Ironing
	Machine wash at max 40°C	Hot Iron	Warm Iron	Cool Iron	Do not iron
	Machine wash at max 3 0°C
		Dry cleaning
	Machine wash, delicate cycle at max 60°C	Any Solvent	Any solvent except trichloroethylene	Petroleum solvent & R113	Do not dry clean
	Machine wash, delicate cycle at max 40°C
	Machine wash, delicate cycle at max 30°C
		Drying
	Hand wash

Do not wash

High temperature

Less than 60°C

Do not tumble dry

Drying Instructions
