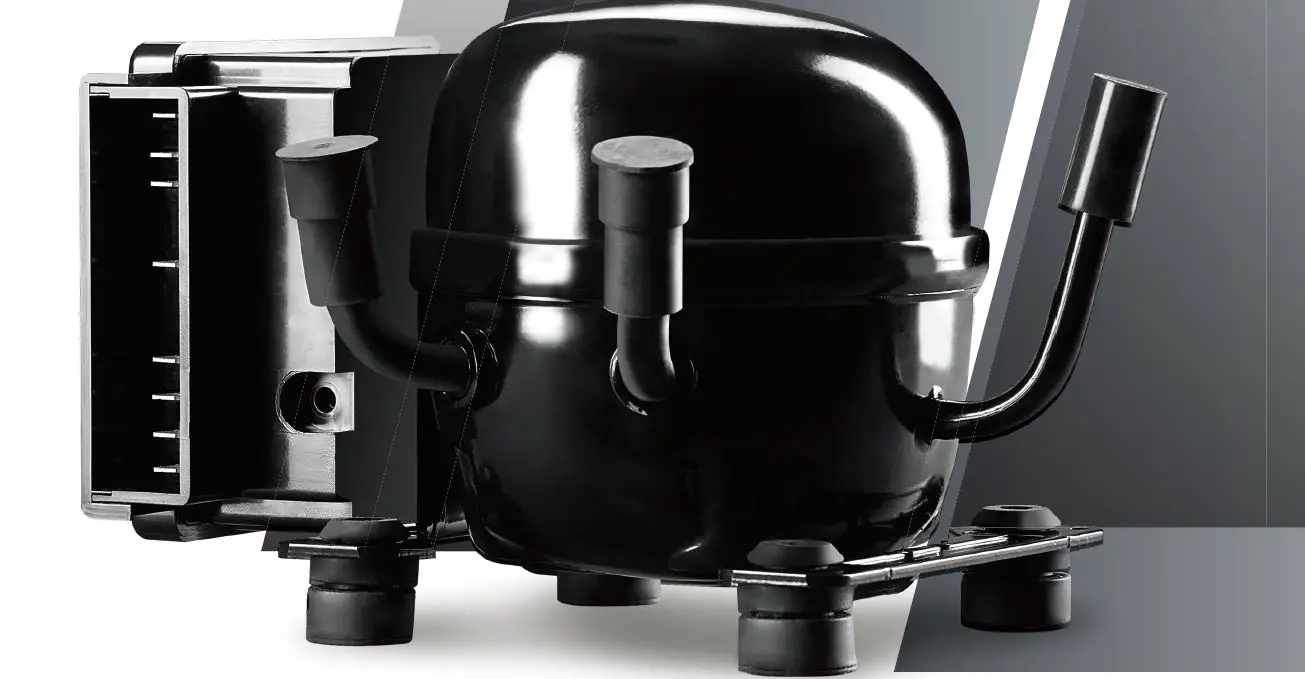

LG BC-Series Ultra-Compact Reciprocating Compressor
LG BC-Series Ultra-Compact Reciprocating Compressor
WHY LG ULTRA-COMPACT RECIPROCATING COMPRESSORS?
- Only 1.5kg Minimized volume for compact application
- Energy-saving Higher efficiency solution with inverter drive
- Low knocking noise at vehicle driving condition
- Low-speed operation down to 35Hz Trouble-free operation at low speed

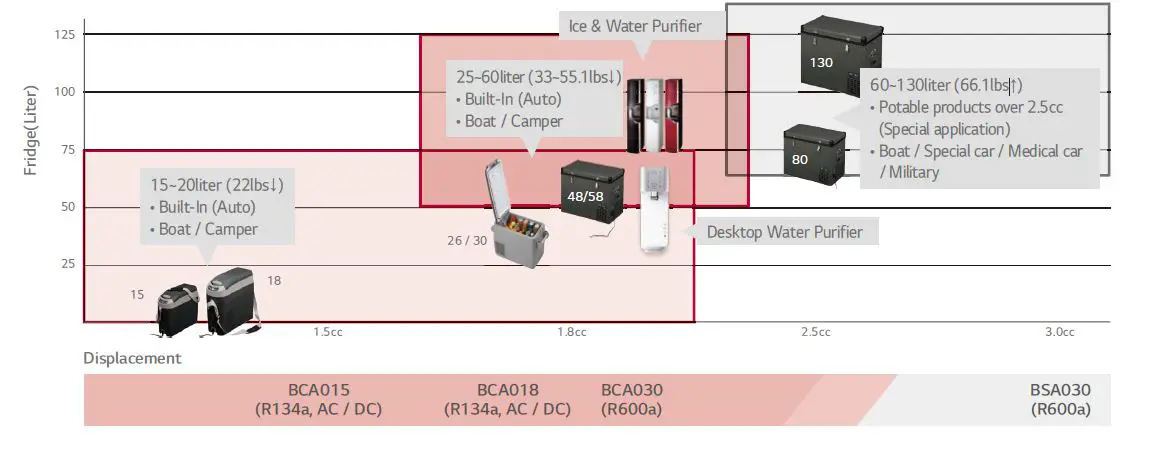

APPLICATION COVERAGE
SPECIFICATIONS
|
Refrigerant |
Model | Speed range | Speed |
Capacity | Performance ASHRAE-23.3 ℃/54.4℃ |
EER |
COP | Voltage / Frequency | |||
| RPM | RPM | Kcal/hr | Btu/W·hr | Btu/W·hr | Btu/W·hr | W/W | V/Hz | ||||
|
R600a | BCA030NAMV | 2,400~ 4,200 | 4,200 | 52 | 206 | 60 | 5.04 | 1.48 | 220~240V 50/60Hz | ||
| 3,600 | 49 | 193 | 57 | 5.08 | 1.49 | ||||||
| 3,000 | 41 | 161 | 47 | 5.07 | 1.48 | ||||||
| 2,400 | 30 | 118 | 35 | 4.26 | 1.25 | ||||||
| BCA030NAMV | 2,400~ 4,200 | 4,200 | 52 | 206 | 60 | 4.62 | 1.35 | 100~127V 50/60Hz | |||
| 3,600 | 49 | 193 | 57 | 4.67 | 1.37 | ||||||
| 3,000 | 41 | 161 | 47 | 4.62 | 1.35 | ||||||
| 2,400 | 30 | 118 | 35 | 3.92 | 1.15 | ||||||
|
R134a | BCA018LAMV | 2,400~ 4,200 | 4,200 | 42 | 165 | 48 | 4.10 | 1.20 | 220~240V 50/60Hz | ||
| 3,600 | 38 | 151 | 44 | 4.37 | 1.28 | ||||||
| 3,000 | 35 | 139 | 41 | 4.37 | 1.28 | ||||||
| 2,400 | 29 | 117 | 34 | 4.46 | 1.31 | ||||||
| BCA018LAVV | 2,400~ 4,500 | 4,200 | 42 | 165 | 48 | 3.91 | 1.15 | 12/24V DC | |||
| 3,600 | 38 | 151 | 44 | 3.44 | 1.01 | ||||||
| 3,000 | 35 | 139 | 41 | 3.04 | 0.89 | ||||||
| 2,400 | 29 | 117 | 34 | 2.84 | 0.83 | ||||||
| BCA015LAVV | 2,400~ 4,500 | 4,200 | 28 | 112 | 33 | 4.18 | 1.22 | 12/24V DC | |||
| 3,600 | 25 | 100 | 29 | 3.70 | 1.08 | ||||||
| 3,000 | 21 | 83 | 24 | 3.26 | 0.95 | ||||||
| 2,400 | 17 | 67 | 20 | 3.04 | 0.89 | ||||||
4300 NORTH POINT PKWY SUITE#100 ALPHARETTA, GA 30022
Office : 678-328-6433
E-mail : [email protected] www.lg.com/global/business
For Continual product development, LG reserves the right to change the specifications without notice.
© LG Electronics Inc. Printed in Korea Jan, 2020
