Edco Bthp10 Wireless Business Headset User Manual

EDCO BTHP10 Wireless Business Headset

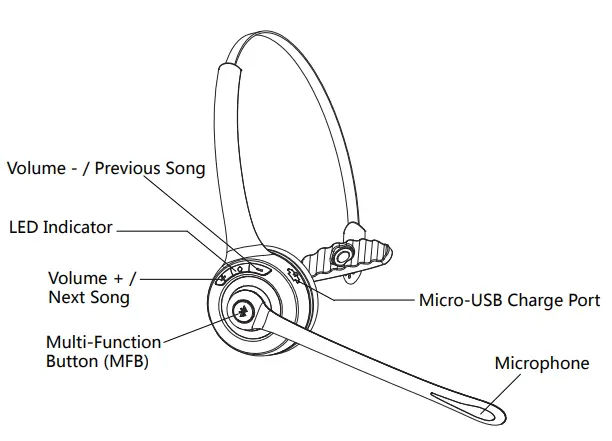

Product Overview

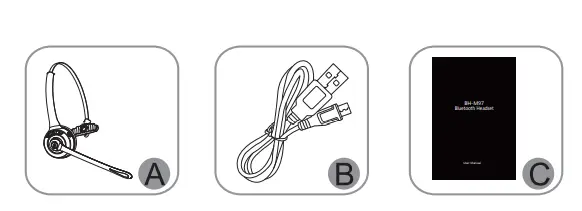

Package Contents:

• A. Bluetooth Headset BTHP10 X 1
• B. Micro USB charging cable x 1 C. User manual x 1

Basic Operation

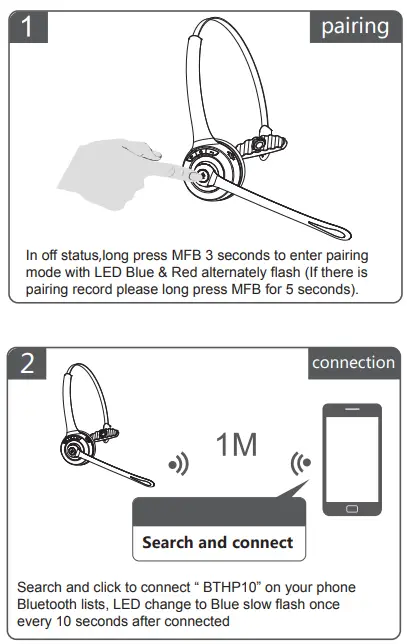

Bluetooth Pairing and Connection

• A. In off status, long press MFB for 3 seconds to enter pairing mode with Blue & Red LED flash alternately (If there is pairing record please long press MFB for 5 seconds).
• B. Search and click to connect “ BTHP10” on your phone Bluetooth lists, LED change to Blue slow flash once every 10 seconds after connected, now you can play music from phone to headphone.
• C. You can press MFB / volume+ / volume- on the Bluetooth headset to control the answer/hang up a call and play/pause of the music, next and previous song, volume up and down.

Connection with Two devices

• A. Follow part 3 to connect with first phone, then turn off the Bluetooth function of first phone.
• B. Turn off the headset then long press MFB for 5 seconds to enter pairing mode again with Red & Blue LED flash alternately. Turn on the bluetooth function of second phone to search and connect “BTHP10”, LED change to Blue flash once every 10 seconds.
• C. Turn on Bluetooth function of second phone, click to reconnect “BTHP10” on Bluetooth lists. LED change to Blue slow flash after connected.
• D. Turn on Bluetooth function of first phone, click to reconnect “BTHP10”on Bluetooth lists. Headset is connected with two phones now.
• Notes: Music only can be played from one phone under two connections, when you want to play music from another phone, you need to pause or turn off the music of the previous phone. The same operation during talking status.

LED Indicator

Charging

• Please charge the BTHP10 at once when the Red LED flash. Charging time is about 2 hours. Red LED turn off when full charged.

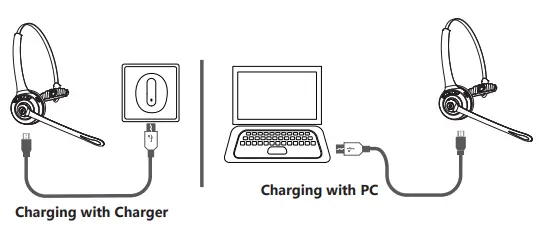

Charge Connections

• Please connect to the BTHP10 charging port through the Micro USB end of Micro USB charging cable, the USB end to the charger as car charger, travel charger, computer USB, etc.

Notes

1. Please charge the BTHP10 at least one time every 2 months when don’t use it.
2. Plug charging cable for charging when power on, will reset the headset and power off.

Product Specification

Notes: Actual use time will differ from environment and music

Attention and Q & A

• A. How to reconnect and operate when failed to reconnect?
• When BTHP10 connected to your mobile phone successfully at the first time, it will search and reconnect the paired device automatically when power on, If failed, please pair and connect again.
• B. How to delete paired records?
• In power on status, long press the MFB and Volume + for 5 seconds to clear the pairing record. Blue and Red LED flash once at the same time that means the pairing record has been cleared, and the BTHP10 will not connect the connected device. When there are various connection problem, try clearing the pairing record firstly.
• C. What’s the password for pairing?
• Some connection devices require password for pairing, please try 0000 or 8888 or 1111 or 1234.
• D. What devices could charge for the headphone?
• Any car charger, power bank, PC etc which meet DC 5V , charging current more than 500mA could be charge for this item.
• E. How to do if can not power on or dead？
• Please try charging reset: Plug the charging cable when power on, it will reset the headset and power off.

FCC Warning

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference ,
2. this device must accept any interference received , including interference that may cause undesired operation .

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.

FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

IC Warning

This device complies with Innovation, Science and Economic Development Canada license-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le onjunc areil est conforme aux CNR d’ l’innovation, la science et le développement économique Canada licables aux areils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:

ISEDC Radiation Exposure Statement:
This equipment complies with ISEDC RF radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter
