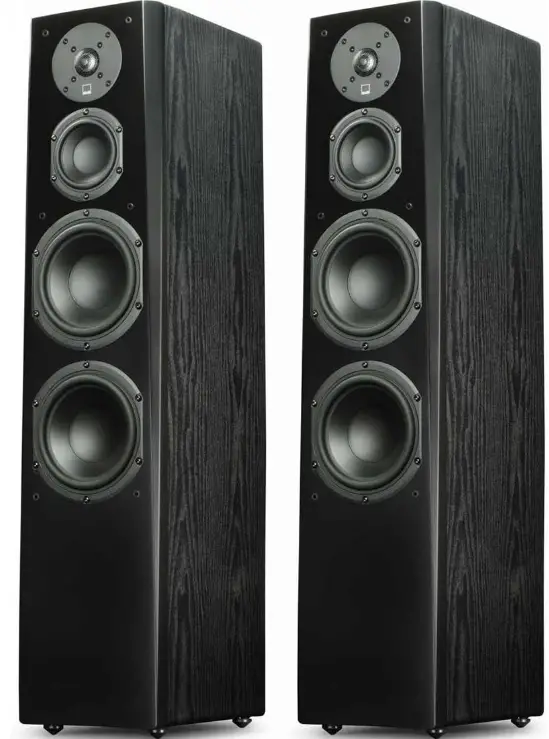

SVS PRMTWRBPR Prime Tower Speakers

SETTING UP YOUR PRIME SPEAKER’S FOOT OPTIONS

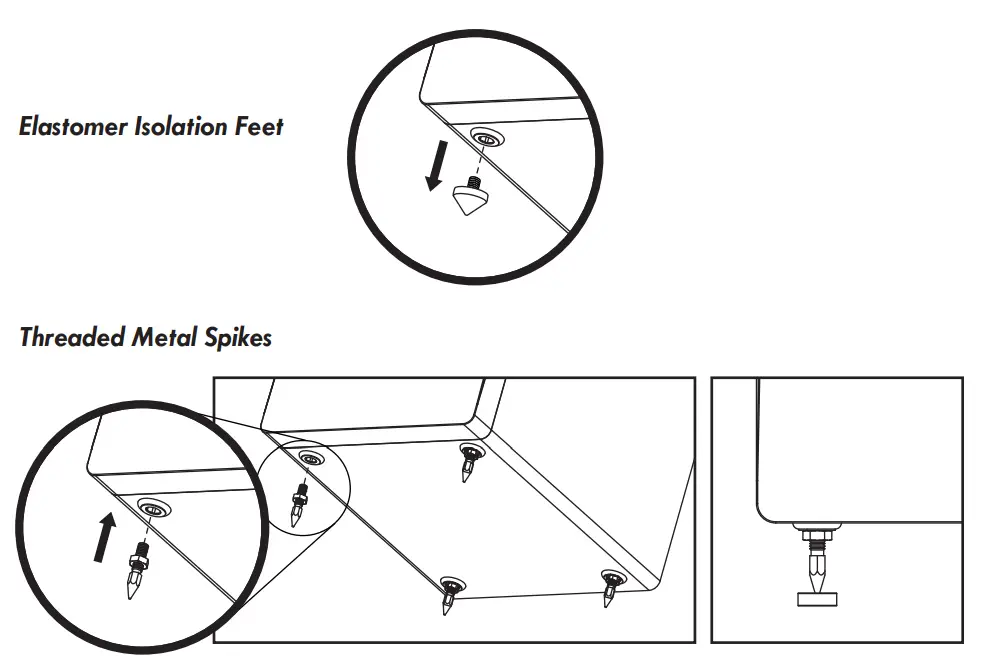

The Prime Tower speakers come packaged with two sets of foot support options that allow optimal placement on a variety of floor substrates. The Elastomer Isolation feet that come pre-installed on the Prime Towers can be removed (unscrew to remove) and replaced with the included Threaded Metal Spike kit. Both sets of feet are threaded to allow easy leveling of the Prime Towers if they should stand on an uneven surface.

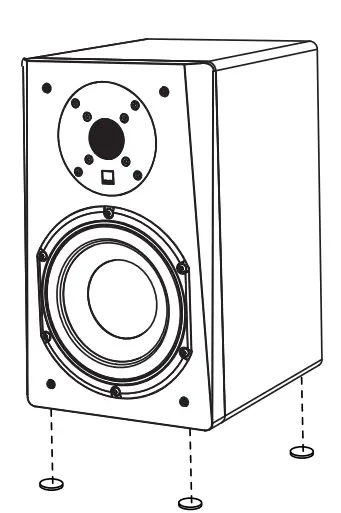

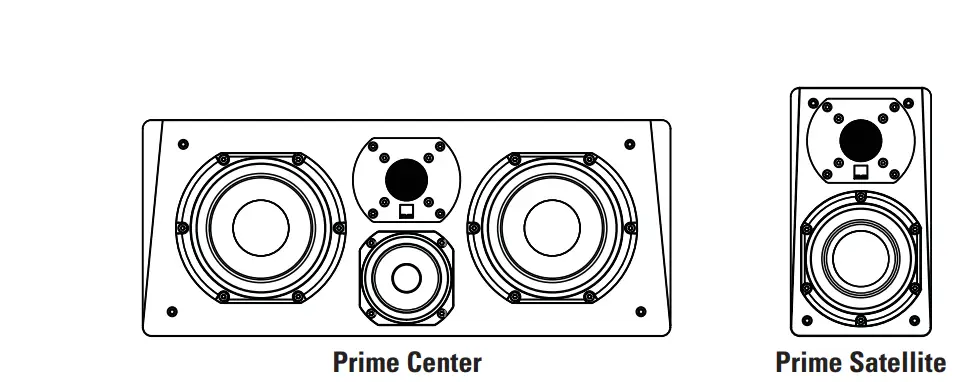

The Prime Bookshelf, Prime Center and Prime Satellite also include stick-on bumper kits that can be attached to the bottom of your speakers to protect them when placed on speaker stands and other surfaces.

SETTING UP YOUR PRIME SPEAKER’S ACOUSTICS & ROOM PLACEMENT

Front Left/Right Loudspeaker Placement and Room Acoustics:
Proper placement of the front left/right speakers is essential to achieve the smoothest frequency response, optimal stereo imaging, and the most spacious, three-dimensional soundstage.

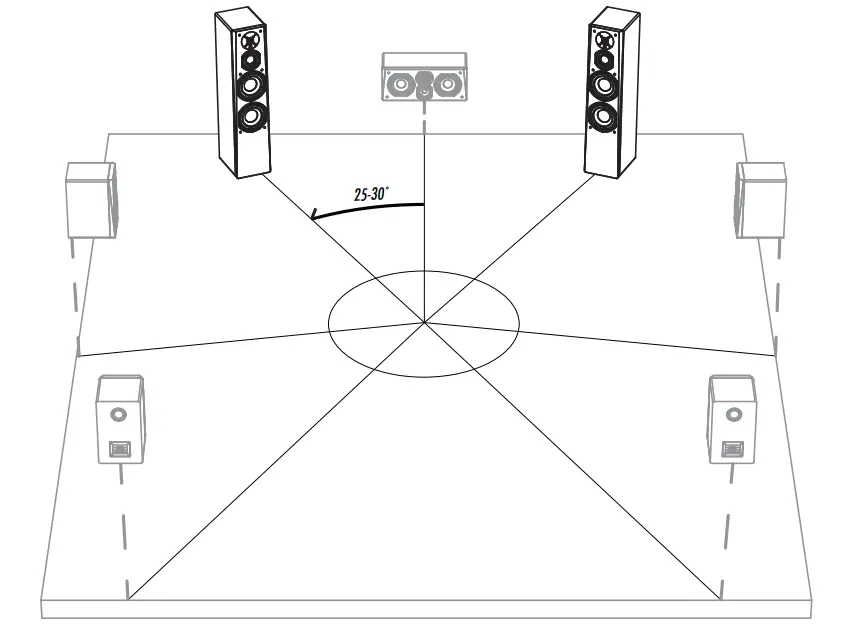

Stereo imaging and soundstage are affected by loudspeaker location and the listening position, relative to each other and room boundaries. Moving the loudspeakers away from room boundaries will tend to improve stereo imaging and spaciousness by attenuating and delaying boundary reflections, thus optimizing direct sound and helping to preserve spatial information in the recording. The amount of exposed glass, drywall and bare flooring in the room will increase the amount of reflected sound and exacerbate problems like slap echo and ringing. Conversely, furnishings like carpeting, drapes, and upholstered furniture will reduce the amount of reflected sound in the room. The ratio of direct-to-reflected sound and the decay characteristics of the listening environment will have a large influence on the ultimate sound quality of any loudspeaker system. Dedicated room treatments like absorbers, diffusers and bass traps can greatly improve the sound quality of any listening environment and are encouraged to extract the absolute best performance from any high-end loudspeaker system. SVS recommends starting with the front loudspeakers located 30 degrees to the left and right (i.e., a 60-degree total window) of the listening position.

Toeing in the loudspeakers 5-10 degrees can often improve imaging, however, this is also a function of the distance from nearby boundaries and the ratio of direct to reflected sound, so experimentation with toe-in is recommended to obtain optimal results. The location of the front loudspeakers relative to nearby boundaries will excite various room modes (a complex pattern of standing waves with associated peaks and nulls), which will affect the bass response of the loudspeakers. Generally, placing the loudspeakers closer to room boundaries (particularly corners) will increase the bass response. Conversely, moving the loudspeakers away from boundaries and corners will reduce the bass response. Due to the complex interaction of the loudspeakers with nearby boundaries/corners and your listening position, significant changes to the bass response can occur with very small changes in either loudspeaker location or listening position, so experimentation with both placement and listening position is recommended to obtain optimal results.
Center Channel Placement
The center channel should be placed directly on-axis, relative to the primary seating position. As with the main front speakers, placing the tweeter at/near head level when seated is optimal. But depending on the placement of the video display or projection screen, this is not always possible. If the center channel must be located below head level, then an upward tilt of the the speaker is recommended to improve mid/high-frequency response and dialogue intelligibility.

Note: When purchased as a matching surround package, the versatile Prime Satellite functions as all channels of the system, including the center channel.

Surround Speakers

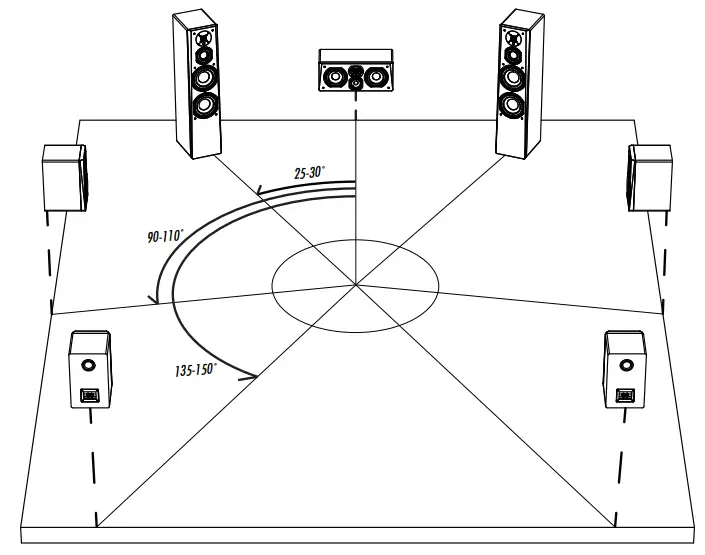

In a 5-channel system, the side surround speakers should be located 90-110 degrees off-axis. For the best sense of spaciousness, the tweeter height should be about 2 feet above ear level.
In a 7.1 system, dedicated rear surround speakers are placed behind the primary seating position for enhanced rear panning effects.
Place the rear surround speakers at 135-150 degrees off-axis, relative to the primary seating position. As with the side surround speakers, position the rear surround tweeters about 2 feet above head level when seated.

9.1 and 11.1 Systems

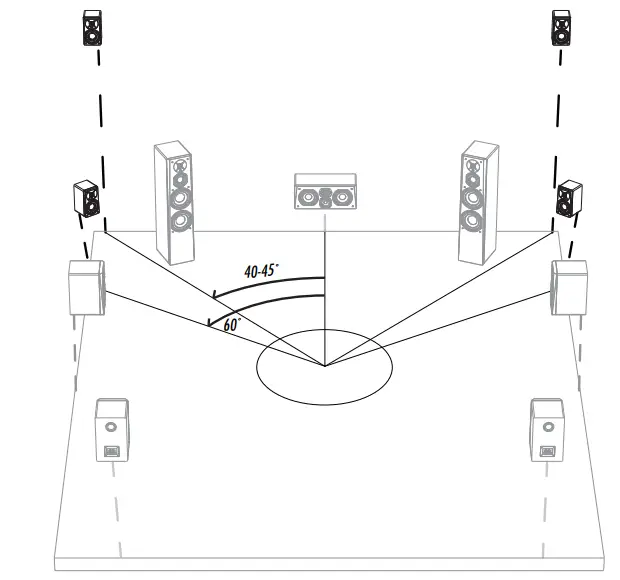

The recent development of 9 and 11-channel surround sound processors brings Wide and Height ‘presence’ channels into the system to even further enhance sound stage spaciousness and immersion. Since native Blu-ray formats are currently only available in 7.1, the use of Wide or Height speakers requires the use of an upconverting algorithm in the surround sound processors – like Audyssey DSX, DTS Neo:X and Dolby ProLogic IIz.

Wide Speaker Channels
The wide speaker channels are intended to be placed between the main front speakers and the side surround speakers. The goal of the wide speaker is to minimize any gaps in panning and imaging between the front main speakers and the side surround speakers and provide an additional sense of envelopment. The optimal location for the wide speakers is about 60 degrees off-axis, relative to the primary seating position. Audyssey recommends that the wide speakers be placed at head level when seated.
Height Speaker Channels
The height speaker channels should be placed in the upper left/right corners of the front stage. Typically this will be 40-45 degrees off-axis and about 8 feet in height. A downward tilt of the speaker will improve mid/high frequency response and reduce ceiling bounce reflections. The height speakers enhance imaging in the vertical plane, and can even be used to create sound effects which seem to come from directly above the listening position, which provides total immersion into the surround sound experience.

SETTING UP YOUR PRIME SPEAKERS SPEAKER MOUNTING

Wall-Mounting Your Prime Satellites

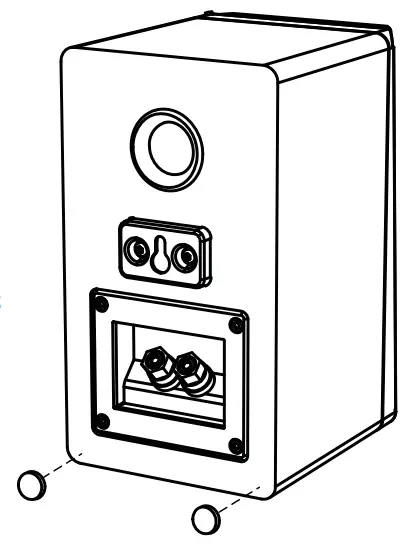

Each Prime Satellite comes from the factory ready to be wall-mounted. The pre-installed keyhole bracket makes hanging your Prime Satellite a simple and convenient process. Simply attach a screw to your wall at the desired mounting location, and insert the keyhole bracket of the speaker over the head of the screw until the speaker rests securely in place. Before hanging, be sure  to attach a set of the included rubber bumpers to each lower back corner of the Prime Satellite. These will help keep the speaker level, and prevent spinning on the wall.
When attaching the screw to your wall, it is best to attach it directly into a structural part of the wall, like a stud. If mounting directly to a stud is not a viable option, using drywall or masonry anchors rated to support weights of 10 pounds or more will be sufficient.

The mounted height of your surround speakers is important to consider when locating the optimal position for your Prime Satellites. For the best sense of spaciousness, we recommend that the tweeter height of your speaker should be about 24-36 inches above ear level at the listening position.
Please contact our Sound Experts if you have any questions or concerns about wall mounting your Prime Satellite.
[email protected] • (877) 626-5623

SETTING UP YOUR PRIME SPEAKERS SPEAKER CONNECTION

Connecting Your Speakers

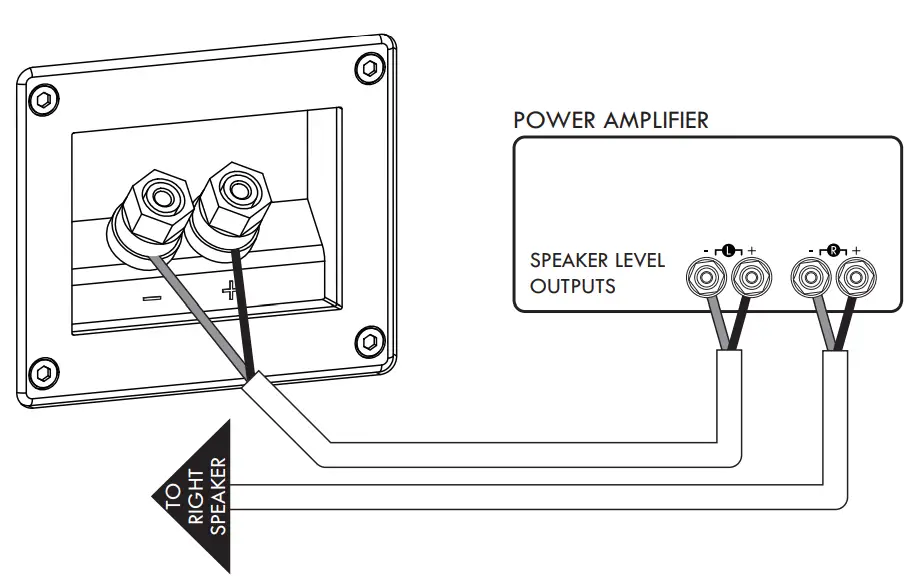

All Prime Speakers include terminals with convenient gold-plated 5-way binding posts, which will accept wires terminated with banana plugs, speaker pins, spade connectors, and of course, bare wire. Simply attach each Prime Speaker to the appropriate amp channel of your receiver/power amplifier.
To assure the proper performance of your speakers, always be sure to maintain proper polarity between the speaker and the amplifier.

CARING FOR YOUR PRIME SPEAKERS

Your Prime Speakers may be gently cleaned as follows:

• Use a dry microfiber duster to remove any loose surface dust.
• Use a water-damp microfiber cloth to remove fingerprints, smudges and other contaminants. Wipe in one direction only.
• Follow any damp cleaning immediately with a dry microfiber cloth. Again dry wipe in one direction only.

5-YEAR UNCONDITIONAL WARRANTY
SVS offers the industry’s most comprehensive warranty on all our products. SVS warrants these Prime Speakers and all of its products to be free from defects in the workmanship for 5 years from date of purchase. This, and all of the SVS customer Bill of Rights can be viewed online at www.svsound.com/bill-of-rights.

SHARE YOUR THOUGHTS
At SVS, we strive to deliver products that surpass every expectation and provide unbeatable value. After you have had an opportunity to install and audition your Prime Speakers, please share your comments for our team and other customers to see.
Write a review at svsound.com
Post at facebook.com/SVSound
Tweet @SVS_Sound

PRIME SPEAKER FEATURES & SPECIFICATIONS

ALL SPECIFICATIONS ARE SUBJECT TO CHANGE. SVS IS CONSTANTLY WORKING TO IMPROVE OUR PRODUCTS
AND GIVE YOU, THE CUSTOMER, THE BEST LISTENING EXPERIENCE FROM YOUR PURCHASE.

PRIME TOWER
Frequency Response and Electro-Acoustic Data:

• Rated bandwidth: 30 Hz-25 kHz (+/-3 dB).
• Nominal impedance: 8 ohms.
• Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz).
• Recommended amplifier power: 20-250 watts.

Loudspeaker Physical Description:

• Black ash and piano gloss black finish options.
• 5-way binding posts.
• dual 1.7” wide-flared rear-firing ports.
• Cloth grille with pin/cup retention system.
• Cabinet Dimensions: 36″ (H) X 8″ (W) X 10.8″ (D).
• Overall Dimensions: 36.6″ (H) X 8″ (W) X 11.6″ (D) (includes grille, feet, and binding posts).
• Weight Unboxed: 40.1 pounds.

Driver Array and Technical Highlights:

• 1″ tweeter features an FEA-optimized diffuser and aluminum dome.
• 4.5″ midrange driver features a polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket and vented voice coil former.
• Dual 6.5″ woofers feature long stroke motor and suspension, polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket and vented voice coil former.

SoundMatch Crossover Network:

• 3.5-way crossover with premium-grade capacitors, air-core inductors, and heavy-trace printed circuit boards.
• Tapered woofer array optimizes the transition to the midrange driver and reduces vertical axis lobing.
• Midrange-to-tweeter crossover: 2.1 kHz (12 dB/octave slopes).
• Top woofer (Combined Woofer) to midrange crossover frequency: 350 Hz (12 dB/octave slopes).
• Bottom woofer low pass frequency: 165 Hz (customized filter Q and slope).

Cabinet Construction Technical Highlights:

• Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality.
• Separate woofer enclosures with optimized port tuning frequencies for smooth and accurate bass response.
• Acoustically transparent and FEA-optimized grilles minimize diffraction.
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high-frequency response.
• FEA-optimized cabinet and bracing eliminate resonances.

PRIME BOOKSHELF
Frequency Response and Electro-Acoustic Data:

• Rated bandwidth: 48 Hz-25 kHz (+/-3 dB).
• Nominal impedance: 8 ohms.
• Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz).
• Recommended amplifier power: 20-150 watts.

Loudspeaker Physical Description:

• Black ash and piano gloss black finish options.
• 5-way binding posts.
• 1.7” wide-flared rear-firing port.
• Cloth grille with pin/cup retention system.
• Elastomer stick-on bumper feet (adds 3mm to height).
• Cabinet Dimensions: 13.2″ (H) X 8″ (W) X 9.4″ (D).
• Overall Dimensions: 13.3″ (H) X 8″ (W) X 10.3″ (D) (includes grille, binding posts and bumper feet).
• Weight Unboxed: 15.5 pounds.

Driver Array and Technical Highlights:

• 1″ tweeter features a FEA-optimized diffuser and aluminum dome.
• 6.5″ woofer features a long stroke motor and suspension, polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket and vented voice coil former.

SoundMatch Crossover Network:

• 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
• The crossover network delivers outstanding phase coherency and time domain behavior.
• Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes).

Cabinet Construction Technical Highlights:

• Acoustically transparent and FEA-optimized grilles minimize diffraction.
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response.
• FEA-optimized cabinet and bracing eliminates resonances.

PRIME CENTER

Frequency Response and Electro-Acoustic Data:

• Rated bandwidth: 48 Hz-25 kHz (+/-3 dB).
• Nominal impedance: 8 ohms.
• Sensitivity: 86 dB (2.83V @ 1 meter full-space, 300-3kHz).
• Recommended amplifier power: 20-200 watts.
  Loudspeaker Physical Description:
• Black ash and piano gloss black finish options.
• 5-way binding posts.
• Dual 1” wide-flared rear-firing ports.
• Cloth grille with pin/cup retention system.
• Elastomer stick-on bumper feet (adds 3mm to height).
• Cabinet Dimensions: 7.6″ (H) X 18.6″ (W) X 8.3″ (D).
• Overall Dimensions: 7.7″ (H) X 18.6″ (W) X 9.2″ (D) (includes grille, binding posts and bumper feet).
• Weight Unboxed: 20.2 pounds.

Driver Array and Technical Highlights:

• Vertically aligned tweeter and midrange reduce lobing and comb filtering along the horizontal axis.
• 1″ tweeter features a FEA-optimized diffuser and aluminum dome.
• 3.5″ midrange driver features a polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket and vented voice coil former.
• Dual 5.25″ woofers feature long stroke motor and suspension, polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket and vented voice coil former.

SoundMatch Crossover Network:

• 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
• Midrange-to-tweeter crossover: 2.4 kHz (12 dB/octave slopes).
• Woofer-to-midrange crossover: 350 Hz (12 dB/octave slopes).

Cabinet Construction Technical Highlights:

• Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality.
• Acoustically transparent and FEA-optimized grilles minimize diffraction.
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response.
• FEA-optimized cabinet and bracing eliminates resonances.

PRIME SATELLITE

Frequency Response and Electro-Acoustic Data:

• Rated bandwidth: 69 Hz-25 kHz (+/-3 dB).
• Nominal impedance: 8 ohms.
• Sensitivity: 85 dB (2.83V @ 1 meter full-space, 300-3kHz).
• Recommended amplifier power: 20-150 watts.

Loudspeaker Physical Description:

• Black ash and piano gloss black finish options.
• 5-way binding posts.
• 1” wide-flared rear-firing port.
• Cloth grille with pin/cup retention system.
• Elastomer stick-on bumper feet (adds 3mm to height).
• Keyway bracket for easy and convenient wall mounting (includes extra bumper pads for wall stand-off).
• Cabinet Dimensions: 8.75″ (H) X 4.9″ (W) X 5.53″ (D).
• Overall Dimensions: 8.85″ (H) X 4.9″ (W) X 6.3″ (D) (includes grille, bracket, binding posts and bumper feet).
• Weight Unboxed: 6.5 pounds.

Driver Array and Technical Highlights:

• 1″ tweeter features a FEA-optimized diffuser and aluminum dome.
• 4.5″ woofer features a polypropylene cone, aluminum shorting ring, cast ABS-fiberglass composite basket and vented voice coil former.

SoundMatch Crossover Network:

• 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards.
• The crossover network delivers outstanding phase coherency and time domain behavior.
• Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes).

Cabinet Construction Technical Highlights:

• Acoustically transparent and FEA-optimized grilles minimize diffraction.
• Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response.
• FEA-optimized cabinet and bracing eliminates resonances.
