PYLE PLD64C 2 Pcs. 6.5 Inch SVC Speakers
PLDG4C 2 Pcs.6.5″ SVC Speakers with Pair of 12dB Per Dctave Passive Crossover Network and Pair of 1.0″ Aluminum Tweeter, Paper Cone with Cloth Edge

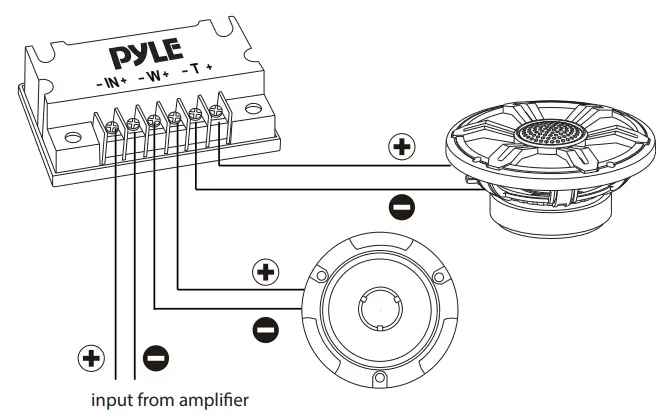

WIRING CONNECTION
- Connect the crossover to the positive and negative poles accordingly.
- T (Tweeter), W (Woofer), IN (input from amplifier)
Features
- One Pair 6.5” Three-Way Component Speaker Systems
- Non-fatiguing Butyl Rubber Surround
- 1.5” High-Temperature ASV Voice Coil
- Standard 6.5” Size Fits OEM Locations
- Ensures Low Distortion
- Flush and Surface Mount Capability
- 12dB Octave Passive Crossover Network

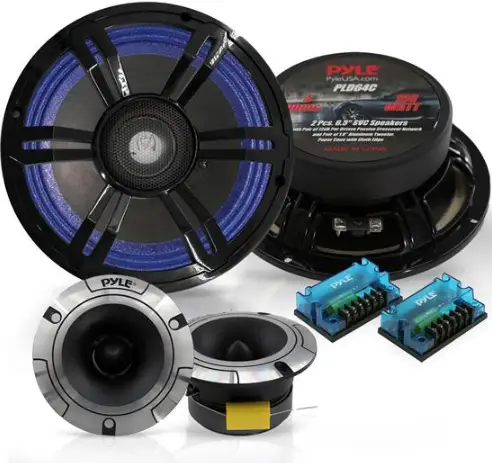

What’s in the Box
- (2) 6.5” Woofers
- (2) Aluminum Tweeters
- (2) Crossover Network
- Grilles
- Wires
- Mounting Hardware
Technical Specs
- Power Handling: 120 Watts Max, (Tweeter); 150 Watts Peak Power (Woofer)
- Impedance: 4 Ohm
- Sensitivity: 101 dB
- Frequency Response (woofer): 60Hz – 5000Hz
- Frequency Response (tweeter): 1.5KHz – 20KHz
- Voice Coil: 1.5”
- Tweeter Size: 3.8”
- Product Dimension: 4.13” x 2.59” x 1.22” -inches (Crossover)
- Product Dimension with Grill: 6.81” x 6.81” x 3.07” -inches (Woofer)
California Prop 65 Warning
WARNING: This product contains Nickel carbonate which is known to the state of California to cause cancer birth defects and other reproductive harm. Do not ingest.
For more info go to: www.P65warnings.ca.gov
