Gaming Headset
User Manual
Model:EG03

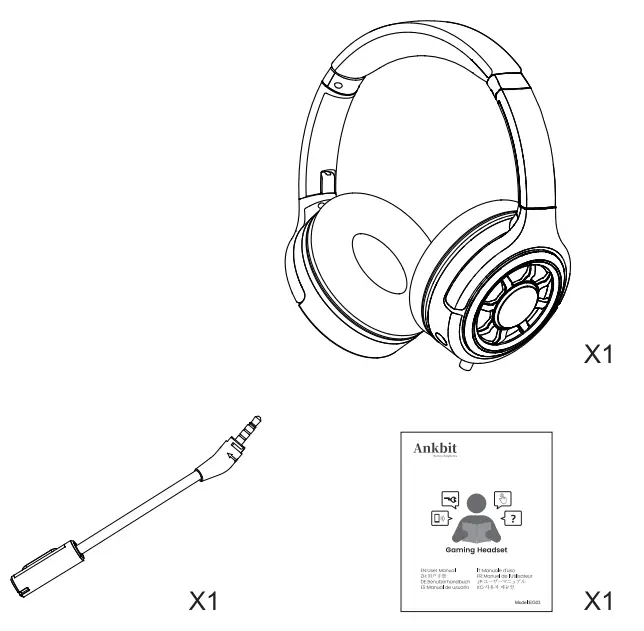

In the box
In the box

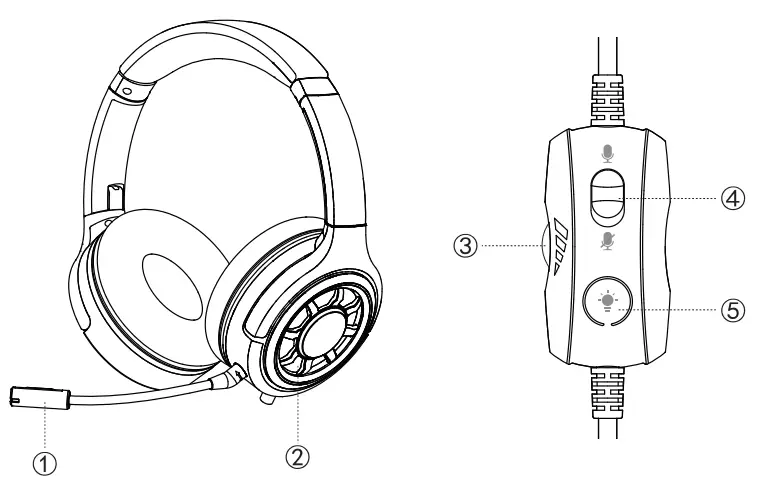

Product overview
Product overview
| 1 | microphone | 4 | microphone control |
| 2 | light | 5 | Light control |
| 3 | volume control | ||

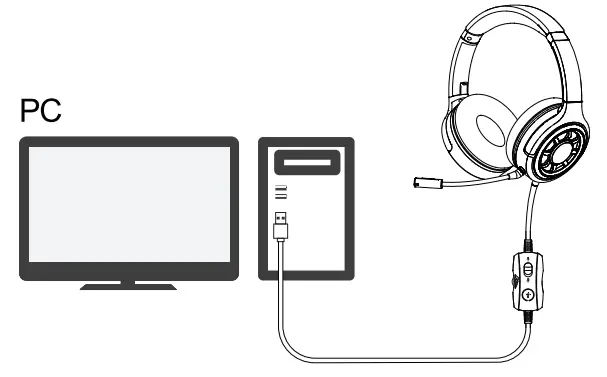

Scenario shows
Scenario shows

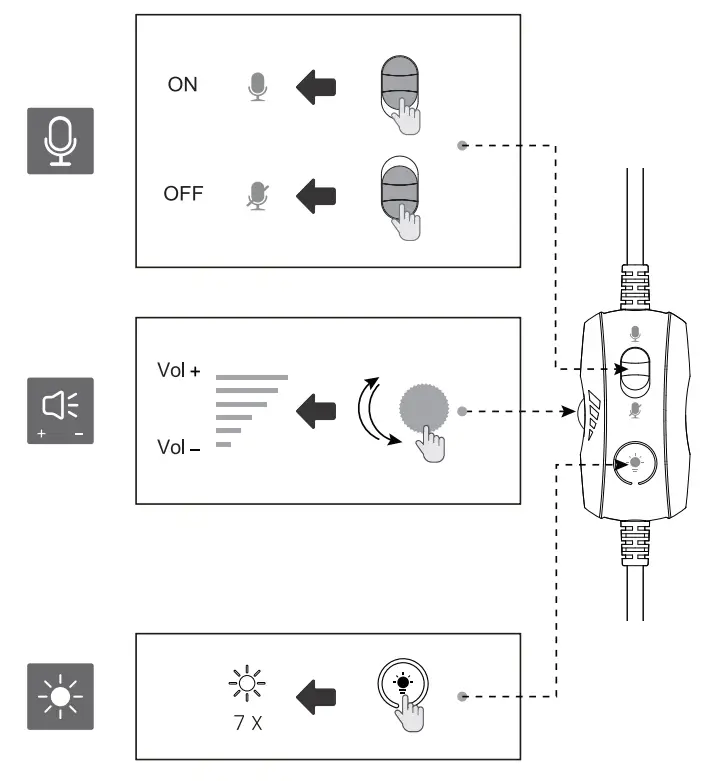

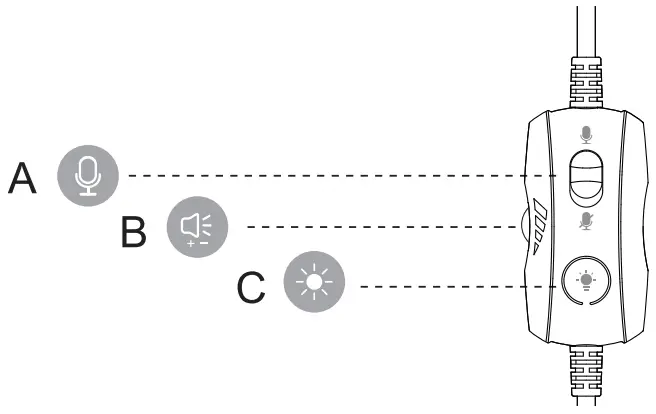

Control Functions
Control Functions
| A | Microphone control |
| B | volume control |
| C | Lighting effect control |
Product Features
Product Features| Size |  | 19317591mm |
| Weight | 340g | |
| Frequency range | 20HZ —-·20kHZ | |
| Driving coil/ diameter | Φ50mm | |
| Rated sensitivity | 117d8±3d8 | |
| Impedance | 16Ω ± 15% | |
| Speaker diameter | Φ50mm | |
| Interface | 2.0USB | |
| Maximum power | 30mW | |
| Current | ≤60mA | |
| Voltage | DC5±0.25V |
Limited Warranty
This warranty does not cover defects resulting from improper or unreasonable use or maintenance; failure to follow operating instructions; accidents; excess moistures; insects; lightning; unauthorized alteration or modification of original condition: damage caused by inadequate packing or shipping procedures: loss of damage to or corruption of stored dot: damage caused by use with non-IMii products; a product that requires modification or adaptation to enable it to operate in any country other than the country for which
it was designed, manufactured, approved, and/or authorized, or repaired of products damaged by their modifications; and products purchase form, unauthorized dealers.
How to Make a Claim
In the event damage has occurred to products, you must follow these
instructions:
- Within two months, contact [email protected] with the order number on the commerce website after you discover a product defect ( or should have discovered it if such product defect was obvious);
- In order to get professional solutions for Mii, please give a detailed explanation of how the damage occurred.
- Return the products. 1Mii will, at our sole option, repair or replace any defective parts within a reasonable period of time and free of charge.
CE
IMii Ltd. hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive
2014/53/EU
The full text of the EU declaration of conformity is available at the following internet address: www.1mii.com In accordance with Article 10(2) and Article 10(10), this product is
allowed to be used in all EU member states.
1Mii Limited
Baoan District, Shenzhen 518100 China
EU Importer:
eVatmaster Consulting GmbH
Bettinastr. 30,60325 Frankfurt am Main, Germany
Warranty
Warranty service is limited to normal use. Any man-made damages such as from connecting to an unsuitable power source, using an unsuitable device, or not following the instructions. as well as damages that did not occur during shipping, repairs, and adjustments not approved by the company, damages from misuse, inattention, or improper installation may cause the warranty to be ineffective immediately. This warranty does not include shipping fees.
Disposal
Always dispose of the used appliance at a recycling center.
Do not dispose of the used appliance together with household waste.
| EC | REP |
eVatmaster Consulting GmbH
Bettinastr. 30
60325 Frankfurt am Main, Germany
[email protected]
Scan the code to get more information.
Manufacturer: ShenZhen Ankbit Electronics Limited Address: Runfeng Industrial Park, No. 4197 Baoan Blvd., Xixiang St., Baoan Dist., Shenzhen, China Operator: ShenZhen 1Mii Technologies Limited Address: Qianhai Complex A201, Qianwan Road 1, Qianhai Shenzhen-Hong Kong Cooperation Zone, Shenzhen, China We hope you never have the need, but if you do, our service is friendly and hassle-free.
[email protected]
web: www.lmii.com
MADE IN CHINA
