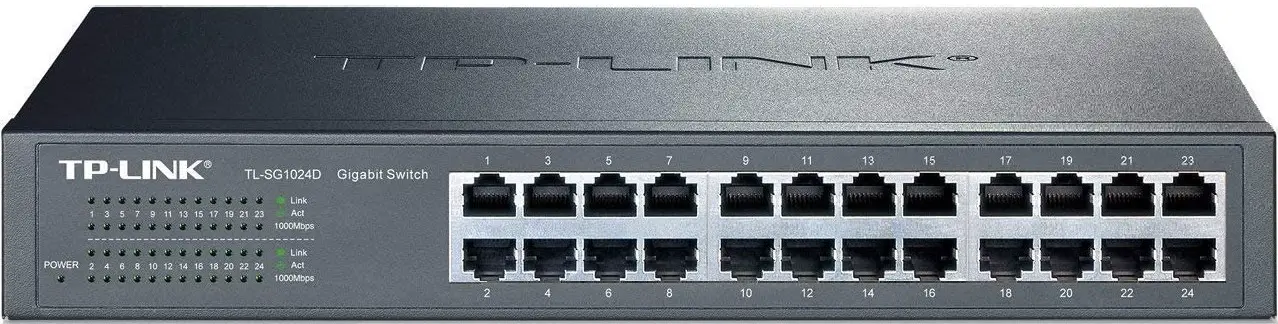

TP-Link TL-SG1024D 24-Port Gigabit Switch
Overview
The TL-SG1016D/TL-SG1024D Gigabit Ethernet Switch represents a high-performance, low-cost, simple, seamless, and standardized upgrade that allows you to transform your existing network and achieve 1000Mbps speeds. All 16/24 ports support auto MDI/MDIX, so there is no need to worry about cable types. Simply plug and play. With the innovative energy-efficient technology, the TL-SG1024D can reduce power consumption and the vast majority of its packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-Link Green Technology
The new TL-SG1024D Gigabit Switch features a variety of energy-efficient technologies that allow you to increase your network capacity while consuming less power. The switch limits the carbon footprint of your network by automatically adjusting power consumption in accordance with link status and cable length. It complies with the EU RoHS, which prohibits the use of certain hazardous materials, and most of the packaging material is recyclable.
Enhanced Performance
All 24 ports are Gigabit RJ-45 ports, allowing them to support large file transfers and makes them compatible with 10Mbps and 100Mbps Ethernet devices. Since both switches feature a non-blocking switching architecture, the TL-SG1016D and TL-SG1024D forward and filter packets at full wire speed, achieving maximum throughput. 10KB Jumbo frame significantly improves performance during large file transfers. IEEE 802.3x flow control supports Full Duplex mode and backpressure for Half Duplex mode alleviates traffic congestion to make the TL- TL-SG1024D more reliable. This makes the TL-SG1024D a perfect choice for upgrading your network to Gigabit speed while protecting your previous investment.
Easy of Use
The automated features of this gigabit switch make installation hassle-free. No configuration is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of network devices (10,100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
| Features & Performance | |||

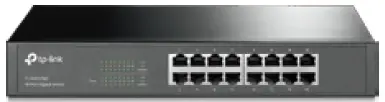

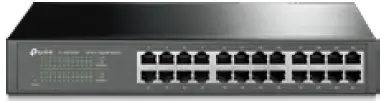

| Product Picture |  |  | |
| Model | TL-SG1016D | TL-SG1024D | |
|
Hardware Features | Standards and Protocols | IEEE 802i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p | |
| Interface | 16 10/100/1000Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX | 24 10/100/1000Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX | |
| Forwarding Mode | Store-and-Forward | ||
|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) | ||
| Power Supply | 100-240VAC, 50/60Hz | ||
| Green Technology | Yes | ||
| 802.1p/DSCP QoS | Yes | ||
| LED | Power, 1000Mbps, Link/Act | ||
| Dimensions | 11.6*7.1*1.7 in. (294*180*44 mm) | ||
| Finless | Yes | ||
|
Performance | Switching Capacity | 32Gbps | 48Gbps |
| Packet Forwarding Rate | 23.8Mpps | 35.7Mpps | |
| MAC Address Table | 8K | ||
| Jumbo Frame | 10KB | ||
| Max Power Consumption | 9.95W (220V/50Hz) | 13.62W (220V/50Hz) | |
| Max Heat Dissipation | 33.93 BTU/h | 46.44 BTU/h | |
| CE, FCC, RoHS | |||
|
Environment | Operating Temperature | 0°C~40°C (32°F~104°F) | |
| Storage Temperature | -40°C~70°C (-40°F~158°F) | ||
| Operating Humidity | 10%~90%RH non-condensing | ||
| Storage Humidity | 5%~90%RH non-condensing | ||
| Ordering Information | 16-Port Gigabit switch | 24-Port Gigabit switch | |
Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. Copyright @ 2016 TP-Link Technologies Co., Ltd. All rights reserved
FAQ’s
The TP-Link TL-SG1024D switch supports up to 24 devices through its 24 Gigabit Ethernet ports. Each port can be used to connect a device, such as a computer, printer, or network storage device.
The TL-SG1024D switch features 24 Gigabit Ethernet ports, which support data transfer rates of up to 1000 Mbps (1 Gbps). This high-speed connectivity allows for fast and efficient data transmission within your network.
No, the TL-SG1024D switch does not support Power over Ethernet (PoE). It is a standard unmanaged switch that provides basic connectivity and does not have PoE capabilities to power devices such as IP cameras or wireless access points.
Yes, the TL-SG1024D switch is designed for rack-mounting. It comes with rack-mount brackets, allowing you to easily install it in a standard 19-inch rack or cabinet. The brackets can be attached to the sides of the switch for rack-mounting.
The TL-SG1024D switch is an unmanaged switch. It provides plug-and-play functionality, meaning it requires no configuration or management. Simply connect your devices to the switch, and it will automatically handle the network connections.
No, the TL-SG1024D switch does not have VLAN support. It is a basic unmanaged switch that does not offer advanced networking features such as VLAN configuration or management. If you require VLAN functionality, you would need to consider a managed switch.
Yes, the TL-SG1024D switch can be cascaded with other switches to expand your network. You can connect multiple switches together using Ethernet cables to increase the number of available ports and extend your network connectivity.
The TL-SG1024D switch has dimensions of approximately 11.6 x 7.1 x 1.7 inches (294 x 180 x 44 mm). It operates on AC power and requires an input voltage of 100-240V AC, 50/60Hz. The switch comes with an external power supply.
