Uline Wood Mail Sorter User Guide

H-4847, H-4848, H-4849 H-4850, H-4851
WOOD MAIL SORTER

1-800-295-5510
uline.com

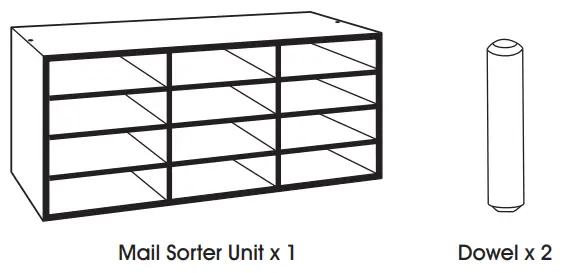

PARTS

NOTE: The H-4850 comes with 2 Mail Sorter units and 4 wood dowels. The H-4851 comes with 3 Mail Sorter units and 6 wood dowels.
NOTE: You may have extra parts. Store and use as needed.

ASSEMBLY

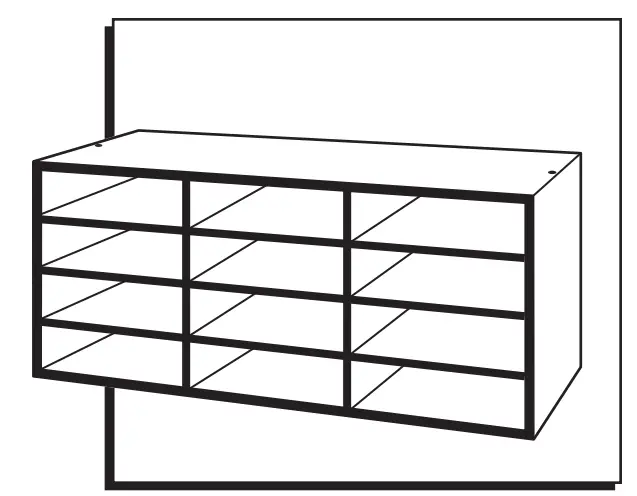

1.  When combining modular units to construct a larger sorter, place the 2 dowels in the 2 holes on top of the first sorter. (See Figure 1)

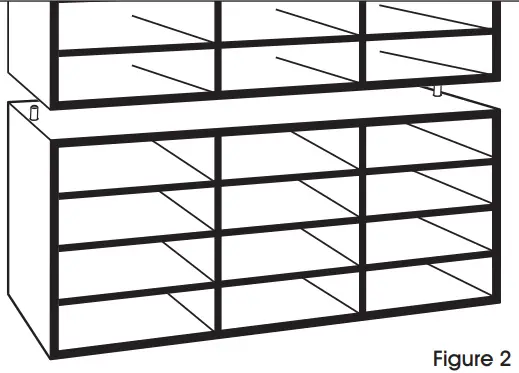

2.  Carefully position the next sorter on top of the first sorter, lining up holes in the bottom with the dowels from the first sorter. Repeat steps 1 and 2 for up to 3 total sorters stacked on top of one another. (See Figure 2)
   NOTE: For H-4850, stack (2) 15-compartment mail sorters on top of each other. For H-4851, stack (3) 15-compartment mail sorters on top of each other.
