INR logoKommand AIR Wood
Instruction Manual

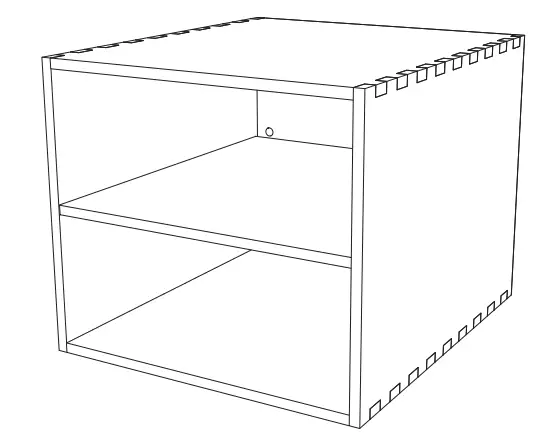

INR 120 D Kommod AIR Wood -

SAFETY REGULATIONS

INR 120 D Kommod AIR Wood - IconGoggles are recommended to protect your eyes.
INR 120 D Kommod AIR Wood - Icon 1We recommend that two persons are present at the installation.
INR 120 D Kommod AIR Wood - Icon2Use safety shoes during installation.
INR 120 D Kommod AIR Wood - Icon4Note! Always set the furniture down on a soft foundation, since the edges and corners are very delicate.

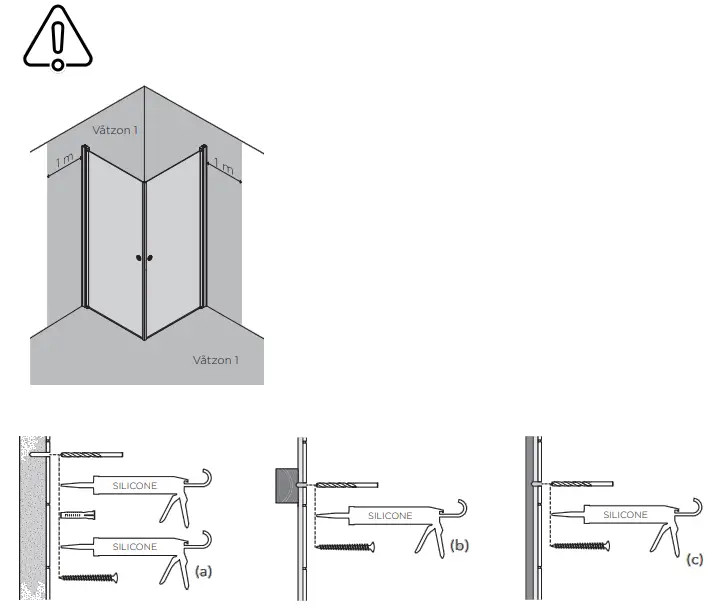

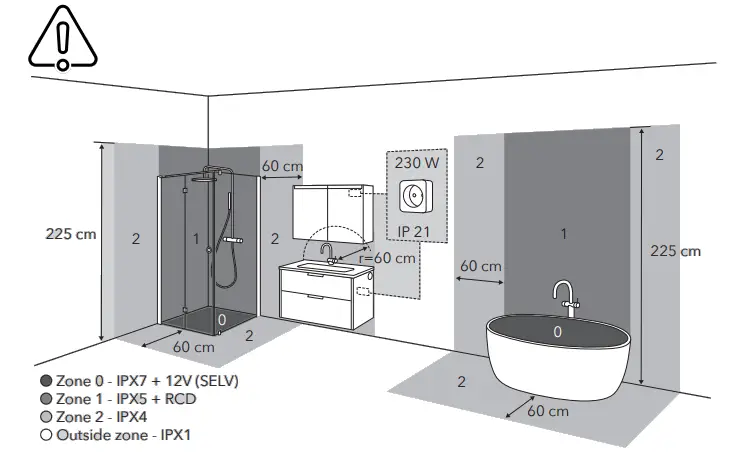

Screw fastenings should be made in concrete or other solid structure (a), wooden studs, wooden noggings (b), or in structures that have been tested and approved for fastenings, for example, a sheet construction (c). Requirements for sealing apply in wet zones 1 and 2. See examples of construction at säkervatten.se. Sealing materials must be fi xed to the underlying layer and must be waterproof, mold-resistant, and age-resistant.

INR 120 D Kommod AIR Wood - FigINR 120 D Kommod AIR Wood - Fig1

TOOLS

INR 120 D Kommod AIR Wood - Fig2

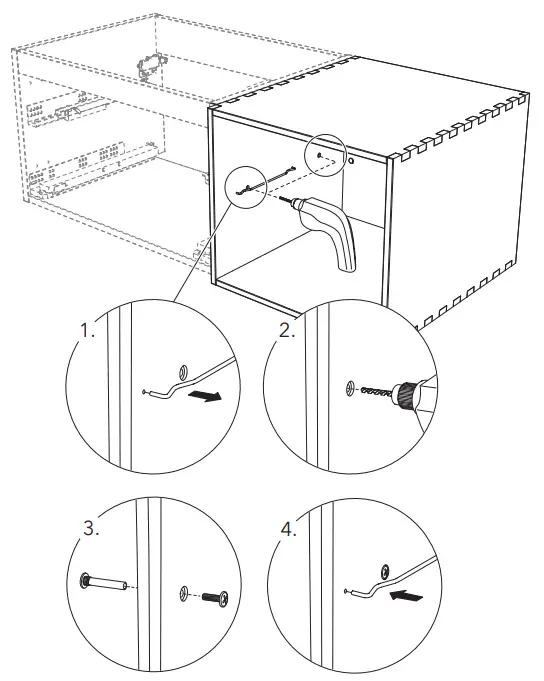

INSTALLATION

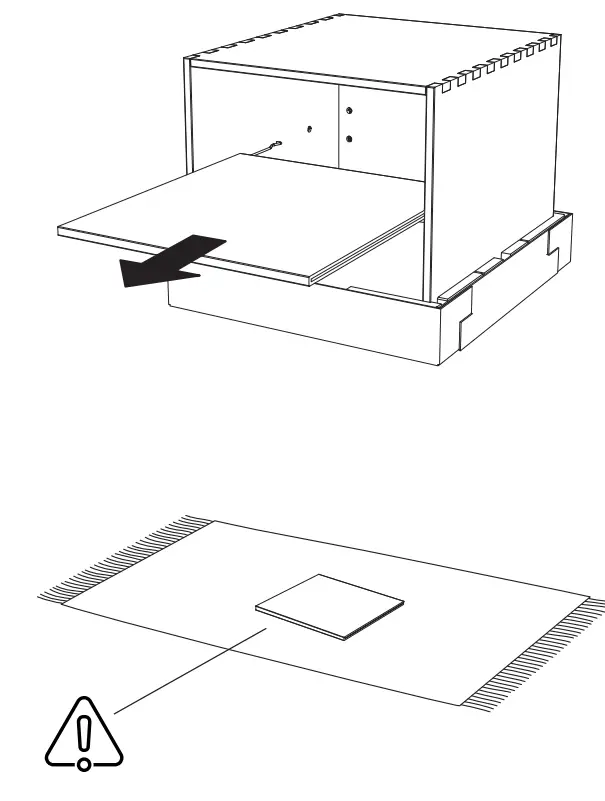

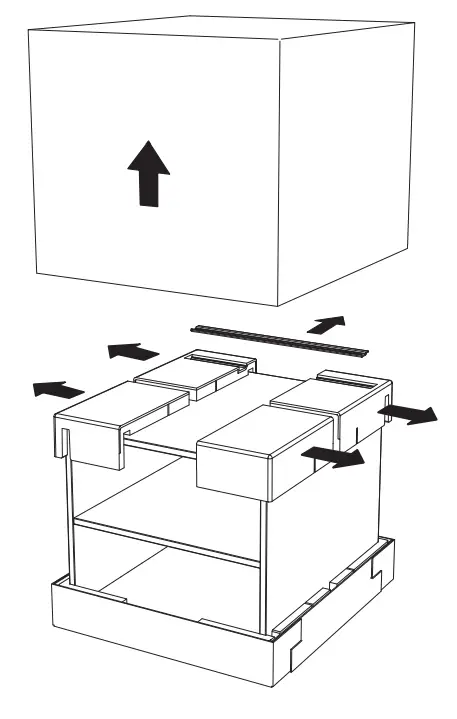

INR 120 D Kommod AIR Wood - Fig3INR 120 D Kommod AIR Wood - Fig4

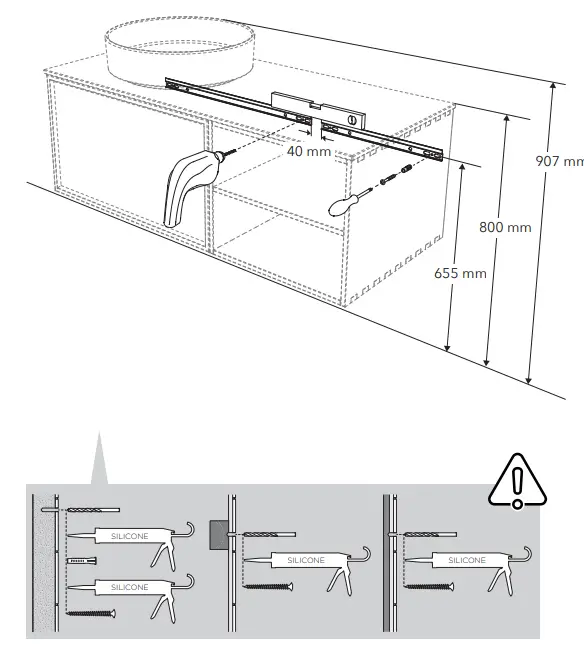

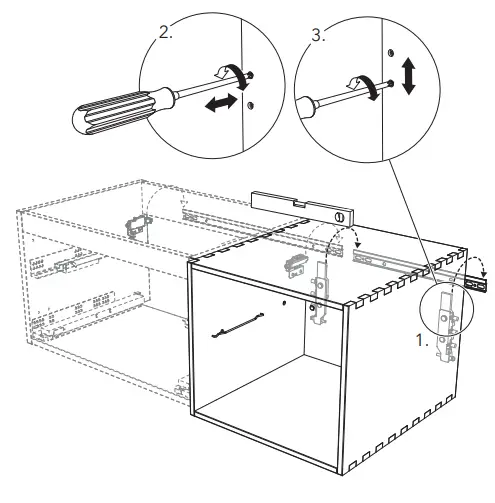

INR 120 D Kommod AIR Wood - Fig5INR 120 D Kommod AIR Wood - Fig6

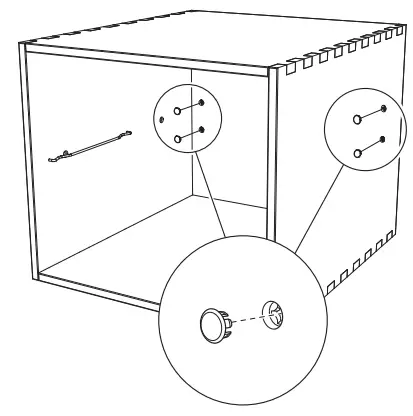

INR 120 D Kommod AIR Wood - Fig7INR 120 D Kommod AIR Wood - Fig8

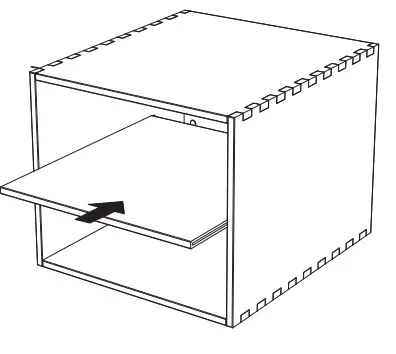

INR 120 D Kommod AIR Wood - Fig9

MAINTENANCE ADVICE

To learn more, please visit inr.se If in doubt regarding your choice of cleaninmethod, test first on a small, inconspicuous area.
Washbasin, porcelain
Clean with a slightly damp cloth and a mild cleaning agent. Avoid hard abrasives and caustic soda.
Lacquered wooden surfaces
Cupboard doors, drawers and frames can be cleaned with a slightly damp cloth and mild detergent. Avoid the use of furniture polish, scourers, abrasive cleaning agents, ammonia or other strong solvents. Water and splashes should be wiped off immediately with a dry cloth.
Worktop, Corian®
In terms of daily cleaning, it is quite sufficient to wipe down Corian® with a damp cloth. Water and washing-up liquid will remove most stains and grease. The entire surface should be cleaned periodically in order to maintain an even sheen and prevent blotches. Corian® is repairable in the event of mechanical damage to the surface.
Worktop, Dekton®
We recommend regular cleaning with a soft sponge, warm water and Grön Såpa or a similar cleaning agent with neutral pH. For tough stains – wipe down the surface with a cleaning agent and apply a little extra elbow grease, then rinse with warm water.
Metal surfaces
For metal surfaces, use a slightly damp clothand a mild detergent solution.
WARRANTY
See inr.se
RECYCLING
Metal, wood and glass are separated and recycled separately.

INR logoFjordgaten 13 A
3125 Tønsberg
Norge
Tel +47 33 33 02 00
[email protected]
www.inr.no
