STERLING Standard Height Round Toilet Installation Guide

Contents hide

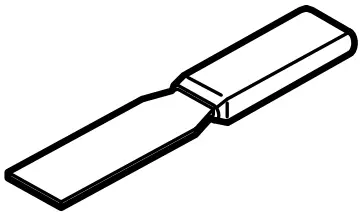

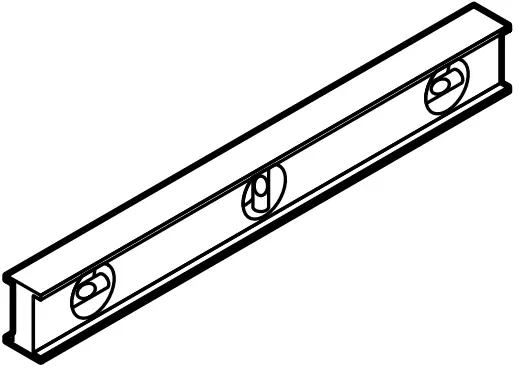

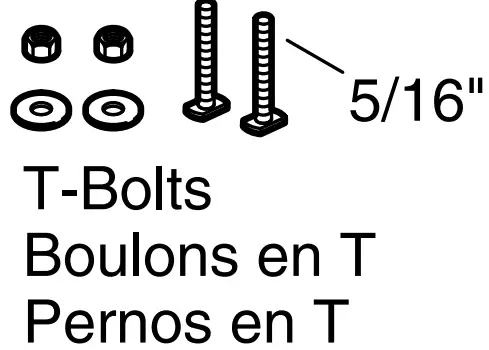

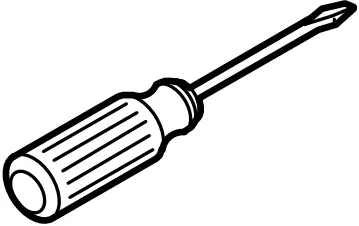

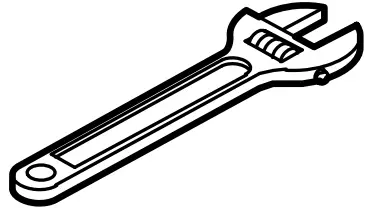

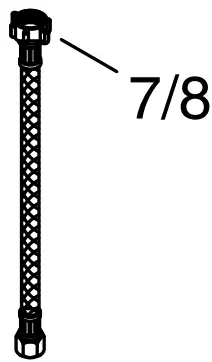

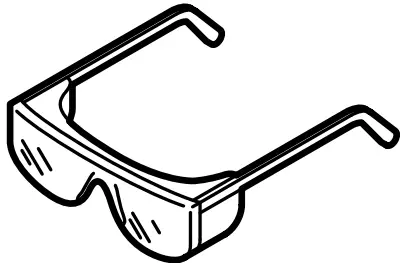

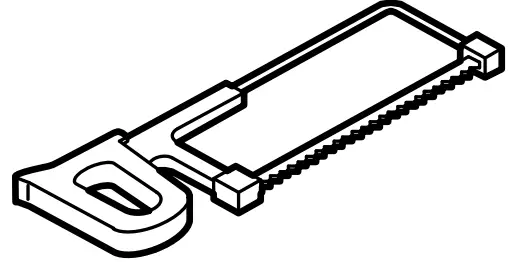

TOOLS

WARNING: Risk of property or product damage.
Do not use in-tank cleaners in your toilet. Products containing chlorine (calcium hypochlorite) can seriously damage fittings in the tank. This damage can cause leakage and property damage.

Installation

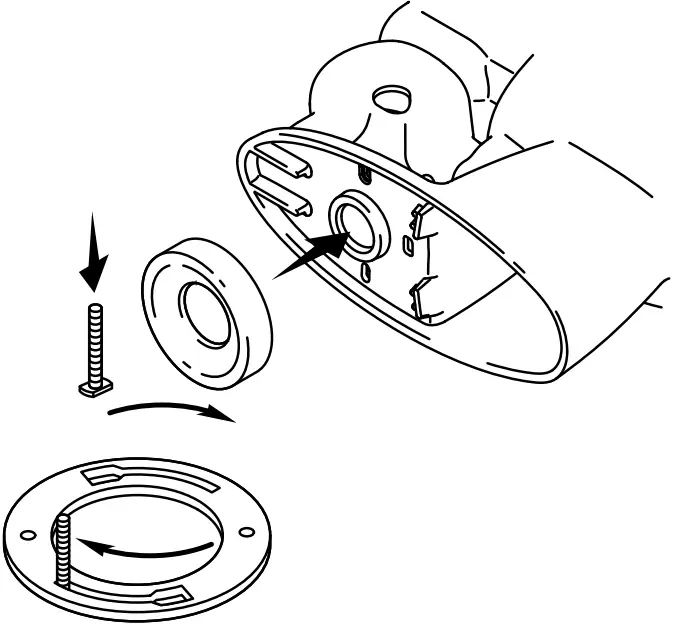

Install T-bolts and a new wax ring.

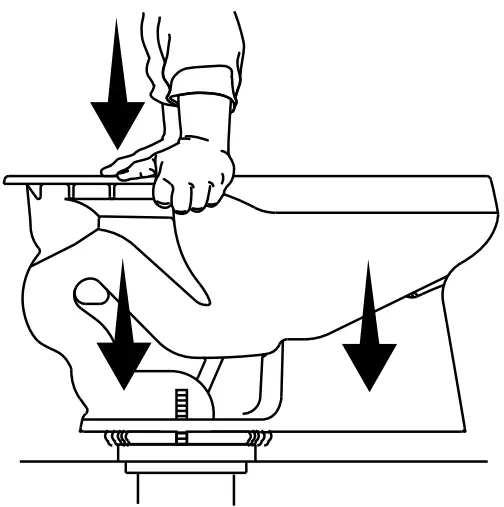

Apply weight evenly. Do not move after placement Watertight seal may be broken

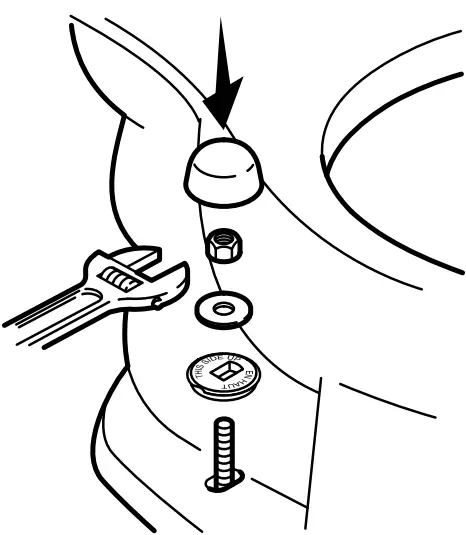

If needed, cut the T-bolts before installing the caps. Do not overtighten!

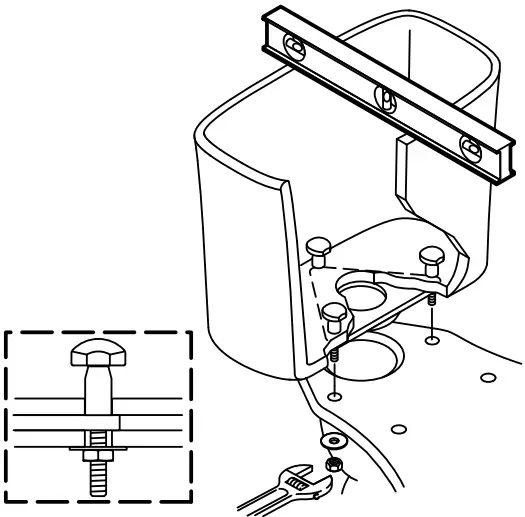

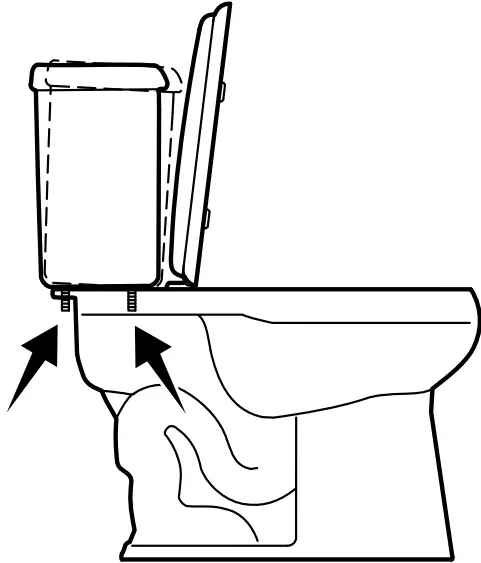

Mount the tank. Adjust bolt tightness to achieve level. Do not overtighten!

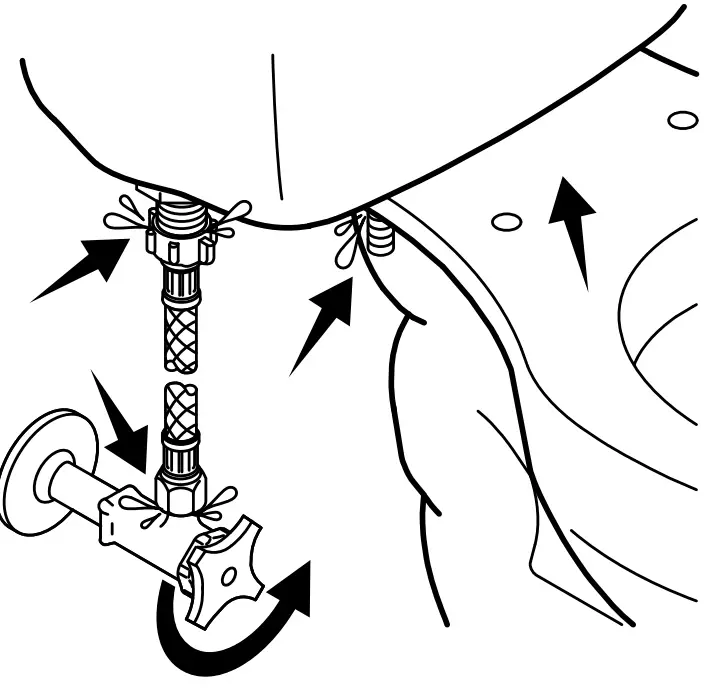

Connect and turn on the water supply. Do not overtighten Check for leaks.

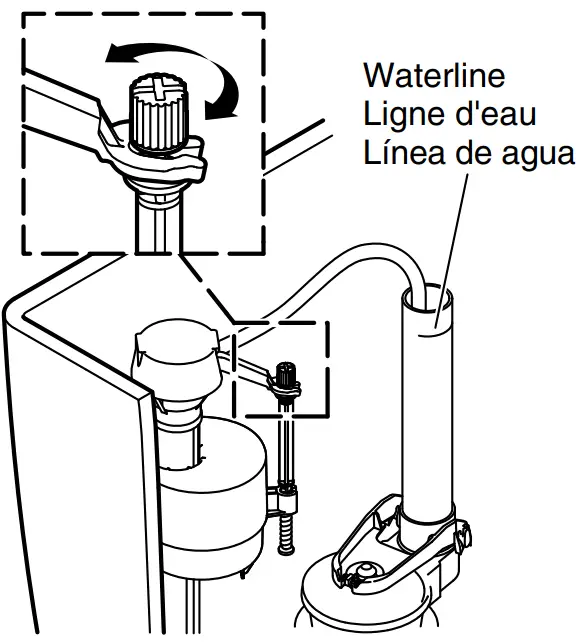

If needed, adjust the water level.

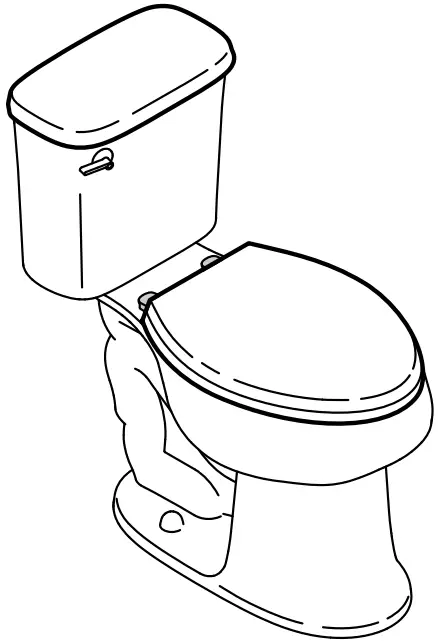

Install the seat and tank lid.

NOTE: If the seat will not stand up, adjust the tank bolts. See step 4.

For troubleshooting, visit
SterlingPlumbing.com/toiletservice.
Pour le dépannage, visiter
SterlingPlumbing.com/toiletservice.
Para resolver problemas, visite
SterlingPlumbing.com/toiletservice.

QR Code

Need help? Contact the Customer Care Center. USA/Canada: 1-800-STERLING (1-800-783-7546), Mexico: 001-877-680-1310 For service parts information, visit sterlingplumbing.com/ parts. For care and cleaning, visit sterlingplumbing.com/ care-and-cleaning.
This product is covered under the STERLING® Toilet
Limited Warranty found at sterlingplumbing.com/warranty. For a hardcopy of warranty terms, contact the Customer Care Center.

USA/Canada: 1-800-STERLING (1-800-783-7546)
Mexico: 001-877-680-1310
