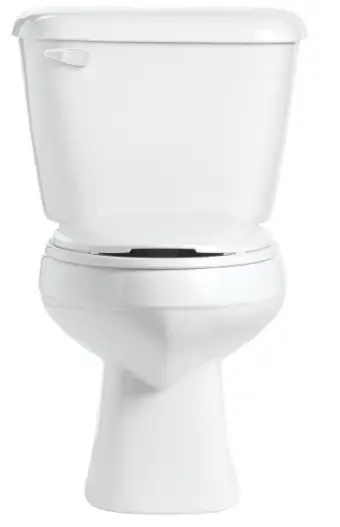

MANSFIELD 3488679 PRO-FIT Two-Piece Toilet
FEATURES
- Complete toilet kit (CTK)
- 1.28 gpf / 4.8 lpf high efficiency water consumption
- Universal style matches any decor
- Round front bowl
- 3-2″ hybrid flapper flush valve
- Fluidmaster® pilot operated anti-siphon fill valve
- 12″ rough-in
- SmartFasten™ 3-bolt tank-to-bowl connection
- Model 31 color-match, plastic trip lever
- 2″ glazed trapway
- The Mansfield® limited lifetime warranty on china, One-year limited warranty on tank trim
- Available in White
COMPONENTS
| MODEL # | DESCRIPTION | |

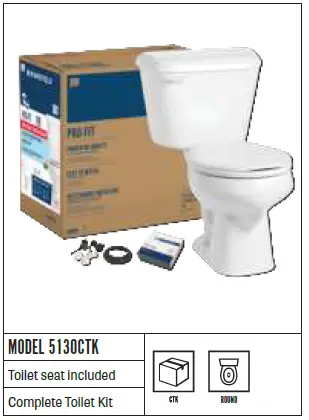

| 5130CTK | Round front complete two-piece toilet kit. Includes: toilet seat, tank and bowl, floor bolts, wax ring, caps and multi-lingual installation instructions. Water supply not included. |  |
| 130 | Round front toilet bowl only. | |
| 3173 | Tank and lid only. With left hand, front-mount, color-match plastic trip lever. | |
| SB100 | Round, plastic toilet seat | |
| TANK TRIM & REPLACEMENT PARTS | ||
| 31 | Trip Lever – color-match plastic trip lever, left hand | |
| 400A | Fluidmaster® anti-siphon pilot fill valve | |
| 228 | 3-2″ Hybrid flapper flush valve | |
| 2206 | Anti-siphon pilot fill valve (compatible replacement) | |
| 630-0207 | 3″ Replacement flapper kit | |
| 160-LID | Tank lid | |
SPECIFICATIONS
| MODEL # | DESCRIPTION | CODES/STANDARDS |
| 5130CTK | Round front (1.28 gpf/4.8 lpf) two-piece toilet kit |  |
| MATERIAL | Vitreous China |
| WATER PRESSURE RANGE | 20 to 80 PSI |
| FLUSH SYSTEM | 3-2″ Hybrid flapper flush valve |
| WATER USAGE | 1.28 gpf / 4.8 lpf |
| WATER SURFACE AREA | 8″ X 9″ |

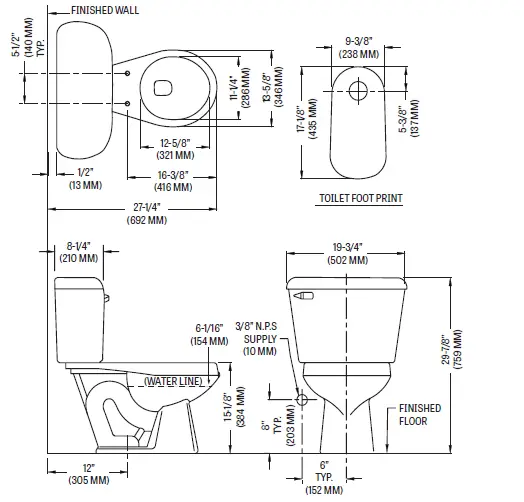

| ROUGH-IN | 12″ |
| MAP RATING | 800 grams |
| TRAP DIAMETER | 2″ |
| TRAP SEAL | 2-7/8″ |
| SHIPPING WEIGHT | Model 5130CTK – 85 lbs. (38.5 kg) |
| WARRANTY | Vitreous China – Limited Lifetime Tank Trim – Limited One-Year |
TECHNICAL INFORMATION
Fixture performance and specifications meet or exceed ASME A112.19.2/CSA B45.1 standards, and other state and local codes.
- Mansfield Plumbing Products, LLC
- Customer Service Toll Free 877-850-3060
- Fax 419-938-6234 www.mansfieldplumbing.com
- Email: [email protected]
©2021 Mansfield Plumbing Products, LLC Rev. 06/21
