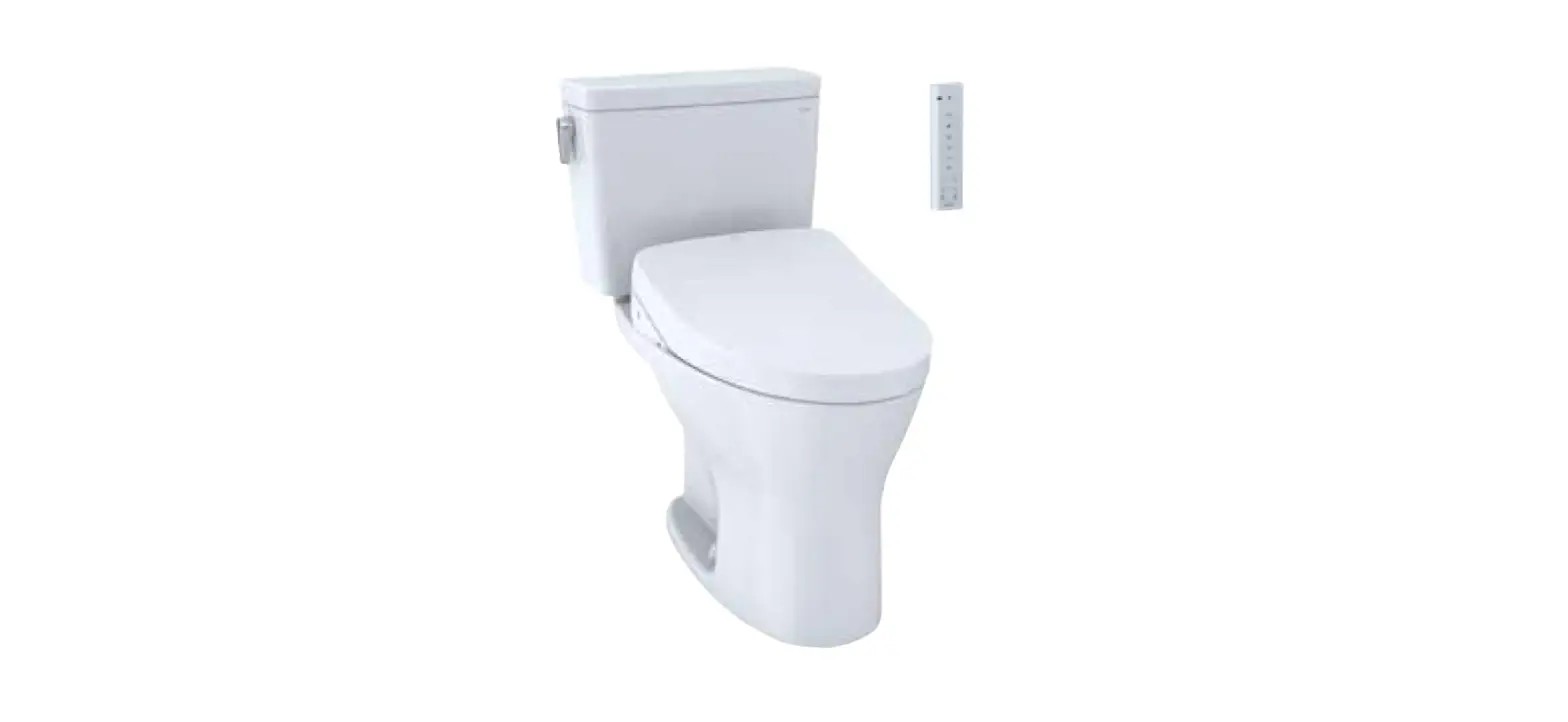

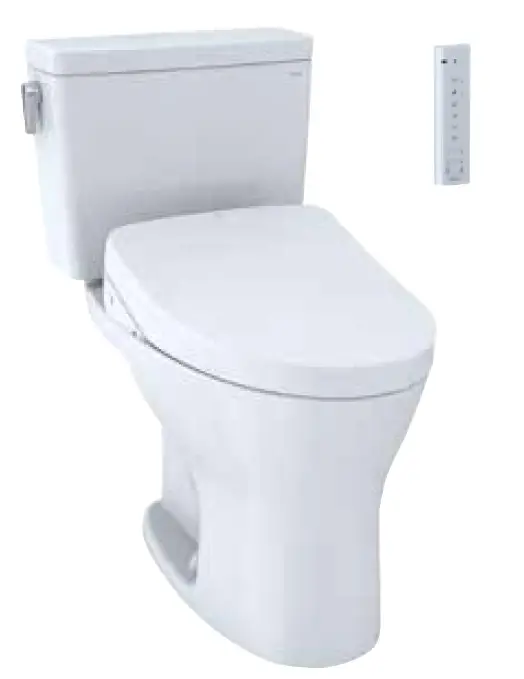

TOTO MW7463046CSMG Dual Flush Elongated Standard Height 2-piece WaterSense Toilet
FEATURES
- Concealed supply connection for seamless installation
- DYNAMAX TORNADO FLUSH® utilizes 360º cleaning power to reach every part of the bowl
- Dual flush 1.6 & 0.8 GPF (6.0 & 3.0 LPF)
- CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
- Design of the bowl reduces water flow resistance resulting in a quieter flushing sound
- 12″ Rough-in
- Chrome plated trip lever
- Elongated front bowl and WASHLET+ S500e and tank set
- EWATER+® auto-cleans wand and bowl
- On-demand remote function cleans wand with EWATER+
- PREMIST of bowl before each use
- Remote control operated
- Auto Flush available as upgrade
- Semi-concealed trapway
MODELS & COMPONENTS
- MW7463046CSMGA (#01)
- With CEFIONTECT ceramic glaze, WASHLET+ S500e with contemporary design and Auto Flush
- – CT746CUGT40 Elongated bowl with CEFIONTECT
- ST746SMATank and cover only
- SW3046AT40 WASHLET+ S500e
- THU765 Auto Flush Kit
- MW7463046CSMG (#01)
- Same as MW7463046CSMGA without Auto Flush
- CT746CUGT40 Elongated bowl with CEFIONTECT
- ST746SMA Tank and cover only
- – SW3046AT40 WASHLET+ S500e
- Optional Components
- THU773#01-A Trip Lever – Cotton
- THU773#PN-A Trip Lever – Polished Nickel
- THU773#BN-A Trip Lever – Brushed Nickel
PRODUCT SPECIFICATION
The two-piece DYNAMAX TORNADO FLUSH toilet shall be dual flush 1.6 GPF/0.8 GPF. Toilet shall be 12″ rough-in. Toilet shall have CEFIONTECT ceramic glaze. Toilet shall have elongated front bowl and Polished Chrome trip lever. Toilet shall be TOTO Model MW7463046CSMG____. See SW3046AT40 Specification Sheet for details on included WASHLET.
CODES/STANDARDS
- Meets and exceeds ASME A112.19.2/CSA B45.1, ASME A112.19.14
- Certifications: IAPMO(cUPC®), EPA WaterSense, State of Massachusetts, and others
- Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
- Legislative Compliance: California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
- Complies with CA Prop 65 warning requirements
SPECIFICATIONS
| Water Use | 1.6 & 0.8 GPF (6.0 & 3.0 LPF) |
| Flush System | DYNAMAX TORNADO FLUSH® |
| Min. Water Pressure | 8 psi (Flowing) |
| Water Surface | 5-5/8″ x 4-1/8″ |
| Trap Diameter | 2-1/2″ |
| Rough-in | 12″ |
| Trap Seal | 2-1/8″ |
| Warranty | One Year Limited Warranty |
| Material | Vitreous China |
|
Shipping Weight | CT746CUGT40 66 lbs. ST746SMA 35 lbs. |
| Shipping Dimensions | CT746CUGT40 18-3/4″ L x 10-1/2″ W x 18-1/8″H ST746SMA 18-3/4″ L x 8-3/8″ W x 16″H |
INSTALLATION NOTES

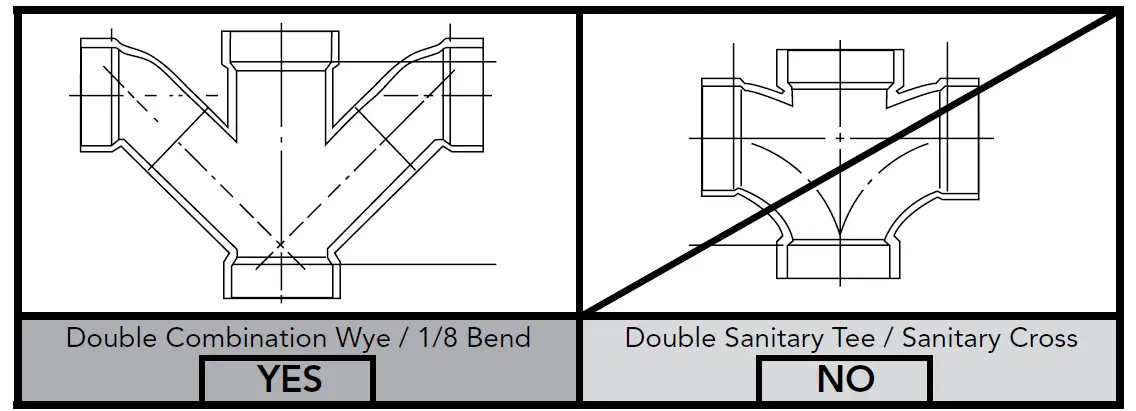

Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed, double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of the tank and wall, mount the floor flange at a nominal 12” rough-in distance. Ultra-low high efficiency toilets require a system with adequate supplemental flows from other water usage fixtures and a 4″ ID drainline with minimum 2% slope and maximum linear runs of 60ft. Fixture Dimensions shown are nominal.

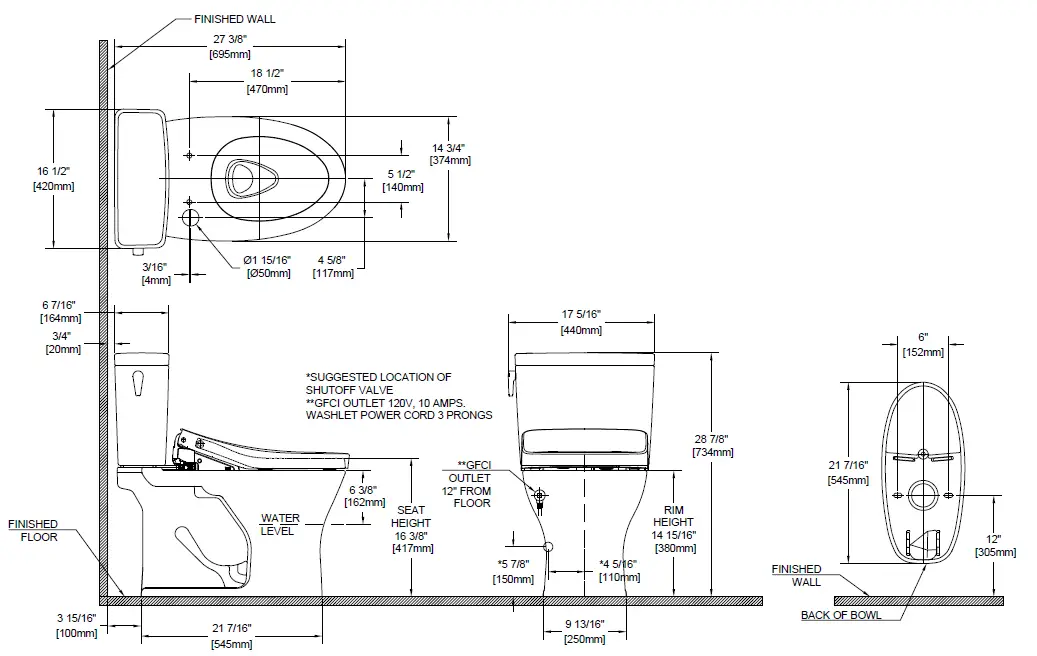

DIMENSIONS
These dimensions and specifications are subject to change without notice
