Maytronics Dolphin 2x2 Gyro Robotic Pool Cleaner Instruction Manual

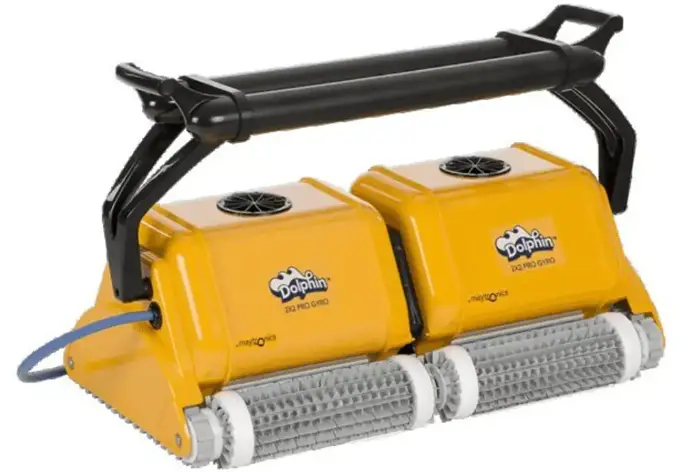

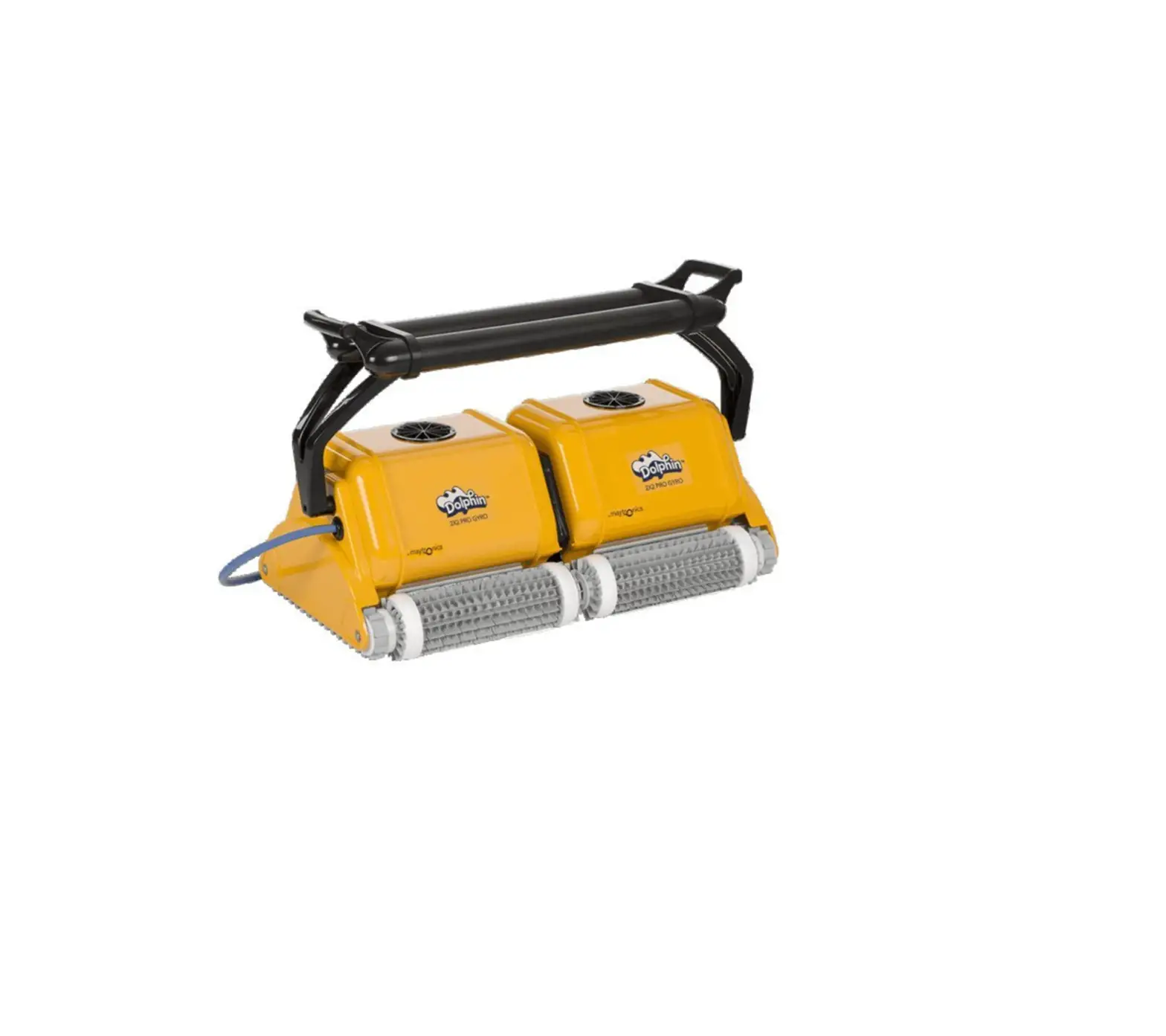

maytronics Dolphin 2×2 Gyro Robotic Pool Cleaner

INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.
We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and cost effective pool cleaning.
Its reliable filtration in all pool conditions and all-surface climbing brush enhance maximum pool hygiene.
The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology’s, long lasting performance and easy maintenance.

SPECIFICATIONS

• Motor protection: IP 68
• Minimum depth: 0.80m/2.6ft
• Maximum depth: 5m/16.4ft

WARNINGS AND CAUTIONS

Warnings

• Use the originally supplied power supply only
• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth leakage interrupter (ELI)
• Keep the power supply out of standing water
• Position the power supply at least 3m/10ft away from the edge of the pool
• Do not enter the pool while the pool cleaner is working
• Unplug the power supply before servicing

Cautions

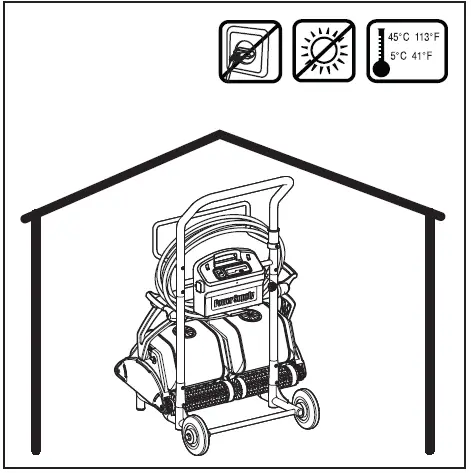

When not in use store the Pool Cleaner on the Caddy in a shaded area. Use the Pool Cleaner in the following water conditions only:

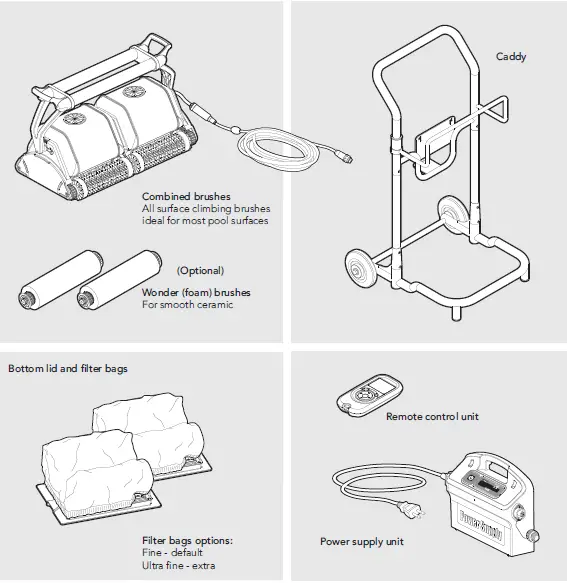

POOL CLEANER PARTS

USING THE POOL CLEANER

Set Up

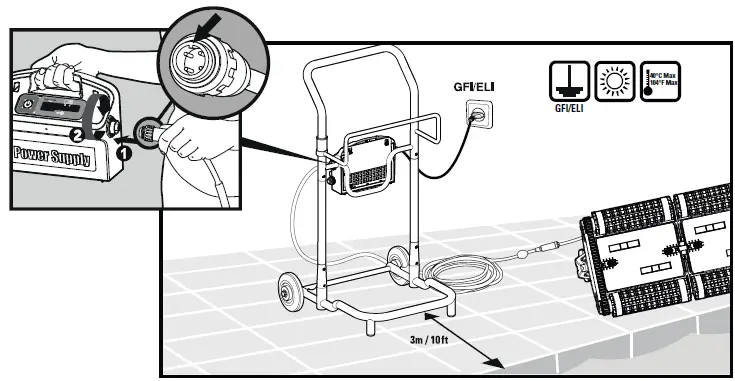

Position the power supply so that it is approximately in the middle of the long side of the pool at a distance of 3m/10ft.
Attach the floating cable to the power supply by inserting it with the notch on the connector (1) lined up with the groove in the socket on the power
supply and turning clockwise (2).

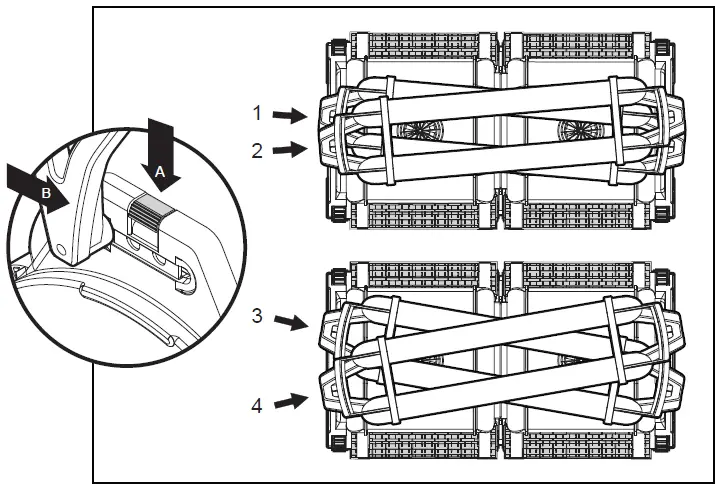

Change diagonal handle position for water line sideway movement.

To adjust the handle angle:

• A Press the latch down and hold it in position.
• B Move the handle to the desired position and release the latch to hold the handle in place.

• 1 – 2 Normal advance
  More efficient cleaning action on water-line.
• 3 – 4 Fast advance
  Fast speed – for faster but less efficient cleaning action on water-line.

Putting the Pool Cleaner into the pool

If Wonder brush/ Wonder rings are dry, soak them in water until soft. Shake the robot from side to side or turn it upside down to release trapped air. Let it sink to the pool floor.

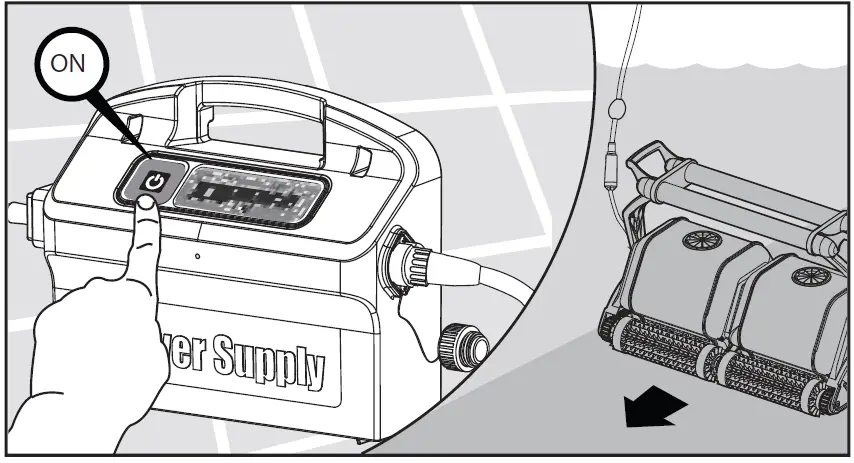

Turn the power supply ON.
The Pool Cleaner will now operate until it has reached the end of the cleaning cycle.

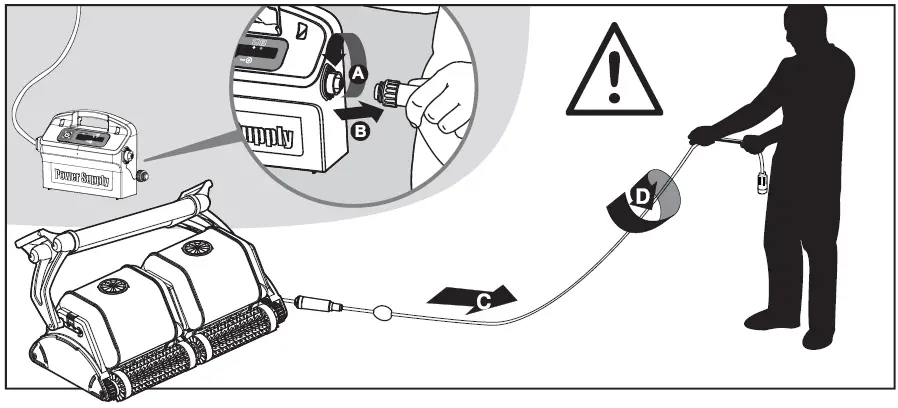

Removing the Pool Cleaner from the pool

The robot will perform automatic shut-off at the end of the cleaning cycle.

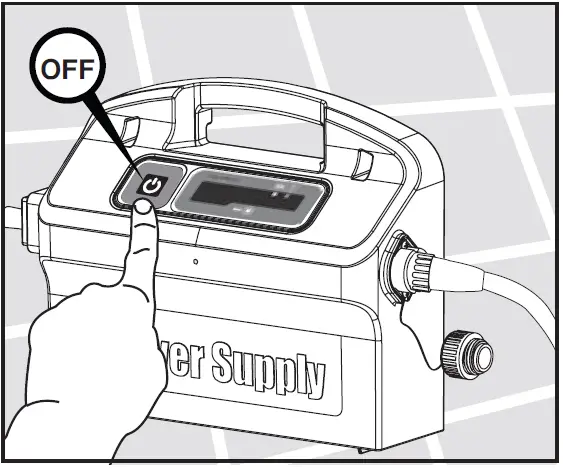

Turn OFF and unplug the power supply

Using the floating cable, bring the Pool Cleaner to the pool’s edge.

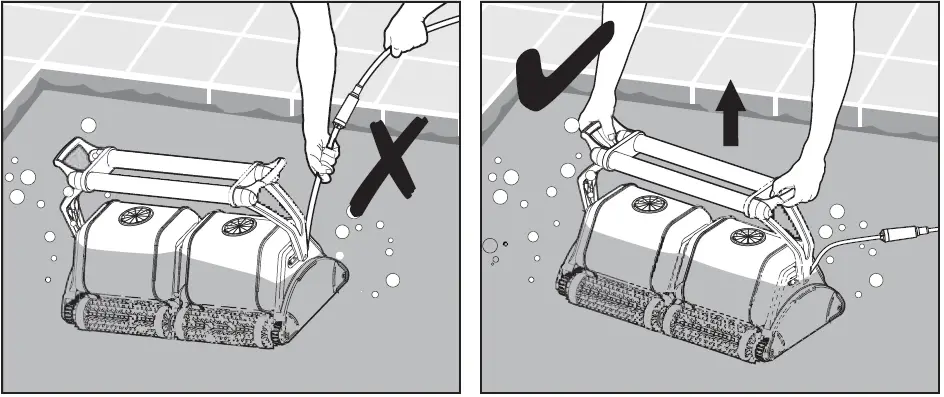

Using the handle remove the Pool Cleaner from the pool.

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

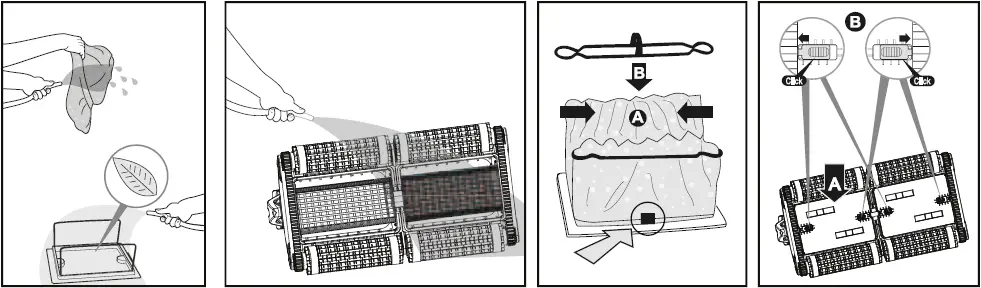

Maintenance

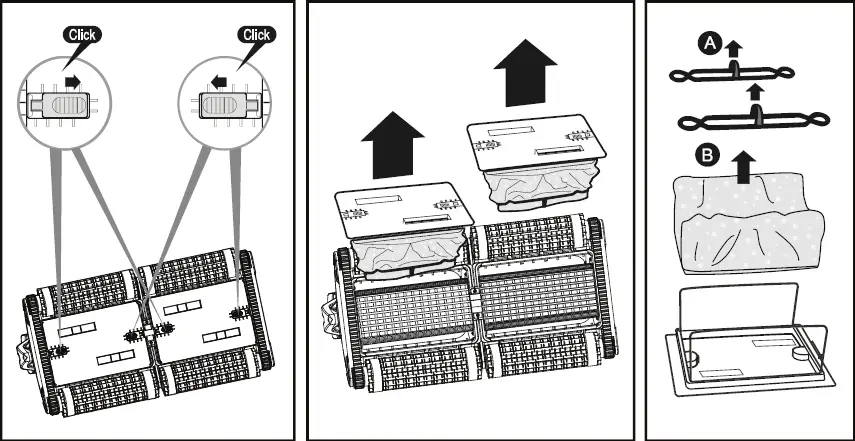

Clean the filter bags with a hose.
Periodically clean the brushes with a hose.
It is recommended to periodically wash the filter bags in a washing machine.
Use gentle cycle program.

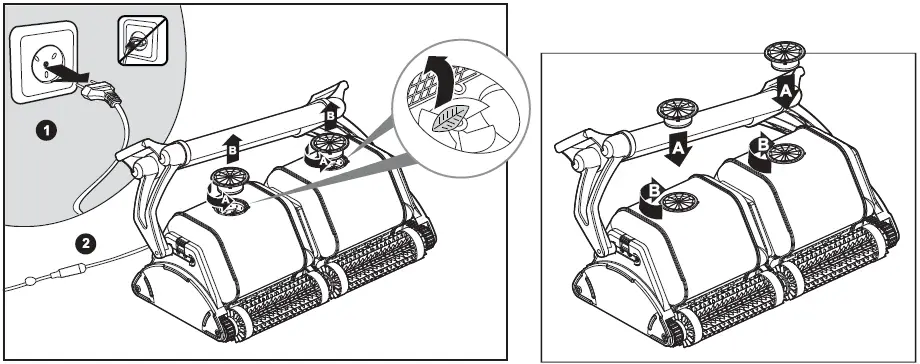

Cleaning the impeller

Unplug the power supply.
If you notice debris trapped in the impeller open the impeller and remove the debris.

Cable
To remove the kinks, stretch the cable out completely and let it sit for at least a day in the sun.

Off-season storage

If the pool cleaner will not be in use for an extended period, perform the following storage steps:

• Make sure that no water is left in the pool cleaner
• Thoroughly clean the filter bags and insert in place
• Roll up the cable so that it has no kinks and place on the Caddy
• Store the pool cleaner in a protected area either on its Caddy or simply upside-down

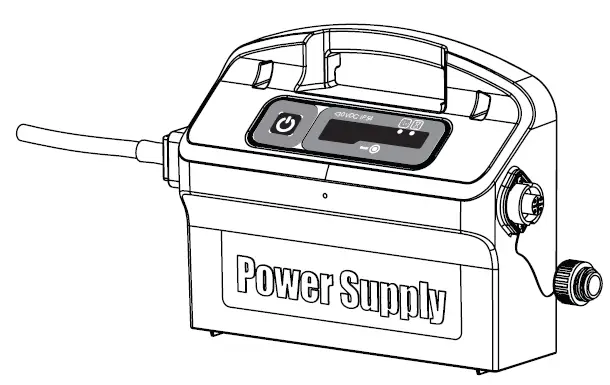

POWER SUPPLY

Digital “Switch-Mode” Power Supply with full filter bag and delay indicator.

• Input – 100-250 AC Volts
• 50-60 Hertz
• 220 Watt
• Output – <30 VDC
• IP 54

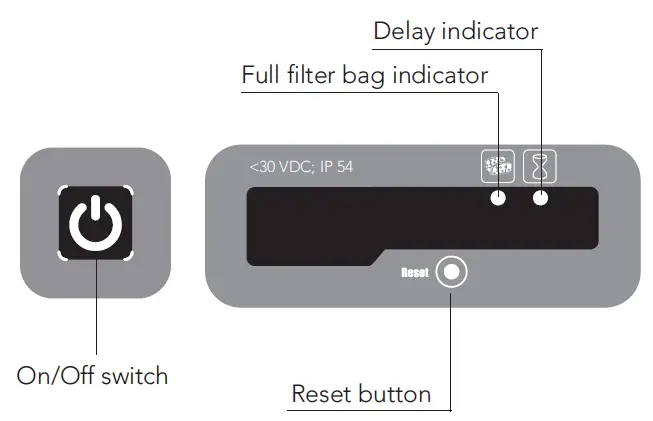

Full filter bag indicator and Reset button
The power supply is equipped with a filter bag status indicator. The red LED indicates two filter conditions.

• When blinking – The filter is partially blocked.
• When lighted – The filter is blocked and must be emptied and cleaned.

If the LED does not turn off after the filter bag had been emptied and cleaned, press the RESET button while the robot is working.

Delay indicator
The power supply is equipped with a Delay indicator that indicates if the Delay option is activated (through the remote control unit).

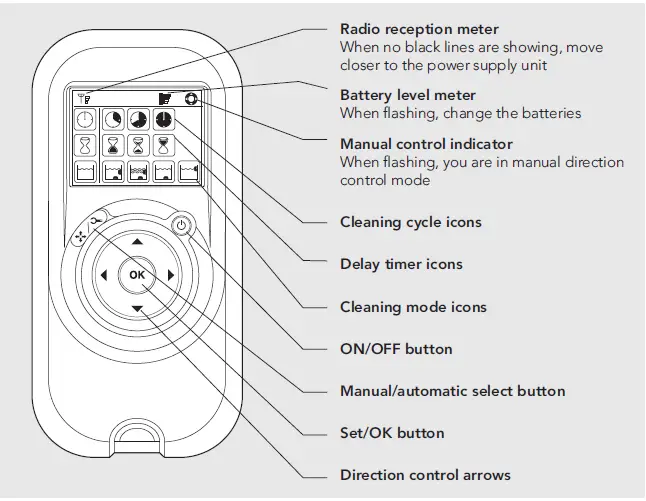

REMOTE CONTROL UNIT

The remote control unit (RCU) offers two operation modes – Automatic mode and manual direction control mode.
In automatic mode, the cleaning parameters can be changed.
In manual direction mode, the robot’s motion can be controlled manually.

Manual Direction Control Mode

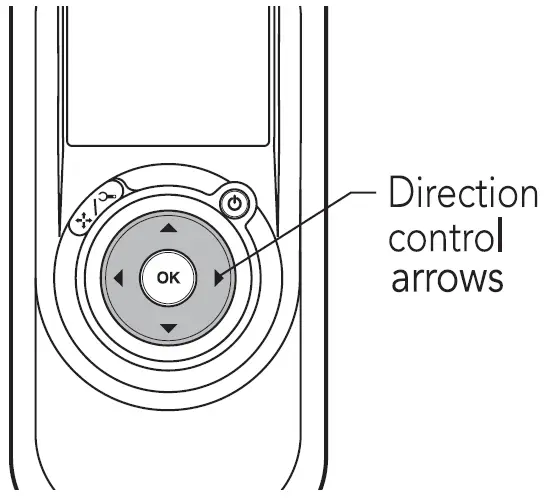

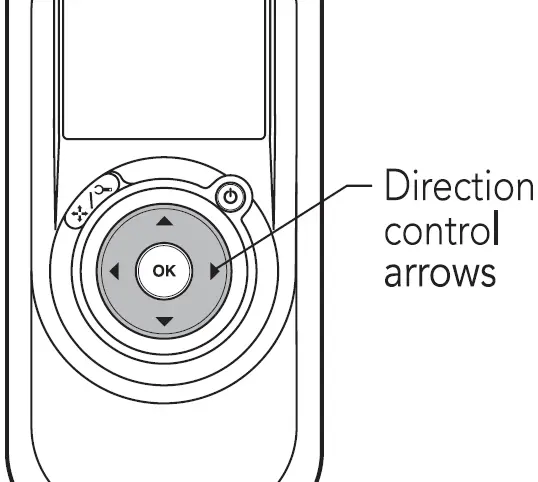

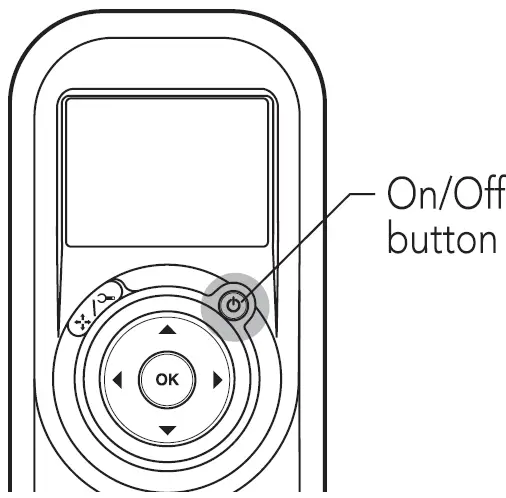

	Press the On/Off button once. The remote control will start in manual direction control mode. Use the direction control arrows (see right) to control the movement of the robot around the pool.

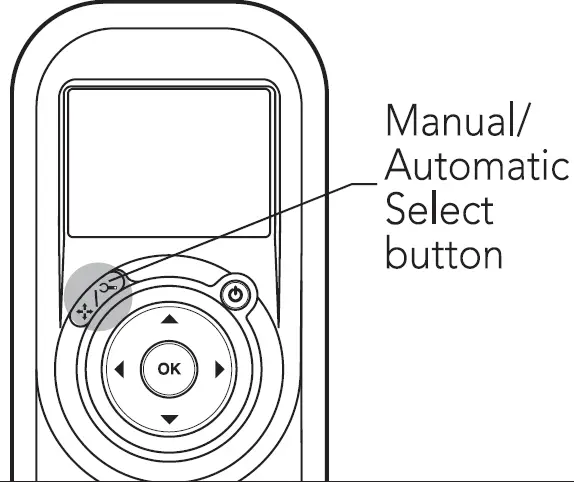

Exiting Manual Direction Control Mode and setting the Automatic Mode
	To exit the manual direction control mode, press the Manual/Automatic select button once only. The digital screen will light up and three rows of function icons will be displayed in default mode.

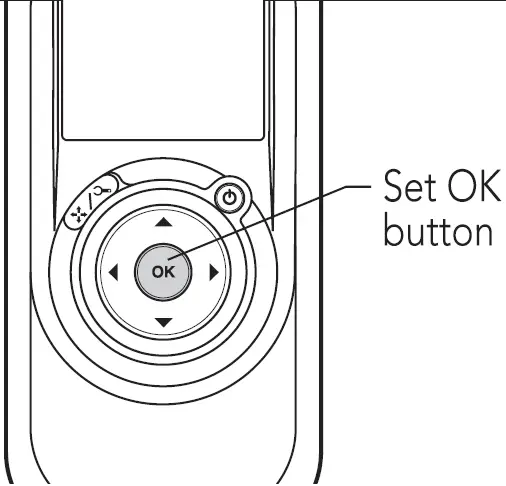

	To change the parameters press the up or down arrows. To select the parameter settings use the right or left arrows. When you reach the required function press the Set/OK button.

Press the Manual/Automatic select button and then choose the desired parameters according to the following table:

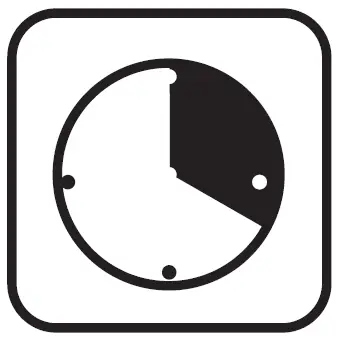

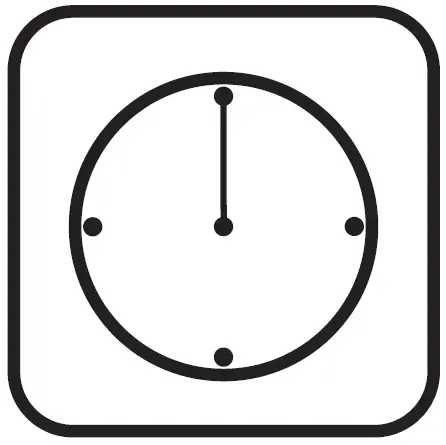

Cleaning cycle indicator This determines the length of the cleaning cycle.	Fast 4-hour cycle	Efficient 6-hour cycle for everyday use. (Default setting)	Extra 8-hour cycle

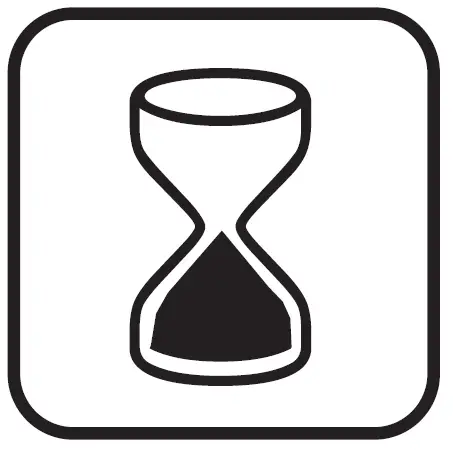

Delay time indicator This determines when the pool cleaner starts to work. Delaying allows the dirt to settle to the bottom of the pool.	Immediate start (Default setting)	One-hour delay	Two-hour delay

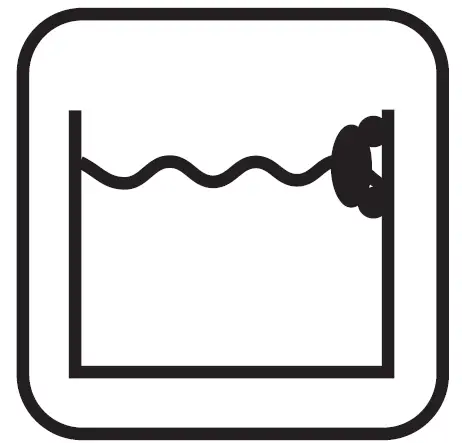

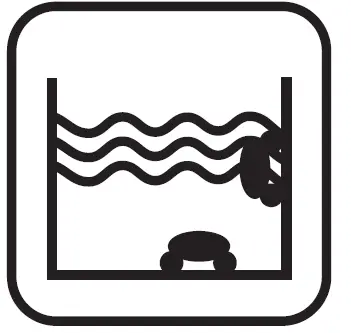

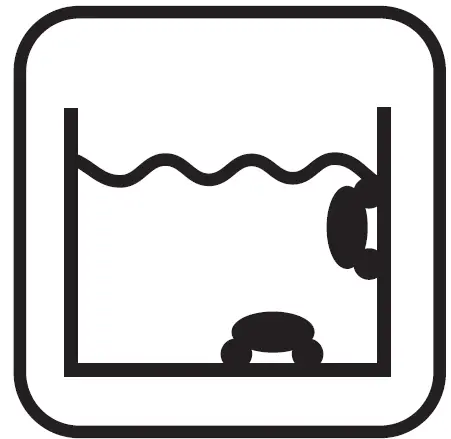

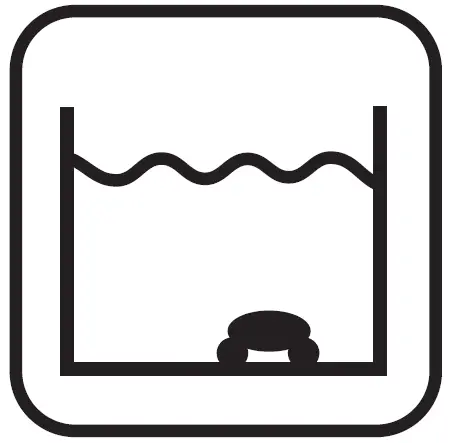

Cleaning action indicator Allowing you to choose from the following options.	Standard Floor and wall cleaning.(Default setting)	Ultra-clean Stronger suction and slower movement. (floor and wall)	Floor only Cleans only the floor and the area where the floor and walls meet	Walls only Cleans walls and waterline only (Except Dolphin 2×2 Gyro mode)

Note:

• After 2 minute if no button is pressed, the Remote Control Unit will shut-down and the Pool cleaner will continue to work in the previous settings.
• When the “Ultra-Clean” and “Walls Only” options finish their cycles, the Pool Cleaner will return to default settings.
