D-Link DUB-2335 6 In 1 USB-C Hub
D-Link DUB-2335 6 In 1 USB-C Hub
Product Highlights
True Gigabit Speed
Enjoy lightning-fast Gigabit speeds without the need for installing a new network card simply by using any available USB Type-C port on your Windows and macOS computers, Chromebooks, and iPad Pro
Easy Expansion
Easily add 4 x USB 3.0 ports to any laptop or computer with a spare USB-C port. Simply plug in, no need to install additional software
Ultra-Fast USB 3.0
SuperSpeed USB 3.0 technology allows you to transfer files up to 10 times faster than with USB 2.0
Features
High-Fidelity Video Compatibility
- Ultra HD video resolution up to 4K @ 30 Hz1
Gigabit Ethernet Connectivity
- Achieve transfer speeds of up to 1 Gbps
- Status LEDs for connection status and data transfer speed
- Auto 10/100/1000 Mbps speed detection with auto-negotiation to always use the highest available speed
Versatile and Convenient
- Three USB 3.0 SuperSpeed 5 Gbps ports
- One USB 3.0 Type-C port with data sync and power delivery of up to 60 W (20 V @ 3 A)2
- Simply plug-and-play, no software required
- Compact design
- Compatible with Windows and macOS computers, Chromebooks, and iPad Pro
The DUB-2335 6-in-1 USB-C Hub with HDMI/Gigabit Ethernet/Power Delivery instantly adds a second display, a Gigabit Ethernet port, three USB 3.0 ports, and a USB-C port with charging ability to your Windows and macOS computers, Chromebooks, and iPad Pro. Just plug the DUB-2335 into an available USB-C port, and you’re ready to send content to your TV or monitor in full resolution with the reliability of a wired video connection. You can also connect up to three USB devices and sync and charge one USB-C device, meaning that you don’t have to give up that USB-C port this hub is connected.

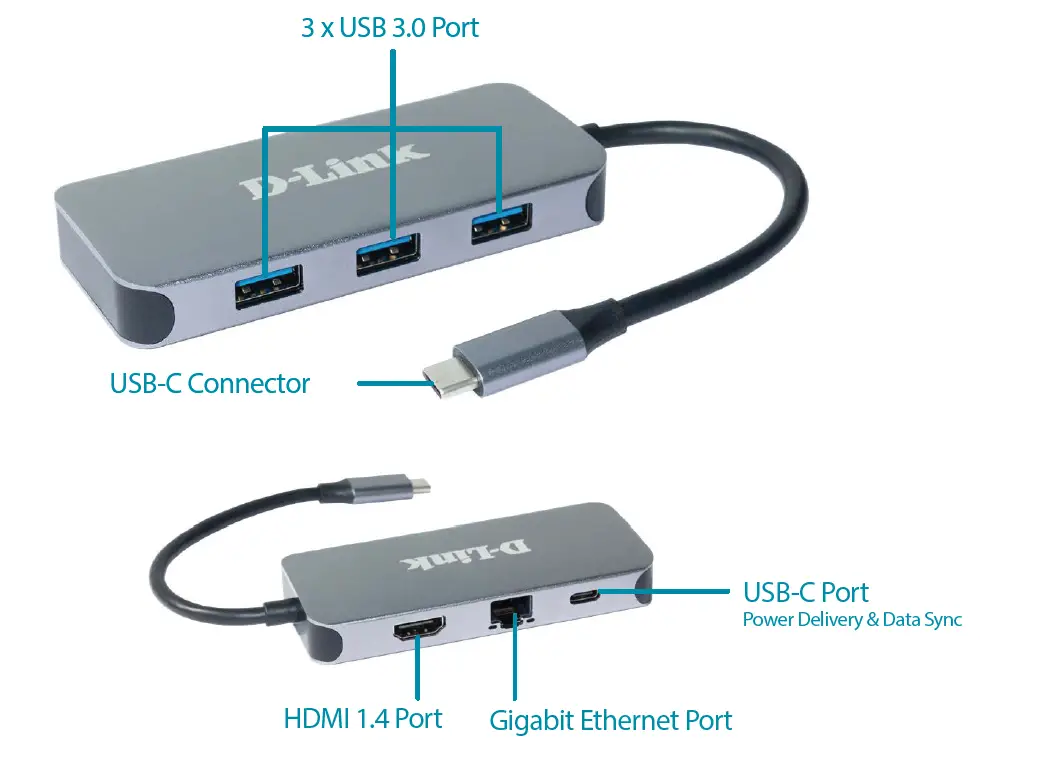

Hardware Overview
Technical Specifications
| Technical Specifications | ||
| Connectivity | ||
| Interfaces | • One USB Type-C connector • Three USB 3.0 Type-A ports • One USB Type-C/PD 3.0 port | • One HDMI port • One RJ-45 Ethernet port (10/100/1000 Mbps) |
| LEDs | • Power (per device) • Solid green – power is on | • Link (per Ethernet port) • Solid green – Ethernet connection • Speed (per Ethernet port) • Flashing orange – data transmission |
| General | ||
| Standards | • USB 3.0 • USB 2.0 • USB 1.1 • IEEE 802.3 10Base-T | • IEEE 802.3u 100Base-TX • IEEE 802.3ab 1000Base-T • Pause mode • Wake-on-LAN |
| Data rate | • Up to 5 Gbps | • Up to 1000 Mbps (Ethernet) |
| Resolution | • 4K @ 30 Hz | |
| System requirements | • Windows 7/8/8.1/10, macOS (OS X 10.8 and above) • Chromebook, iPad Pro | • USB Type-C port |
| Physical | ||
| Dimensions (W x H x D) | • 103 x 45.5 x 15 mm | |
| Weight | • 80 g | |
| Power | • From a computer (USB bus powered) | |
| Supplied charging voltage/current | • 20 V / 3 A (PD 3.0) | |
| Temperature | • Operating: 0 to 45 °C | • Storage: -10 to 70 °C |
| Humidity | • Operating: up to 85% non-condensing | • Storage: up to 85% non-condensing |
| Certifications | • CE | |
Please make sure that the USB Type-C port of your computer supports DP Alt (DisplayPort Alternate Mode).
Please make sure that the USB Type-C port of your laptop supports PD 3.0.
For more information: eu.dlink.com
D-Link (Deutschland) GmbH, Schwalbacher Strasse 74, 65760 Eschborn, Germany
D-Link (Europe) Ltd, Artemis Building, Odyssey Business Park, West End Road, South Ruislip HA4 6QE, United Kingdom
Specifications are subject to change without notice. D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries. All other trademarks belong to their respective owners. ©2019 D-Link Corporation. All rights reserved. E&OE.
Updated April 2022
